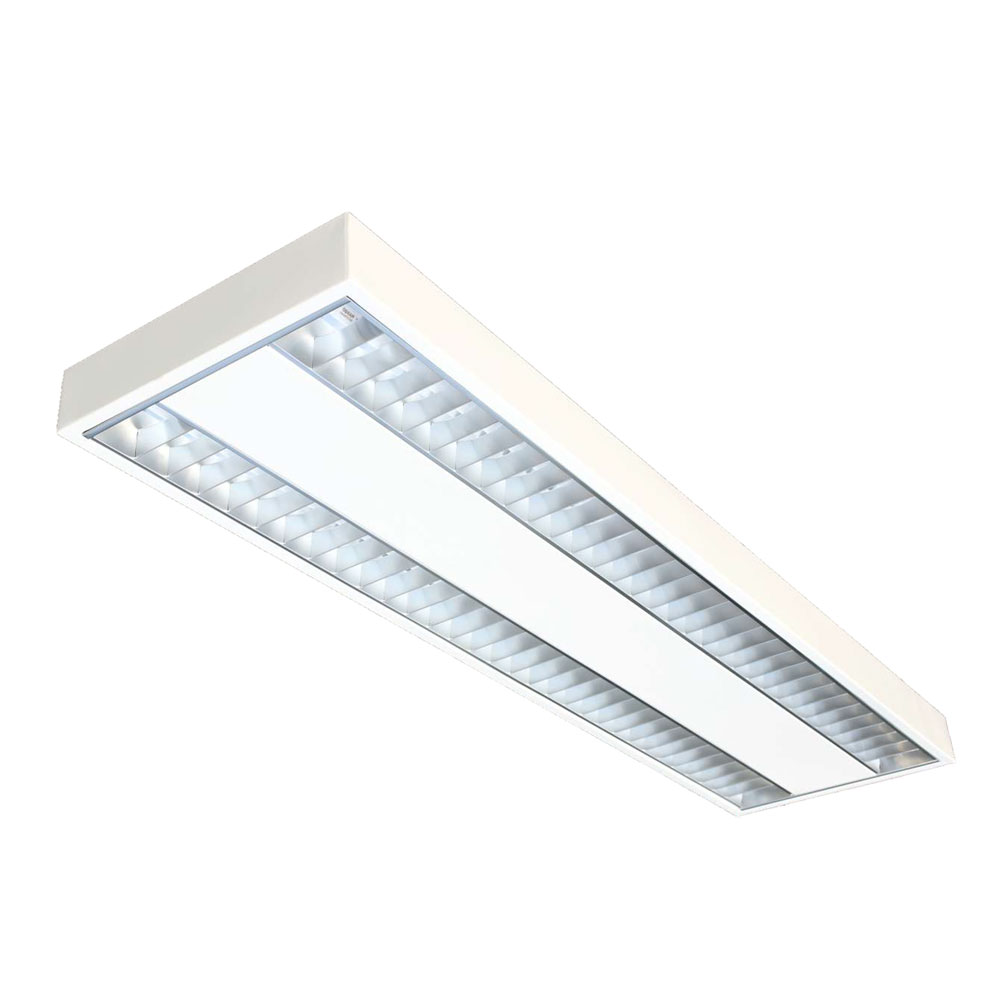

SM Louvered Troffer Light
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Lifetime 50,000 hours
- CRI: 80, IP40
- High luminous efficacy 100 lm/W
- Driver: Tridonic, No Flickering
- Material: Aluminium
Technical specifications
| Model | Power (W) | Size (mm) | Lumen (lm) | Efficiency (lm/W) | Driver | CRI (Ra) | CCT (K) | Viewing Angle | IP Class |
|---|---|---|---|---|---|---|---|---|---|
| LU-SM-12-36W | 36 | 1200×295×42 | 3600 | 100 | Tridonic | 80 | 3000 4000 6000 | 100° | IP40 |
| LU-SM-12-45W | 45 | 1200×295×42 | 4500 | 100 | Tridonic | 80 | 3000 4000 6000 | 100° | IP40 |
| LU-SM-15-48W | 48 | 1500×295×42 | 4800 | 100 | Tridonic | 80 | 3000 4000 6000 | 100° | IP40 |
