LED TPD Series
Industry Lighting
Features
- Low consumption; more than 80% saving of the power
- Lifetime 50,000 hours
- IP66, IK10
- High luminous efficiency 150 lm/W
- Driver: Tridonic or OSRAM, LED: SMD 2835
- Material: Stainless steel + PC cover
- Self-wiring / linkable optional
Technical specifications

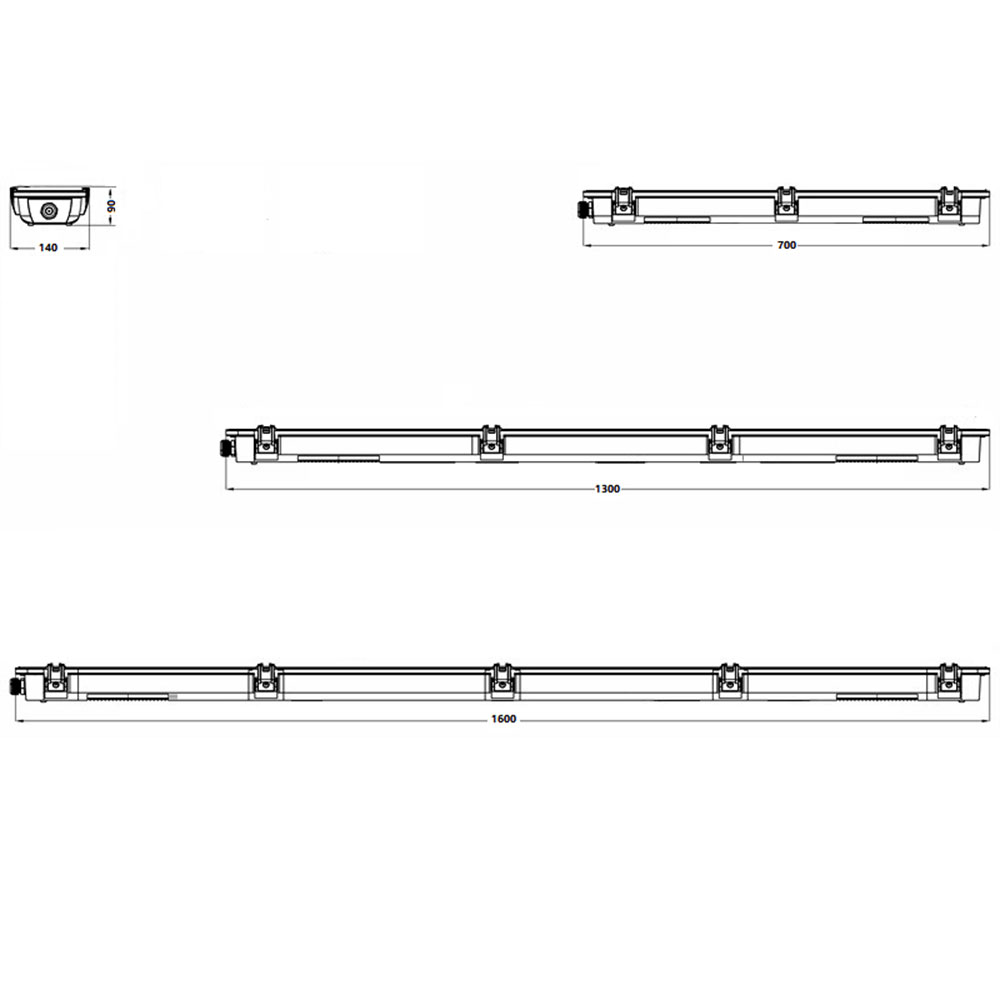

| Model | Power (W) | Size (mm) | Luminous Efficiency (lm/W) | Material | Driver | LED Type | CRI (Ra) | CCT (K) | Beam Angle | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-TPD-20W | 20 | 700×140×90 | 150 | Stainless Steel + PC | Tridonic/OSRAM | SMD 2835 | 80 | 2700–6500 | 120° | IP66 |
| LU-TPD-40W | 40 | 1300×140×90 | 150 | Stainless Steel + PC | Tridonic/OSRAM | SMD 2835 | 80 | 2700–6500 | 120° | IP66 |
| LU-TPD-60W | 60 | 1600×140×90 | 150 | Stainless Steel + PC | Tridonic/OSRAM | SMD 2835 | 80 | 2700–6500 | 120° | IP66 |
