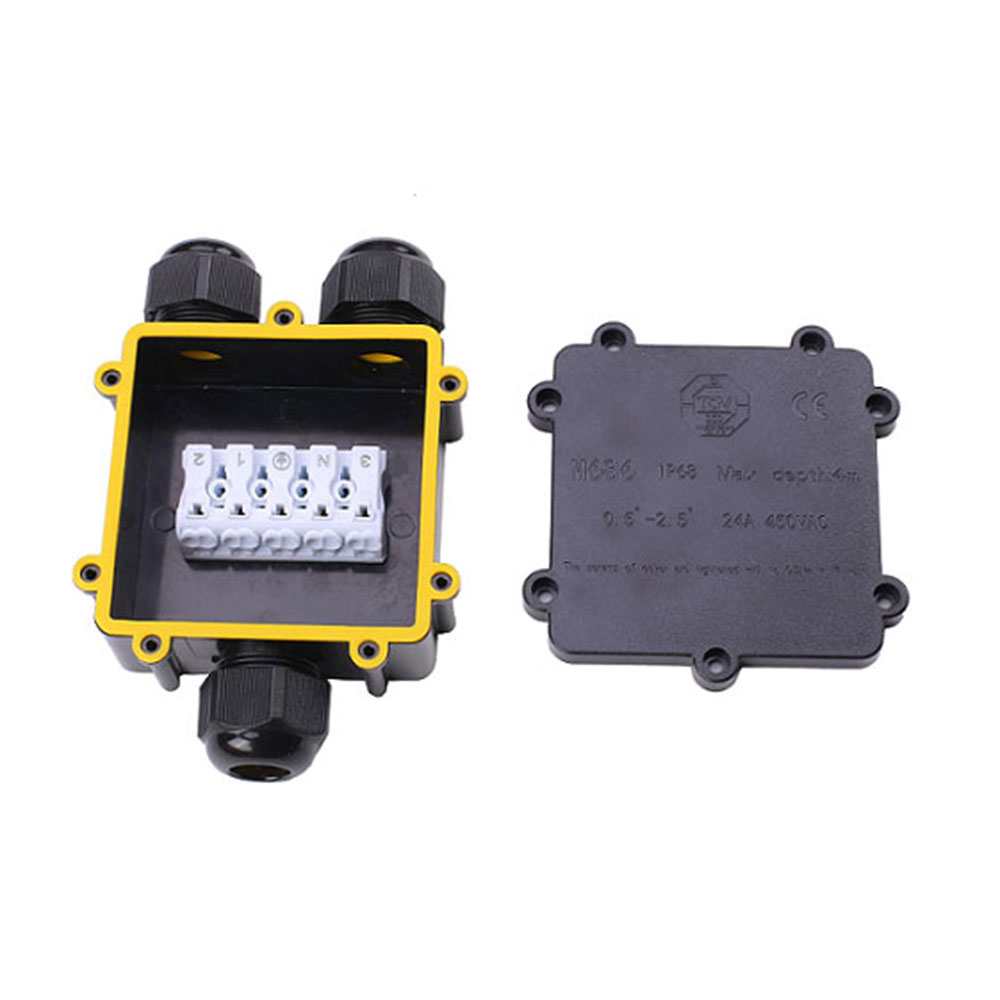

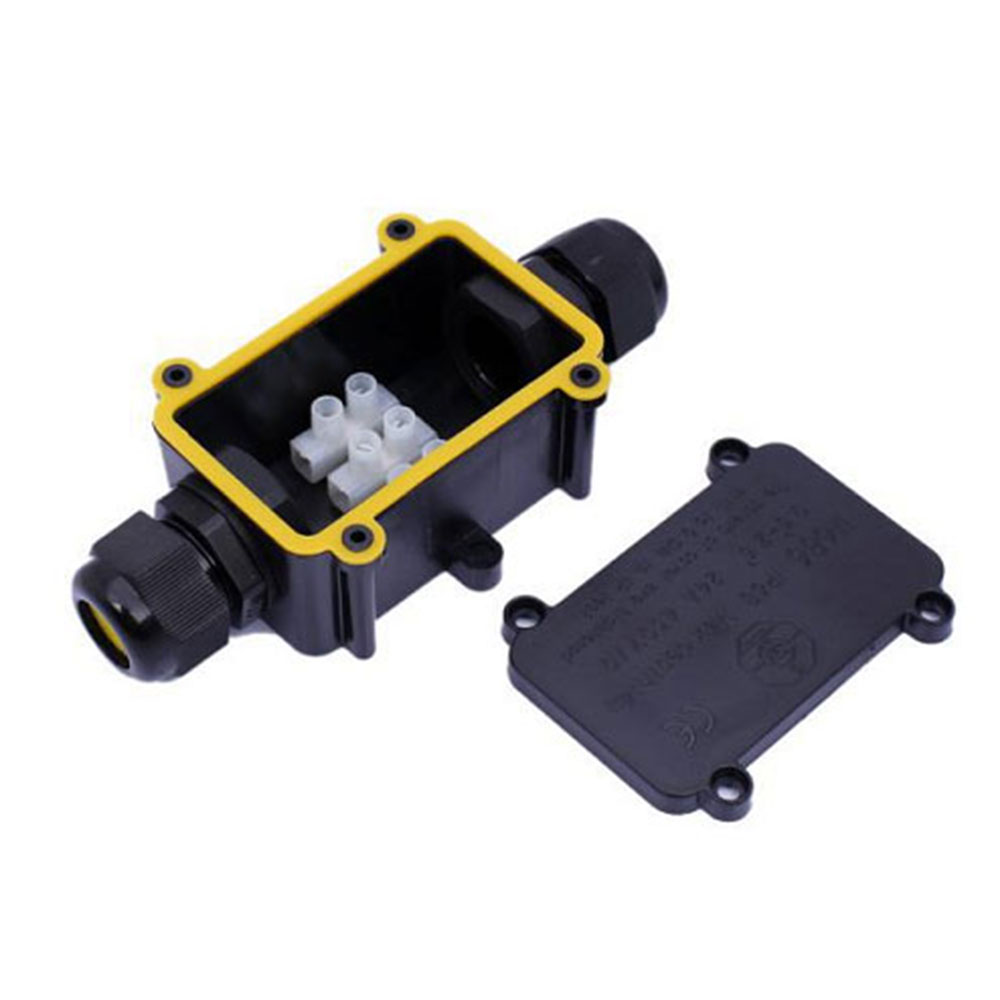

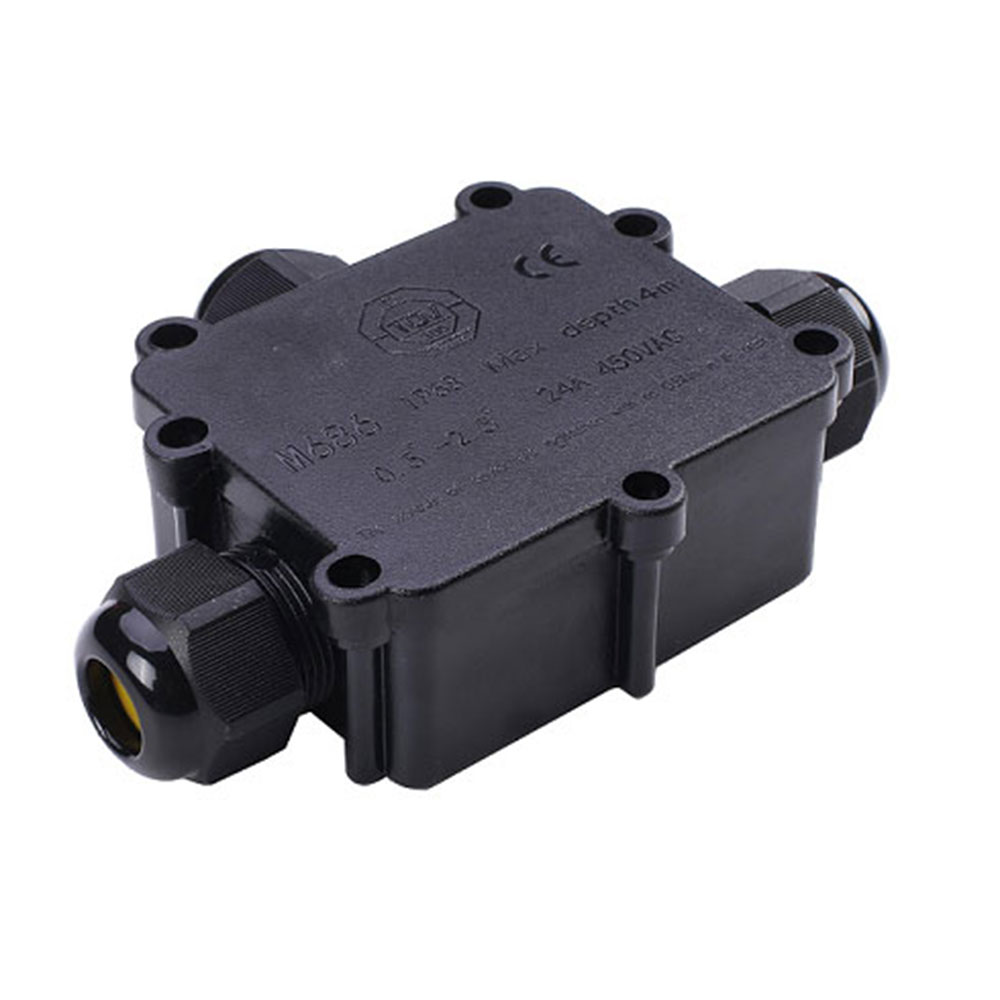

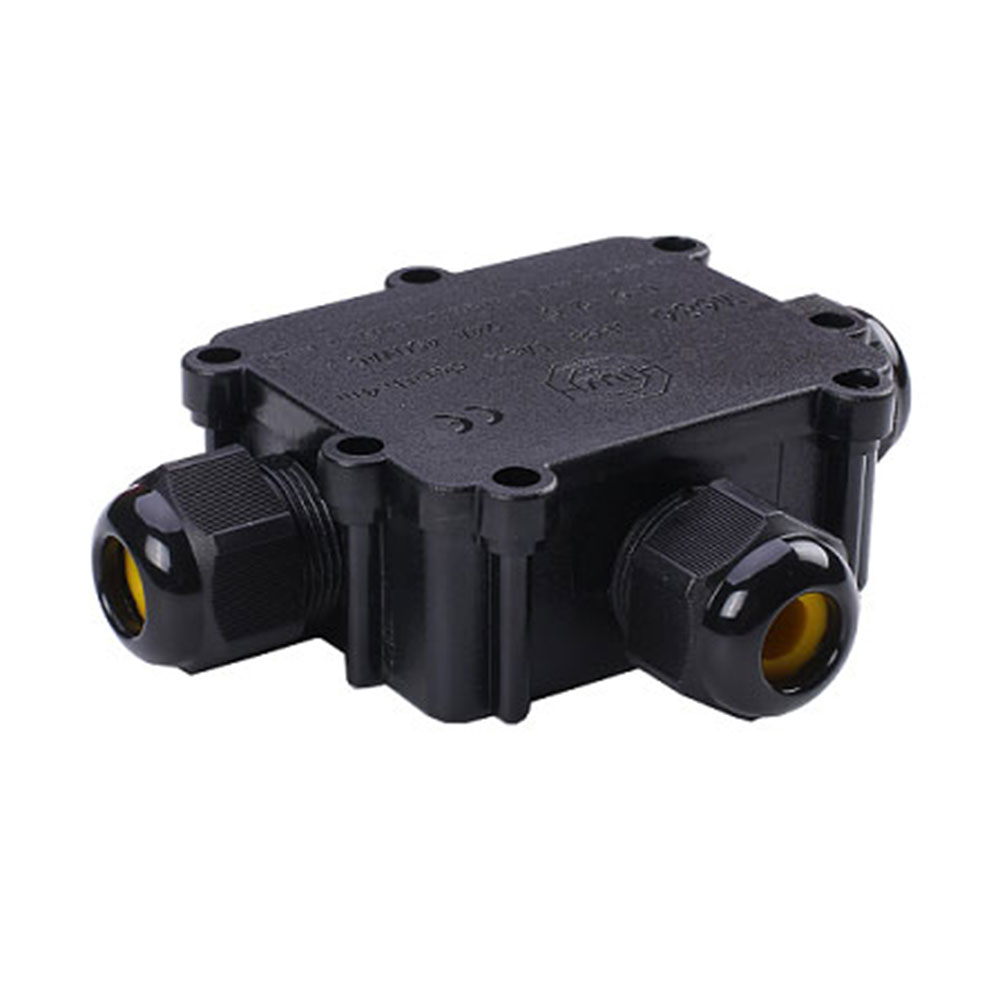

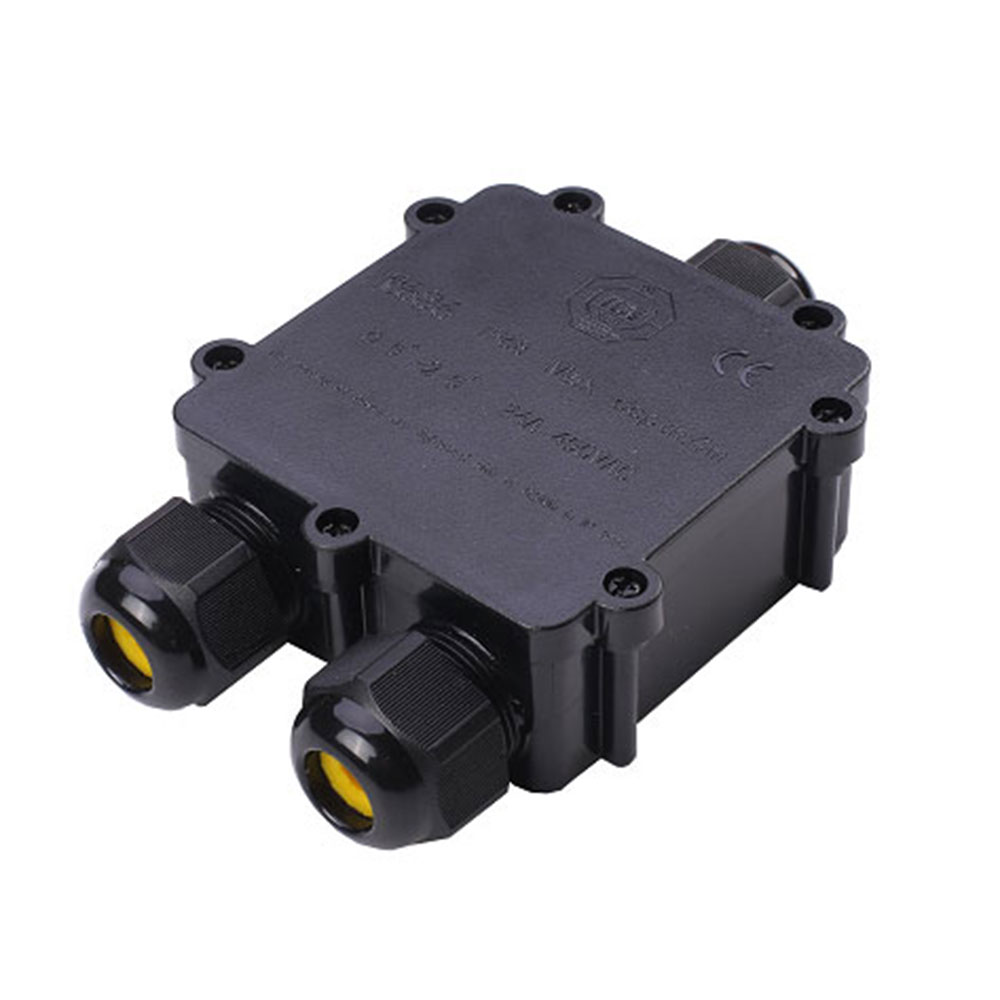

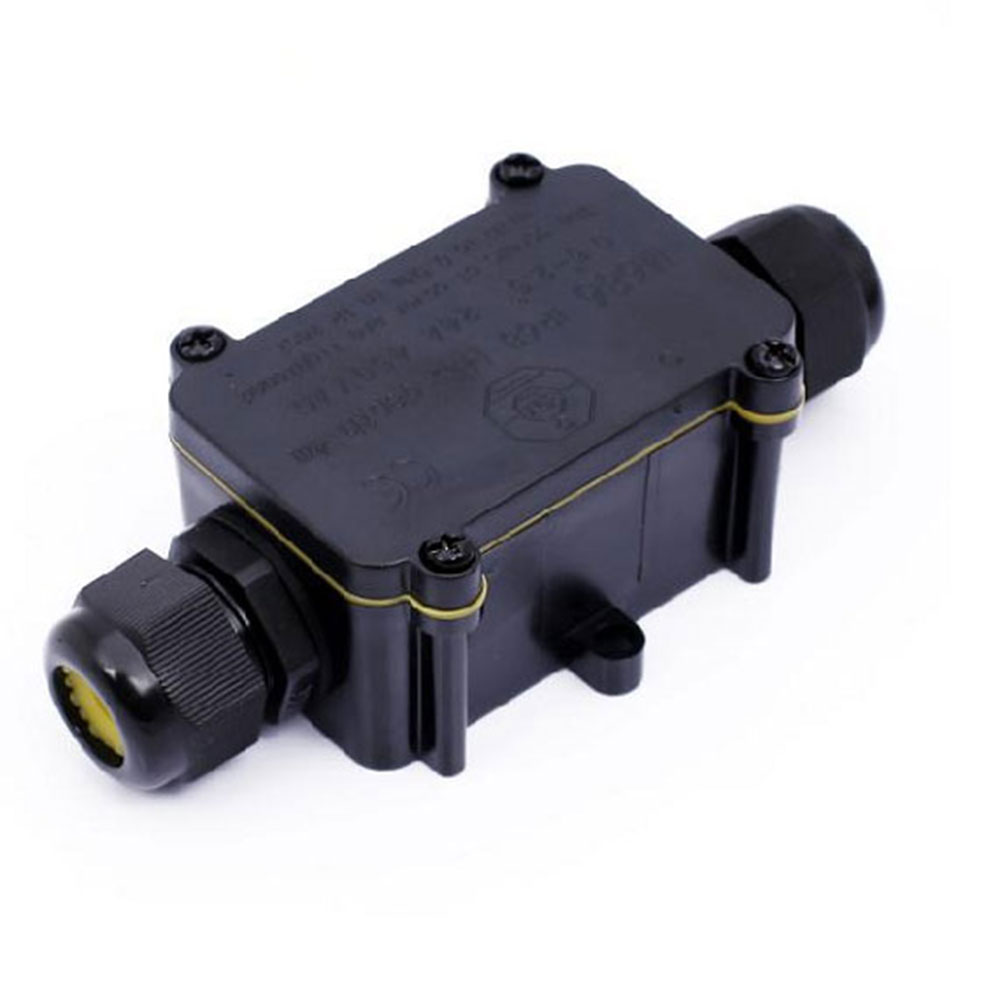

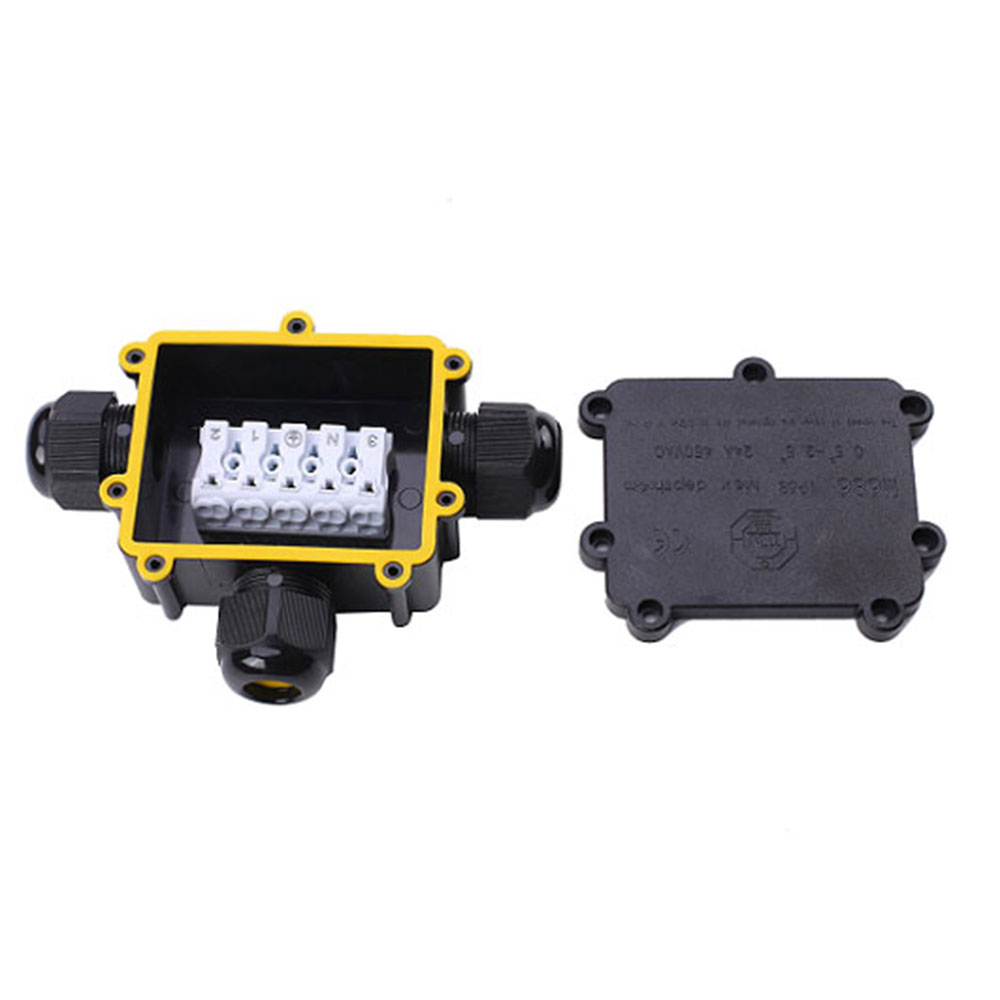

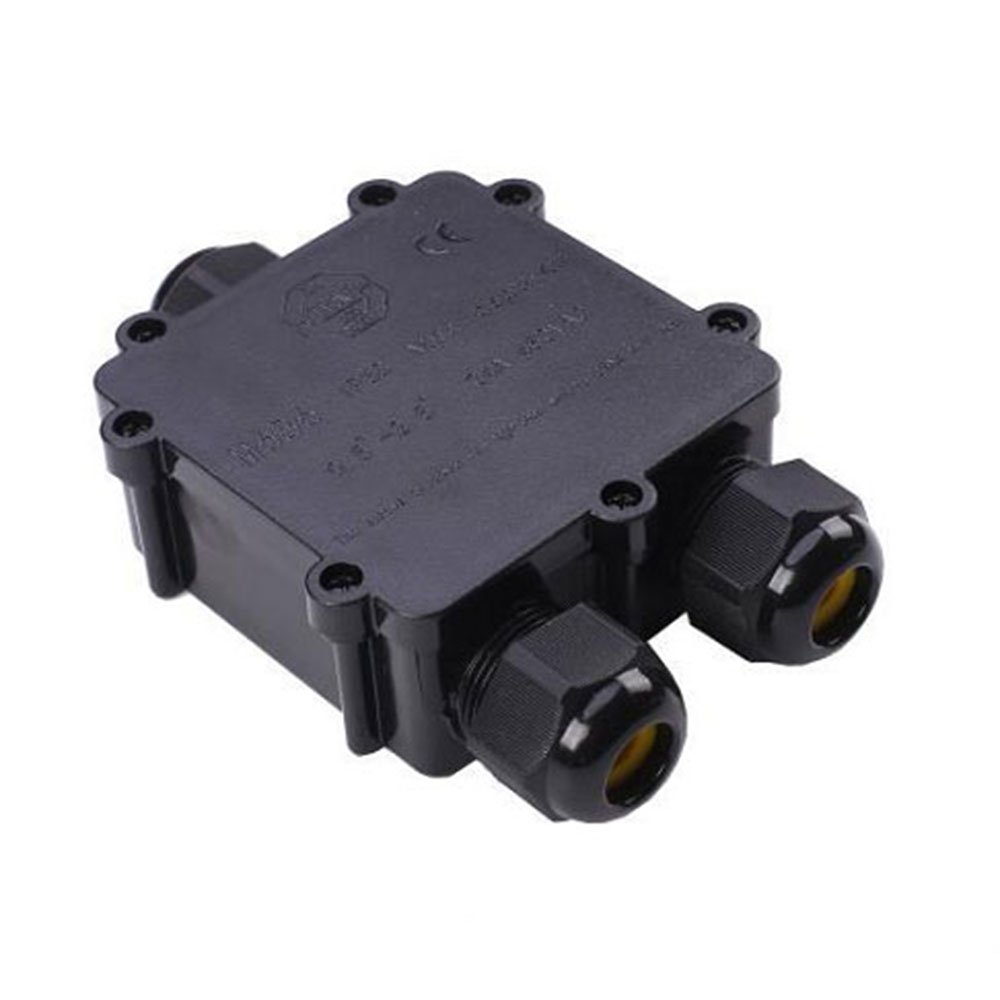

Waterproof Junction Box
Industry Lighting
Features
- Housing Material: PC 94V-2
- Conductor: Brass
- Rated: 24A 450VA
- Working Temperature: T60
- Certification: TUV/CE/ROHS
- Application: Outdoor & underwater
- IP68
Technical specifications
| Model | Type | Rated connecting capacity | Available cable diameter | IP Rating |
|---|---|---|---|---|
| M686-2 | 2 holders | 0.5–2.5 mm² | 5–9 mm & 9–12 mm | IP68 |
| M686-T | 1 in 2 out | 0.5–2.5 mm² | 4–8 mm & 8–12 mm & 10–14 mm | IP68 |
| M686-Y | 1 in 2 out | 0.5–2.5 mm² | 4–8 mm & 8–12 mm & 10–14 mm | IP68 |
