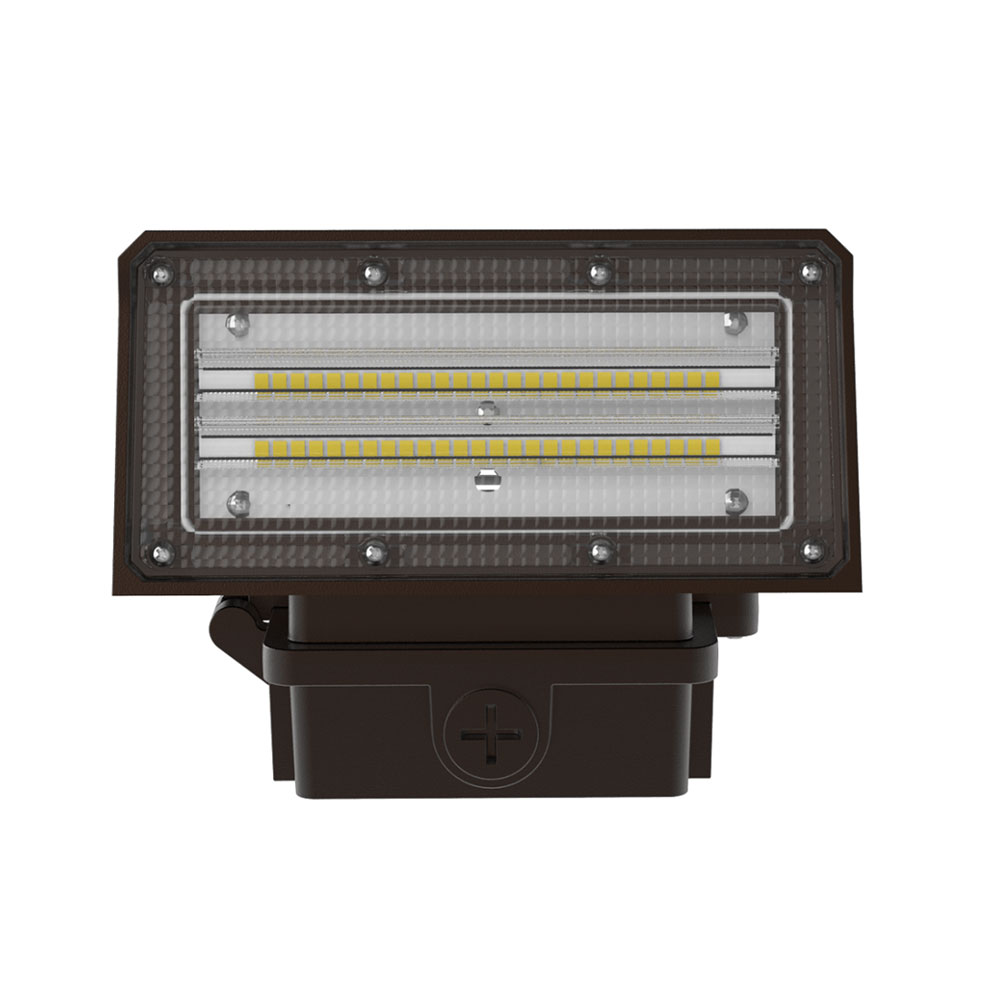

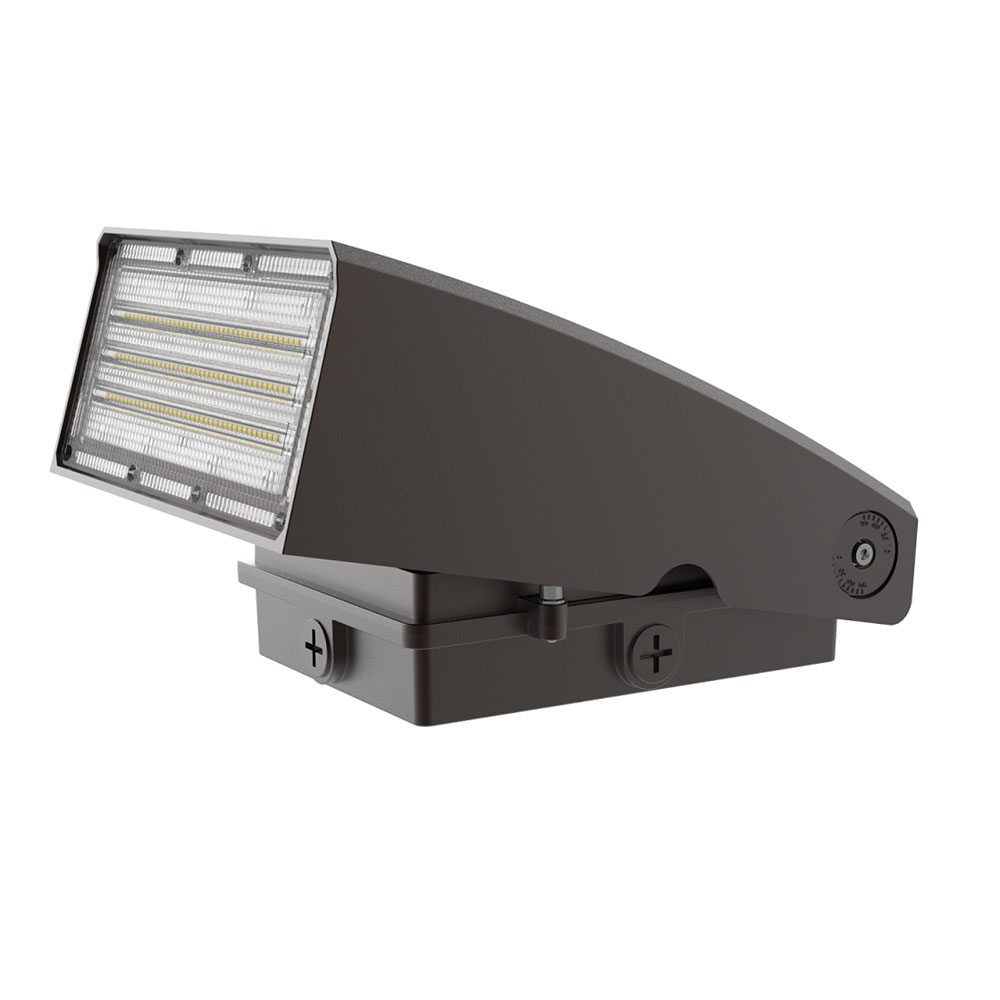

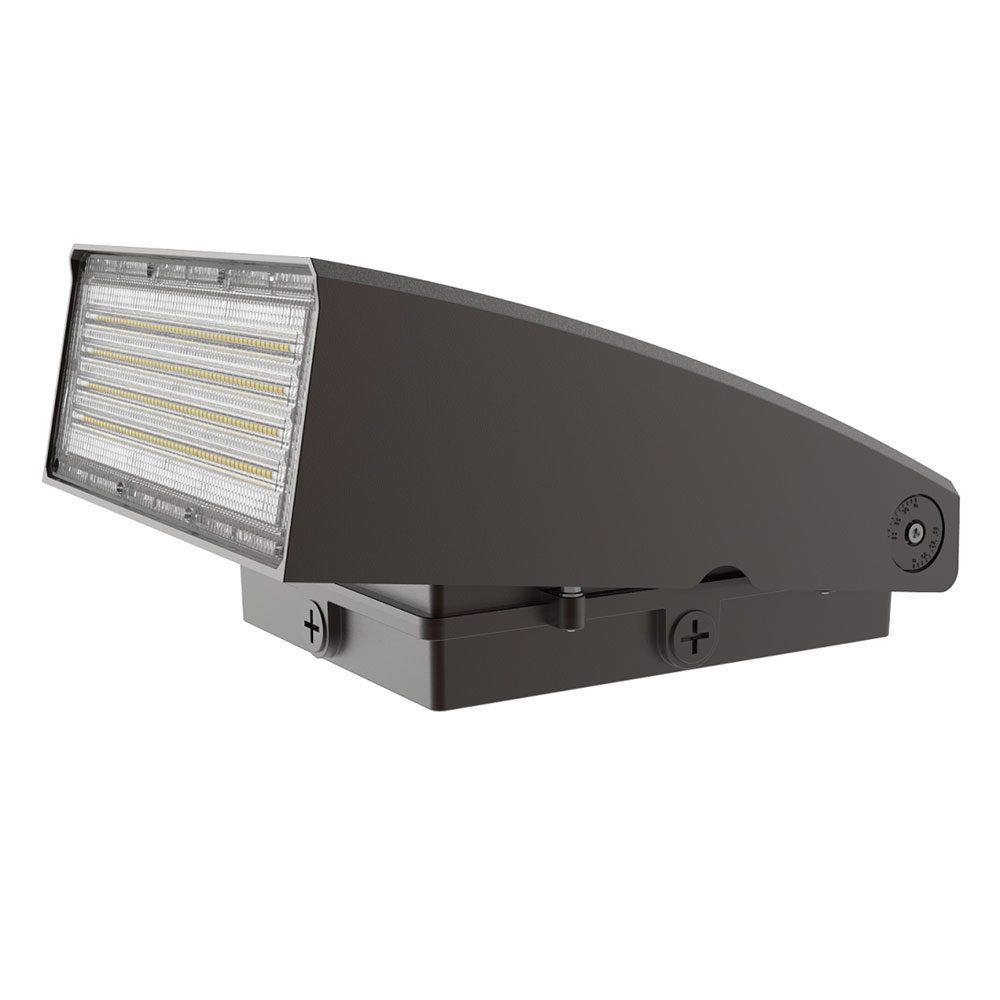

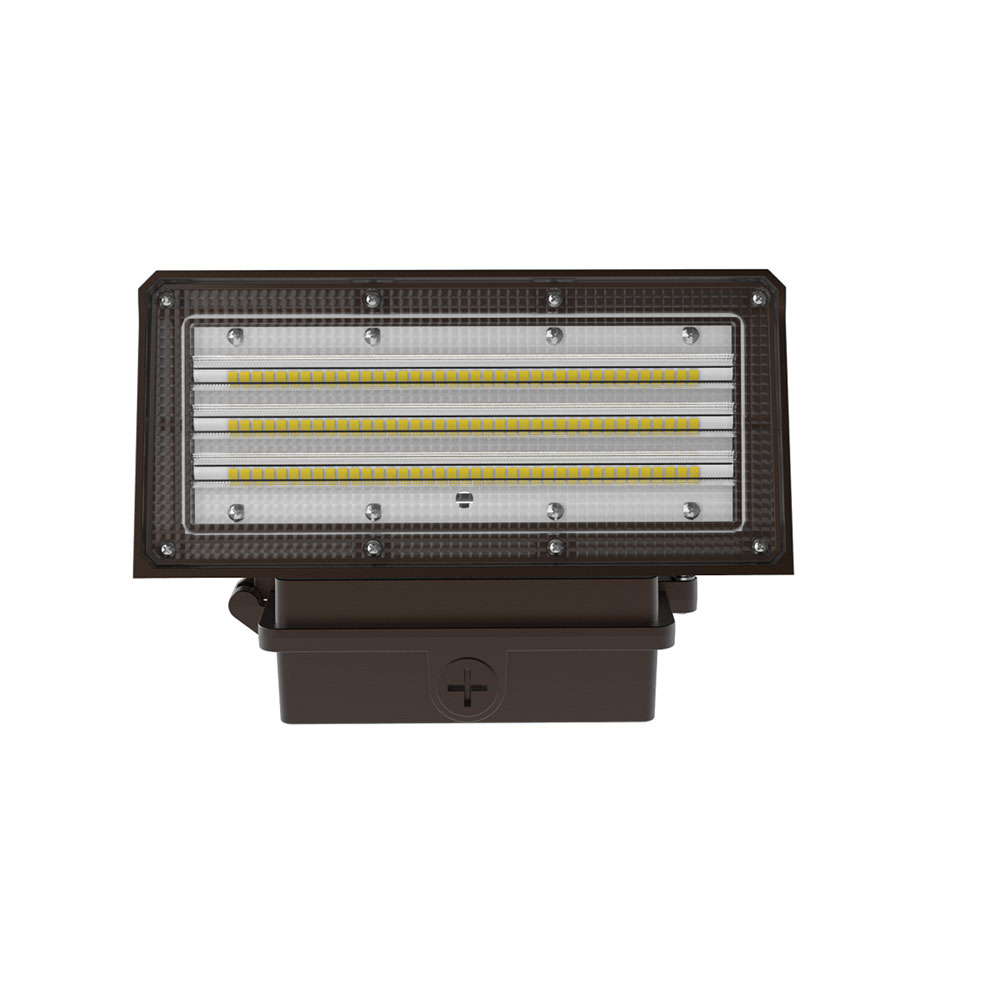

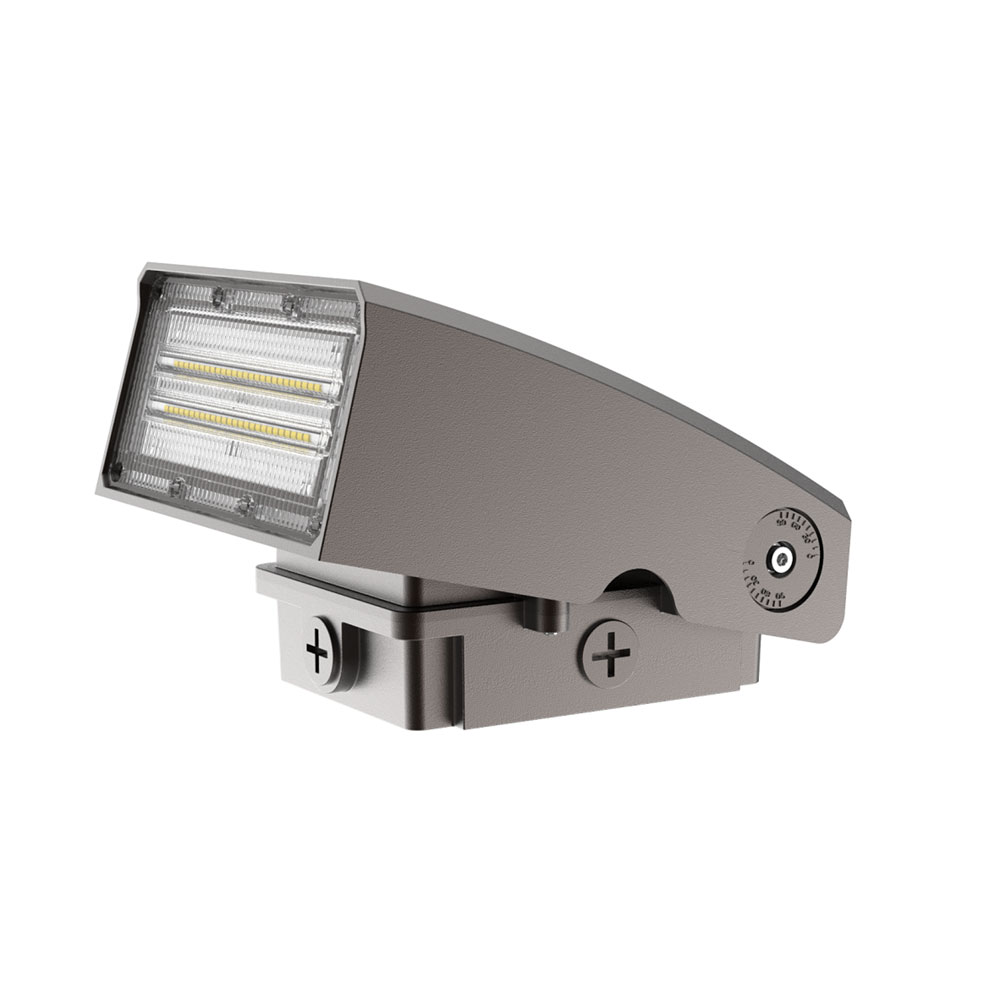

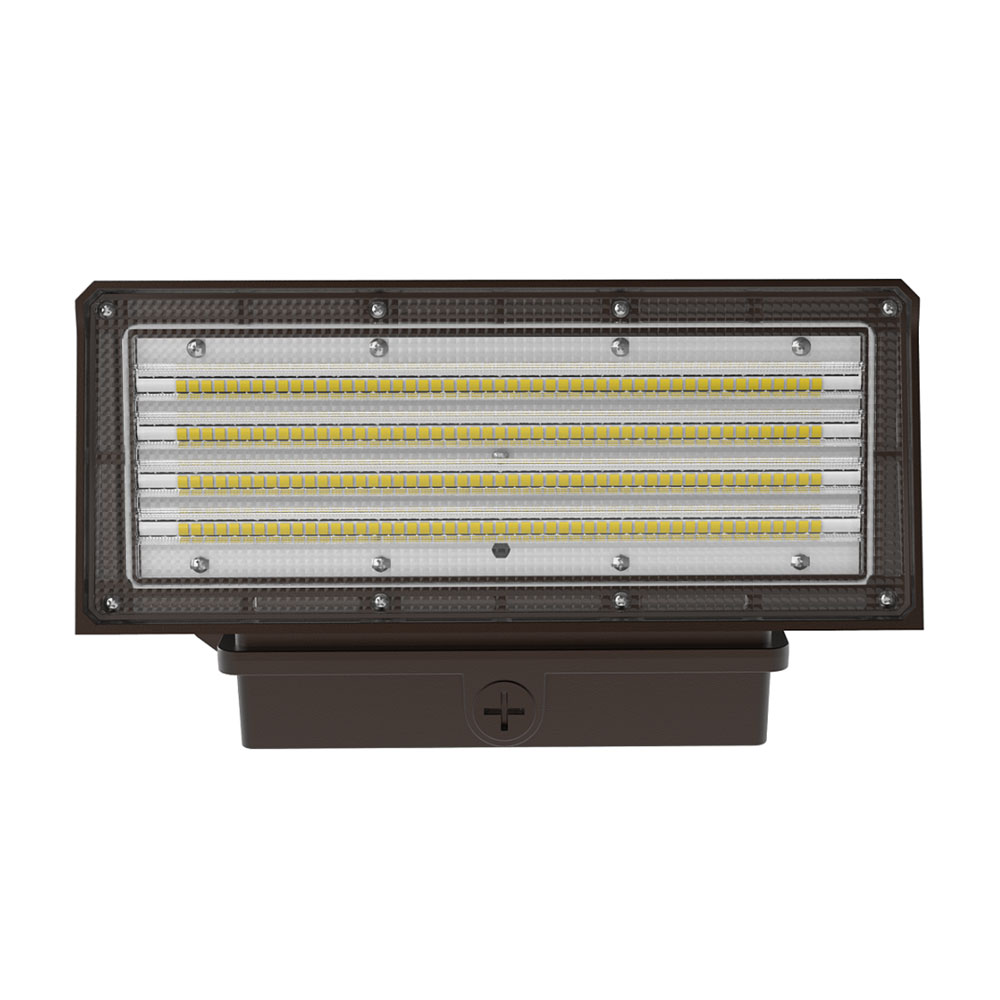

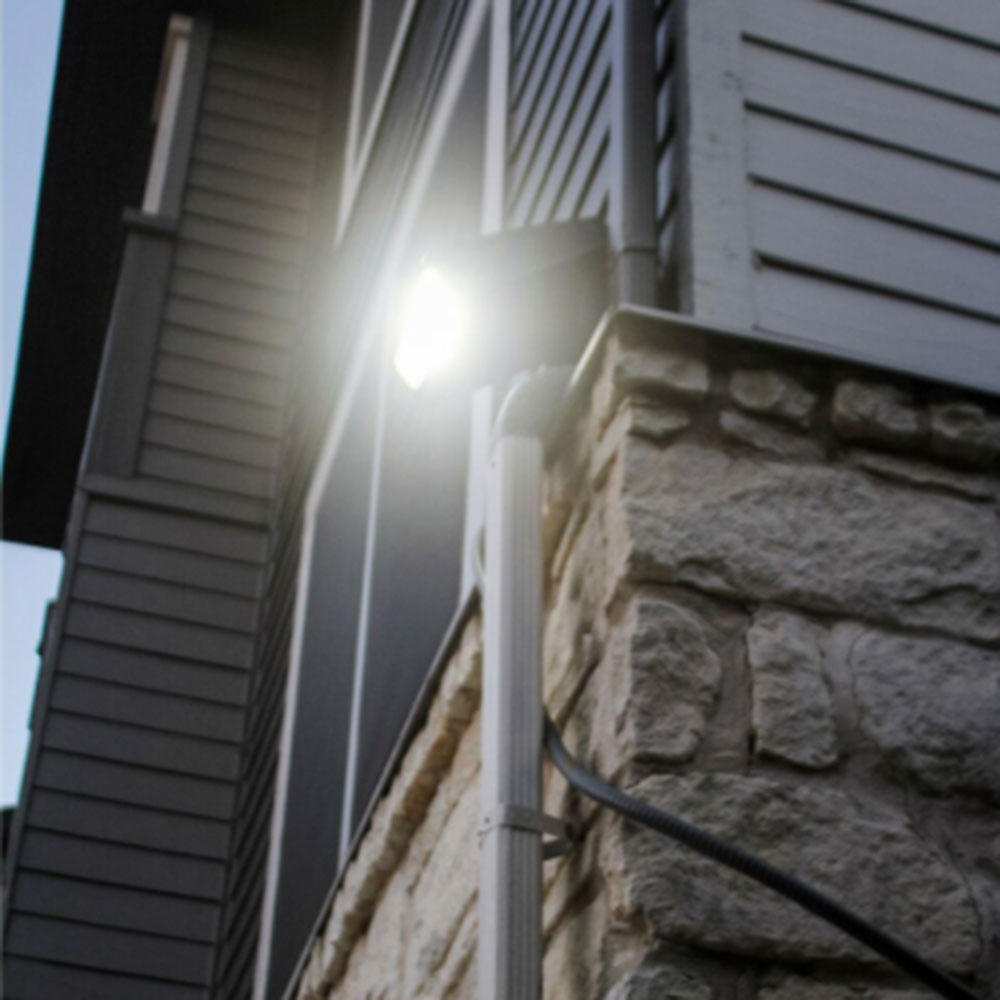

Led Wallpack light Rotatable
Outdoor Lighting
Features
- Operation Temp: -40℃~50℃
- Efficiency: 100–150 lm/W

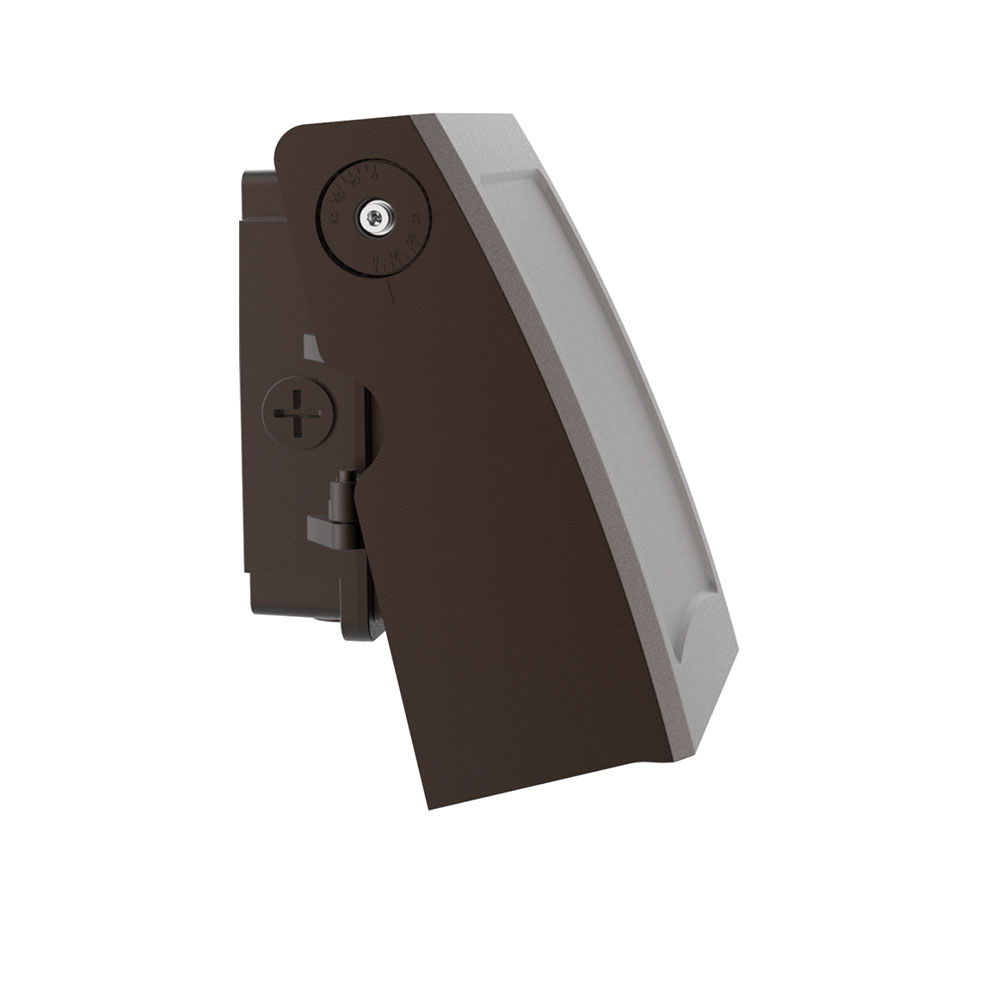

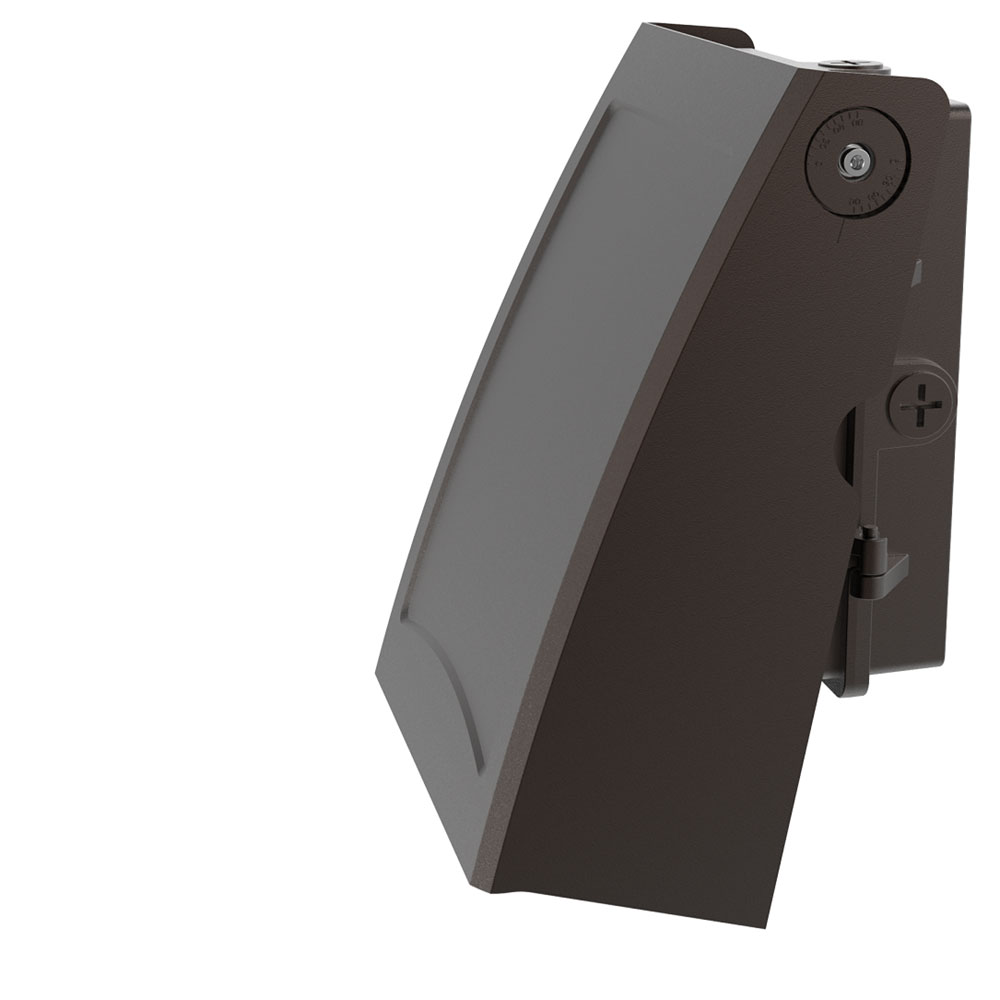

- Asymmetric Optics design, 0–90° rotatable
- Life Span 50,000 hours (Ta=30℃@L70)
- Dimming & Motion Sensor optional
- Lamp finish: Bronze / Black / White
- Body: Cast aluminum, Optic: Polycarbonate lens
- IES: TYPE III (U04201 or R08401)
Specifications
| Model | Power (W) | Size (mm) | Efficiency | Material | Driver | LED Type | CRI (Ra) | CCT (K) | Beam / IES | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-WLR-10 | 10 | 205×165×98 | 100–150 | Cast Alu. + PC optic | Meanwell/Hahga | SMD LED | 80 | 2100 3000 4100 5000 5700 | TYPE III | IP66 |
| LU-WLR-10 | 20 | 205×165×98 | 100–150 | Cast Alu. + PC optic | Meanwell/Hahga | SMD LED | 80 | 2100 3000 4100 5000 5700 | TYPE III | IP66 |
| LU-WLR-10 | 30 | 205×165×98 | 100–150 | Cast Alu. + PC optic | Meanwell/Hahga | SMD LED | 80 | 2100 3000 4100 5000 5700 | TYPE III | IP66 |
| LU-WLR-50 | 50 | 280×216×110 | 100–150 | Cast Alu. + PC optic | Meanwell/Hahga | SMD LED | 80 | 2100 3000 4100 5000 5700 | TYPE III | IP66 |
| LU-WLR-50 | 70 | 280×216×110 | 100–150 | Cast Alu. + PC optic | Meanwell/Hahga | SMD LED | 80 | 2100 3000 4100 5000 5700 | TYPE III | IP66 |
| LU-WLR-100 | 100 | 330×267×124 | 100–150 | Cast Alu. + PC optic | Meanwell/Hahga | SMD LED | 80 | 2100 3000 4100 5000 5700 | TYPE III | IP66 |
