LED Big Round Panel
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Lifetime 50,000 hours
- 6063 aluminum extrusion with good heat-dissipation
- CRI: 80, IP40 protection class
- High luminous efficacy 80–90 lm/W
- High Quality LIFUD Driver, flicker free

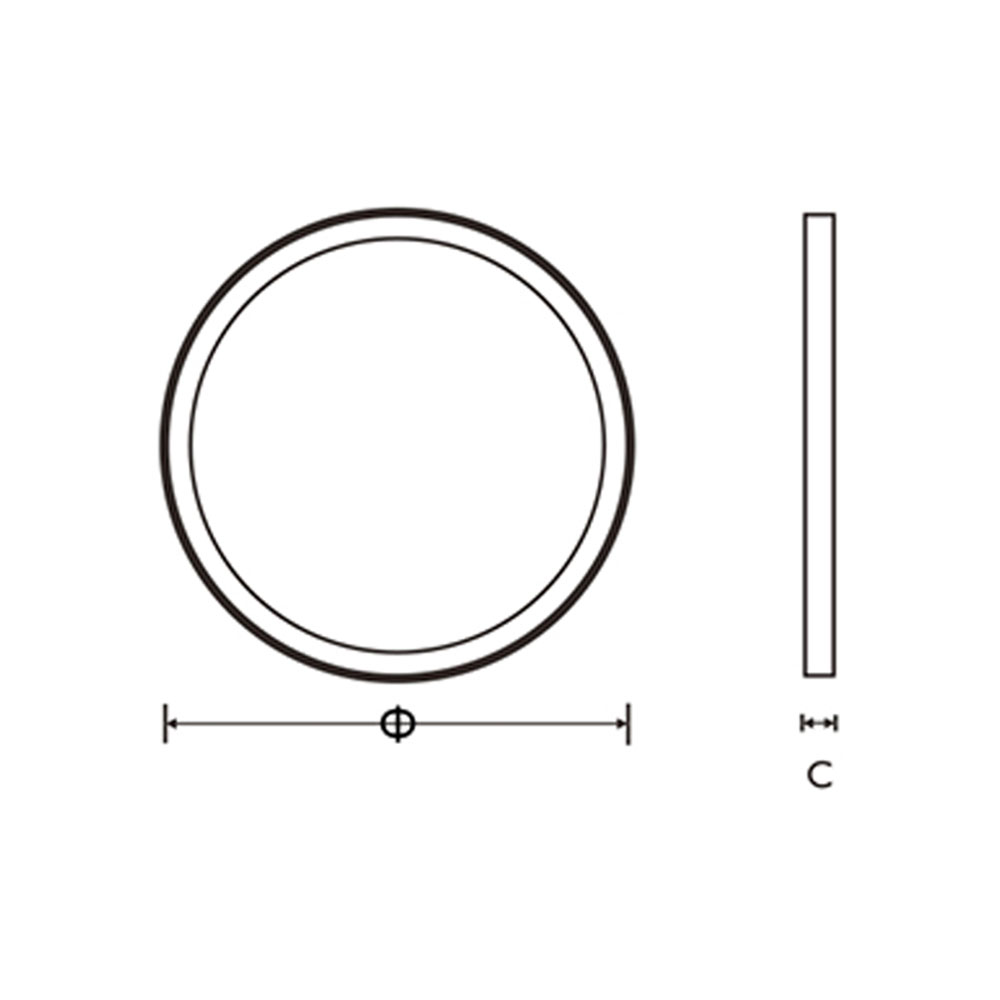

- Diameter 600 mm, 1000 mm, 1200 mm optional
Technical specifications
| Model | Power (W) | Size (mm) | Luminous Efficiency (lm/W) | LGP Material | CRI (Ra) | CCT (K) | Beam Angle | IP Class |
|---|---|---|---|---|---|---|---|---|
| LU-R500-36W | 36 | 500×20 | 85–95 | PMMA | 80 | 3000 4000 6000 | 120° | IP40 |
| LU-R600-48W | 48 | 600×20 | — | PMMA | 80 | 3000 4000 6000 | 120° | IP40 |
| LU-R780-72W | 72 | 780×20 | — | PMMA | 80 | 3000 4000 6000 | 120° | IP40 |
| LU-R1000-96W | 96 | 1000×20 | — | PMMA | 80 | 3000 4000 6000 | 120° | IP40 |
| LU-R1200-120W | 120 | 1200×20 | — | PMMA | 80 | 3000 4000 6000 | 120° | IP40 |
