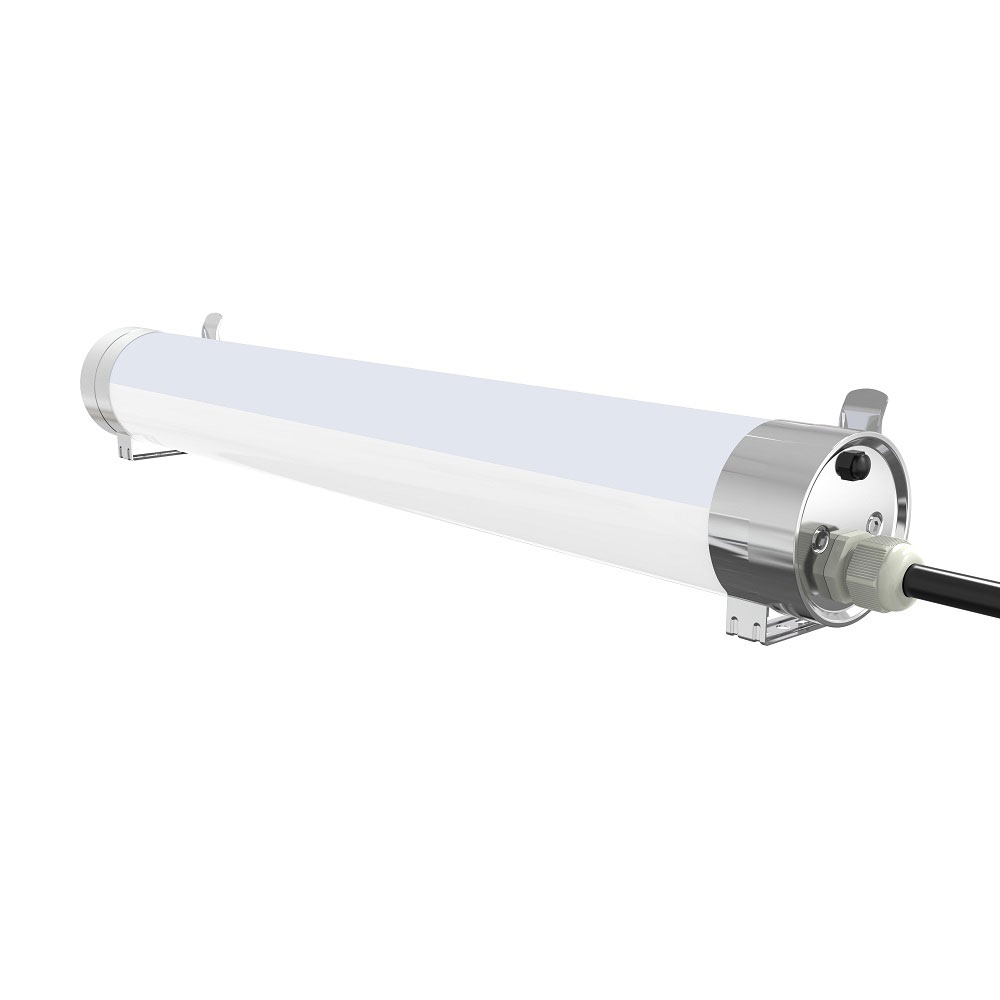

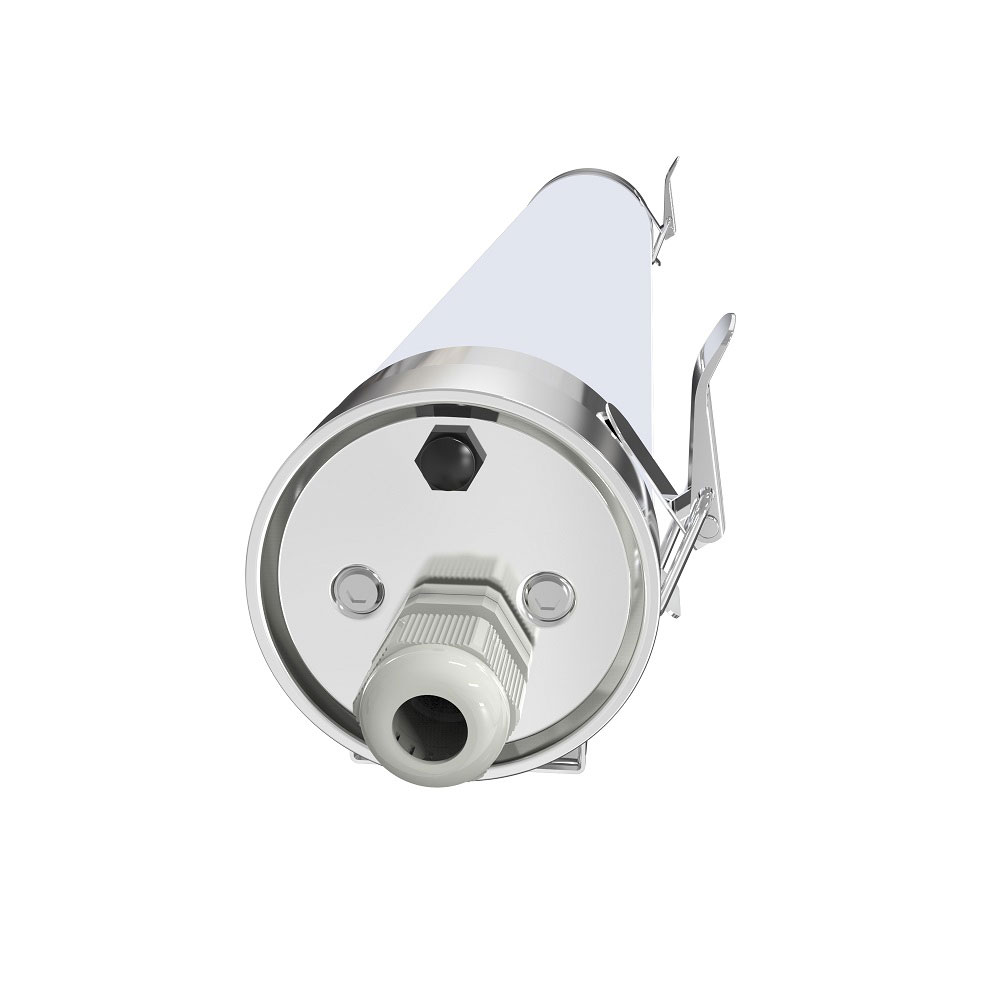

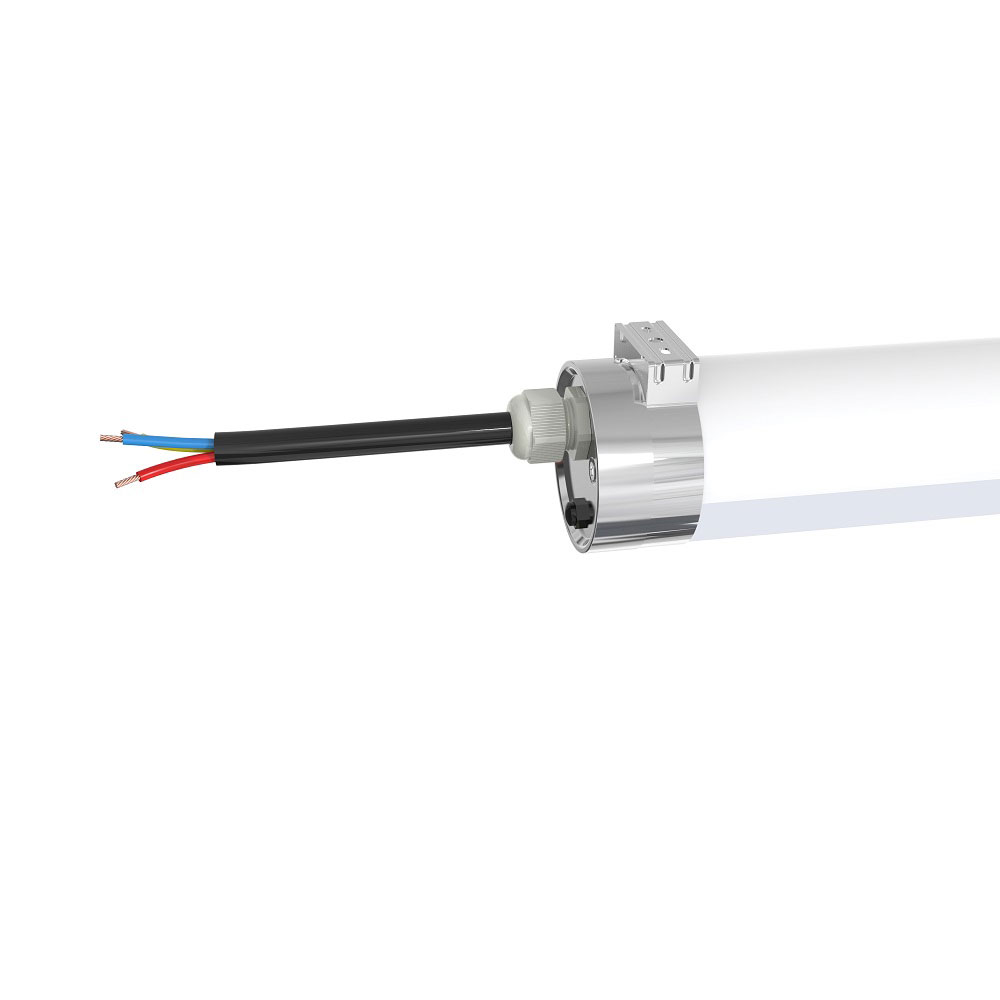

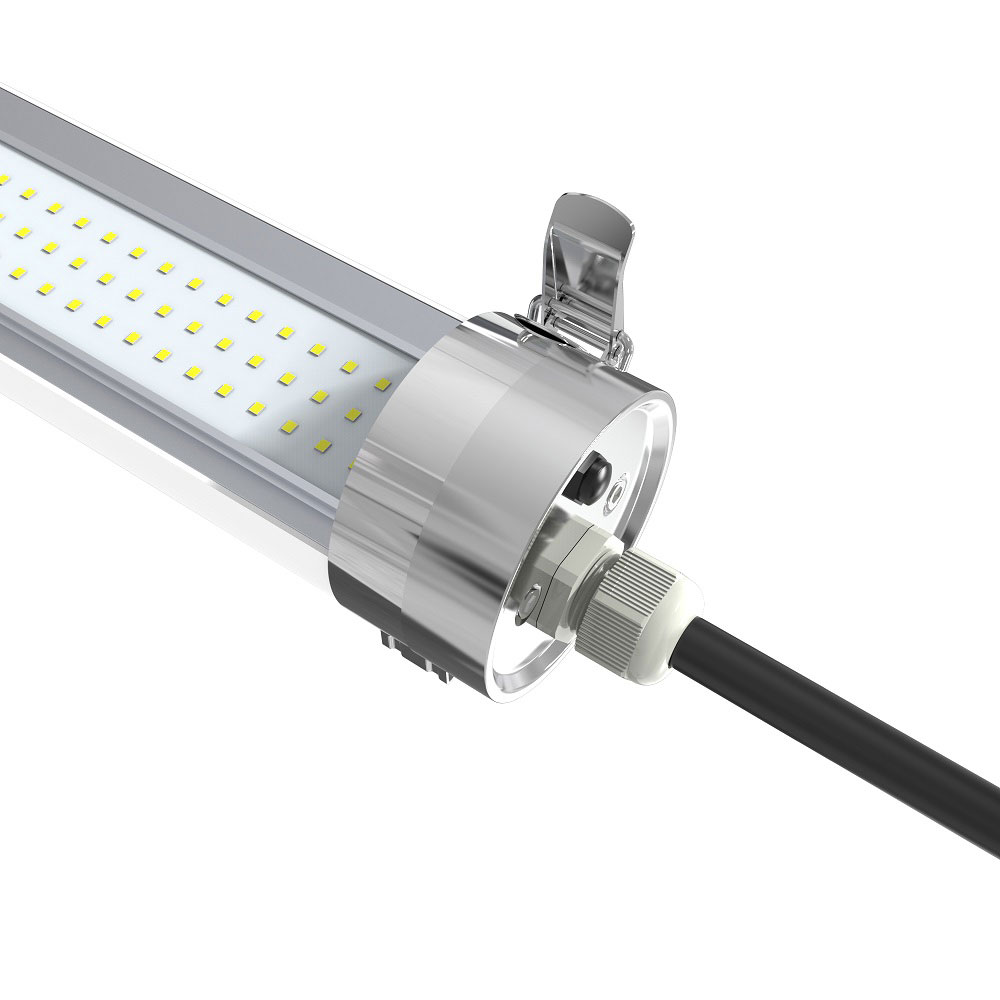

LED TPH Series
Industry Lighting
Features
- Low consumption
- More than 80% saving of the power
Specifications

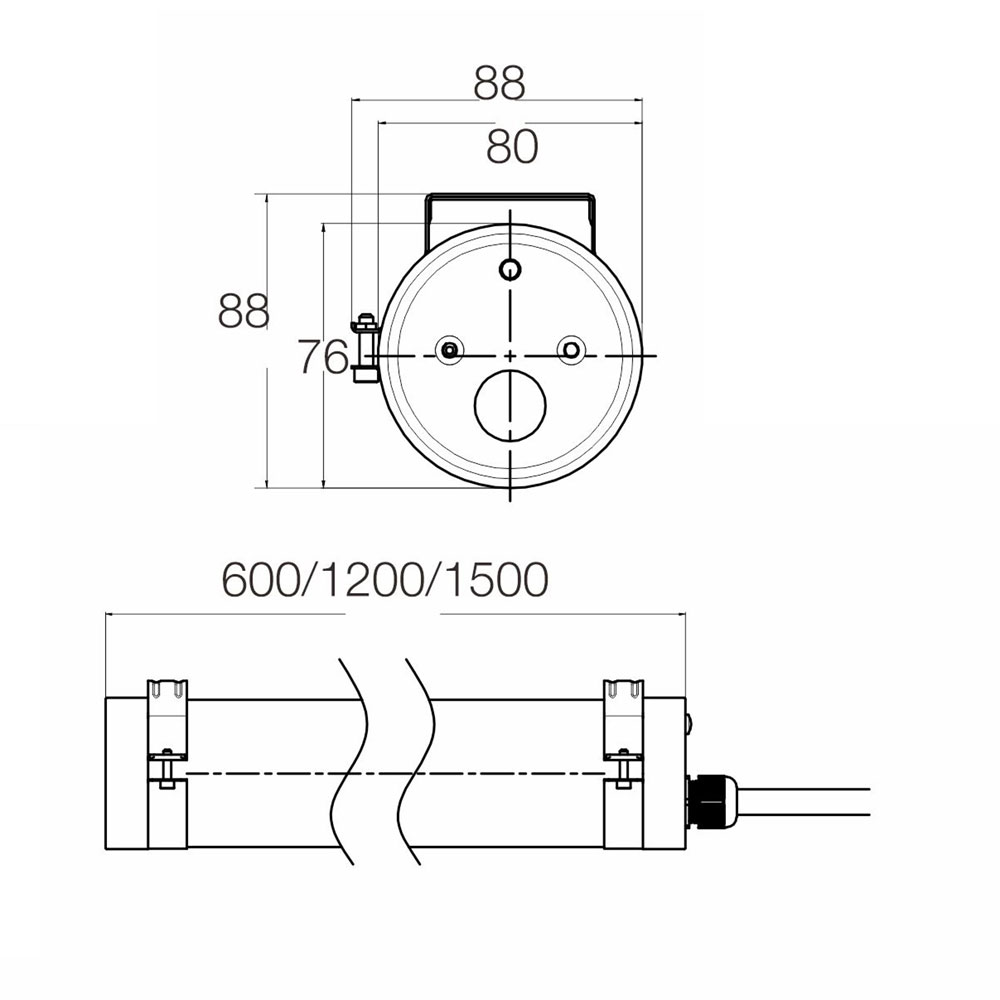

| Model | Power(W) | Size(mm) | LuminousEfficiency(lm/W) | Material | Driver | LED Type | CRI(Ra) | CCT(K) | Beam Angle | IP |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-TPH-06 | 10W/20W | 600*Φ76 | 130 lm/W | PC | Tridonic/Osram/Hahga | SMD2835 | 70/80/90 | 2700K-6500K | 180° | IP66 |
| LU-TPH-12 | 20W/40W | 1200*Φ76 | 130 lm/W | PC | Tridonic/Osram/Hahga | SMD2835 | 70/80/90 | 2700K-6500K | 180° | IP66 |
| LU-TPH-15 | 30W/60W | 1500*Φ76 | 130 lm/W | PC | Tridonic/Osram/Hahga | SMD2835 | 70/80/90 | 2700K-6500K | 180° | IP66 |
