LED Linear High Bay H
Industry Lighting
Features
- Model: LU-LHB-50-50W
- Power(W): 50W

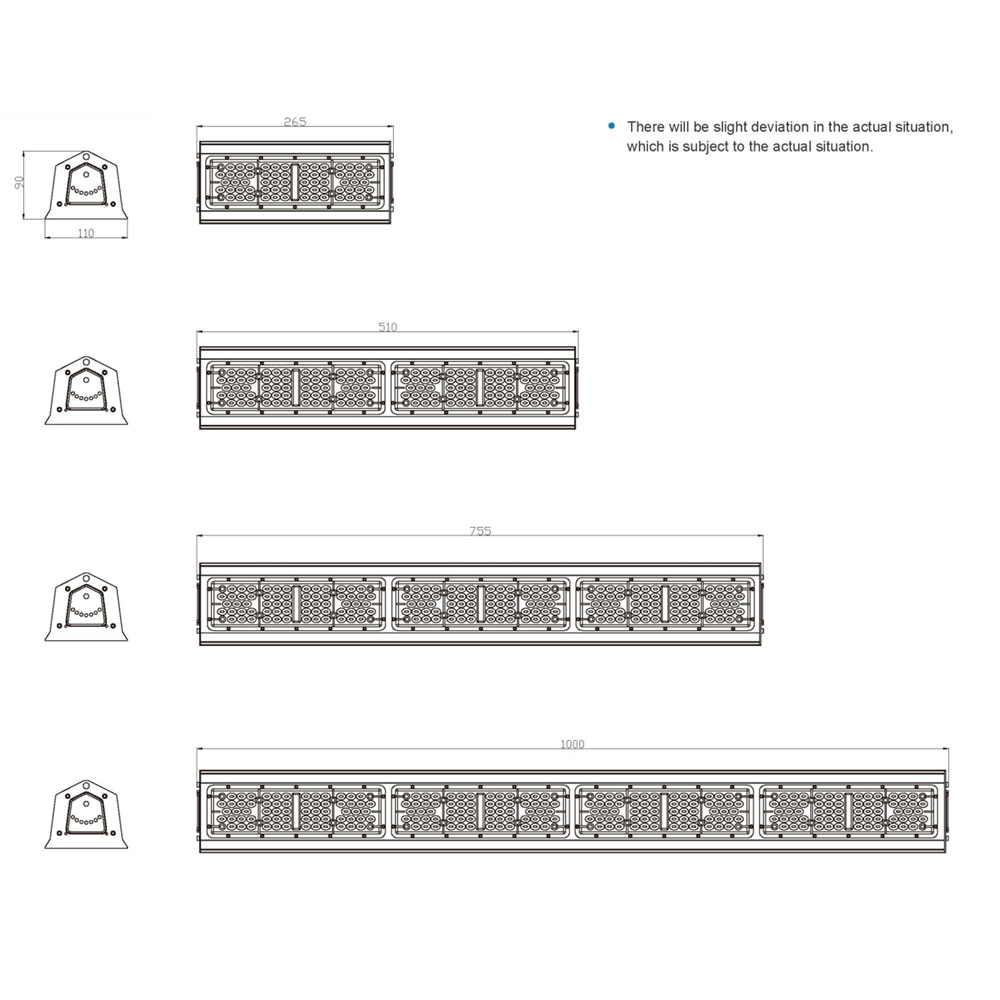

- Size(mm): 265*110*90(1*1)
- LuminousEfficiency(lm/W): 135-140lm/W
- Material: AL
- Driver: Meanwell
- LED Type: 3030
- CRI(Ra): >70/>80
Specifications
| Model | Power(W) | Size(mm) | LuminousEfficiency(lm/W) | Material | Driver | LED Type | CRI(Ra) | CCT(K) | IP | BeamAngle |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-LHB-50-50W | 50W | 265*110*90(1*1) | 135-140lm/W | AL | Meanwell | 3030 | >70/>80 | 4000K5000K5700K | IP65 | 30°/60°/90°/110°/70°*145°/75°*165° |
| LU-LHB-50-60W | 60W | 265*110*90(1*1) | 135-140lm/W | AL | Meanwell | 3030 | >70/>80 | 4000K5000K5700K | IP65 | 30°/60°/90°/110°/70°*145°/75°*165° |
| LU-LHB-100-100W | 100W | 510*110*90(1*2) | 135-140lm/W | AL | Meanwell | 3030 | >70/>80 | 4000K5000K5700K | IP65 | 30°/60°/90°/110°/70°*145°/75°*165° |
| LU-LHB-100-120W | 120W | 510*110*90(1*2) | 135-140lm/W | AL | Meanwell | 3030 | >70/>80 | 4000K5000K5700K | IP65 | 30°/60°/90°/110°/70°*145°/75°*165° |
| LU-LHB-150-150W | 150W | 755*110*90(1*3) | 135-140lm/W | AL | Meanwell | 3030 | >70/>80 | 4000K5000K5700K | IP65 | 30°/60°/90°/110°/70°*145°/75°*165° |
| LU-LHB-150-180W | 180W | 755*110*90(1*3) | 135-140lm/W | AL | Meanwell | 3030 | >70/>80 | 4000K5000K5700K | IP65 | 30°/60°/90°/110°/70°*145°/75°*165° |
| LU-LHB-150-200W | 200W | 755*110*90(1*3) | 135-140lm/W | AL | Meanwell | 3030 | >70/>80 | 4000K5000K5700K | IP65 | 30°/60°/90°/110°/70°*145°/75°*165° |
| LU-LHB-200-200W | 200W | 1000*110*90(1*4) | 135-140lm/W | AL | Meanwell | 3030 | >70/>80 | 4000K5000K5700K | IP65 | 30°/60°/90°/110°/70°*145°/75°*165° |
| LU-LHB-200-240W | 240W | 1000*110*90(1*4) | 135-140lm/W | AL | Meanwell | 3030 | >70/>80 | 4000K5000K5700K | IP65 | 30°/60°/90°/110°/70°*145°/75°*165° |
