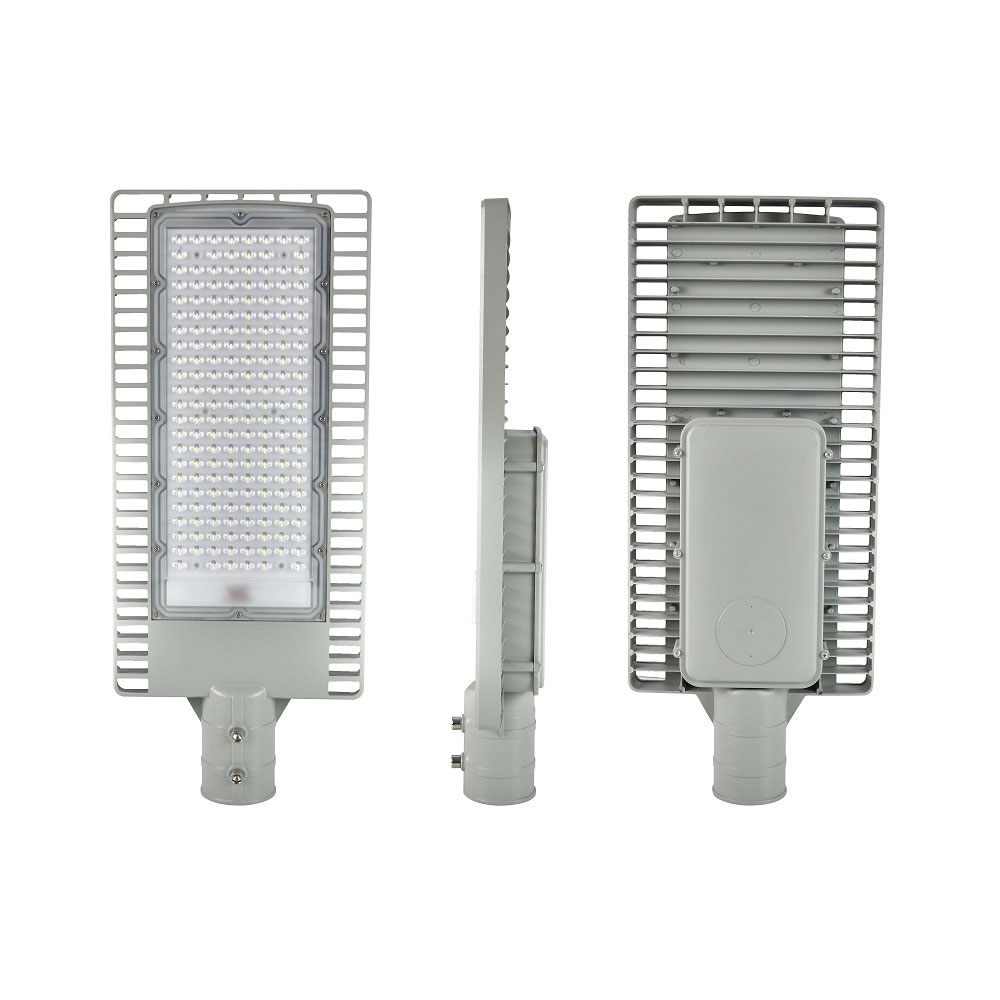

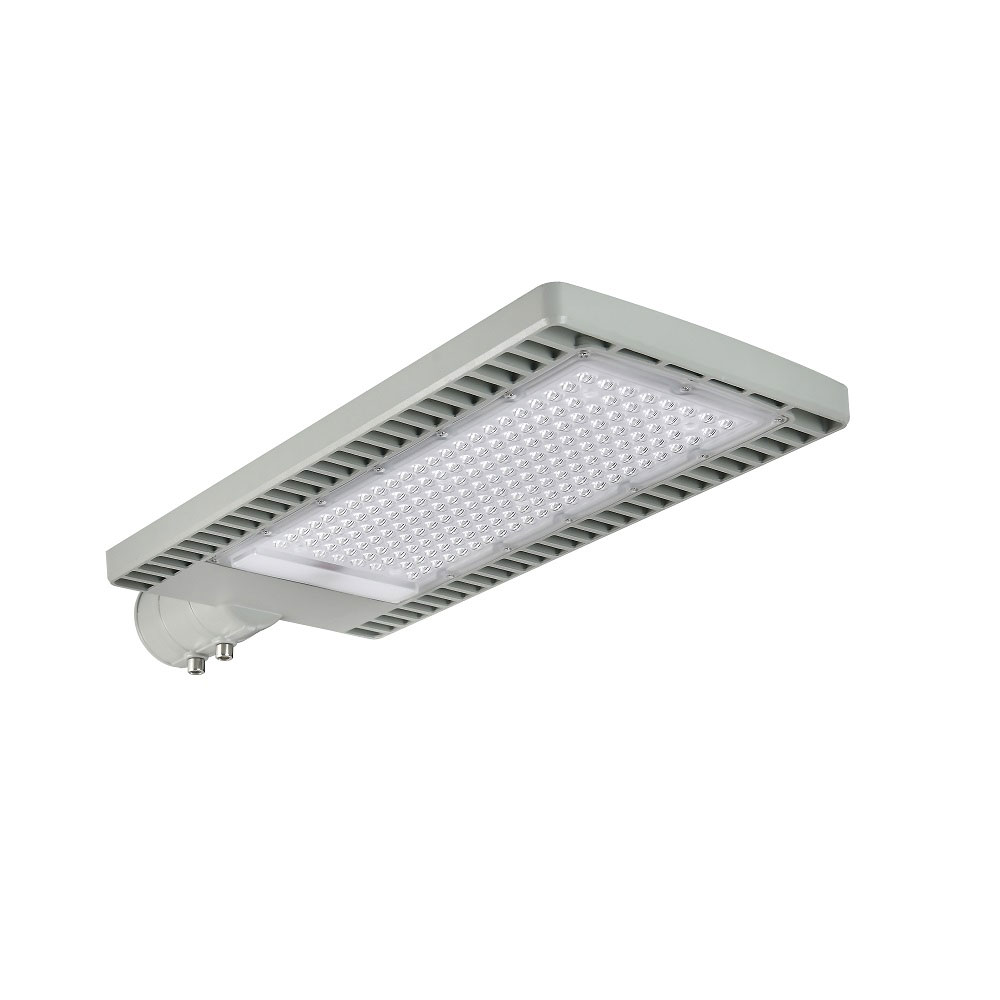

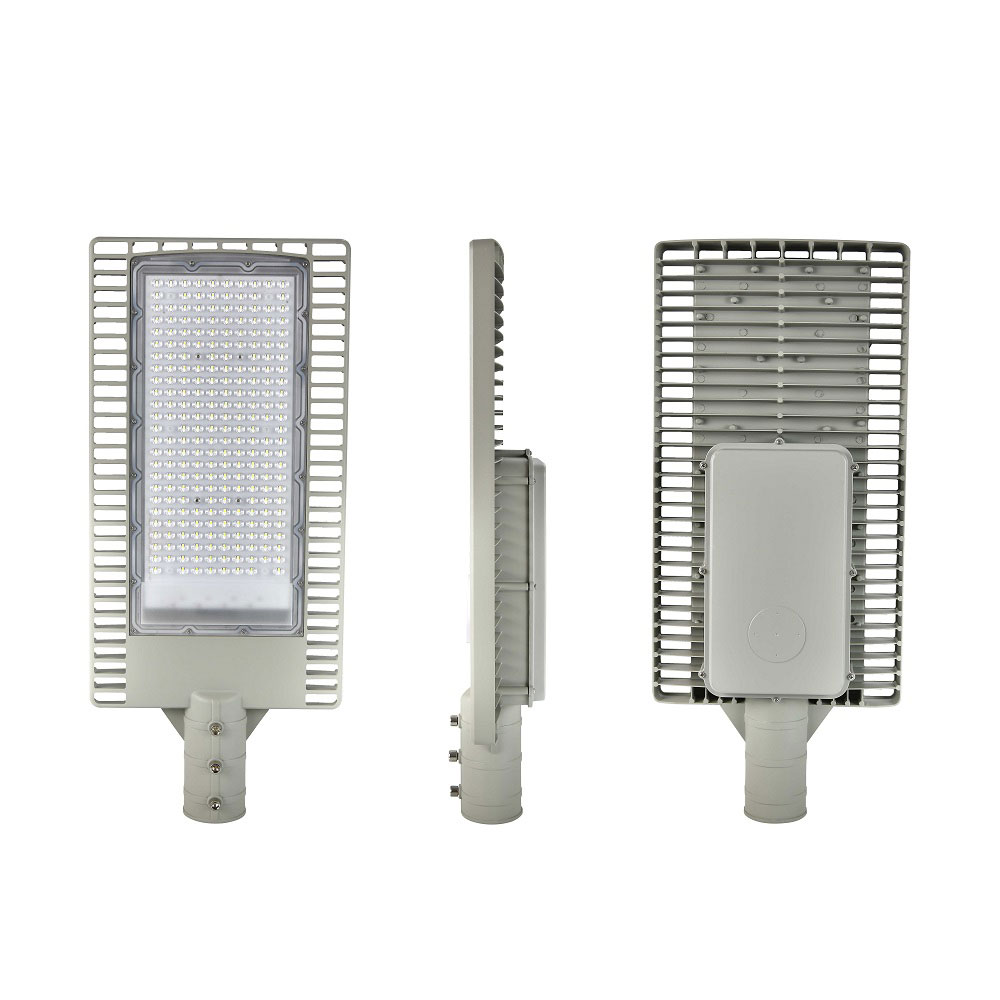

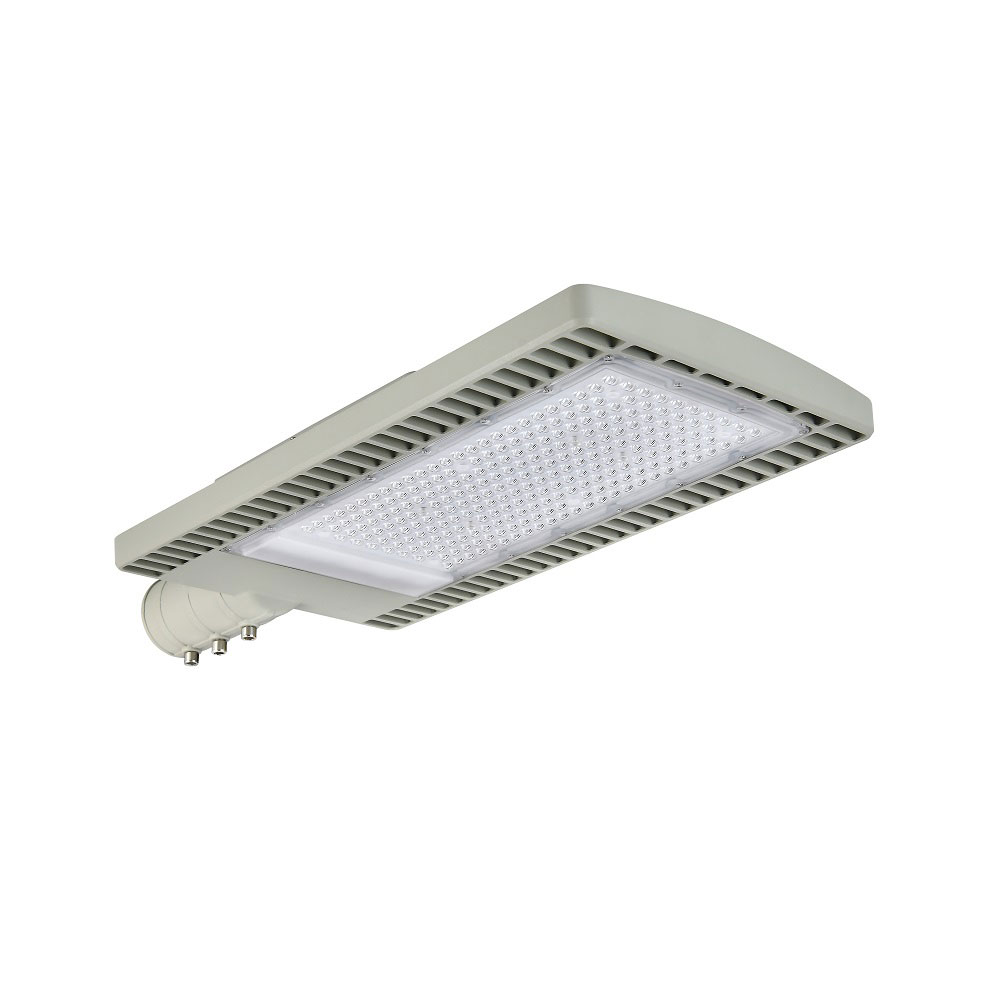

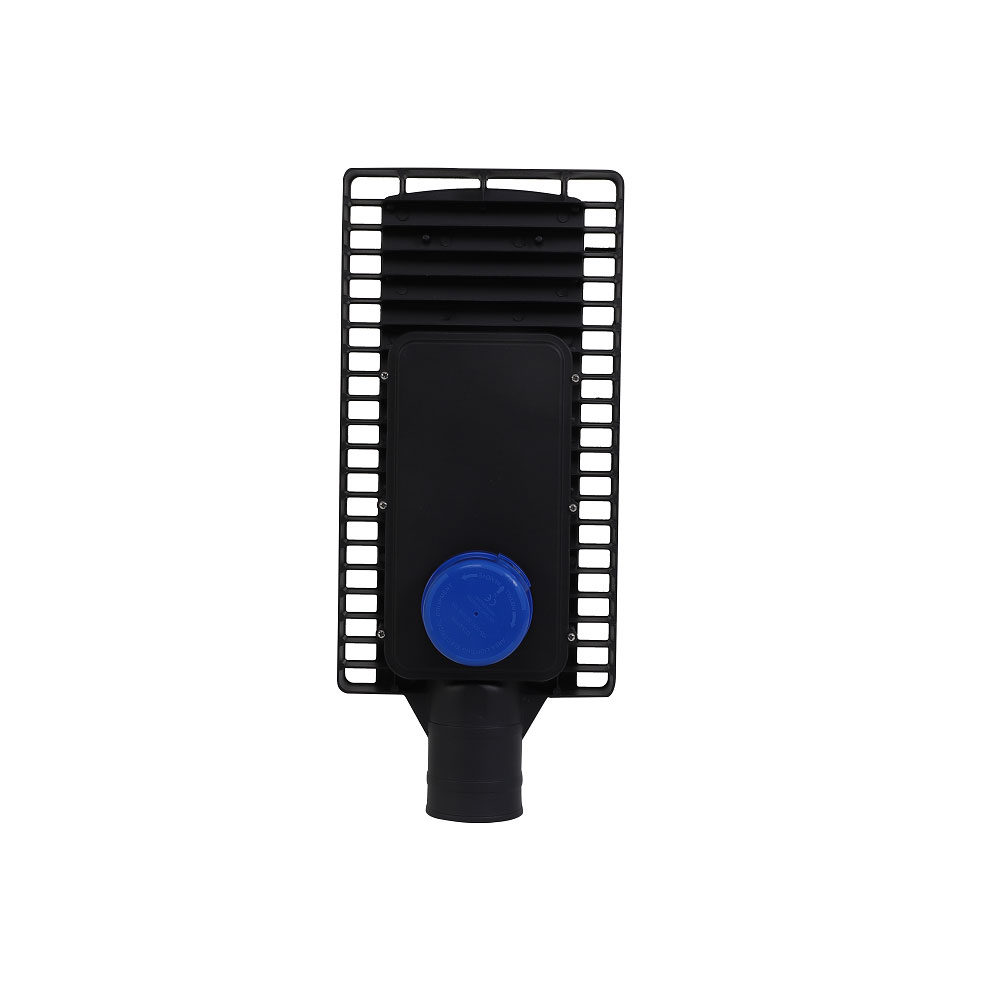

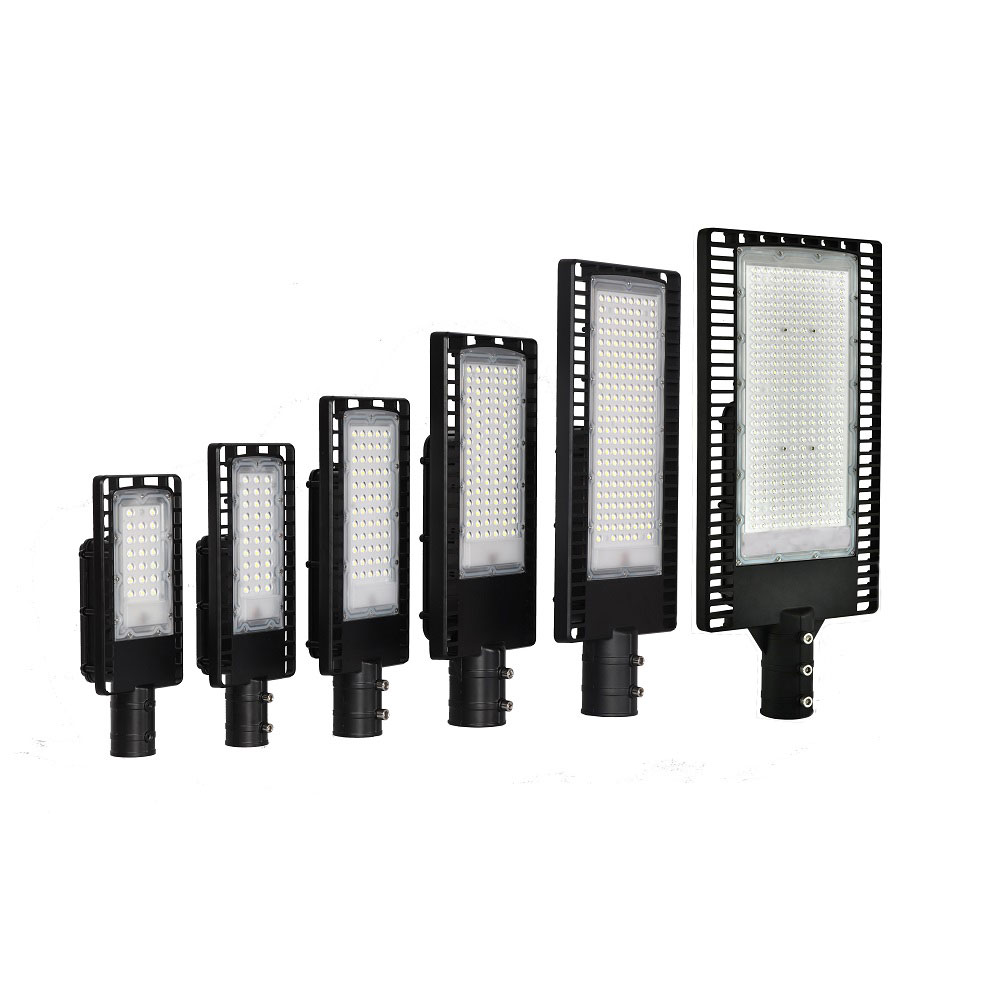

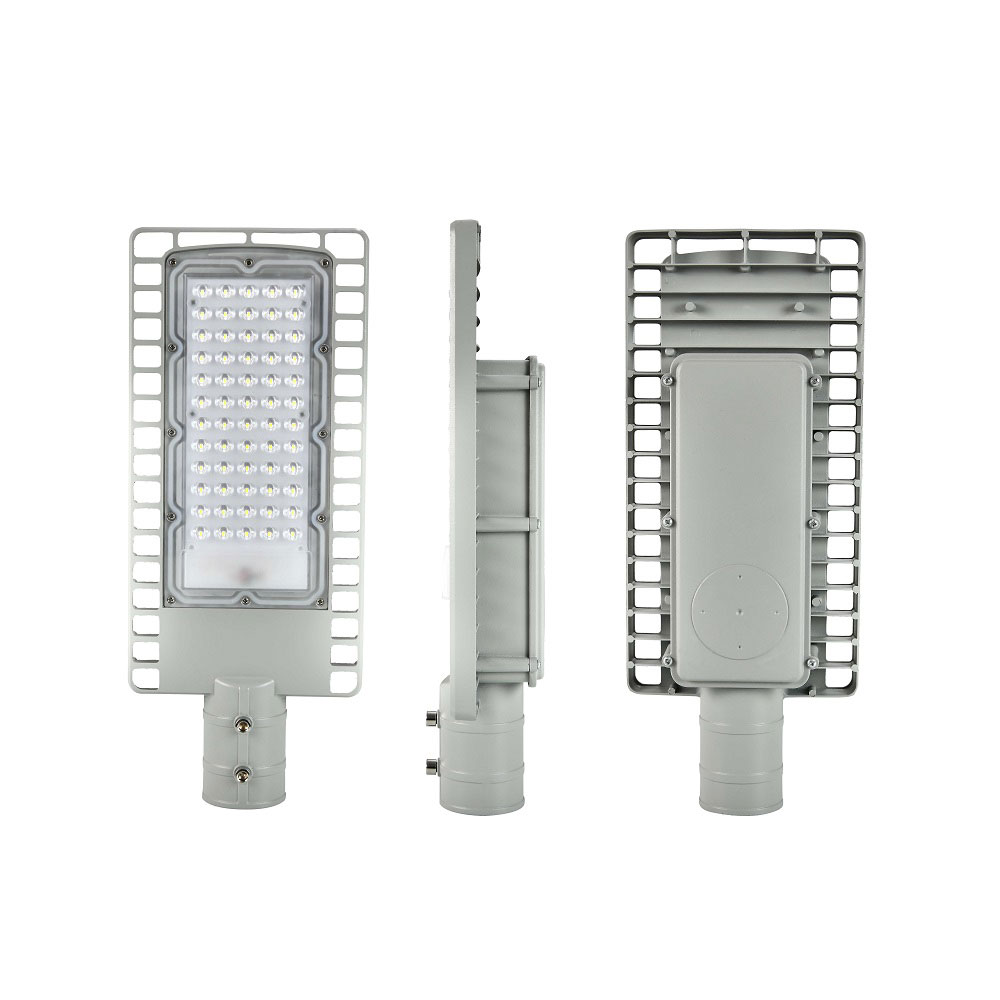

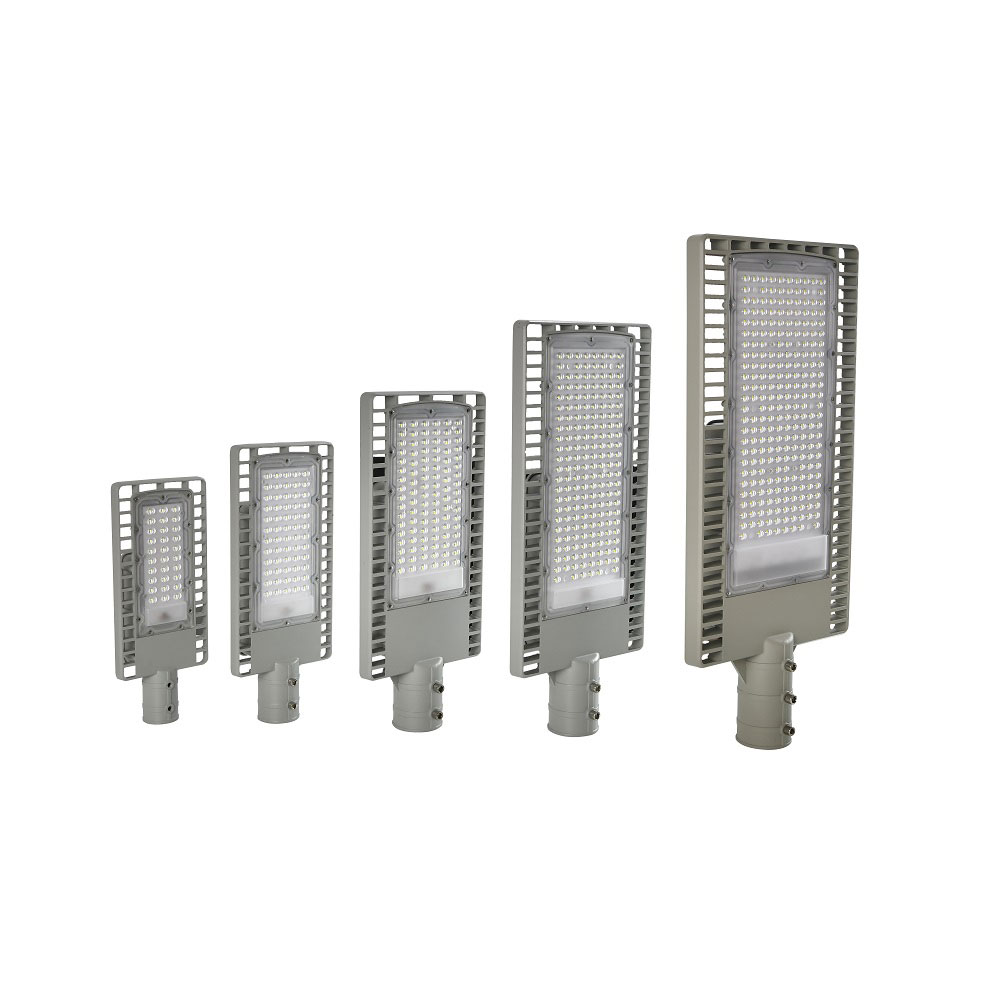

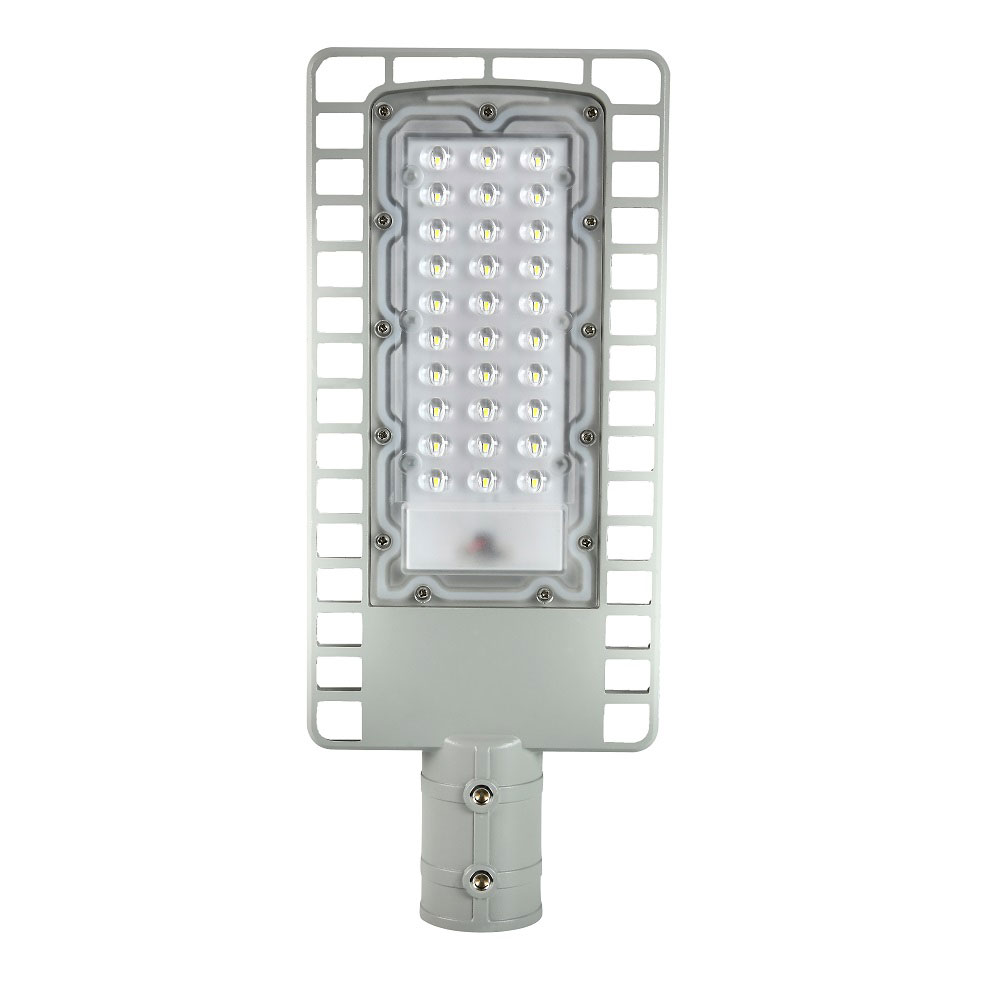

LED STY Series
Industry Lighting
Features
- Low consumption; more than 80% saving of the power
- Long lifetime 50,000 hours
- Aluminum housing, IP65
- Luminous efficacy 120 lm/W
- Driver: Hahga, LED: Epistar
- CRI: 80 Ra, CCT: 2700–6500K
- Beam Angle: 70×140°
Specifications
| Model | Power (W) | Size (mm) | Efficiency (lm/W) | Material | Driver | LED Type | CRI (Ra) | CCT (K) | IP Class | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-STY-30W | 30 | 351×142×76 | 120 | AL | Hahga | Epistar | 80 | 2700–6500 | IP65 | 70×140° |
| LU-STY-50W | 50 | 405×166×79 | 120 | AL | Hahga | Epistar | 80 | 2700–6500 | IP65 | 70×140° |
| LU-STY-100W | 100 | 484×211×83 | 120 | AL | Hahga | Epistar | 80 | 2700–6500 | IP65 | 70×140° |
| LU-STY-150W | 150 | 580×242×83 | 120 | AL | Hahga | Epistar | 80 | 2700–6500 | IP65 | 70×140° |
| LU-STY-200W | 200 | 685×300×106 | 120 | AL | Hahga | Epistar | 80 | 2700–6500 | IP65 | 70×140° |
