LED STV Series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Long lifetime, outdoor street light
- Die-cast aluminum housing

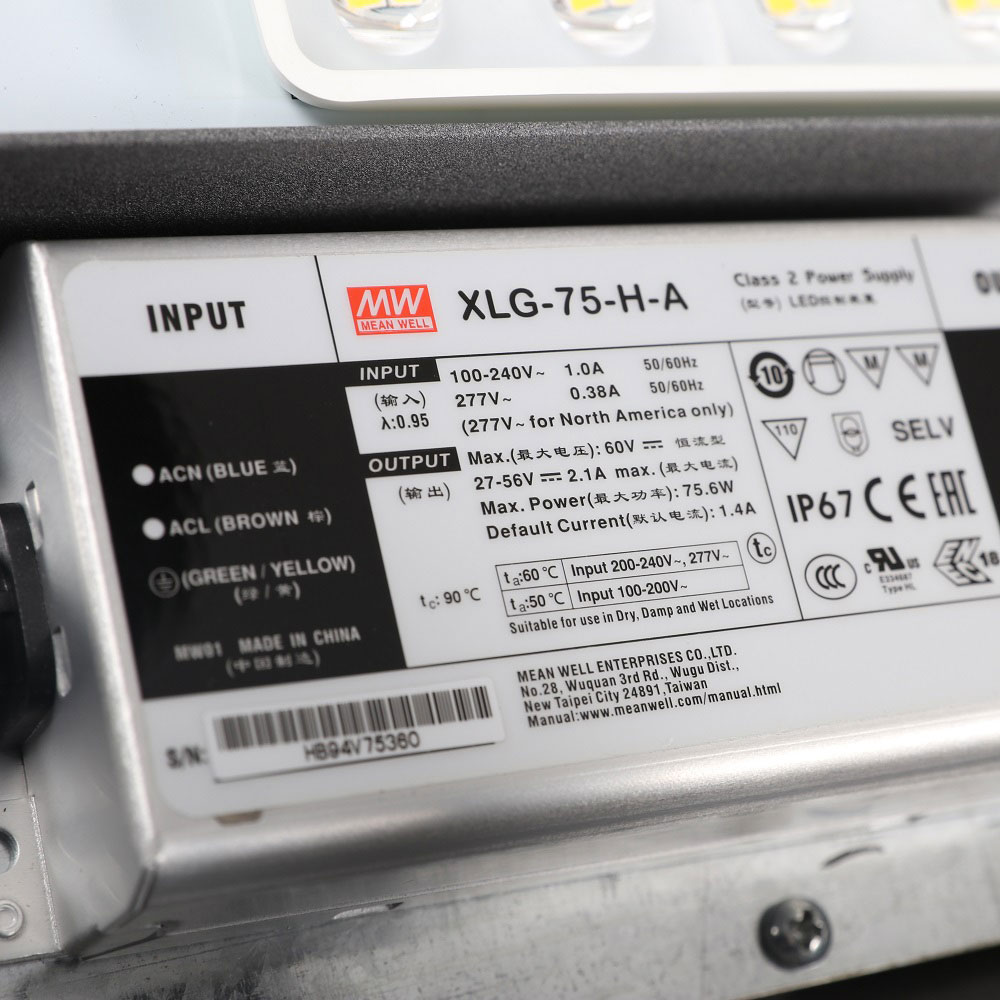

- Driver: Inventronics / Meanwell
- LED: Lumileds
- CRI: 70 / 80, CCT: 1800–6500K
- IP66
Specifications

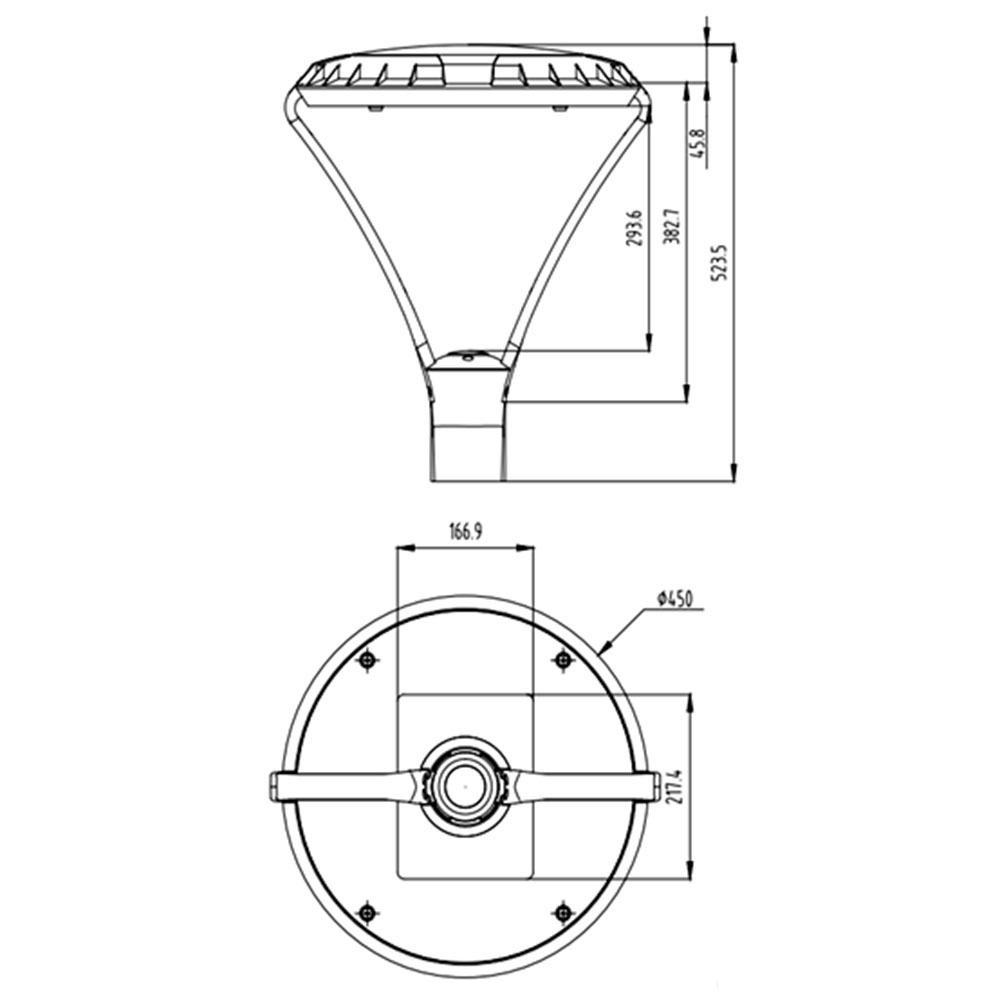

| Model | Power (W) | Size (mm) | Luminous Efficiency (lm/W) | Material | Driver | LED Type | CRI(Ra) | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|
| LU-STV-30W | 30 | ø450×523 | 100–120 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STV-40W | 40 | ø450×523 | 100–120 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STV-50W | 50 | ø450×523 | 100–120 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STV-60W | 60 | ø450×523 | 100–120 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STV-80W | 80 | ø450×523 | 100–120 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STV-100W | 100 | ø450×523 | 100–120 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STV-120W | 120 | ø450×523 | 100–120 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STV-150W | 150 | ø450×523 | 100–120 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
