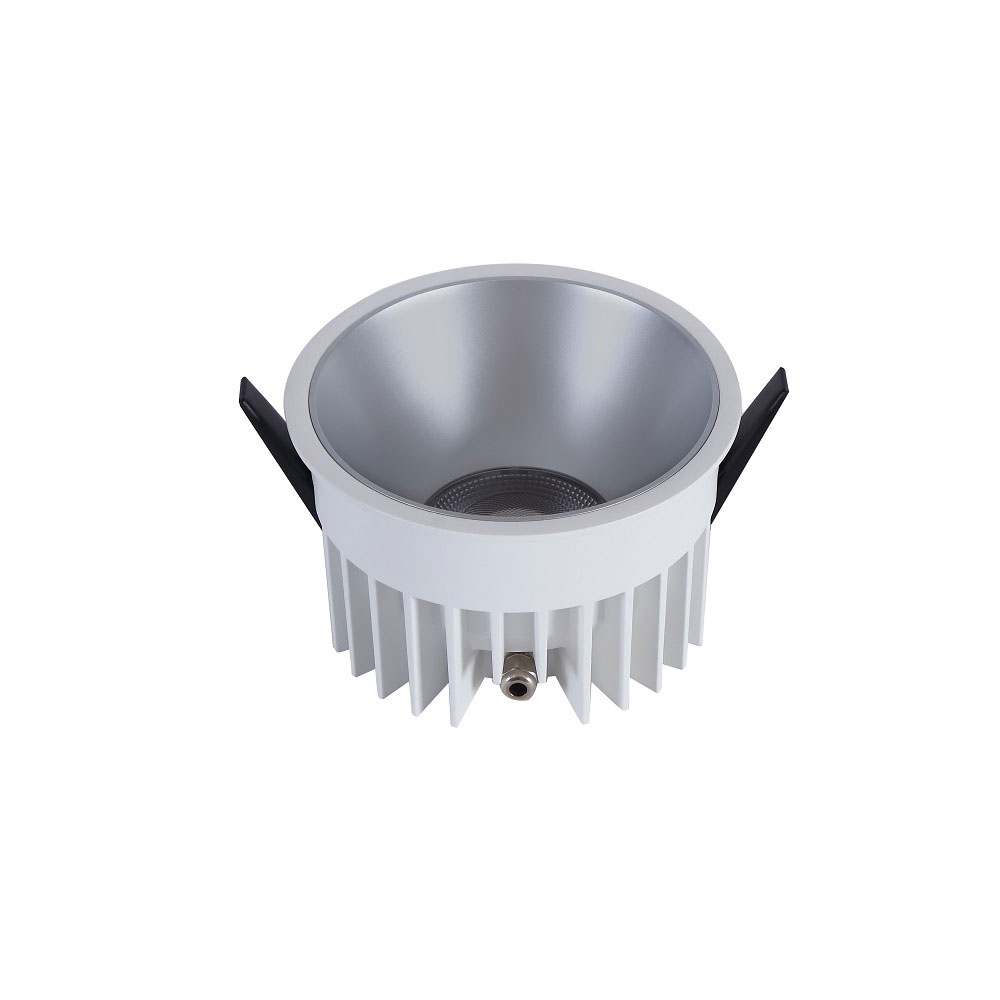

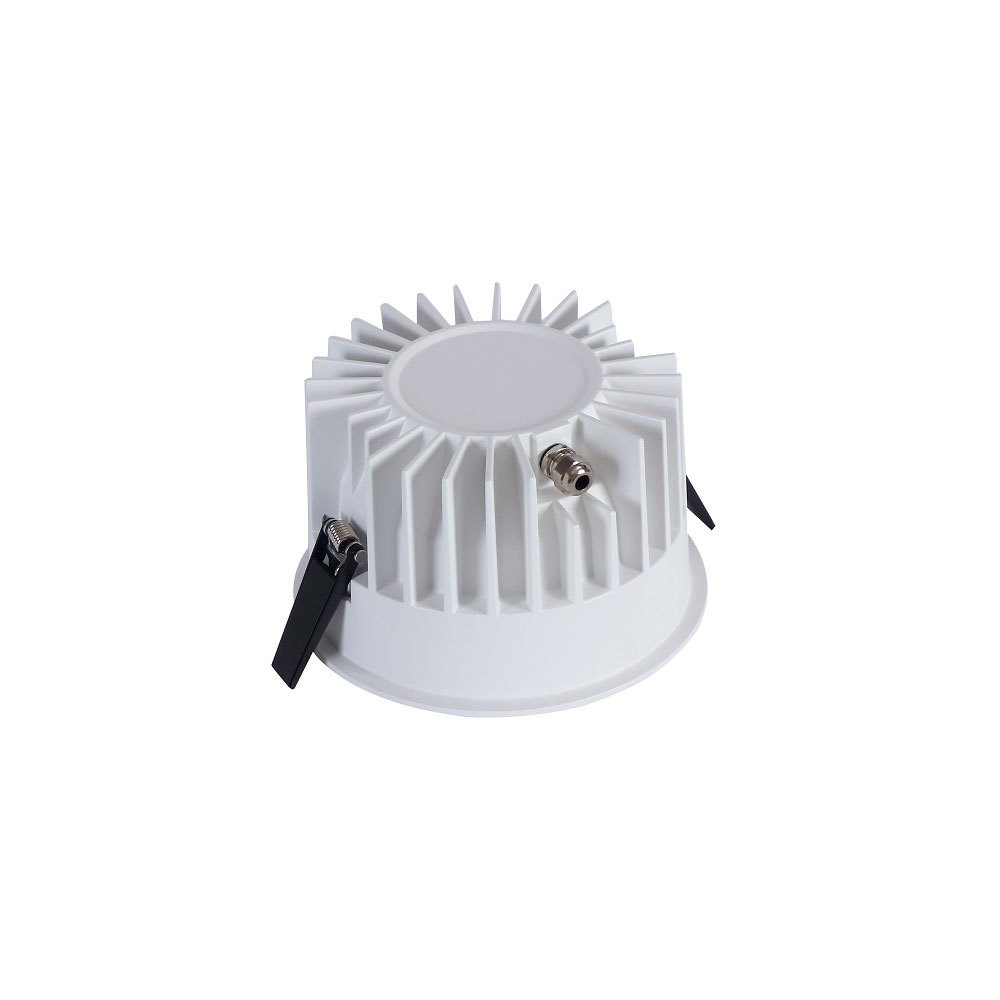

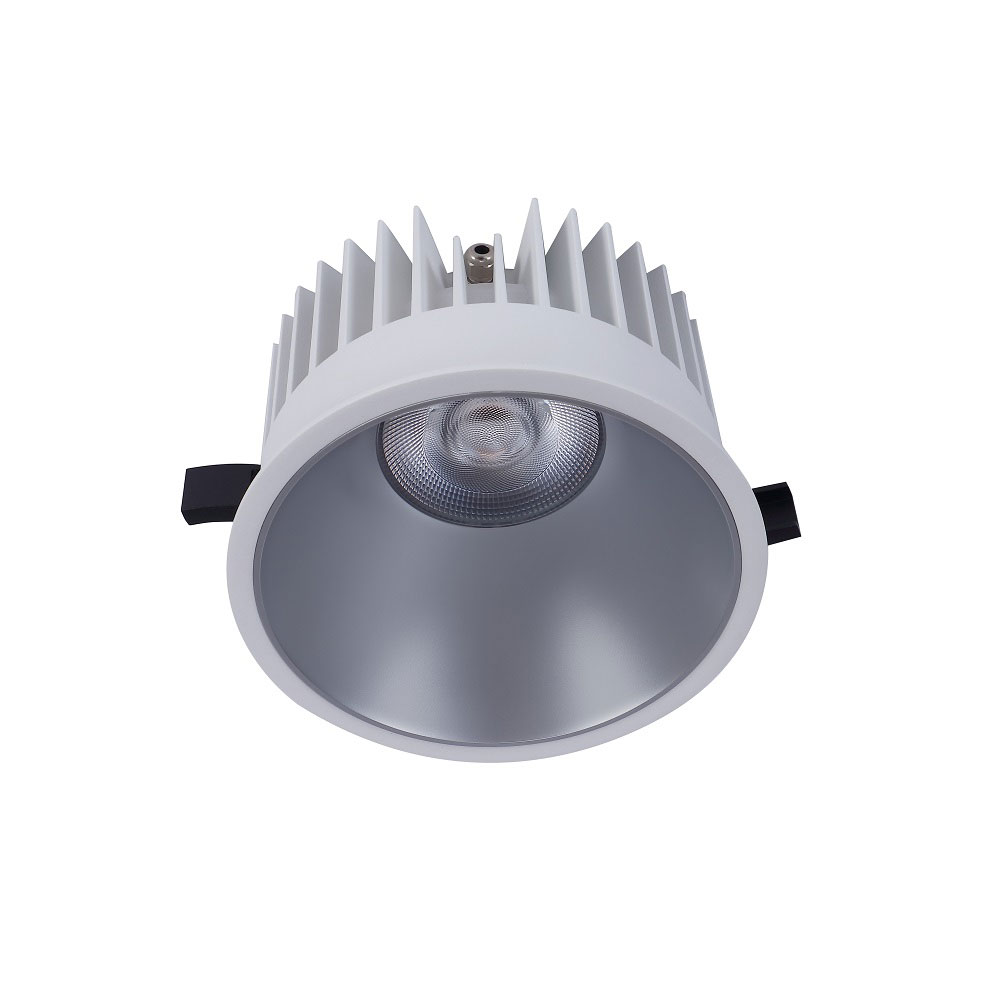

LED Down Light 0xY
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- LED down light (round), Cutout: Φ75–Φ165 mm
- Power: 12–48W
- LED chips: Citizen / CREE
- Lumen Efficiency: 90–100 lm/W
- CRI: >80 / >90, CCT: 2700–5000K
- Beam Angle: 15° / 24° / 38° / 60°
- Input: AC220–240V / AC100–265V
Specifications
| Model | Size(mm) | Cutout(mm) | Power(W) | LED Chips | CCT | CRI | Lumen Efficiency | Beam Angle | Input Voltage |
|---|---|---|---|---|---|---|---|---|---|
| UC-DL-02Y-12W | Φ86 | Φ75 | 12W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-02Y-15W | Φ86 | Φ75 | 15W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-03Y-12W | Φ100 | Φ90 | 12W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-03Y-18W | Φ100 | Φ90 | 18W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-04Y-20W | Φ136 | Φ125 | 20W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-04Y-28W | Φ136 | Φ125 | 28W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-05Y-30W | Φ158 | Φ145 | 30W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-05Y-35W | Φ158 | Φ145 | 35W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-05Y-38W | Φ158 | Φ145 | 38W | Citizen/CREE | 2700K/ 3000K/ 4000K/ 5000K | >80/ >90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-06Y-40W | Φ180 | Φ165 | 40W | Citizen/CREE | 2700K/ 3000K/ 4000K/ 5000K | >80/ >90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
| UC-DL-06Y-48W | Φ180 | Φ165 | 48W | Citizen/CREE | 2700K/ 3000K/ 4000K/ 5000K | >80/ >90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/ AC100-265V |
