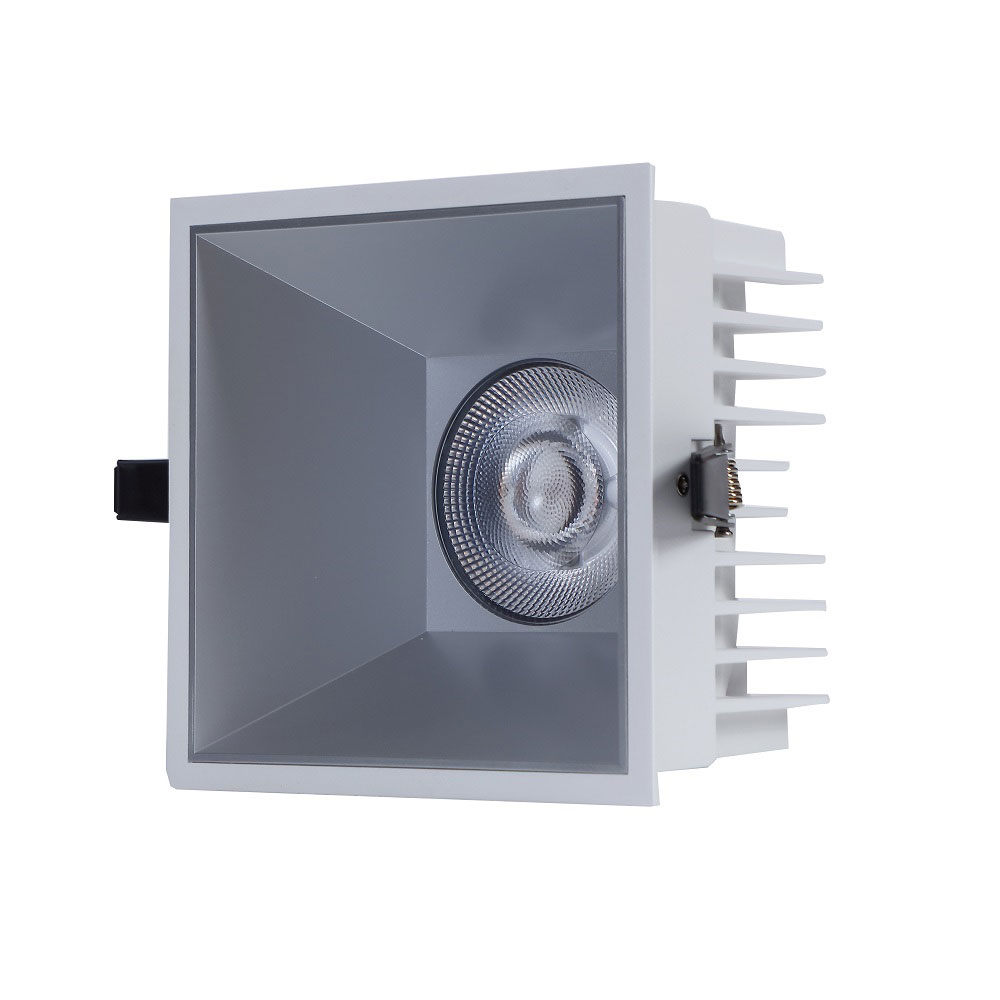

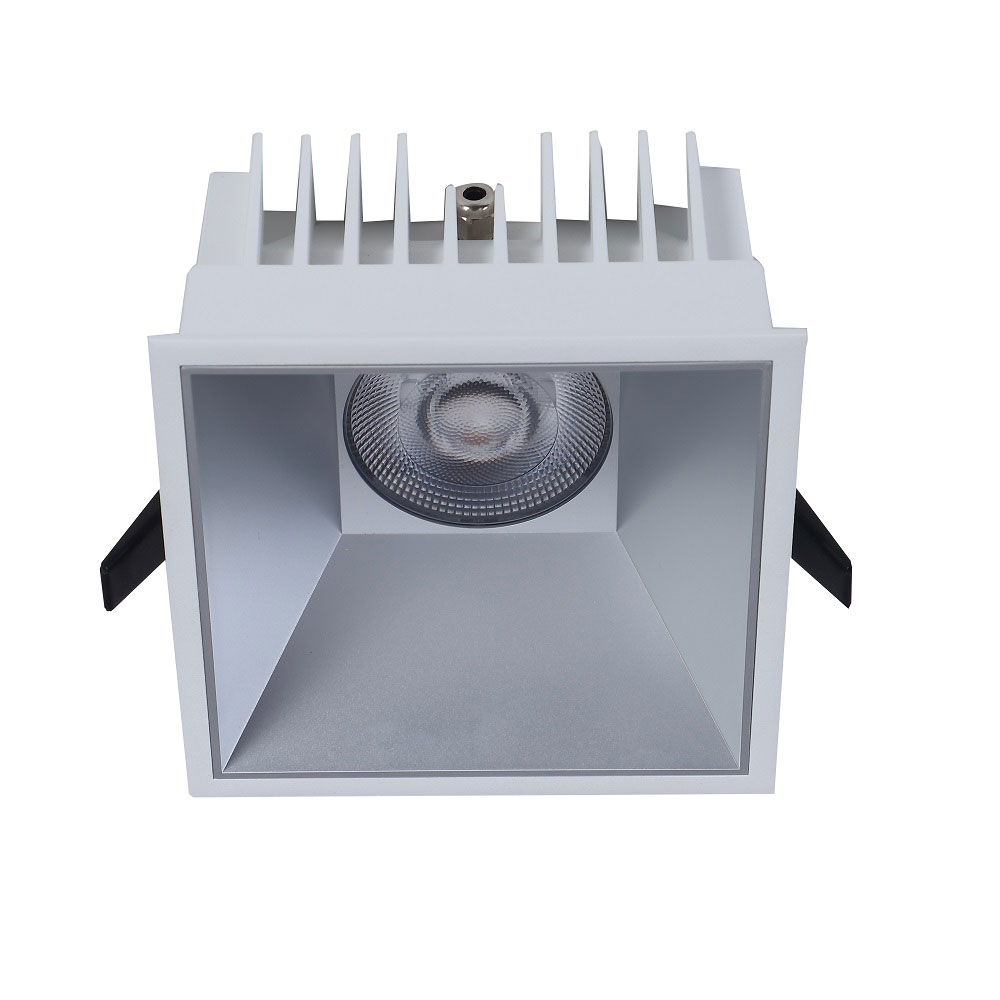

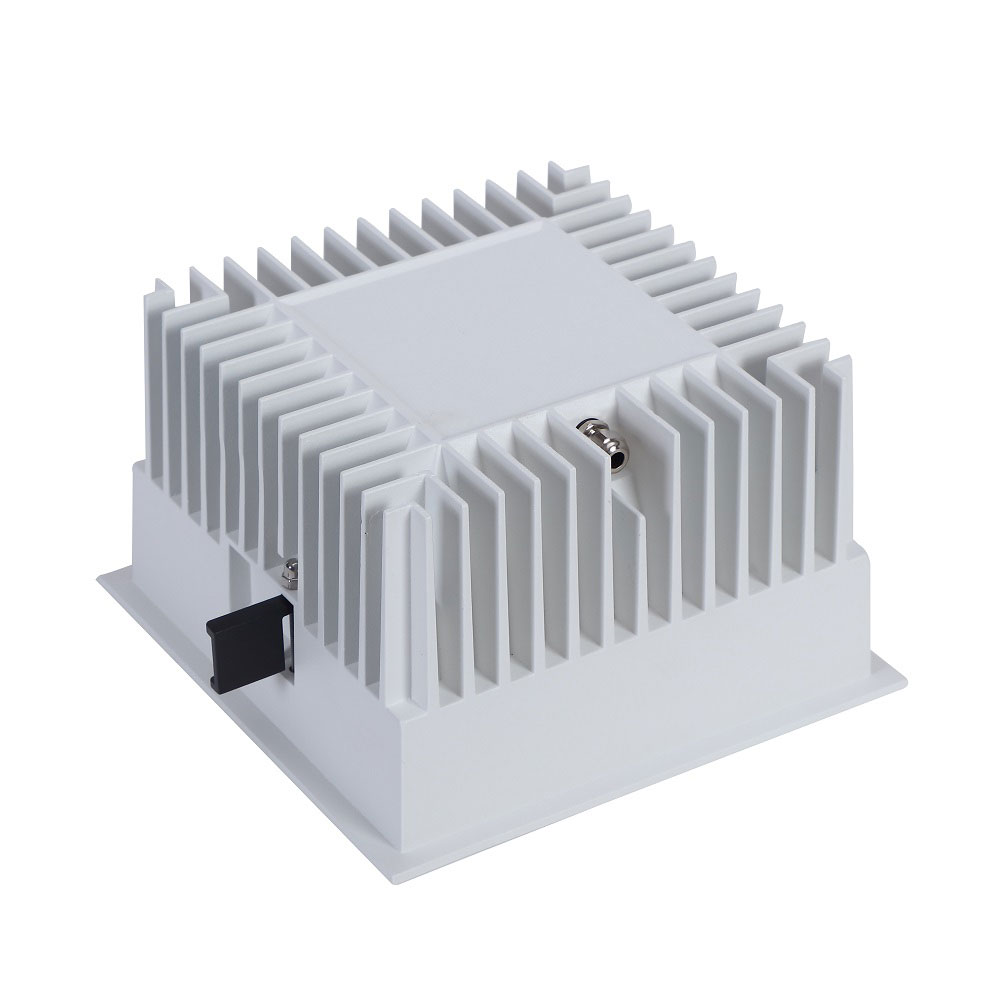

LED Down Light 0xF
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- LED down light (square), Cutout: 90×90–165×165 mm
- Power: 12–48W
- LED chips: Citizen / CREE
- Lumen Efficiency: 90–100 lm/W
- CRI: >80 / >90, CCT: 2700–5000K
- Beam Angle: 15° / 24° / 38° / 60°
- Input: AC220–240V / AC100–265V
Specifications
| Model | Size(mm) | Cutout(mm) | Power(W) | LED Chips | CCT | CRI | Lumen Efficiency | Beam Angle | Input Voltage |
|---|---|---|---|---|---|---|---|---|---|
| UC-DL-03F-12W | 100*100 | 90*90 | 12W | Citizen/CREE | 2700K/ 3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/AC100-265V |
| UC-DL-03F-18W | 100*100 | 90*90 | 18W | Citizen/CREE | 2700K/ 3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/AC100-265V |
| UC-DL-04F-20W | 136*136 | 125*125 | 20W | Citizen/CREE | 2700K/ 3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/AC100-265V |
| UC-DL-04F-28W | 136*136 | 125*125 | 28W | Citizen/CREE | 2700K/ 3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/AC100-265V |
| UC-DL-05F-30W | 158*158 | 145*145 | 30W | Citizen/CREE | 2700K/ 3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/AC100-265V |
| UC-DL-05F-38W | 158*158 | 145*145 | 38W | Citizen/CREE | 2700K/ 3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/AC100-265V |
| UC-DL-06F-40W | 180*180 | 165*165 | 40W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/AC100-265V |
| UC-DL-06F-48W | 180*180 | 165*165 | 48W | Citizen/CREE | 2700K/ 3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38°/60° | AC220-240V/AC100-265V |
