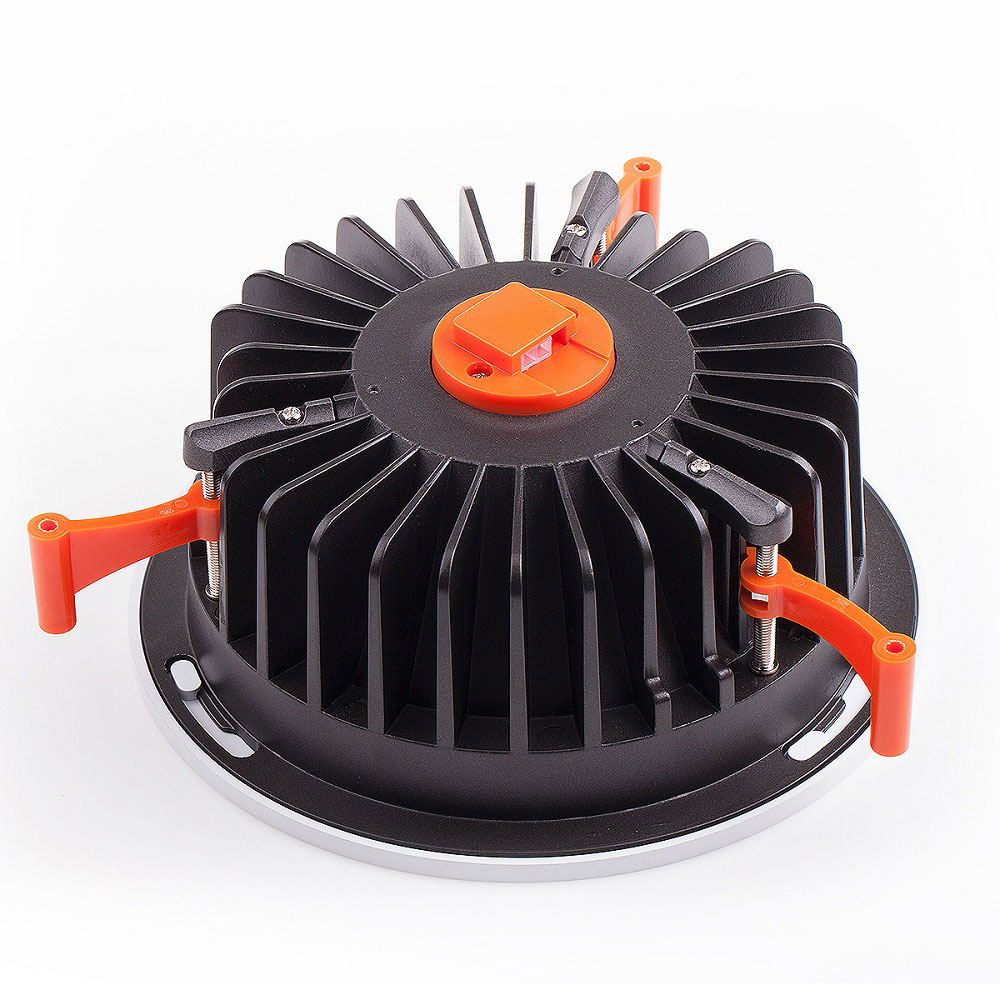

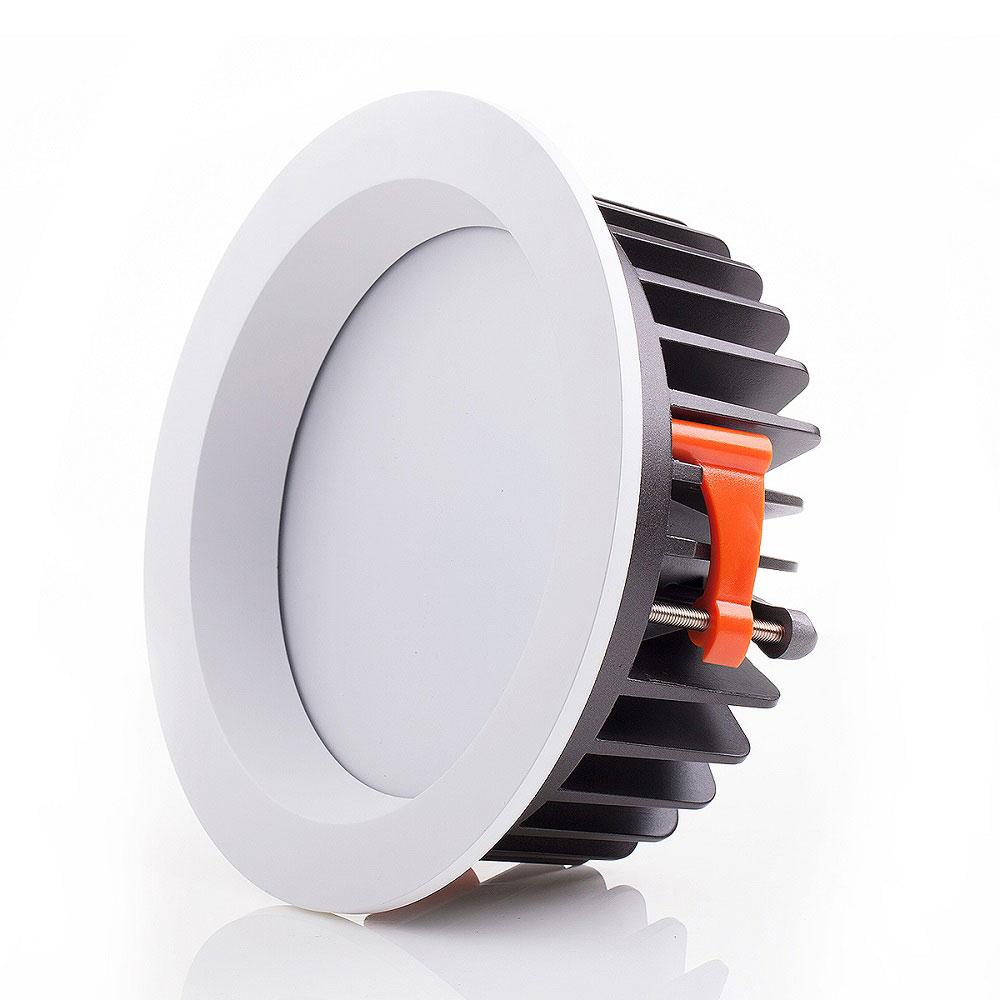

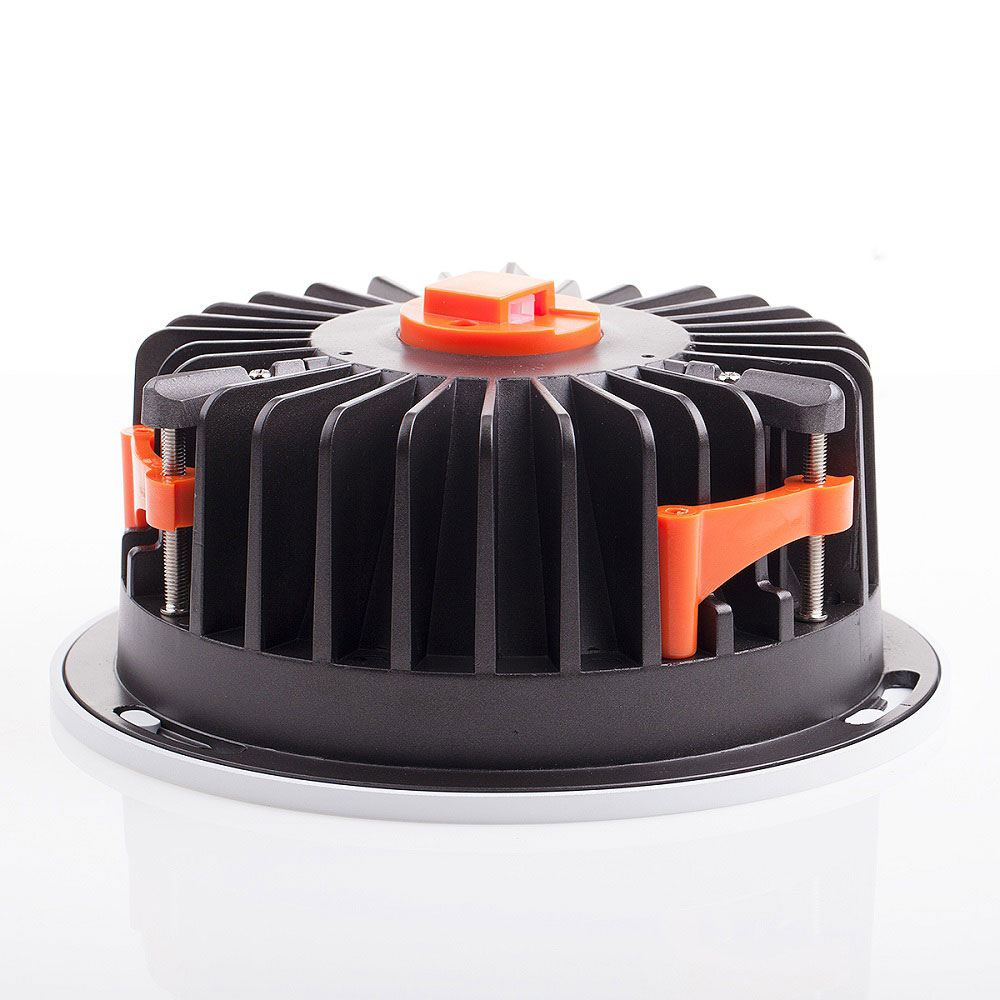

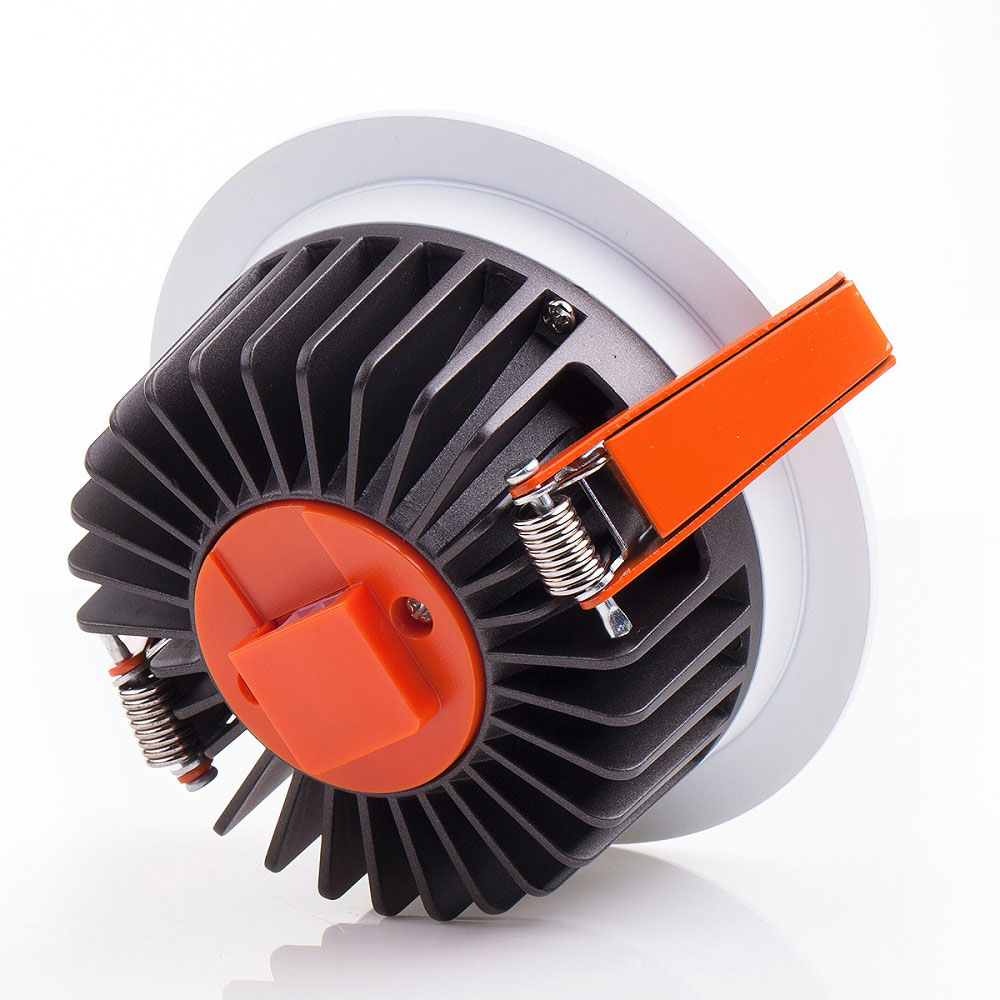

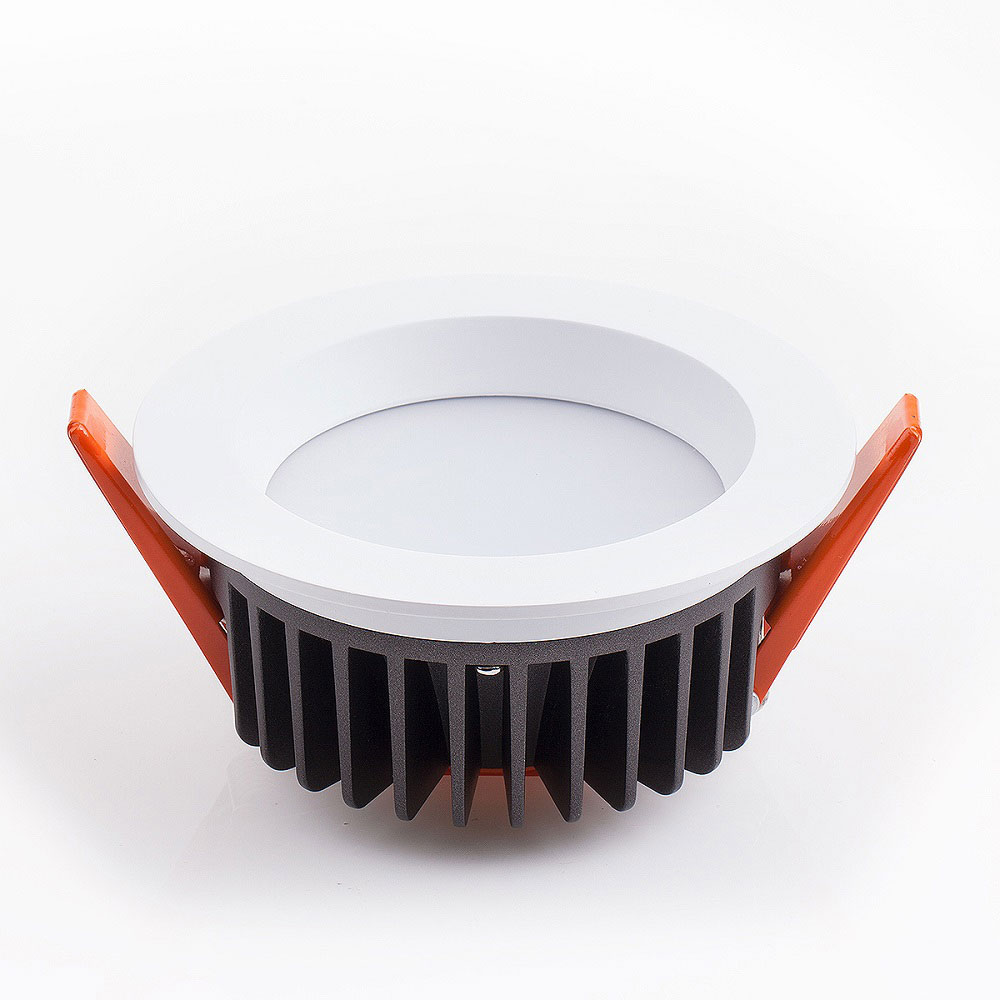

LED Down Light 21x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Down light 21x, Cutout: Φ90–Φ200 mm
- Power: 8–50W
- LED chips: Samsung / Epistar
- Lumen Efficiency: 90–100 lm/W
- CRI: >80 / >90, CCT: 2700–5000K
- Beam Angle: 90°
- Input: AC220–240V / AC100–265V
Specifications
| Model | Size(mm) | Cutout(mm) | Power(W) | LED Chips | CCT | CRI | Lumen Efficiency | Beam Angle | Input Voltage |
|---|---|---|---|---|---|---|---|---|---|
| UC-DL-213-8W | Φ110 | Φ90 | 8W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-213-13W | Φ110 | Φ90 | 13W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-213-15W | Φ110 | Φ90 | 15W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-214-12W | Φ145 | Φ125 | 12W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-214-15W | Φ145 | Φ125 | 15W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-214-20W | Φ145 | Φ125 | 20W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-216-20W | Φ190 | Φ165 | 20W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-216-30W | Φ190 | Φ165 | 30W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-216-40W | Φ190 | Φ165 | 40W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-218-30W | Φ230 | Φ200 | 30W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-218-40W | Φ230 | Φ200 | 40W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
| UC-DL-218-50W | Φ230 | Φ200 | 50W | Samsung/Epistar | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 90° | AC220-240V/AC100-265V |
