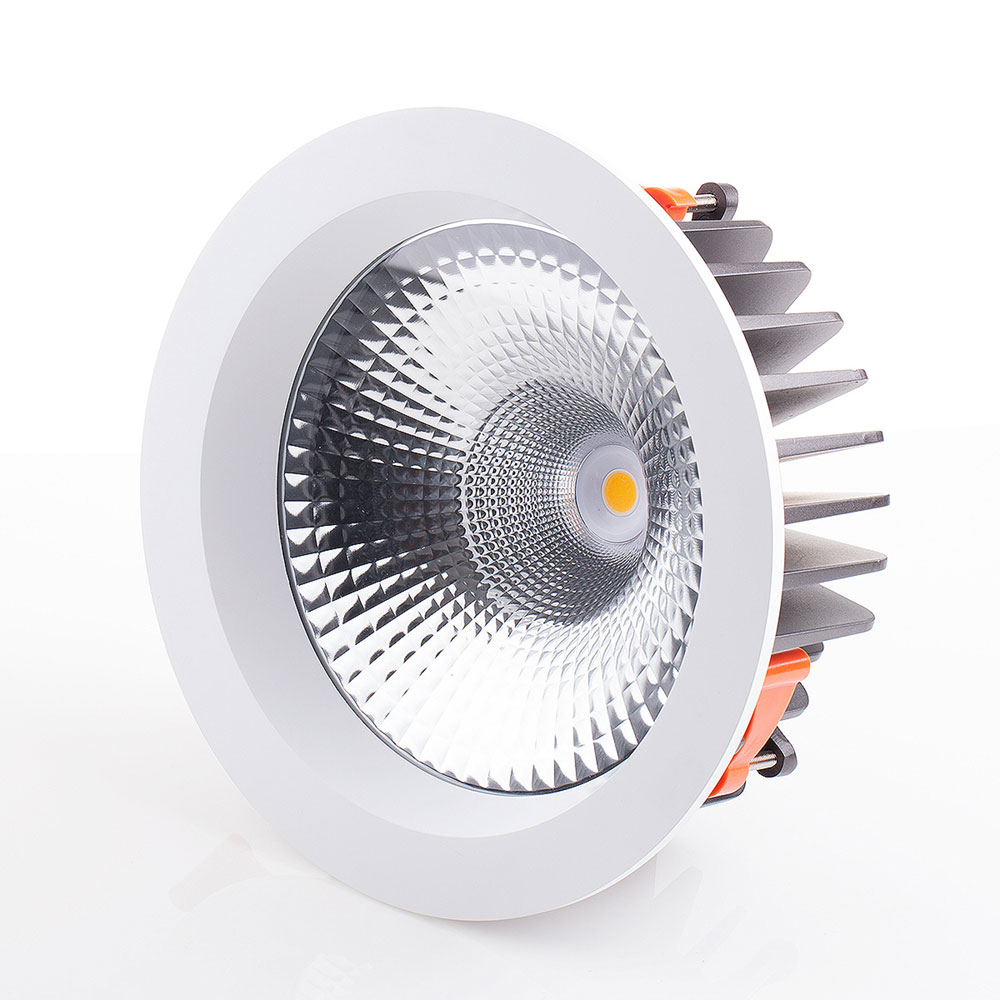

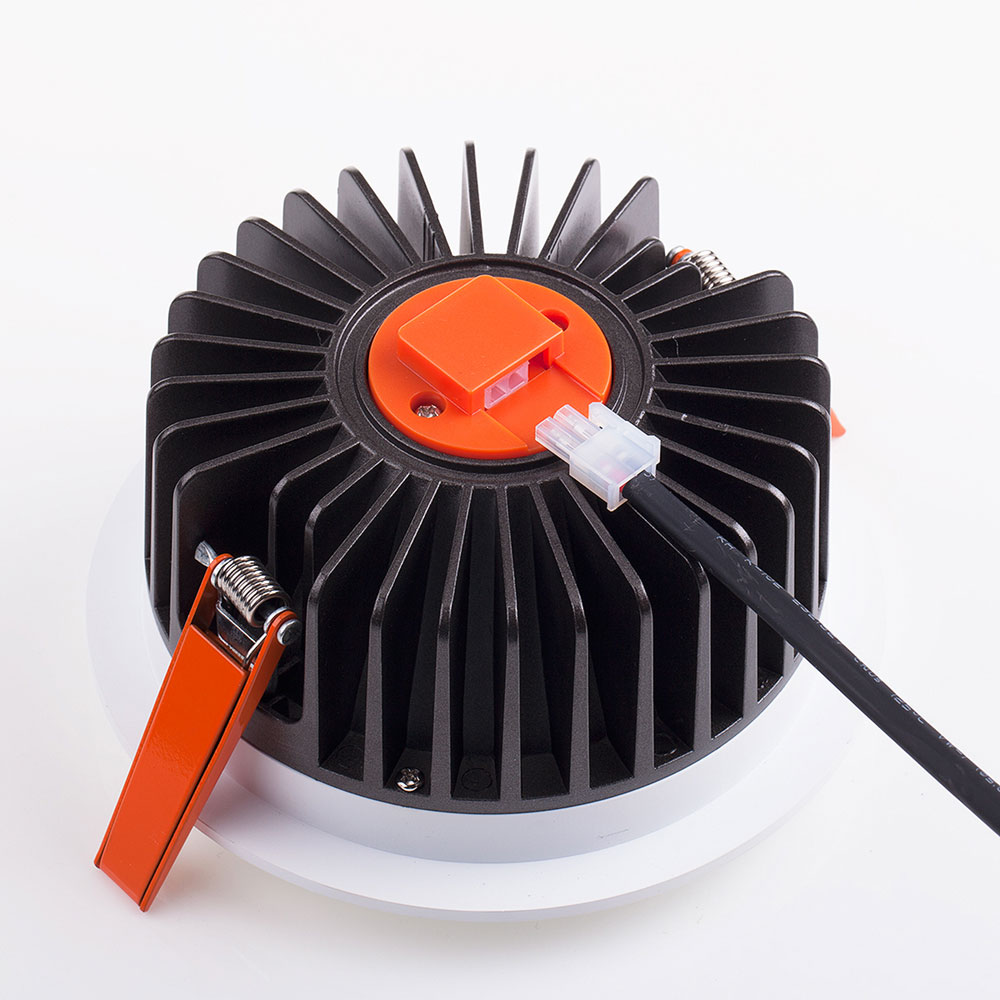

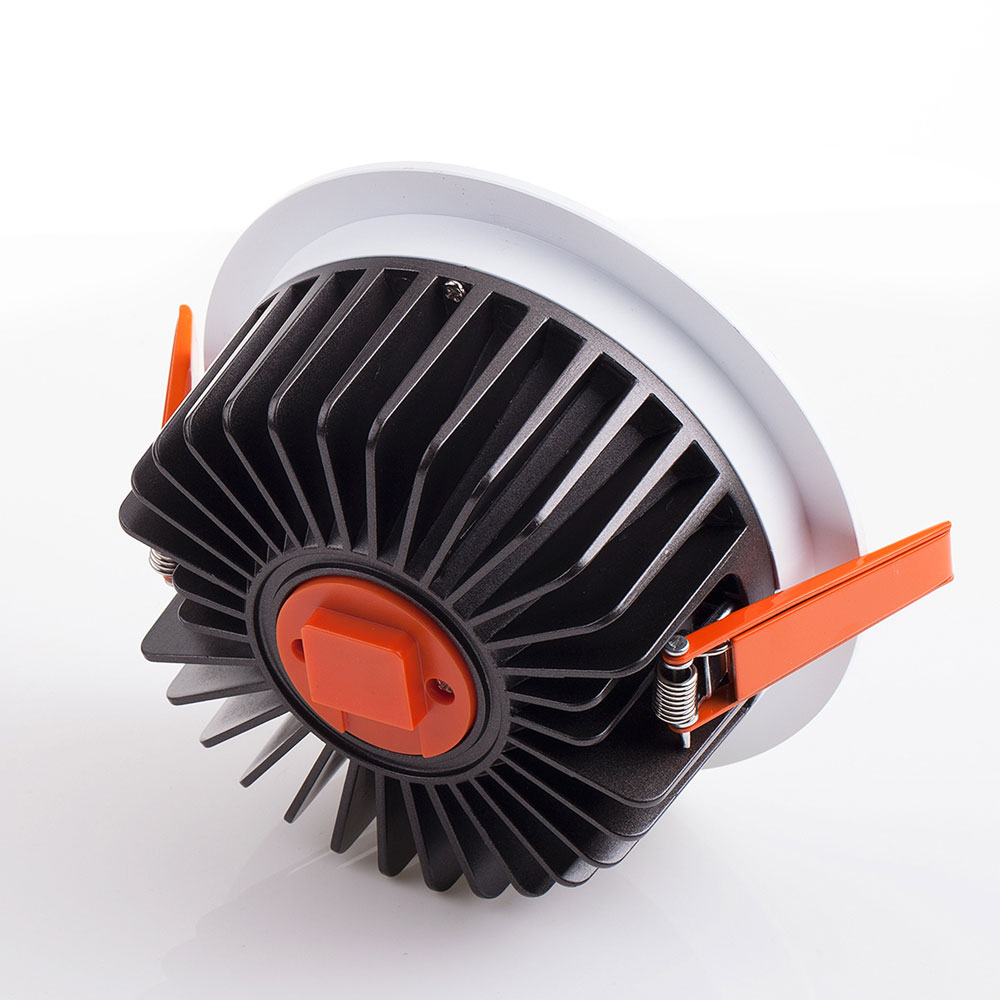

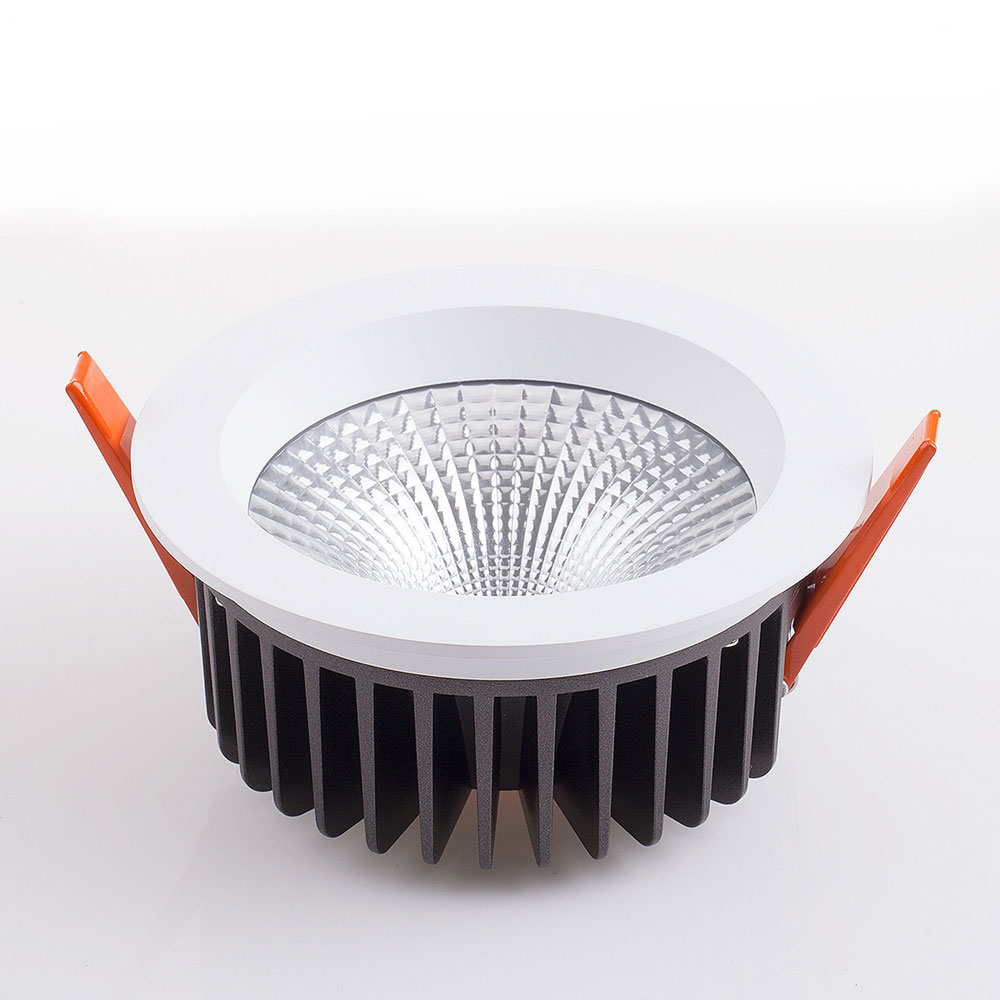

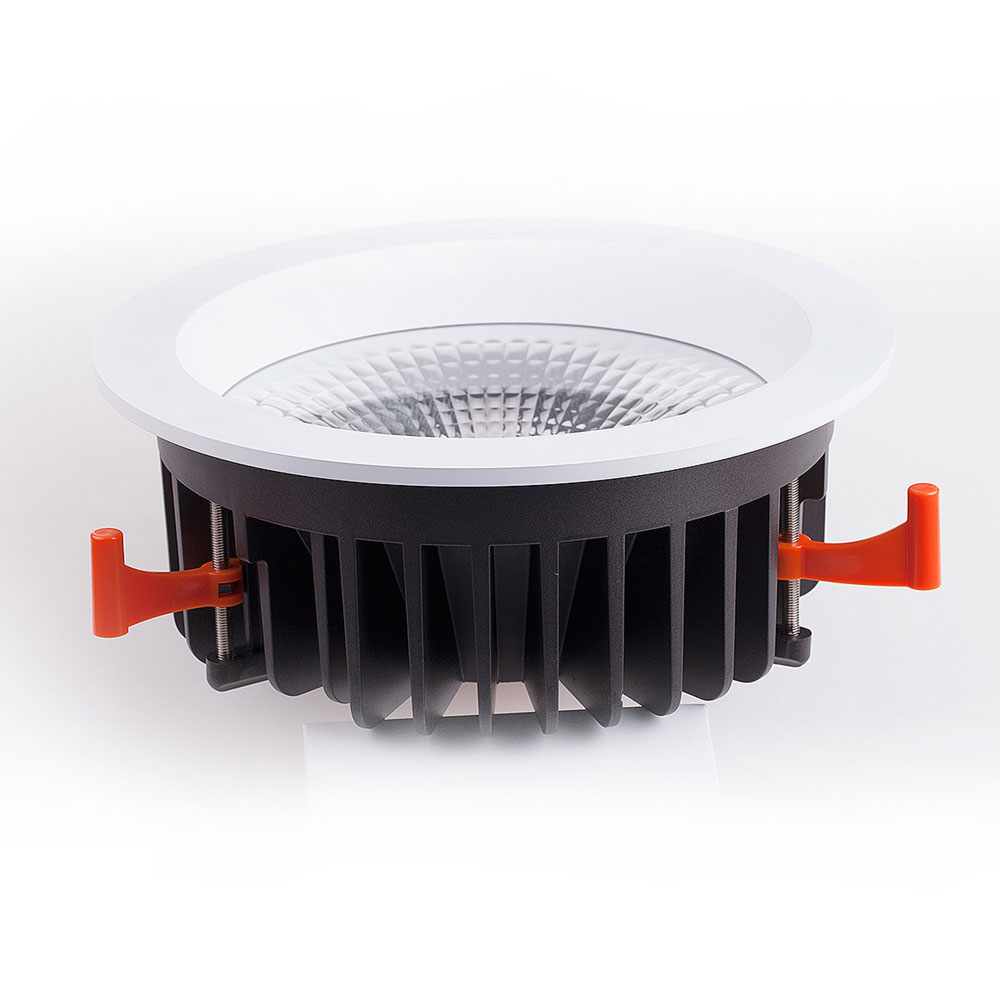

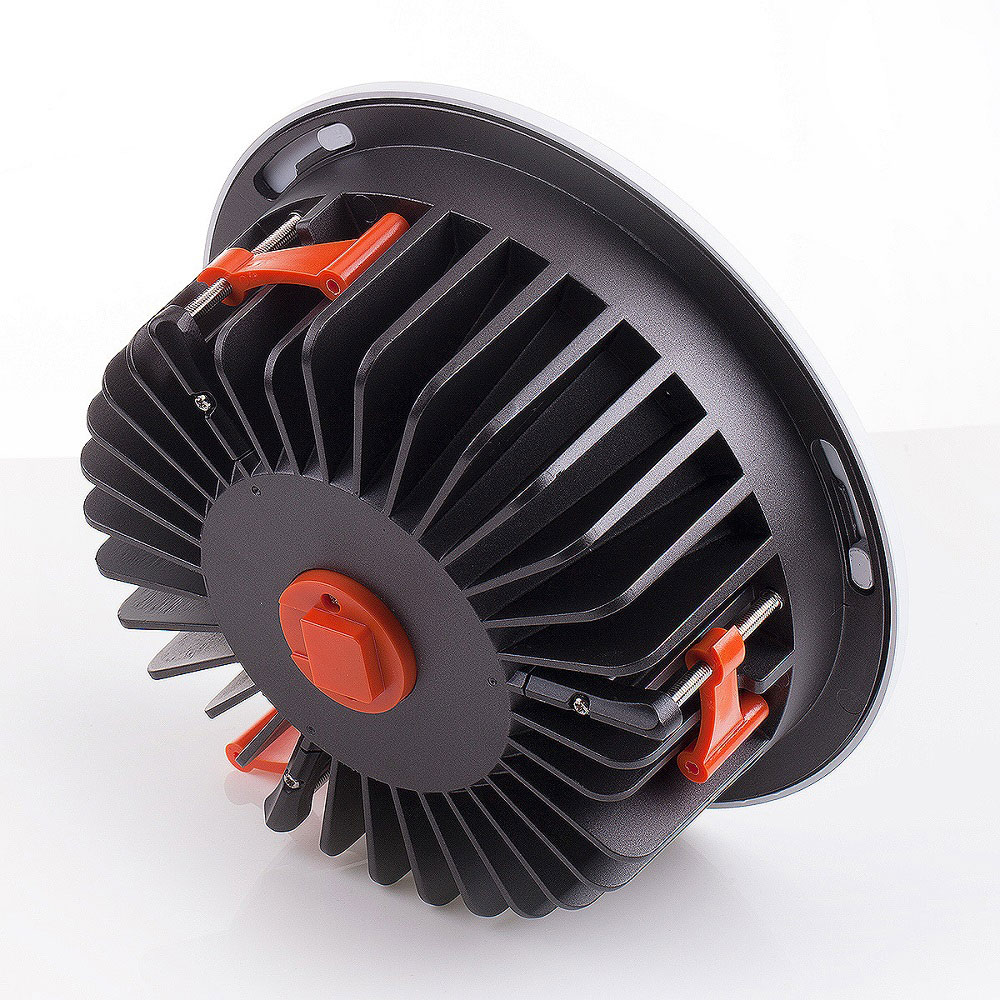

LED Down Light 20x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Down light 20x, Cutout: Φ90–Φ200 mm
- Power: 8–40W
- LED chips: Citizen / CREE
- Lumen Efficiency: 90–100 lm/W
- CRI: >80 / >90, CCT: 2700–5000K
- Beam Angle: 60°
- Input: AC220–240V / AC100–265V
Specifications
| Model | Size(mm) | Cutout(mm) | Power(W) | LED Chips | CCT | CRI | Lumen Efficiency | Beam Angle | Input Voltage |
|---|---|---|---|---|---|---|---|---|---|
| UC-DL-203-8W | Φ110 | Φ90 | 8W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-203-13W | Φ110 | Φ90 | 13W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-203-15W | Φ110 | Φ90 | 15W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-204-12W | Φ145 | Φ125 | 12W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-204-15W | Φ145 | Φ125 | 15W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-204-18W | Φ145 | Φ125 | 18W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-206-18W | Φ190 | Φ165 | 18W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-206-24W | Φ190 | Φ165 | 24W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-206-30W | Φ190 | Φ165 | 30W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-208-24W | Φ230 | Φ200 | 24W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-208-30W | Φ230 | Φ200 | 30W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
| UC-DL-208-40W | Φ230 | Φ200 | 40W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 60° | AC220-240V/AC100-265V |
