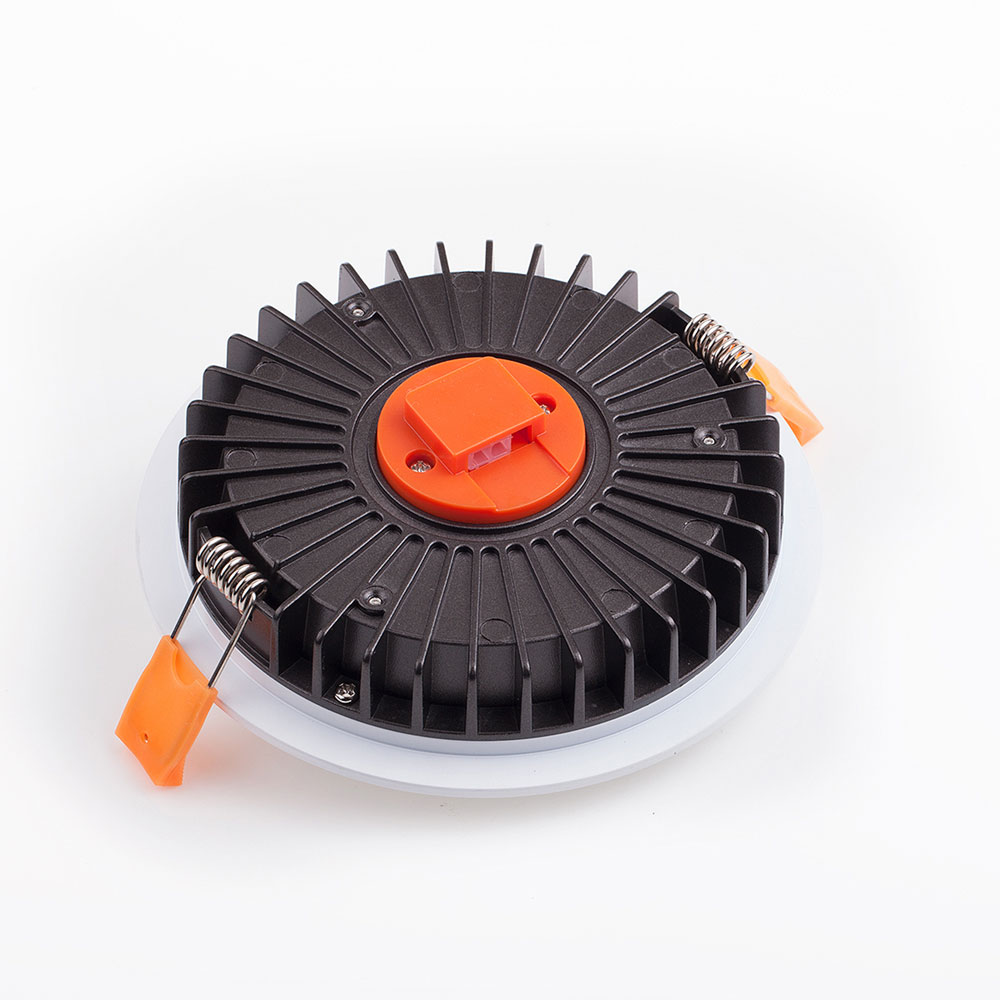

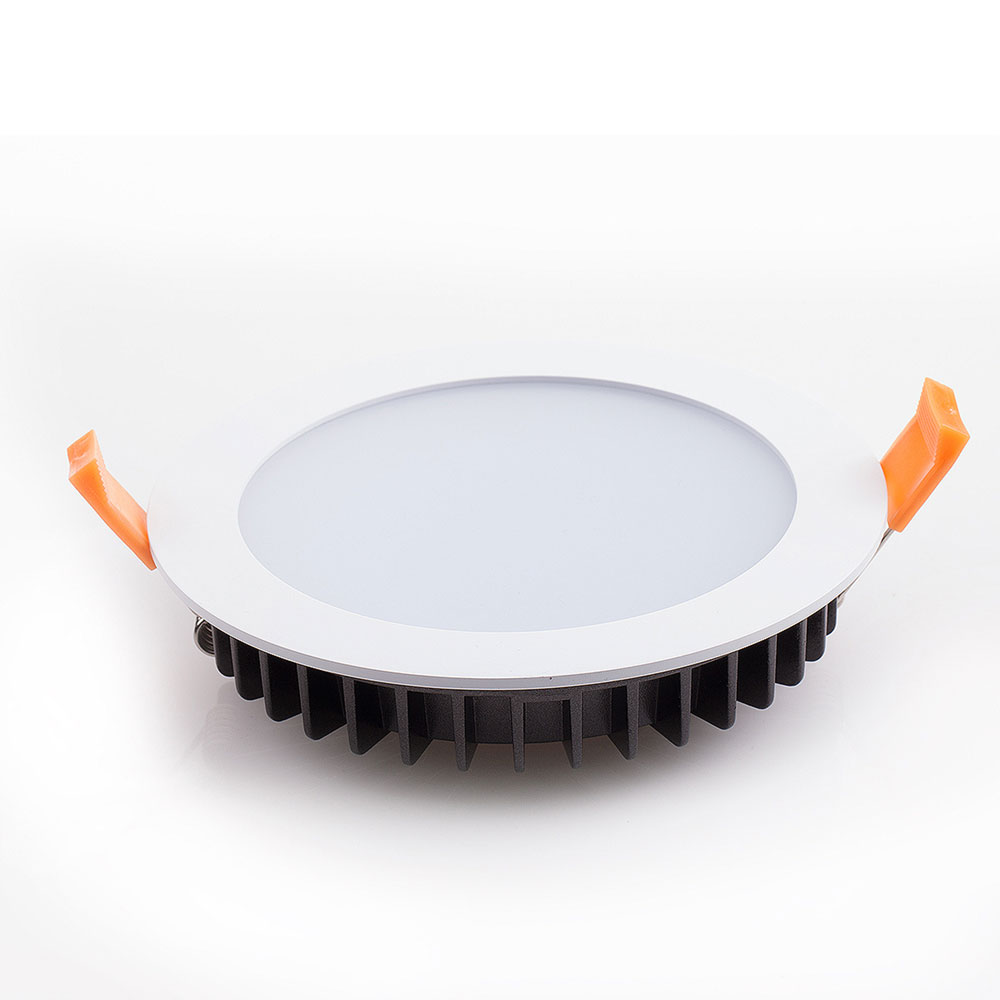

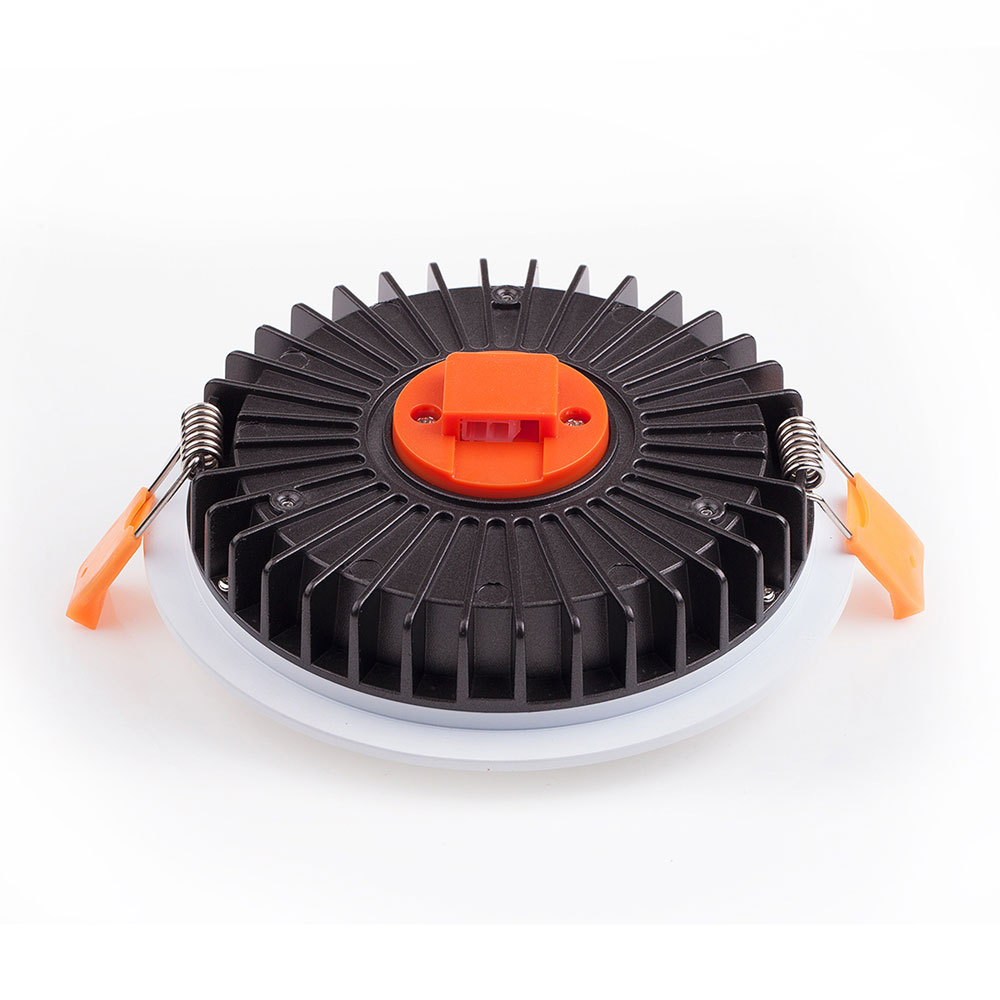

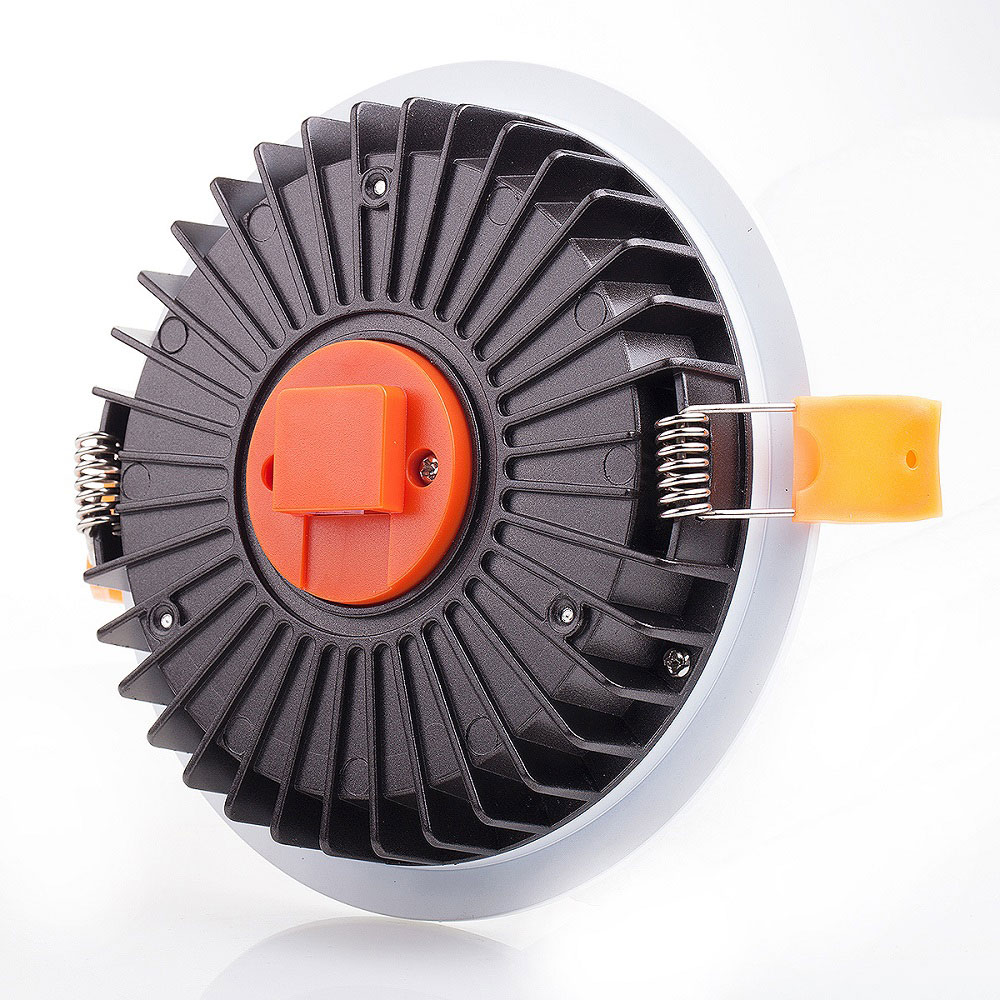

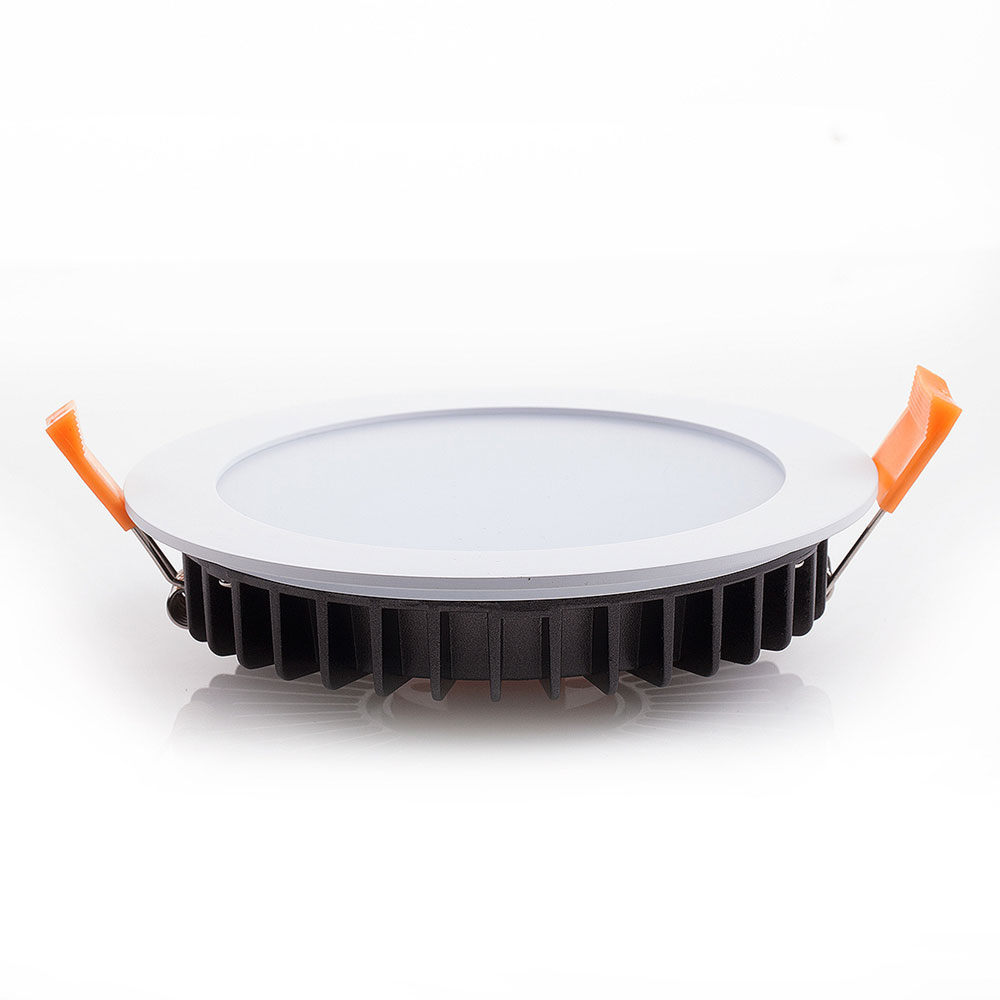

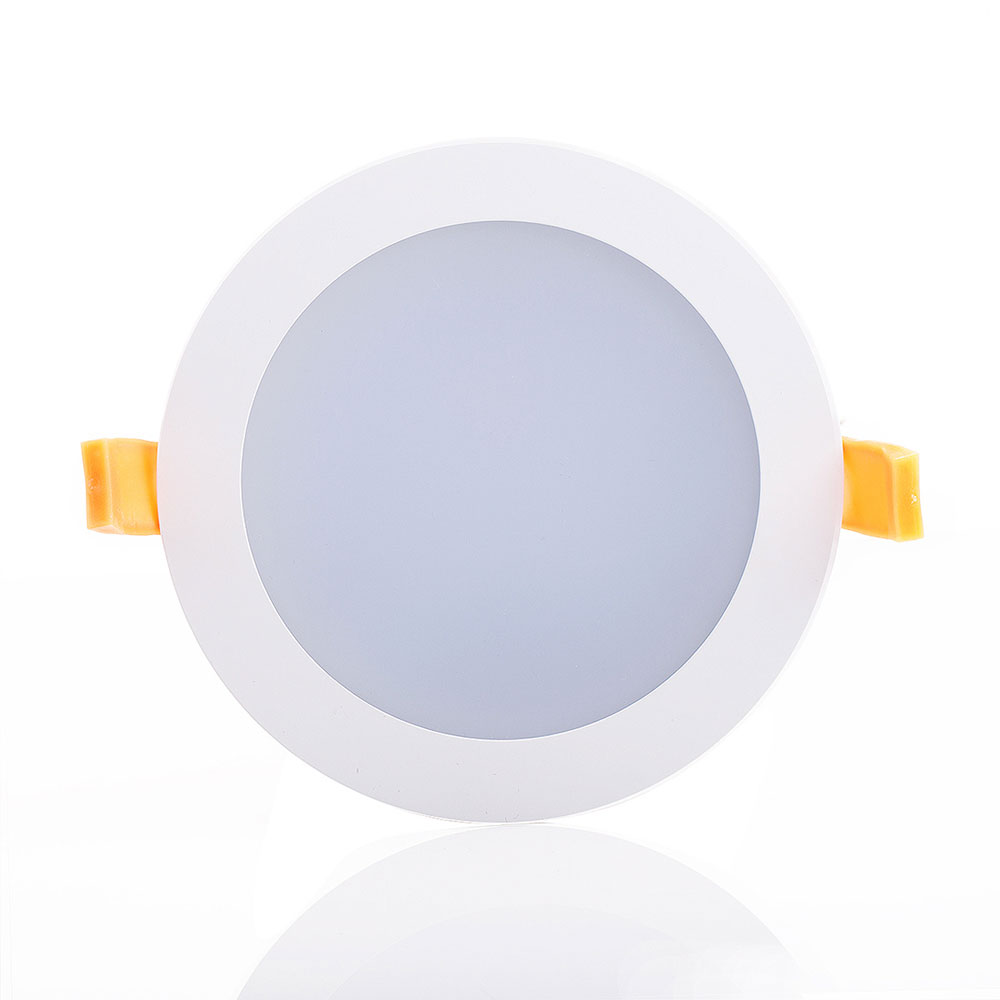

LED Down Light 51x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Down light 51x, Cutout: Φ90–Φ200 mm
- Power: 8–35W
- LED chips: GS
- Lumen Efficiency: 90–100 lm/W
- CRI: >80 / >90, CCT: 2700–5000K
- Beam Angle: 100°
- Input: AC220–240V / AC100–265V
Specifications
| Model | Size(mm) | Cutout(mm) | Power(W) | LED Chips | CCT | CRI | Lumen Efficiency | Beam Angle | Input Voltage |
|---|---|---|---|---|---|---|---|---|---|
| UC-DL-513-8W | Φ110 | Φ90 | 8W | GS | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 100° | AC220-240V/AC100-265V |
| UC-DL-513-13W | Φ110 | Φ90 | 13W | GS | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 100° | AC220-240V/AC100-265V |
| UC-DL-514-12W | Φ140 | Φ125 | 12W | GS | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 100° | AC220-240V/AC100-265V |
| UC-DL-514-15W | Φ140 | Φ125 | 15W | GS | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 100° | AC220-240V/AC100-265V |
| UC-DL-516-25W | Φ180 | Φ165 | 25W | GS | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 100° | AC220-240V/AC100-265V |
| UC-DL-516-30W | Φ180 | Φ165 | 30W | GS | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 100° | AC220-240V/AC100-265V |
| UC-DL-518-28W | Φ230 | Φ200 | 28W | GS | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 100° | AC220-240V/AC100-265V |
| UC-DL-518-35W | Φ230 | Φ200 | 35W | GS | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 100° | AC220-240V/AC100-265V |
