LED Down Light 60x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power

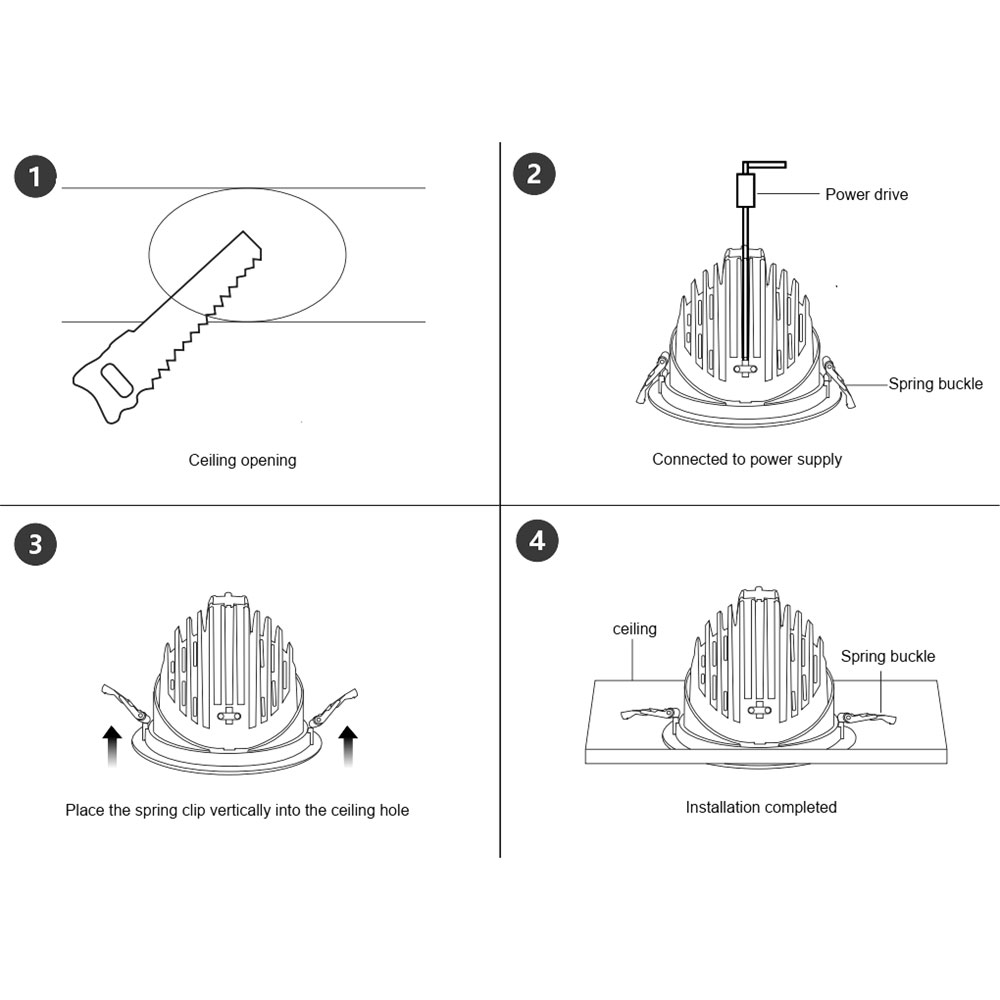

- Down light 60x, Cutout: Φ125–Φ170 mm
- Power: 10–40W
- LED chips: Citizen / CREE
- Lumen Efficiency: 90–100 lm/W
- CRI: >80 / >90, CCT: 2700–5000K
- Beam Angle: 15° / 24° / 38°
- Input: AC220–240V / AC100–265V
Specifications
| Model | Size(mm) | Cutout(mm) | Power(W) | LED Chips | CCT | CRI | Lumen Efficiency | Beam Angle | Input Voltage |
|---|---|---|---|---|---|---|---|---|---|
| UC-DL-604-10W | Φ140 | Φ125 | 10W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38° | AC220-240V/AC100-265V |
| UC-DL-604-20W | Φ140 | Φ125 | 20W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38° | AC220-240V/AC100-265V |
| UC-DL-604-25W | Φ140 | Φ125 | 25W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38° | AC220-240V/AC100-265V |
| UC-DL-605-25W | Φ160 | Φ145 | 25W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38° | AC220-240V/AC100-265V |
| UC-DL-605-30W | Φ160 | Φ145 | 30W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38° | AC220-240V/AC100-265V |
| UC-DL-605-35W | Φ160 | Φ145 | 35W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38° | AC220-240V/AC100-265V |
| UC-DL-606-20W | Φ190 | Φ170 | 20W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38° | AC220-240V/AC100-265V |
| UC-DL-606-30W | Φ190 | Φ170 | 30W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38° | AC220-240V/AC100-265V |
| UC-DL-606-40W | Φ190 | Φ170 | 40W | Citizen/CREE | 2700K/3000K/4000K/5000K | >80/>90 | 90-100 lm/W | 15°/24°/38° | AC220-240V/AC100-265V |
