LED Track Light TRA
Commercial Lighting
Features
- Lower consumption; more than 80% saving of the power
- Model: UC-TRA series (10–40W)
- Power: 10–40W
- Input voltage: 180–265V AC, 50–60 Hz
- Size: ∅55×150 – ∅90×190 mm
- Lumen: 940–3840 lm
- CRI: 80 / 90 / 97, CCT: 2700–5000K
- Beam Angle: 15° / 24° / 36° / 45° / 60°
- IP: IP20
Specifications

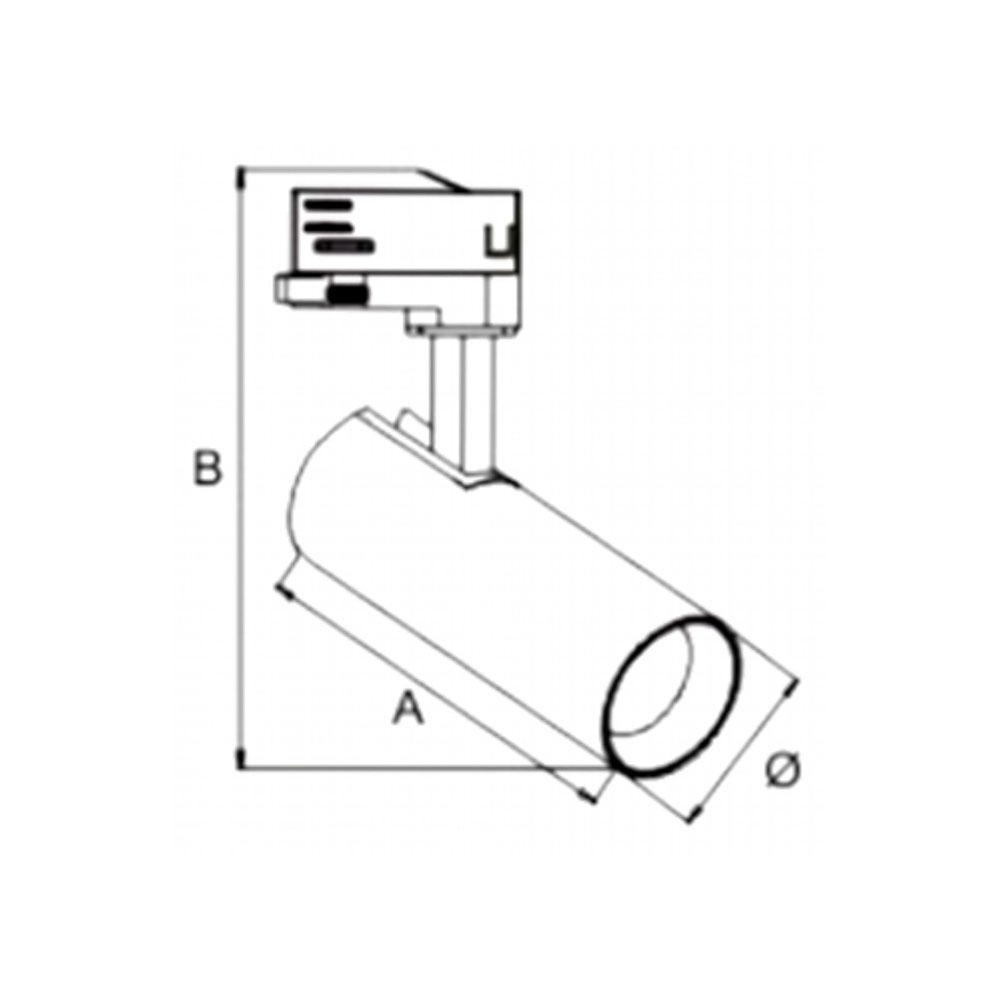

| Model | Power(W) | Input Voltage | Size(mm) | Lumen(lm) | CRI(Ra) | CCT(K) | Beam Angle | IP |
|---|---|---|---|---|---|---|---|---|
| UC-TRA-10A | 10W | 180-265VAC/50-60Hz | ∅55xA150xB213.5 | 940 lm | 80/90/97 | 2700K-5000K | 15°/24°36°/60° | lP20 |
| UC-TRA-10B | 10W | 180-265VAC/50-60Hz | ∅55xA143xB206.5 | 940 lm | 80/90/97 | 2700K-5000K | 15°/24°/36° | lP20 |
| UC-TRA-10C | 10W | 180-265VAC/50-60Hz | ∅55xA150xB213.5 | 940 lm | 80/90/97 | 2700K-5000K | 15°/24°/36°/45°/60° | lP20 |
| UC-TRA-20A | 20W | 180-265VAC/50-60Hz | ∅60xA165xB230.5 | 1820 lm | 80/90/97 | 2700K-5000K | 15°/24°/36°/60° | lP20 |
| UC-TRA-20B | 20W | 180-265VAC/50-60Hz | ∅60xA158xB223.5 | 1820 lm | 80/90/97 | 2700K-5000K | 15°/24°/36° | lP20 |
| UC-TRA-20C | 20W | 180-265VAC/50-60Hz | ∅60xA165xB230.5 | 1820 lm | 80/90/97 | 2700K-5000K | 15°/24°/36°/45°/60° | lP20 |
| UC-TRA-30A | 30W | 180-265VAC/50-60Hz | ∅74xA175xB245.5 | 2790 lm | 80/90/97 | 2700K-5000K | 15°/24°/36°60° | lP20 |
| UC-TRA-30B | 30W | 180-265VAC/50-60Hz | ∅74xA167xB238.5 | 2790 lm | 80/90/97 | 2700K-5000K | 15°/24°/36° | lP20 |
| UC-TRA-30C | 30W | 180-265VAC/50-60Hz | ∅74xA175xB245.5 | 2790 lm | 80/90/97 | 2700K-5000K | 15°/24°/36°/45°/60° | lP20 |
| UC-TRA-40A | 40W | 180-265VAC/50-60Hz | ∅90xA190xB260.5 | 3840 lm | 80/90/97 | 2700K-5000K | 15°/24°/36°/60° | lP20 |
| UC-TRA-40B | 40W | 180-265VAC/50-60Hz | ∅90xA181xB251.5 | 3840 lm | 80/90/97 | 2700K-5000K | 15°/24°/36° | lP20 |
| UC-TRA-40C | 40W | 180-265VAC/50-60Hz | ∅90xA190xC260.5 | 3840 lm | 80/90/97 | 2700K-5000K | 15°/24°/36°/45°/60° | lP20 |
