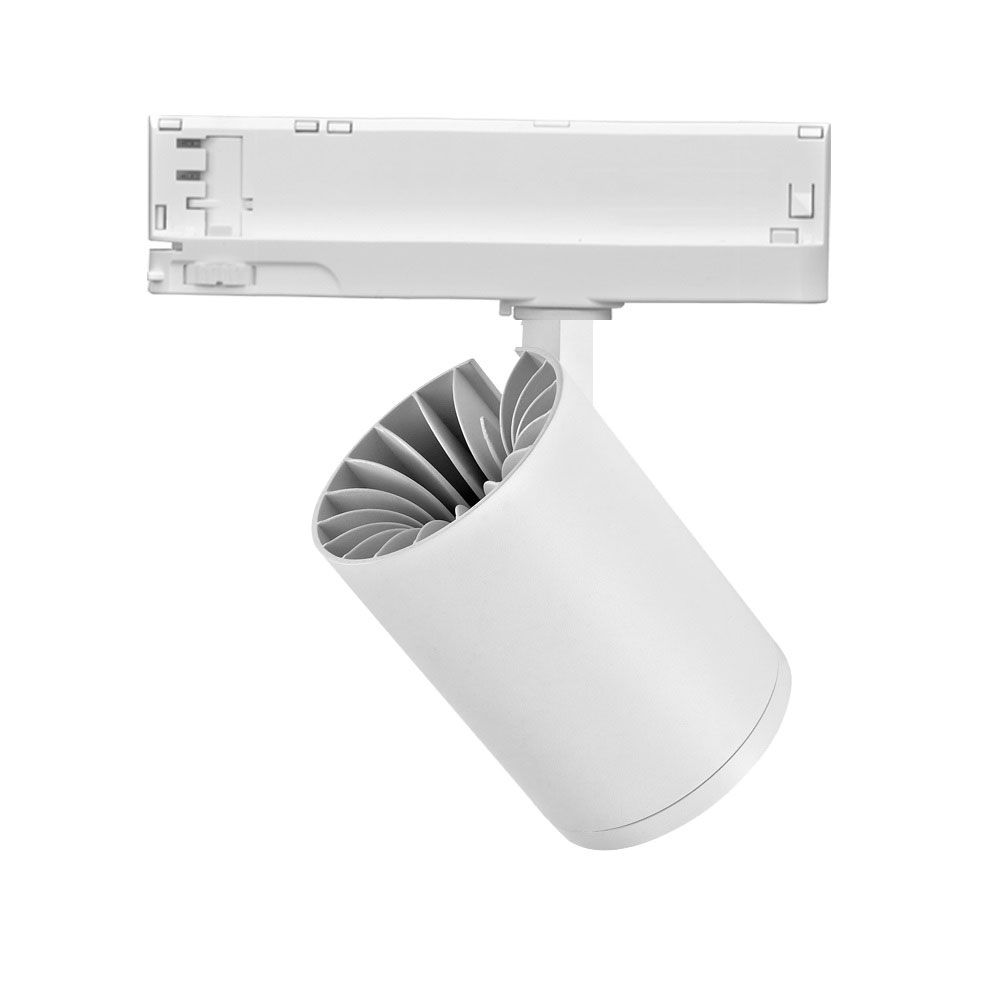

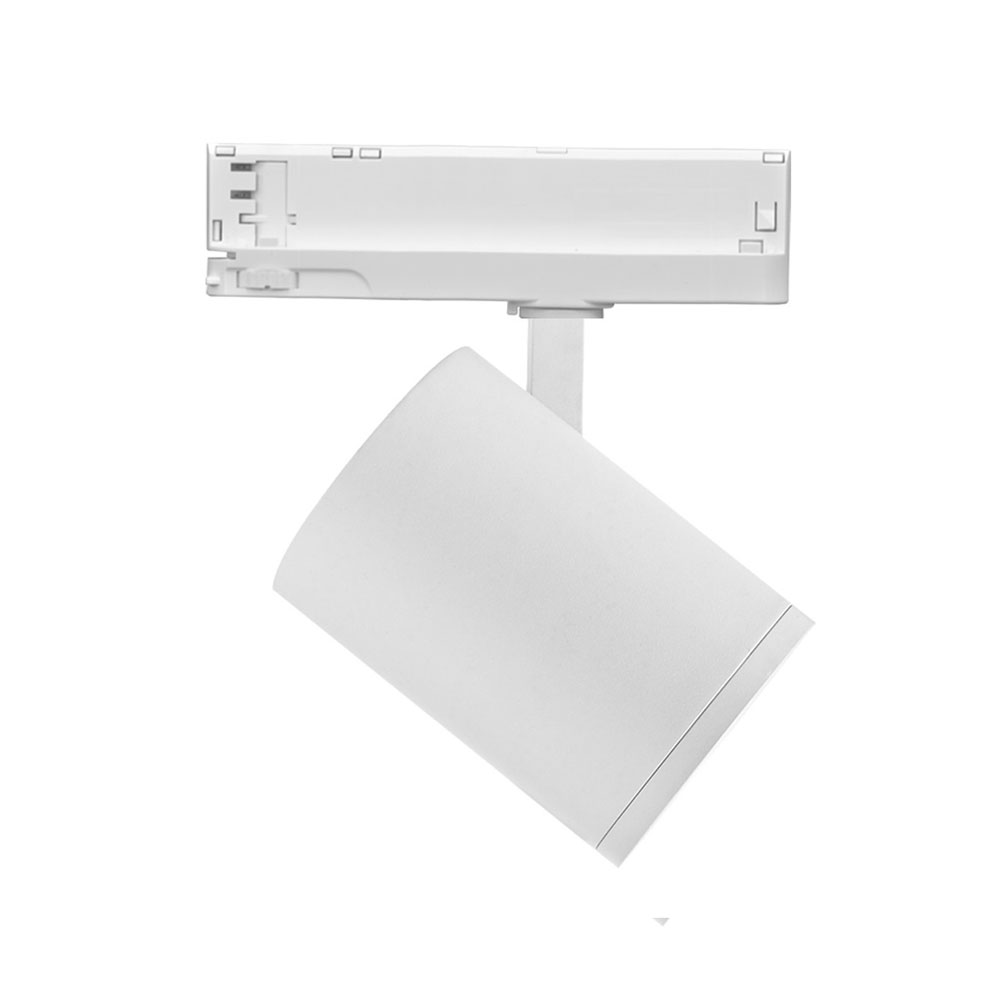

LED Track Light TRB
Commercial Lighting
Features
- Lower consumption; more than 80% saving of the power
- Model: UC-TRB series (20–40W)
- Power: 20–40W
- Input voltage: 180–265V AC, 50–60 Hz

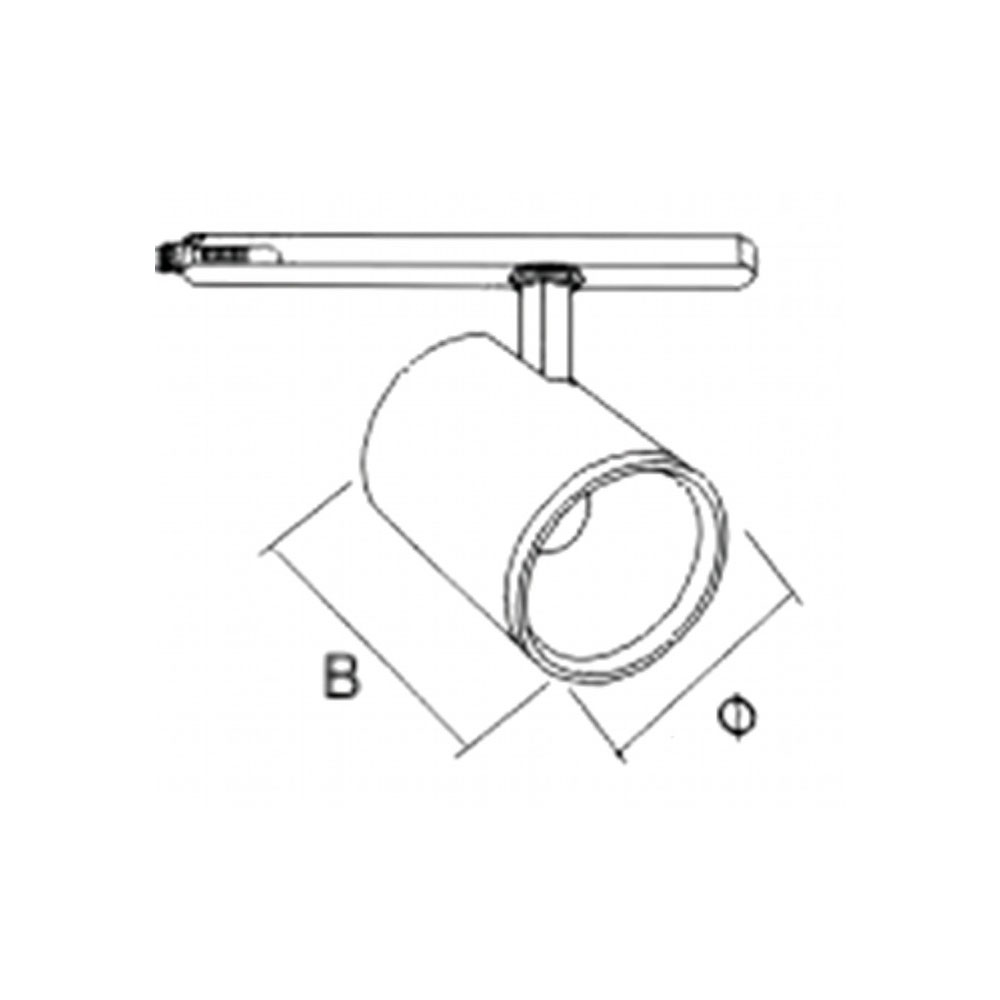

- Size: B105×∅75 – B115×∅100 mm
- Lumen: 1930–3690 lm
- CRI: 80 / 90, CCT: 3000–5000K
- Beam Angle: 15° / 24° / 38° / 45° / 60° or 15° / 24° / 30°
- IP: IP20
Specifications
| Model | Power(W) | Input Voltage | Size(mm) | Lumen(lm) | CRI(Ra) | CCT(K) | Beam Angle | IP |
|---|---|---|---|---|---|---|---|---|
| UC-TRB-20B | 20W | 180-265VAC/50-60Hz | B105*∅75 | 1930 lm | 80/90 | 3000K/4000K/5000K | 15°/24°/38°/45°/60° | lP20 |
| UC-TRB-30B | 30W | 180-265VAC/50-60Hz | B108*∅90 | 2770 lm | 80/90 | 3000K/4000K/5000K | 15°/24°/38°/45°/60° | lP20 |
| UC-TRB-40B | 40W | 180-265VAC/50-60Hz | B115*∅100 | 3690 lm | 80/90 | 3000K/4000K/5000K | 15°/24°/38°/45°/60° | lP20 |
| UC-TRB-20BT | 20W | 180-265VAC/50-60Hz | B105*∅75 | 1930 lm | 80/90 | 3000K/4000K/5000K | 15°/24°/30° | lP20 |
| UC-TRB-30BT | 30W | 180-265VAC/50-60Hz | B108*∅90 | 2770 lm | 80/90 | 3000K/4000K/5000K | 15°/24°/30° | lP20 |
| UC-TRB-40BT | 40W | 180-265VAC/50-60Hz | B115*∅100 | 3690 lm | 80/90 | 3000K/4000K/5000K | 15°/24°/30° | lP20 |
