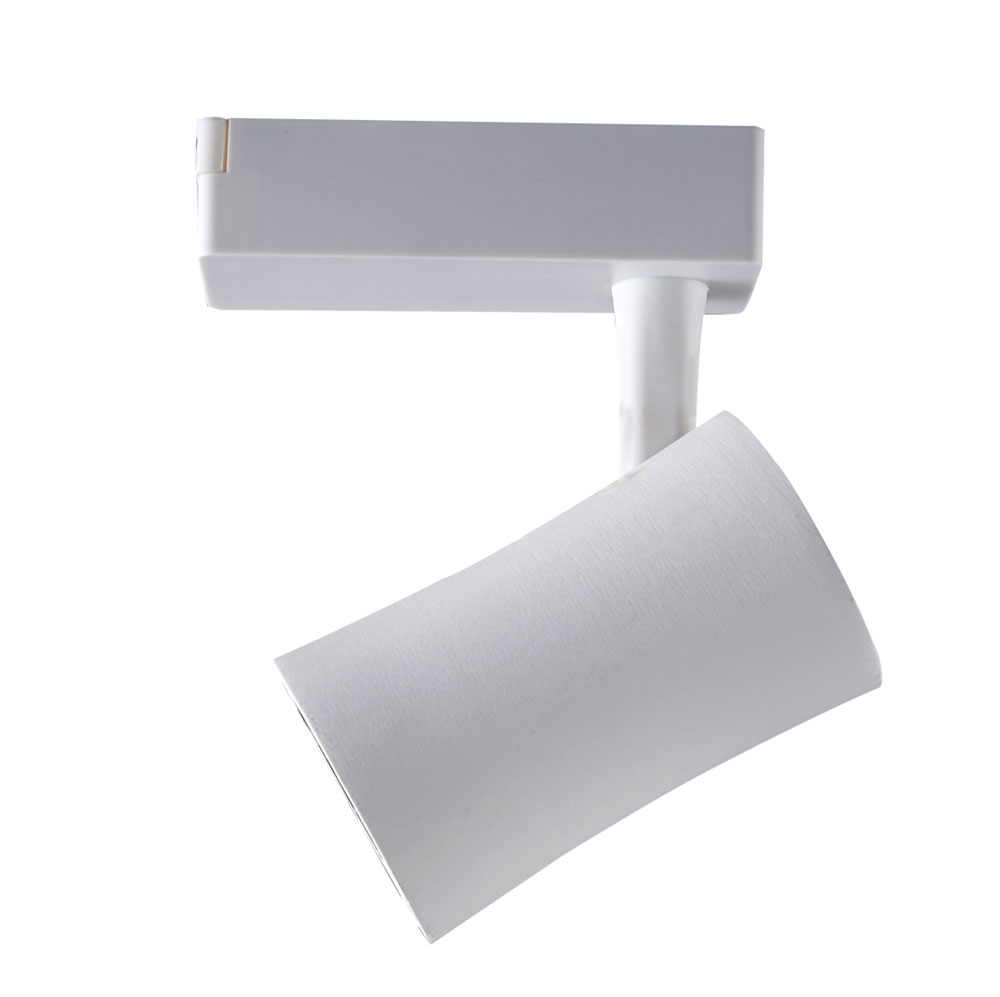

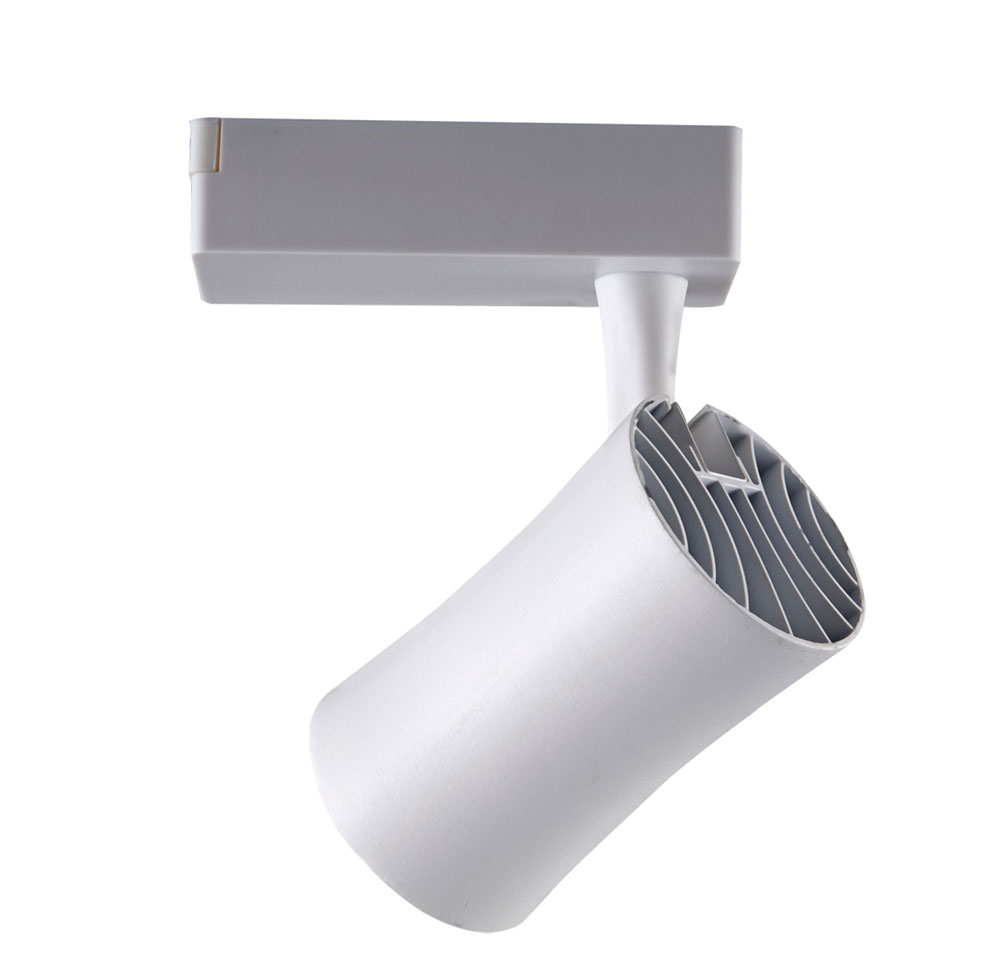

LED Track Light TRC
Commercial Lighting
Features
- Lower consumption; more than 80% saving of the power
- Model: UC-TRC series (20–40W)
- Power: 20–40W
- Input voltage: 180–265V AC, 50–60 Hz

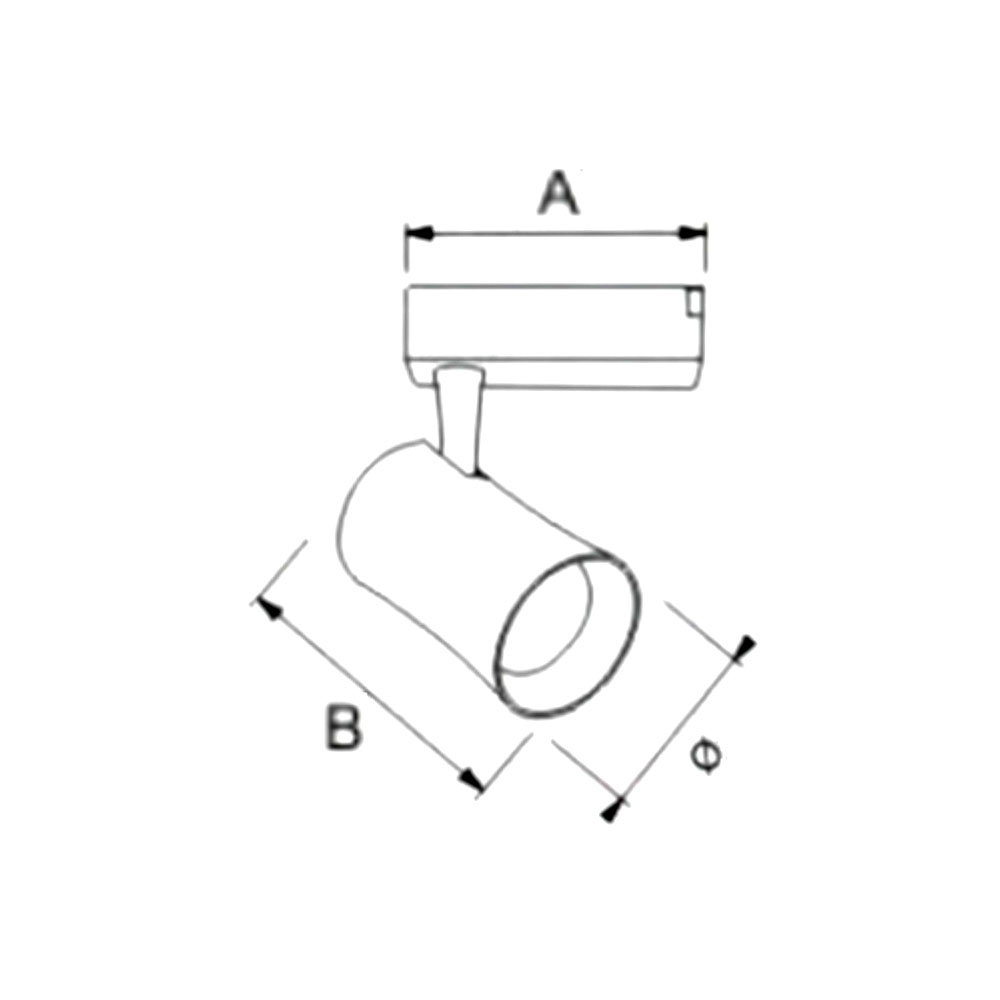

- Size: A135×B128×∅75 – A135×B135×∅95 mm
- Lumen: 1890–3720 lm
- CRI: 80 / 90, CCT: 3000–5000K
- Beam Angle: 15° / 24° / 36°
- IP: IP20
Specifications
| Model | Power(W) | Input Voltage | Size(mm) | Lumen(lm) | CRI(Ra) | CCT(K) | Beam Angle | IP |
|---|---|---|---|---|---|---|---|---|
| UC-TRC-20A | 20W | 180-265VAC/50-60Hz | A135*B128*∅75 | 1890 lm | 80/90 | 3000K/4000K/5000K | 15°/24°/36° | lP20 |
| UC-TRC-30A | 30W | 180-265VAC/50-60Hz | A135*B135*∅84 | 2770 lm | 80/90 | 3000K/4000K/5000K | 15°/24°/36° | lP20 |
| UC-TRC-40A | 40W | 180-265VAC/50-60Hz | A135*B135*∅95 | 3720 lm | 80/90 | 3000K/4000K/5000K | 15°/24°/36° | lP20 |
