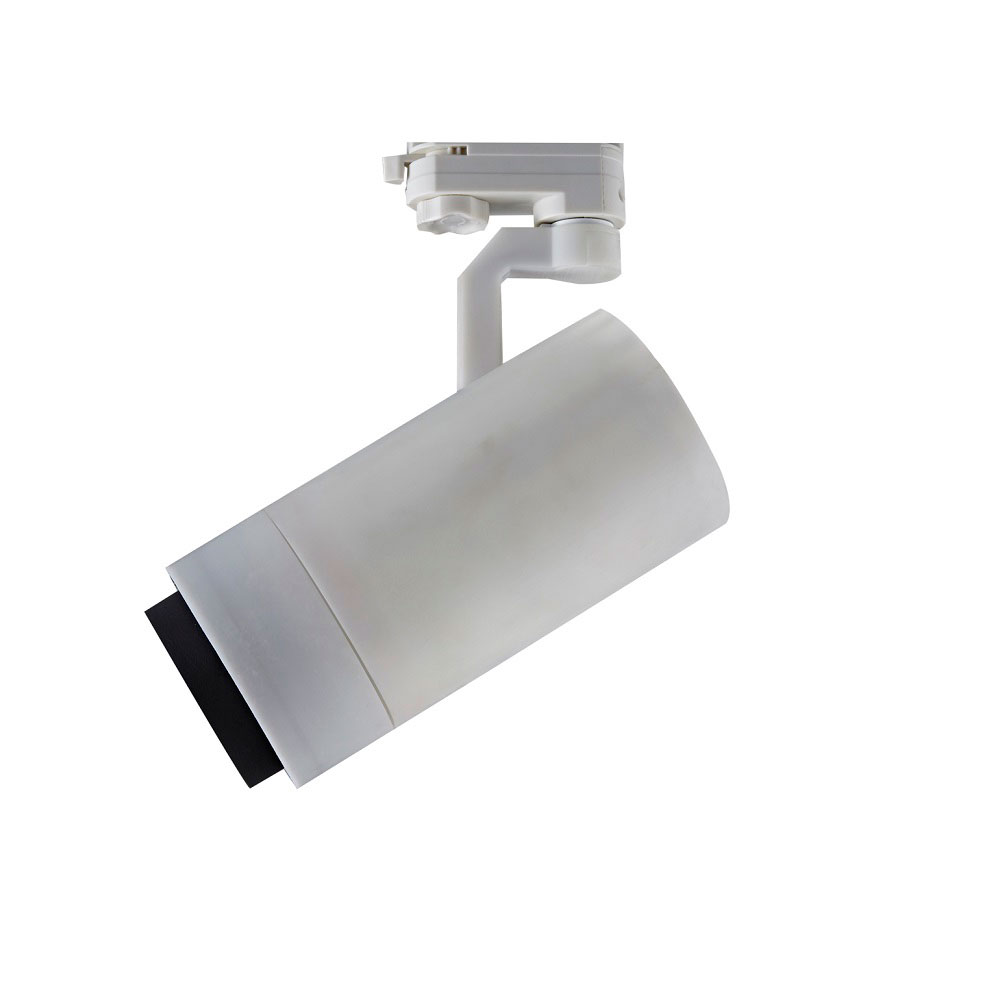

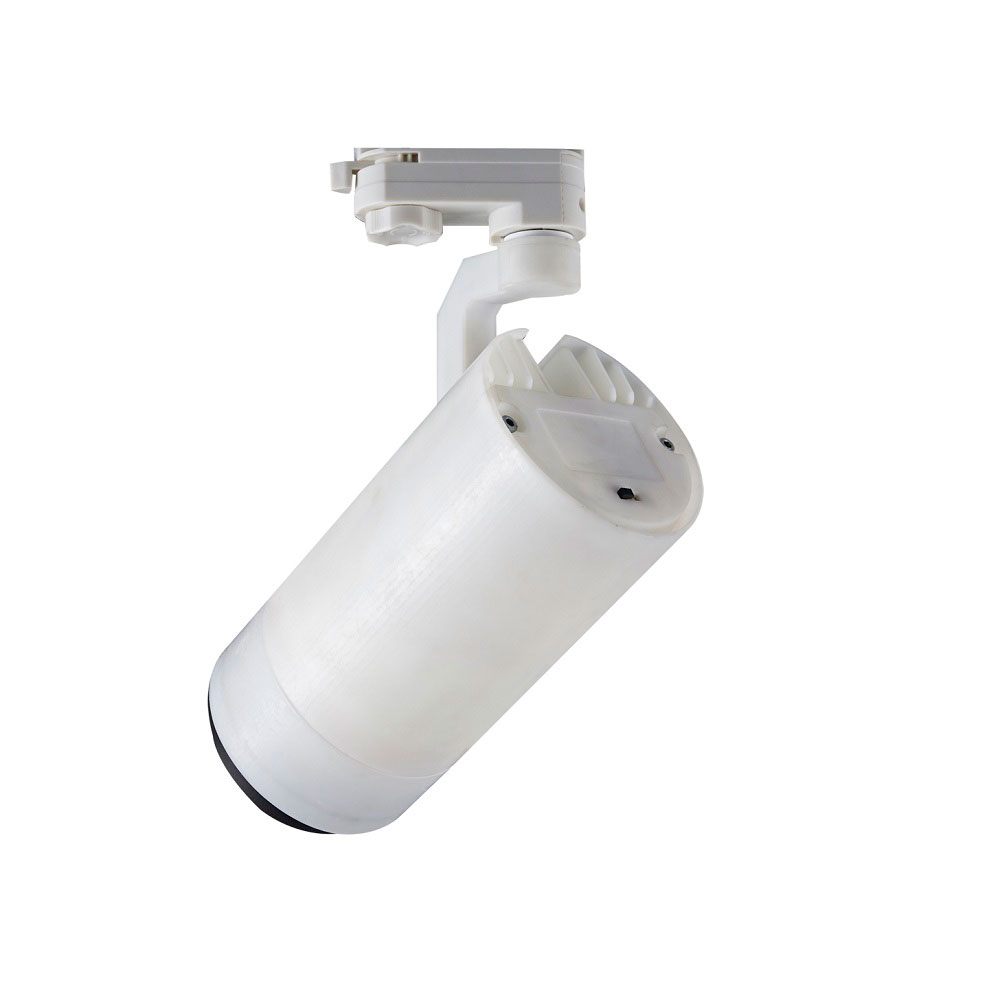

LED Track Light TRD
Commercial Lighting
Features
- Lower consumption; more than 80% saving of the power
- Model: UC-TRD series (20–40W)
- Power: 20–40W
- Input voltage: 180–265V AC, 50–60 Hz

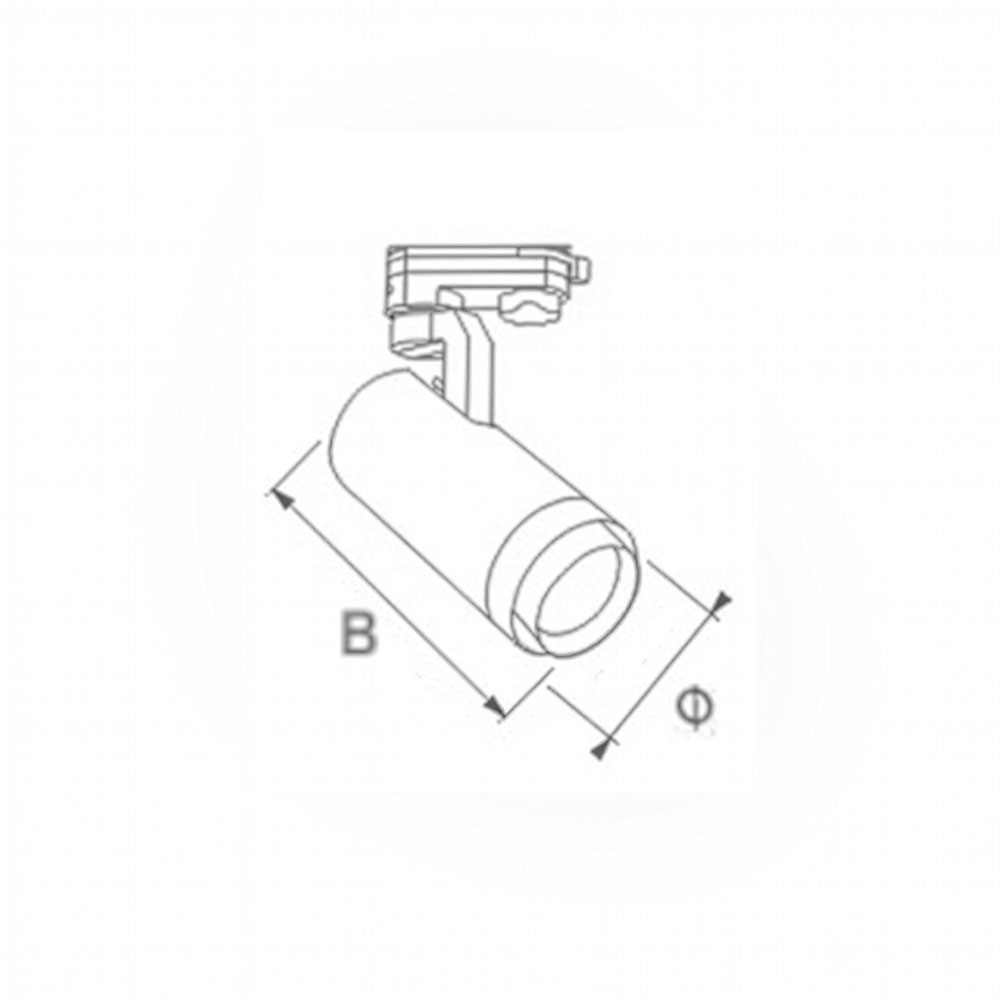

- Size: B156×∅67 – B191×∅95 mm
- Lumen: 1750–3640 lm
- CRI: 80 / 90, CCT: 3000–5000K
- Beam Angle: 15–60° (adjustable)
- IP: IP20
Specifications
| Model | Power(W) | Input Voltage | Size(mm) | Lumen(lm) | CRI(Ra) | CCT(K) | Beam Angle | IP |
|---|---|---|---|---|---|---|---|---|
| UC-TRD-20A | 20W | 180-265VAC/50-60Hz | B156*∅67 | 1750 lm | 80/90 | 3000K/4000K/5000K | 15-60° | lP20 |
| UC-TRD-30A | 30W | 180-265VAC/50-60Hz | B181*∅80 | 2720 lm | 80/90 | 3000K/4000K/5000K | 15-60° | lP20 |
| UC-TRD-40A | 40W | 180-265VAC/50-60Hz | B191*∅95 | 3640 lm | 80/90 | 3000K/4000K/5000K | 15-60° | lP20 |
