LED Wall Light UTWL-080x Series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTWL-080x series
- Power: CREE 3535 / OSRAM 3030 / COB 12–24W
- Size: 138×200×100 – 138×250×130 mm
- Power Chamber Size: Tube/COB type drivers
- Inner Size: 85–112 mm
- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications
| Model | Power(W) | Size(mm) | Power Chamber Size(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|

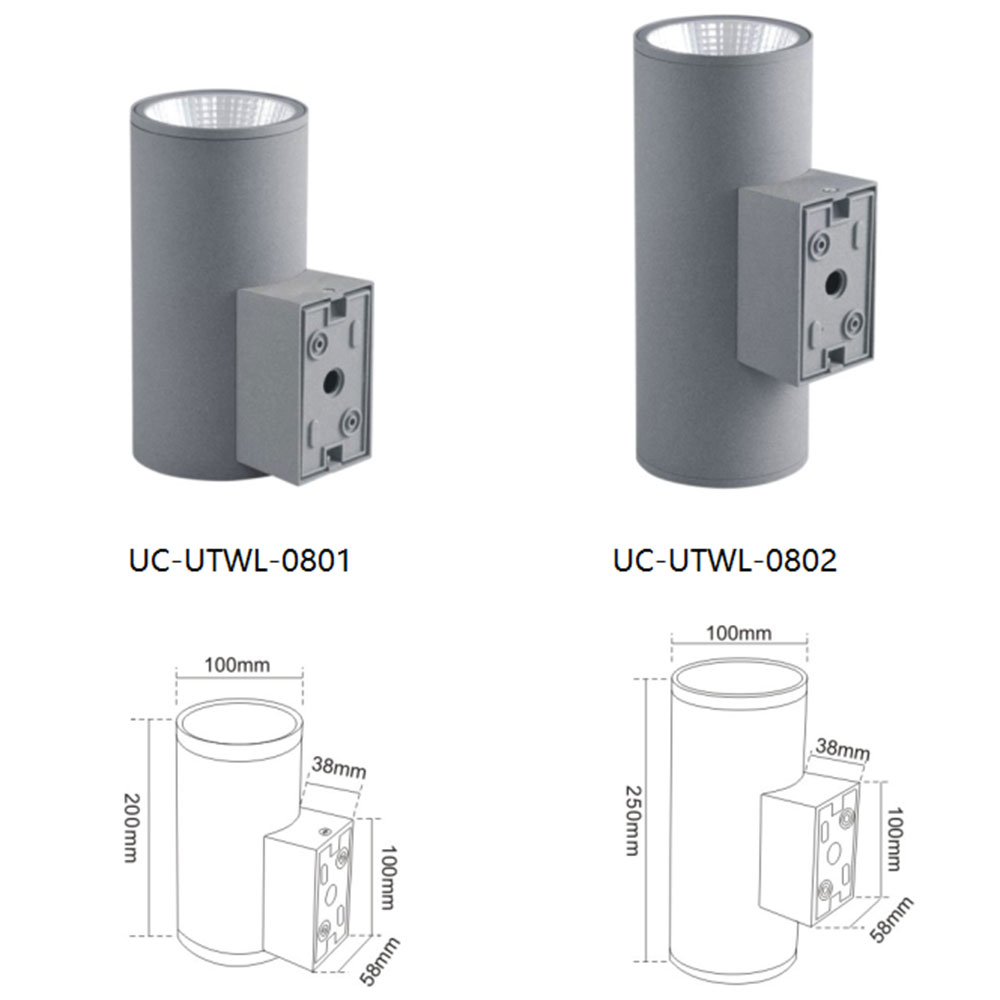

| UC-UTWL-0801 | CREE 3535 6W/9*2W/OSRAM 3030 9W/COB 20W 24° | 138*200*100 | Tube type, driver size 140*75*7/COB type, driver size 108*75*75 | 85 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTWL-0802 | CREE 3535 6W/9W/OSRAM 3030 9W/COB 12W*2头 | 138*250*100 | Tube type, driver size 155*75*75/COB type, driver size 96*75*75 | 85 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |

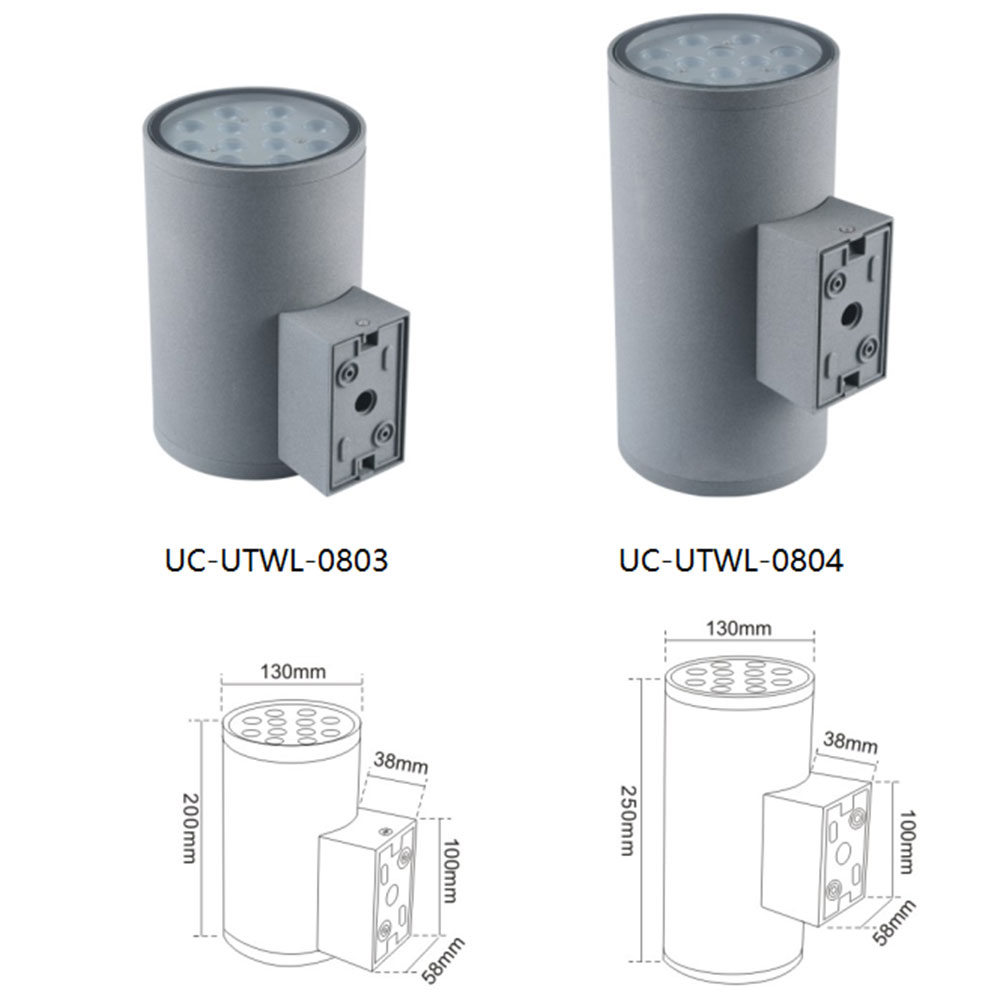

| UC-UTWL-0803 | CREE 3535 12W*2/OSRAM 3030 18W/COB 24W 38° | 138*200*130 | Tube type, driver size 138*105*10/COB type, driver size 105*105*94 | 112 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTWL-0804 | CREE 3535 12W*2/OSRAM 3030 18W/COB 20W*2头 38° | 138*250*130 | Tube type, driver size 155*105*105/COB type, driver size 105*105*63 | 112 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
