LED Wall Light UTWL-050x Series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTWL-050x series
- Power: CREE 3535 / OSRAM 3030 / DTJ 9–16W
- Size: 95×95×125 – 120×120×145 mm
- Power Chamber Size: 87×87×44 – 112×112×35 mm
- Inner Size: 86×86 – 110.5×110.5 mm
- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications
| Model | Power(W) | Size(mm) | Power Chamber Size(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|

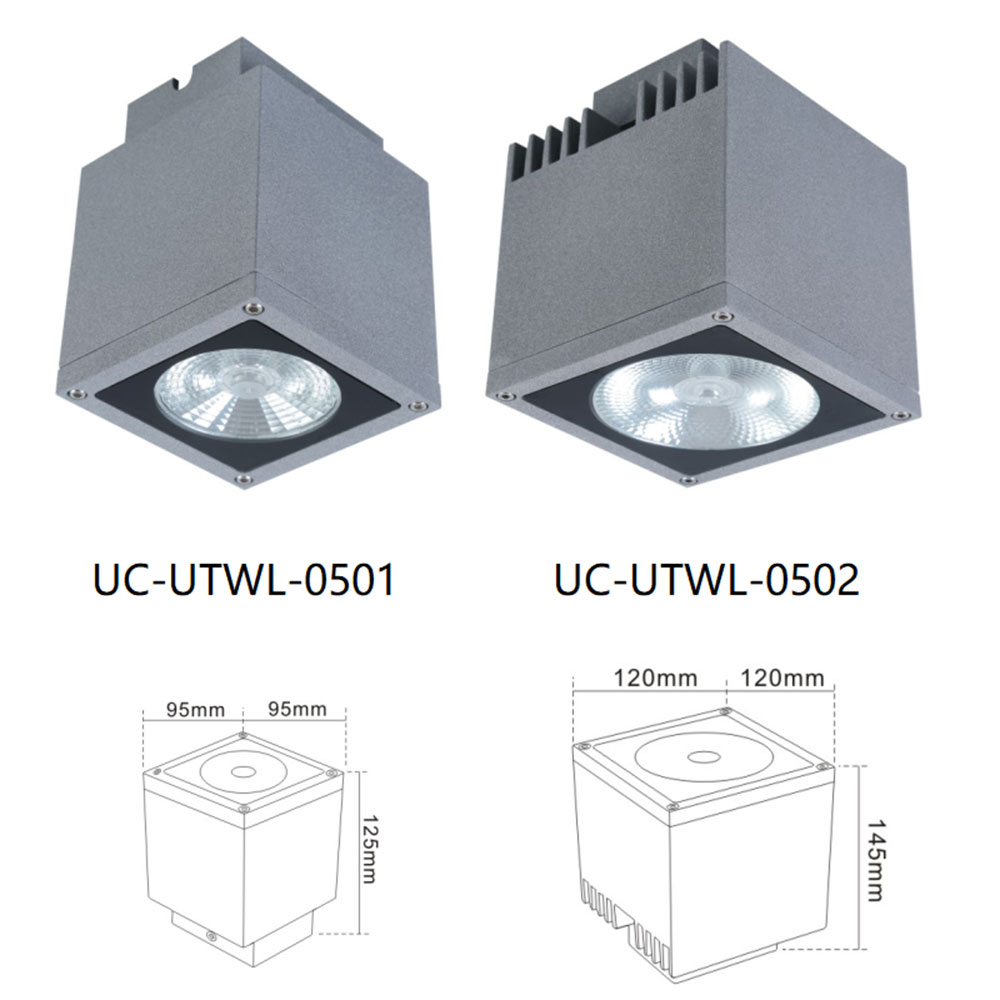

| UC-UTWL-0501 | CREE 3535 9*2W/OSRAM 3030 9W/DTJ 10°/20°/30° | 95*95*125 | 87*87*44 | 86*86 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTWL-0502 | CREE 3535 16*2W/OSRAM 3030 16W/DTJ 10°/20°/30° | 120*120*145 | 112*112*35 | 110.5*110.5 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |

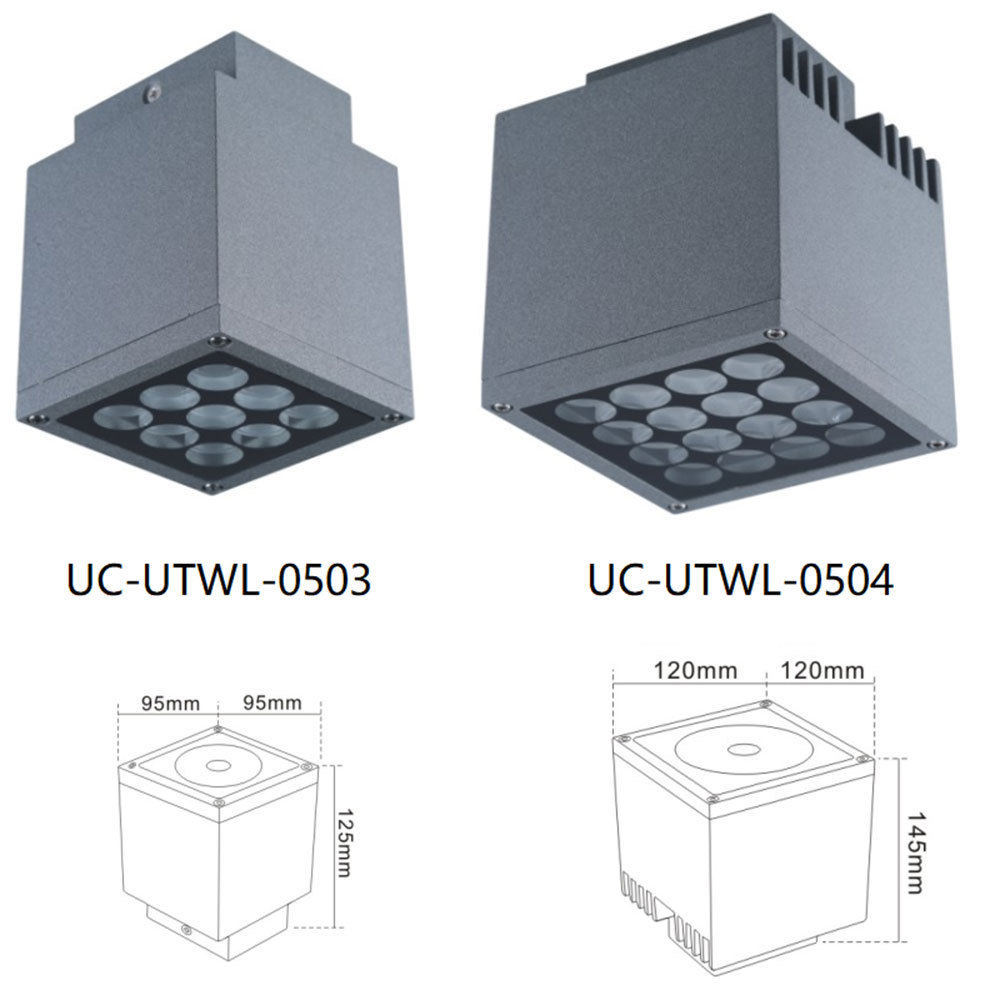

| UC-UTWL-0503 | CREE 3535 9*2W/OSRAM 3030 9W/DTJ 10°/20°/30° | 95*95*125 | 87*87*44 | 86*86 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTWL-0504 | CREE 3535 16*2W/OSRAM 3030 16W/DTJ 10°/20°/30° | 120*120*145 | 112*112*35 | 110.5*110.5 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
