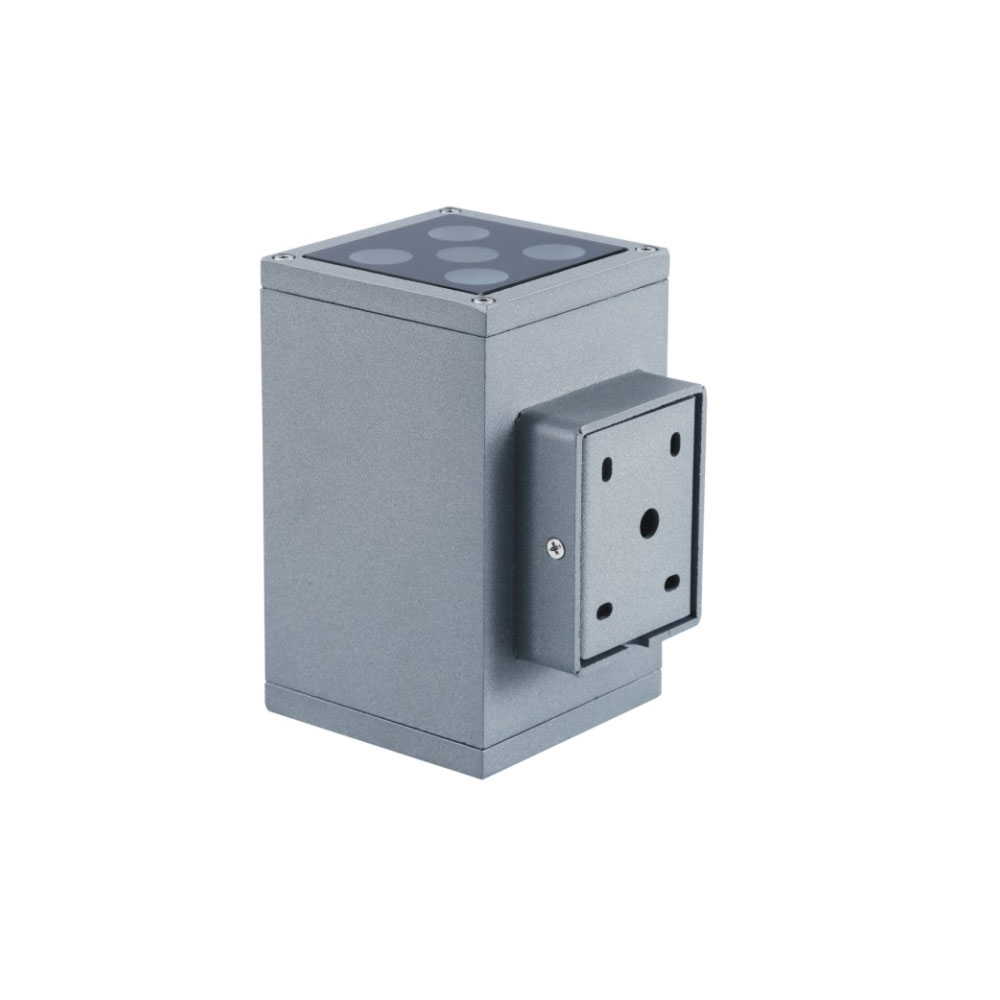

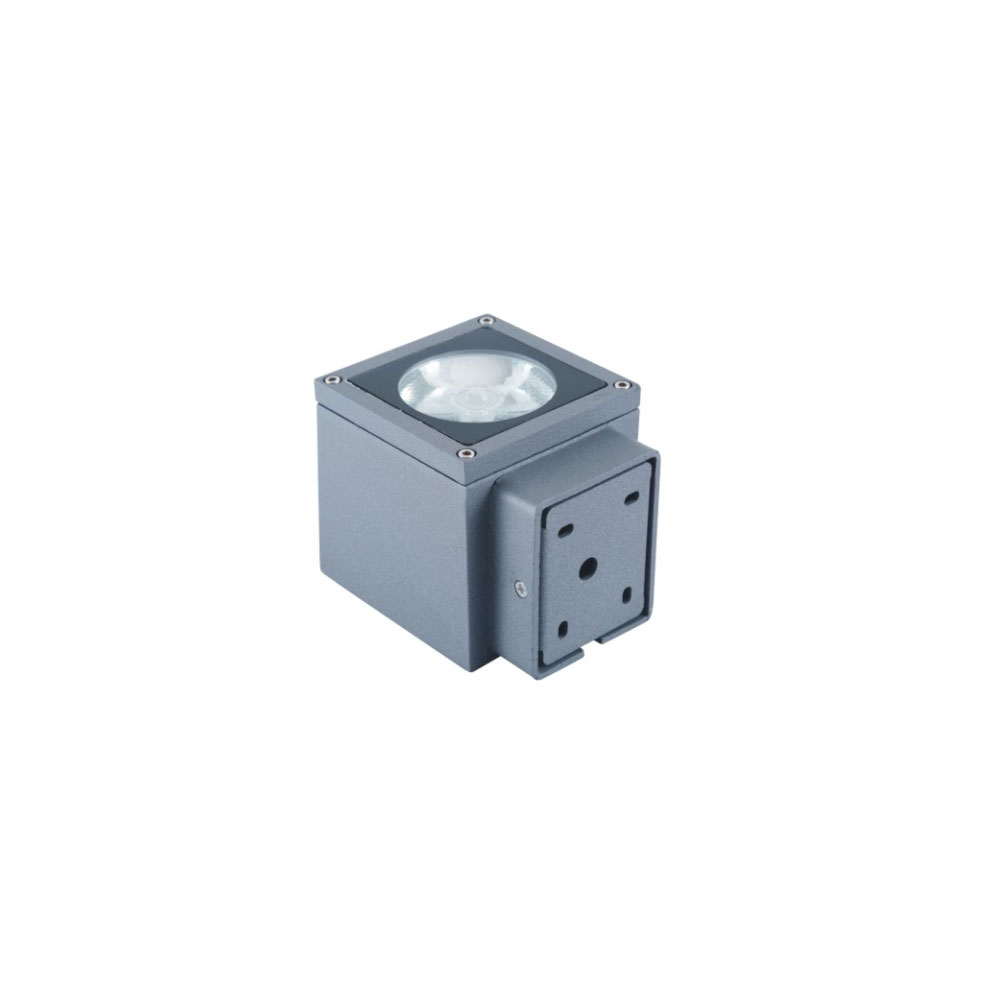

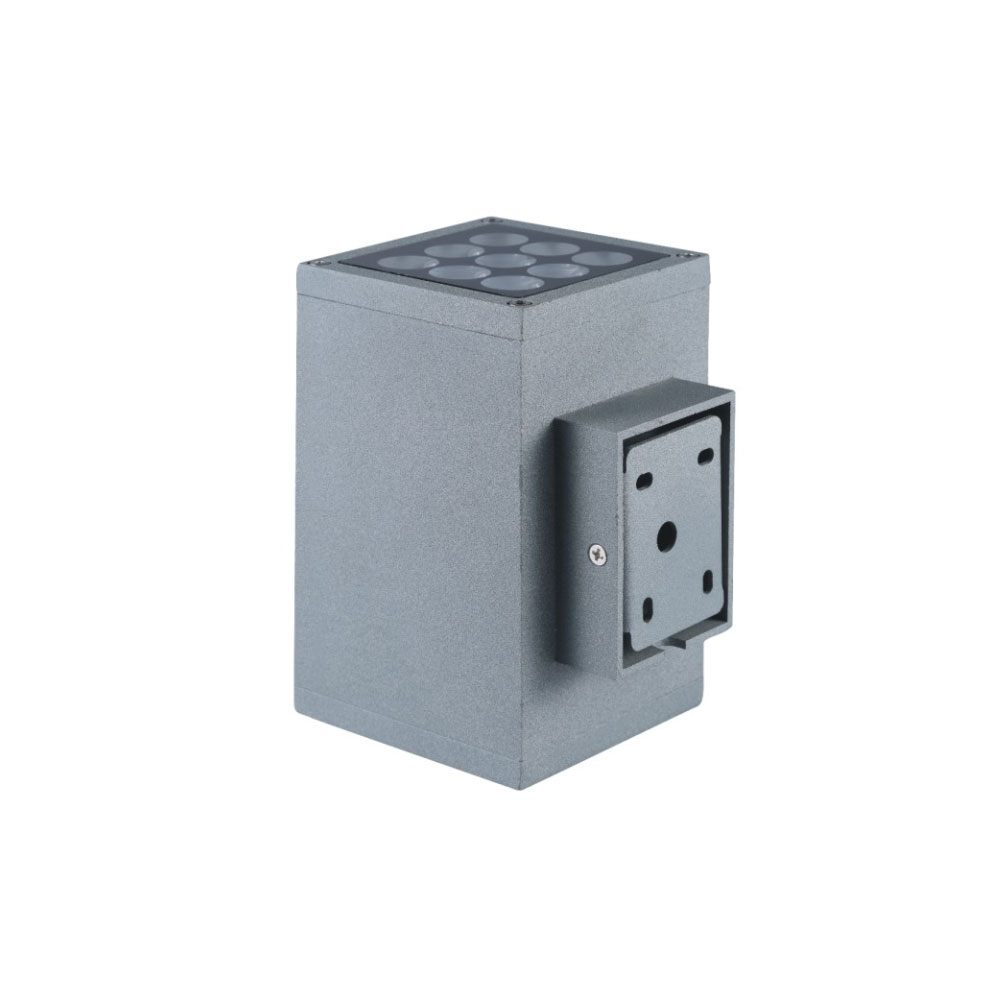

LED Wall Light UTWL-070x Series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTWL-070x series
- Power: CREE 3535 / OSRAM 3030 / COB / DTJ / YSG 3–24W
- Size: 55×65×80 – 150×150×110 mm
- Power Chamber Size: 57×23×23 – 140×32×53 mm
- Inner Size: 49×49 – 138×138 mm

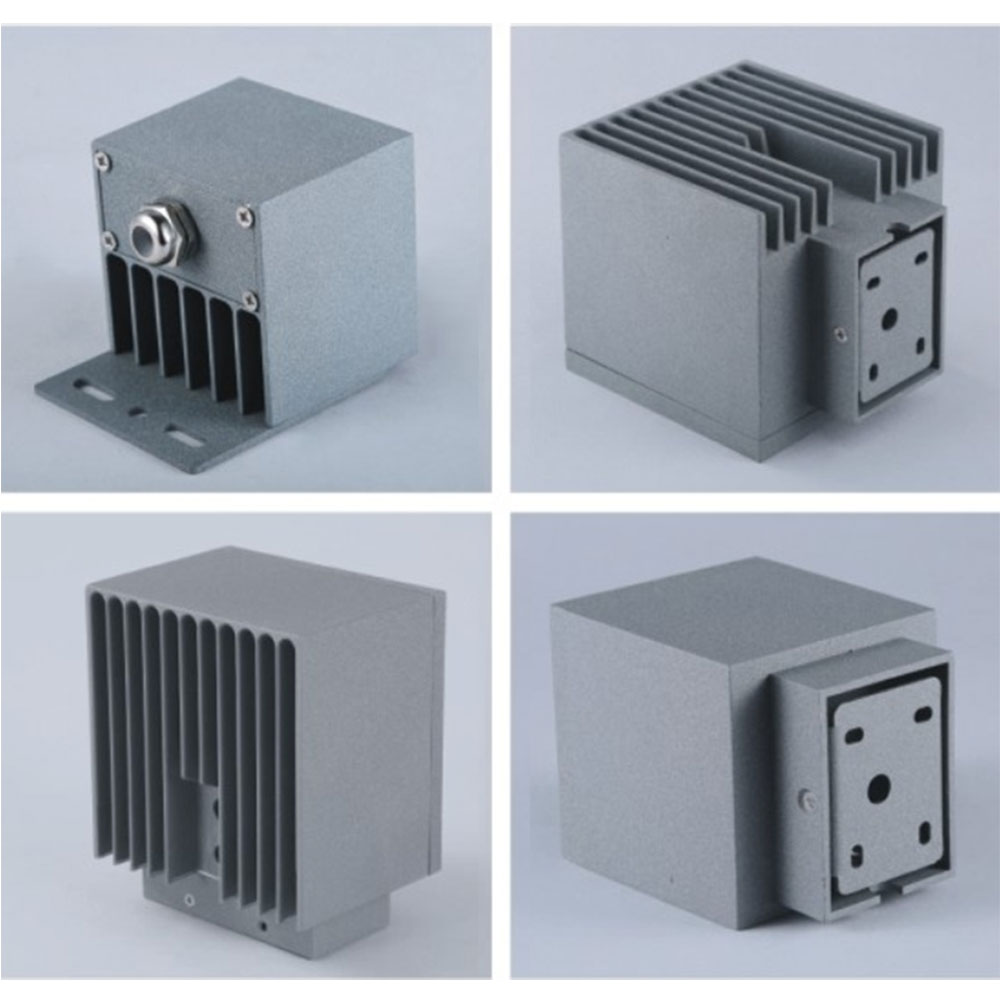

- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications
| Model | Power(W) | Size(mm) | Power Chamber Size(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|

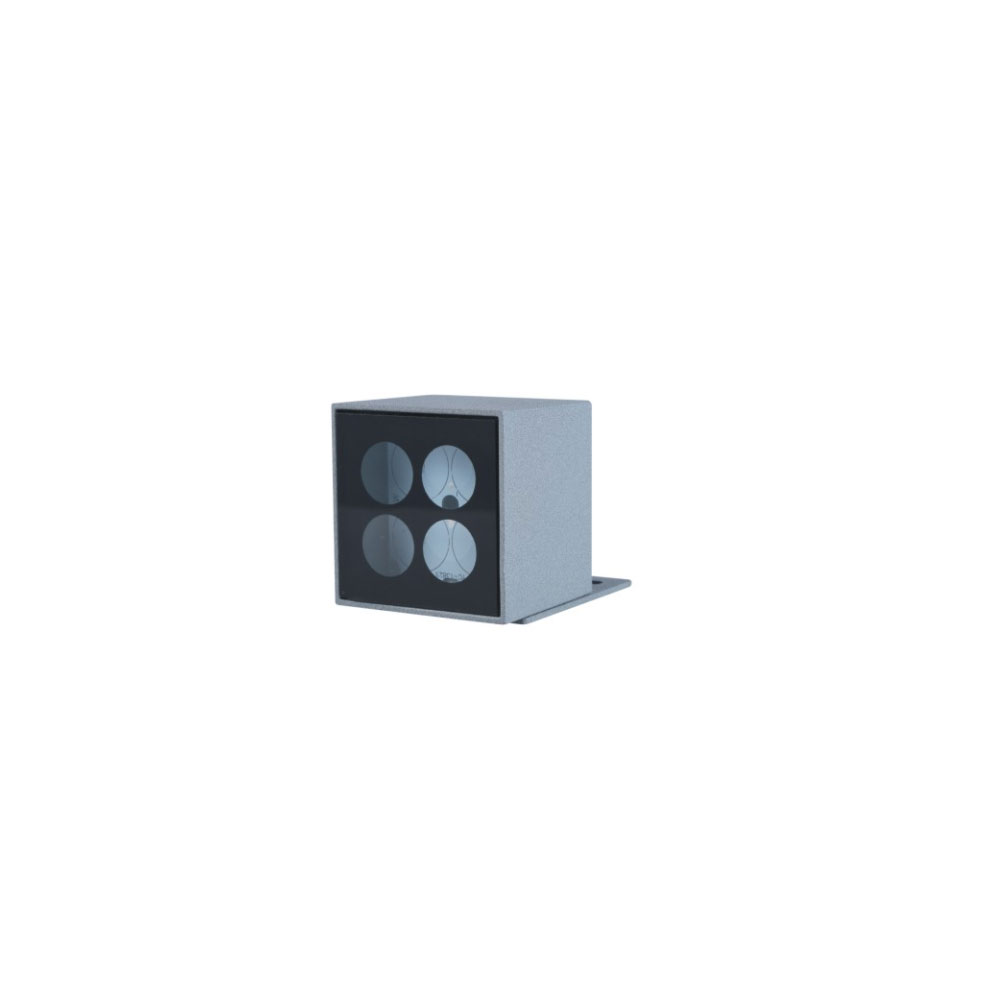

| UC-UTWL-070-651 | CREE 3535 3W/4*2W/OSRAM 3030 3W/4W/3030 COB38° YSG | 55*65*80 | 57*23*23 | 49*49 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTWL-070-9011 | CREE 10-15W/DTJ 10°/20°/30° | 95*100*120 | 87*87*44 | 86*86 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |

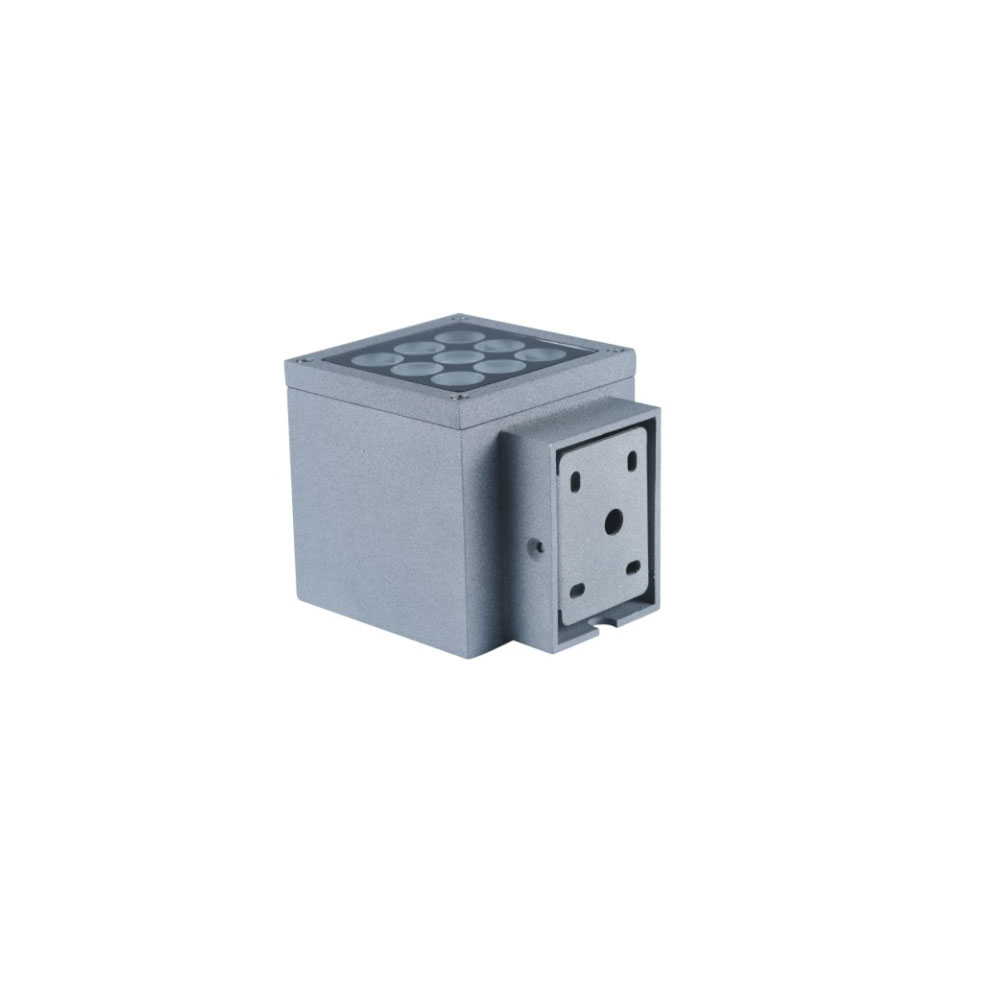

| UC-UTWL-070-9012 | CREE 3535 9*2WOSRAM 3030 9W/YSG 4*3W | 95*100*120 | 87*87*44 | 86*86 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |

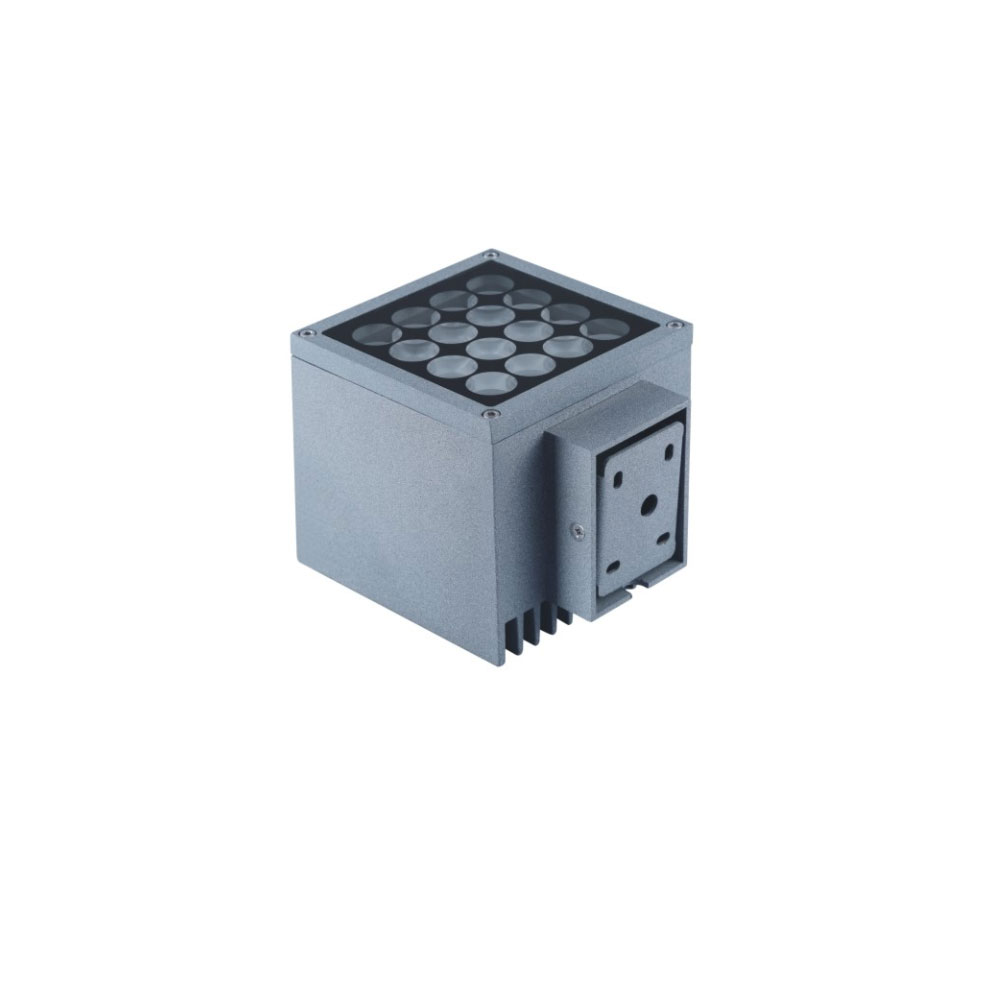

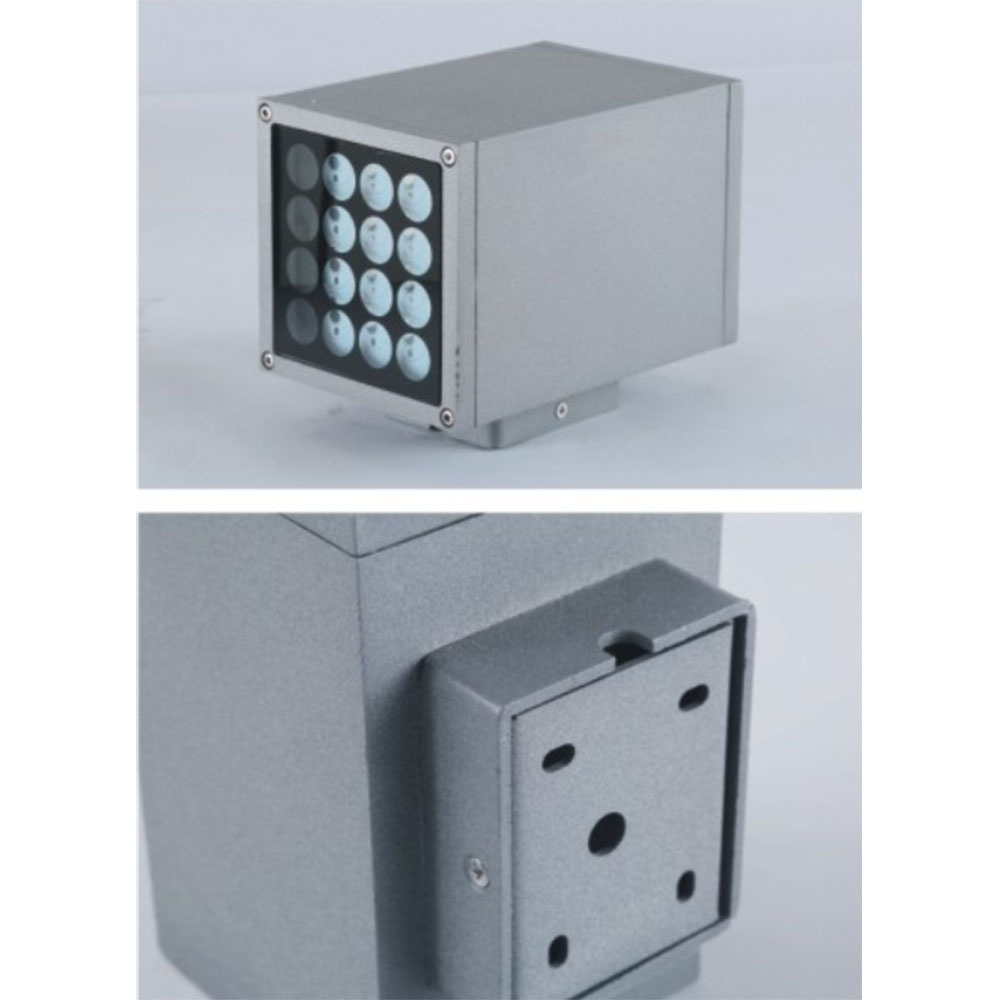

| UC-UTWL-070-1201 | CREE 3535 16*2WOSRAM 3030 16W/DTJ 10°/20°/30° | 120*115*145 | 112*112*35 | 110.5*110.5 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |

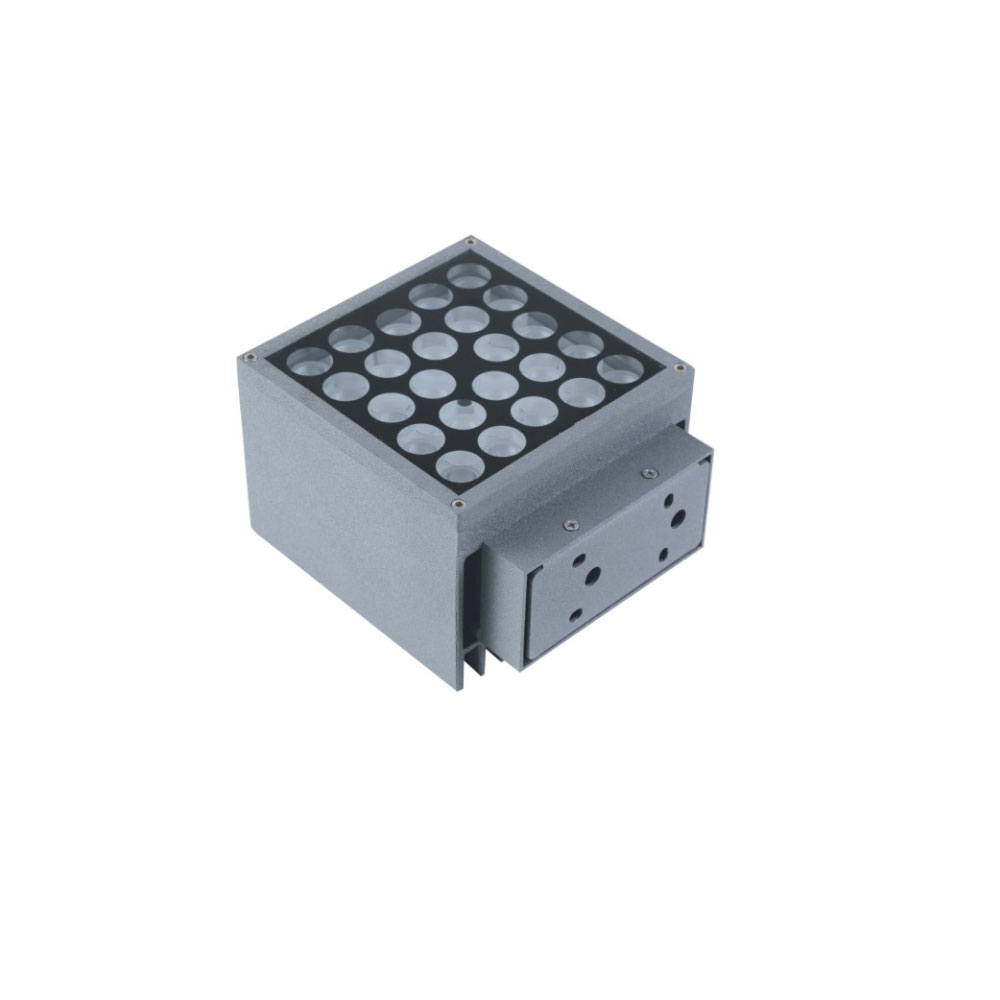

| UC-UTWL-070-1501 | CREE 3535 24*2WOSRAM 3030 24W/DTJ 10°/20°/30°/YSG 9*3W | 150*150*110 | 140*32*53 | 138*138 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
