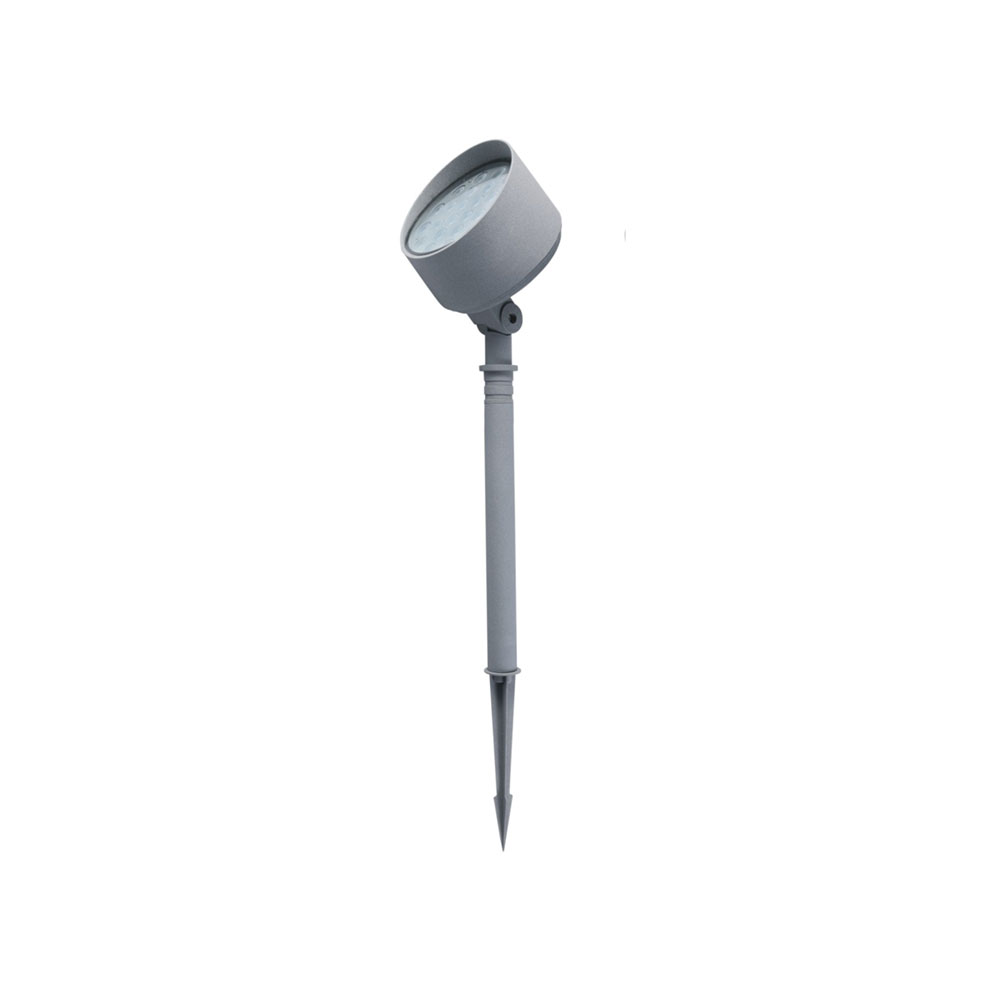

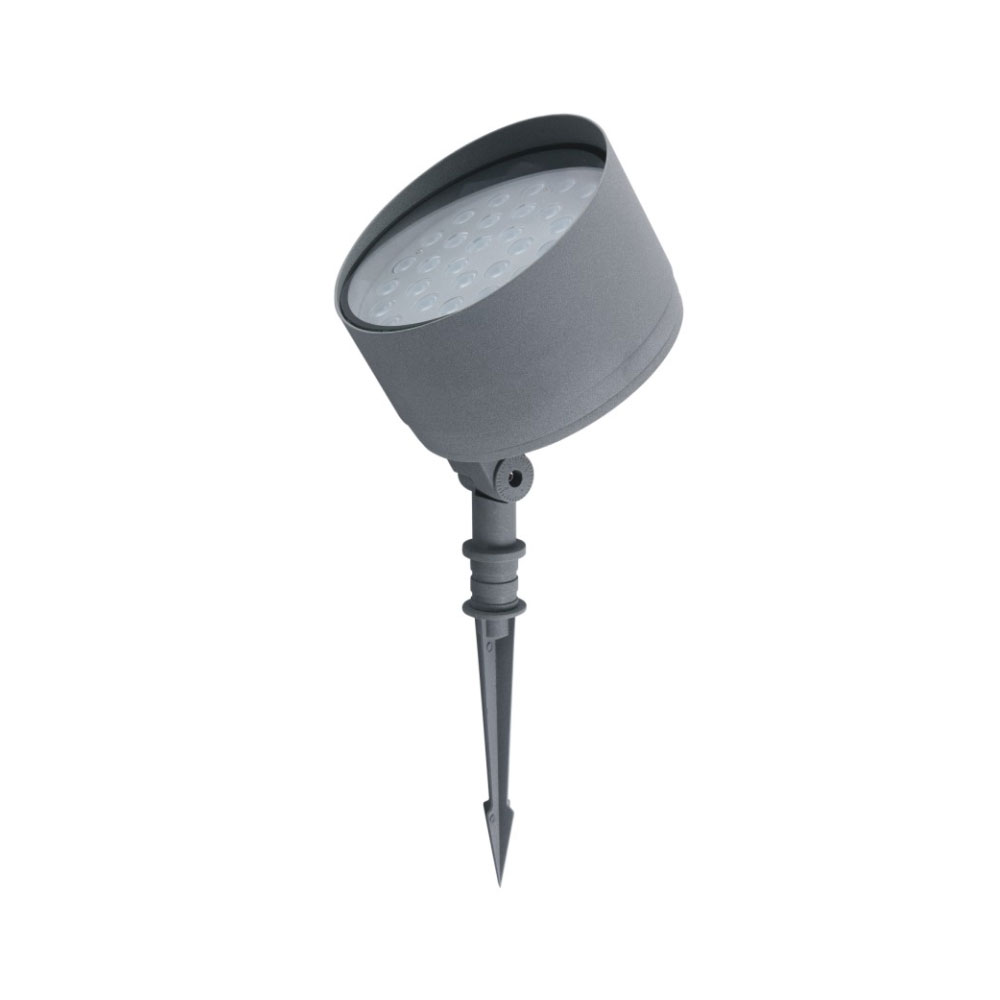

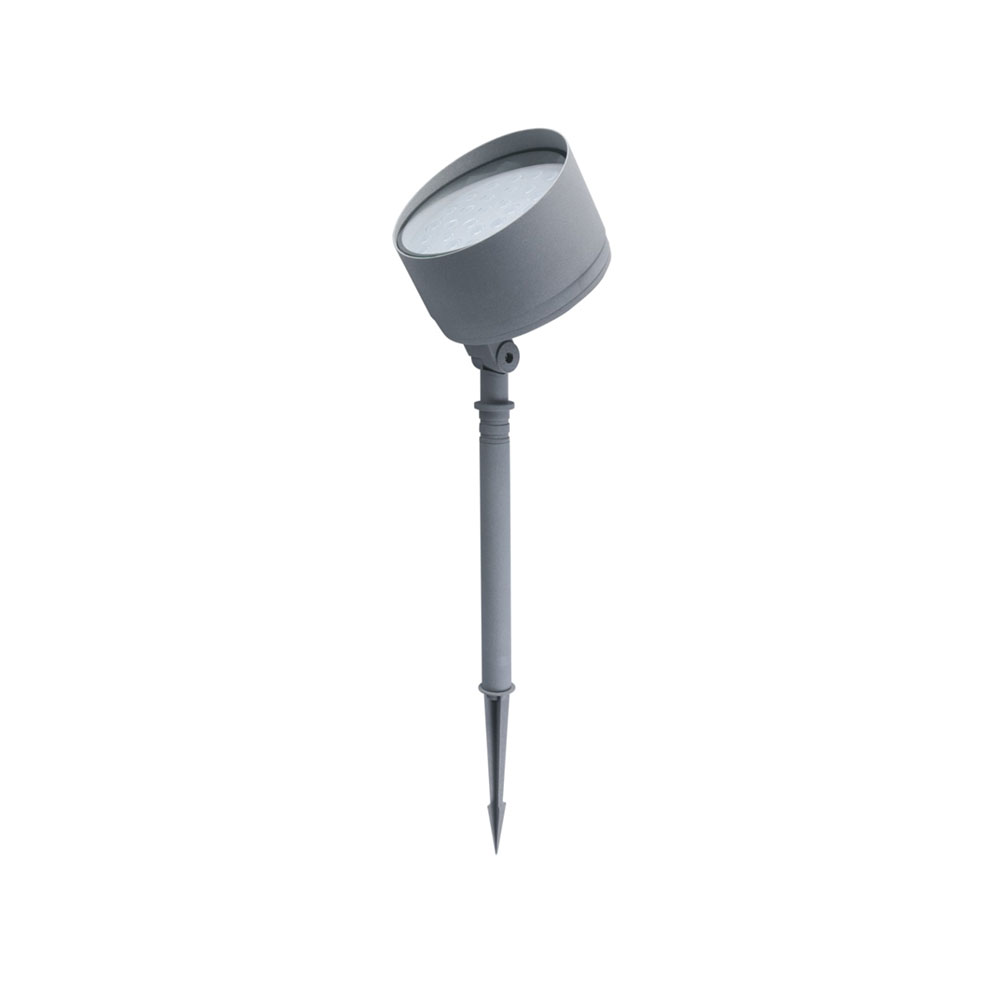

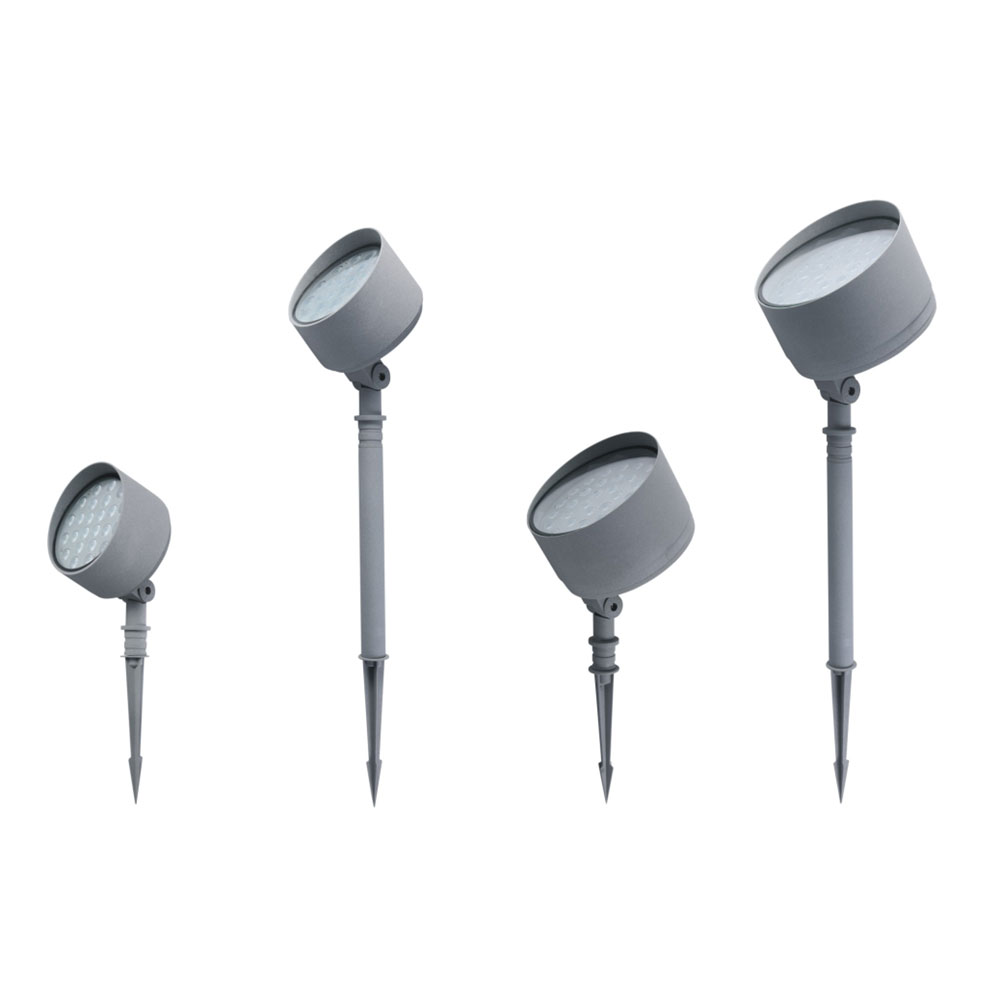

LED Spot Light UTSP-2002x series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTSP-2002x series
- Power: CREE 3535 / OSRAM 3030 24–36W

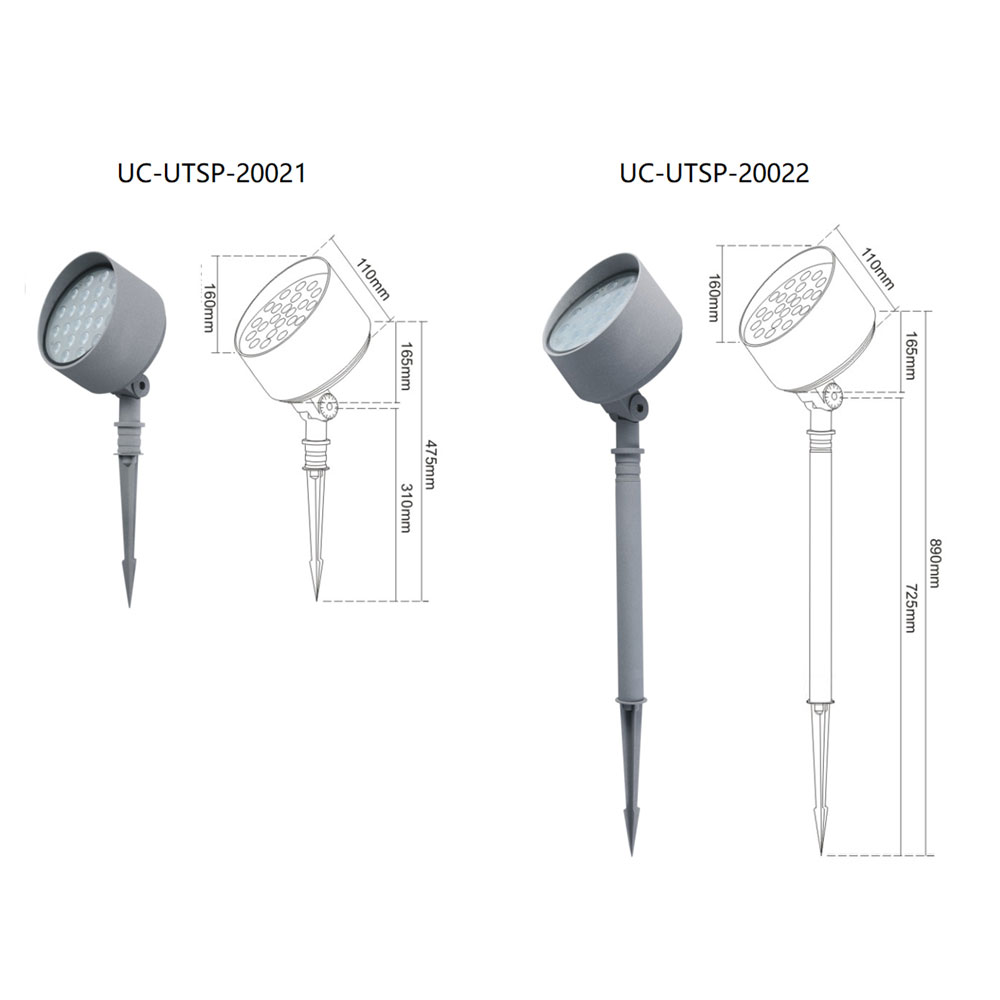

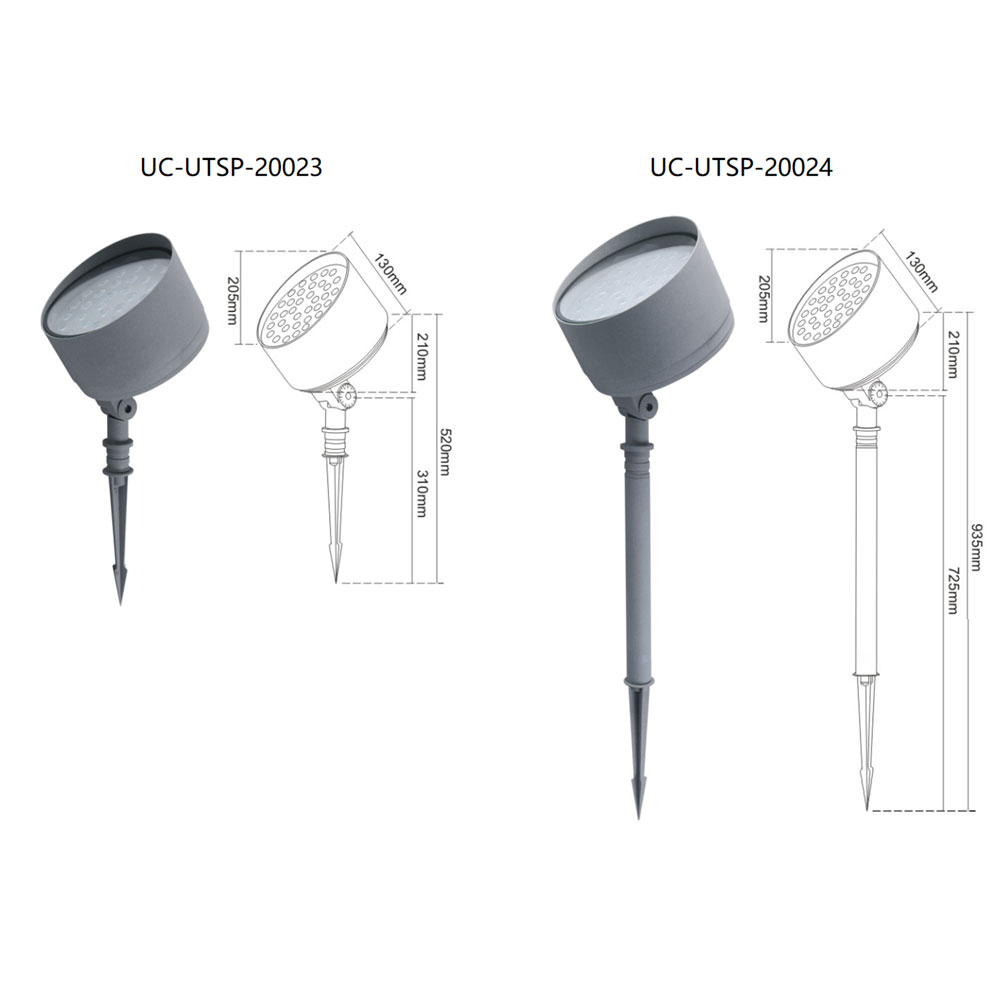

- Size: 110×160×475 – 130×205×935 mm
- Power Chamber Size: 120×120×42 – 165×165×45 mm
- Inner Size: 140–190 mm
- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications
| Model | Power(W) | Size(mm) | Power Chamber Size(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|
| UC-UTSP-20021 | CREE 3535 12*2W/ 18*1.5W/OSRAM 3030 24W | 110*160*475 | 120*120*42 | 140 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-20022 | CREE 3535 12*2W/ 18*1.5W/OSRAM 3030 24W | 110*160*890 | 120*120*42 | 140 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-20023 | CREE 3535 24*2W/OSRAM 3030 36W | 130*205*520 | 165*165*45 | 190 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-20024 | CREE 3535 24*2W/OSRAM 3030 36W | 130*205*935 | 165*165*45 | 190 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
