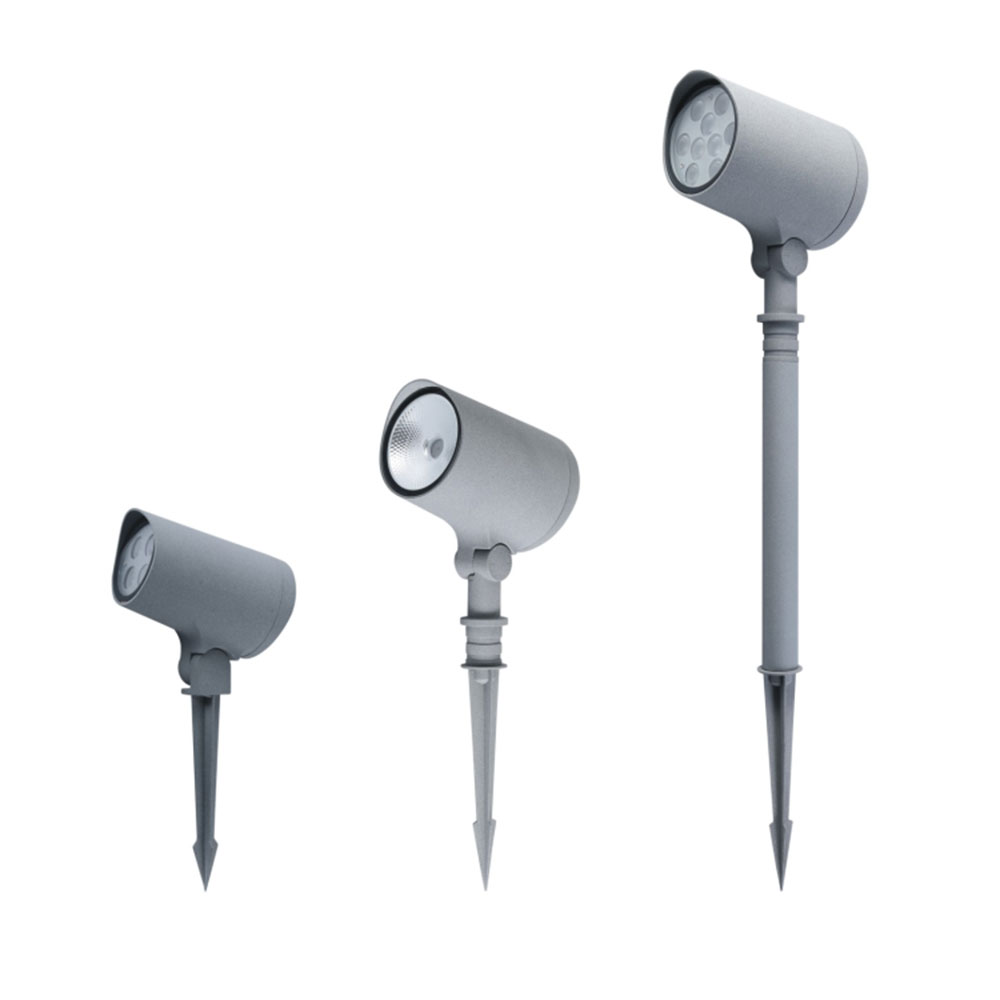

LED Spot Light UTSP-1103x series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTSP-1103x series
- Power: CREE 3535 / DTJ / COB 3–15W
- Size: 145×80×300 – 145×80×835 mm
- Power Chamber Size: 80×70×70 mm
- Inner Size: 65 mm
- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications
| Model | Power(W) | Size(mm) | Power Chamber Size(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|

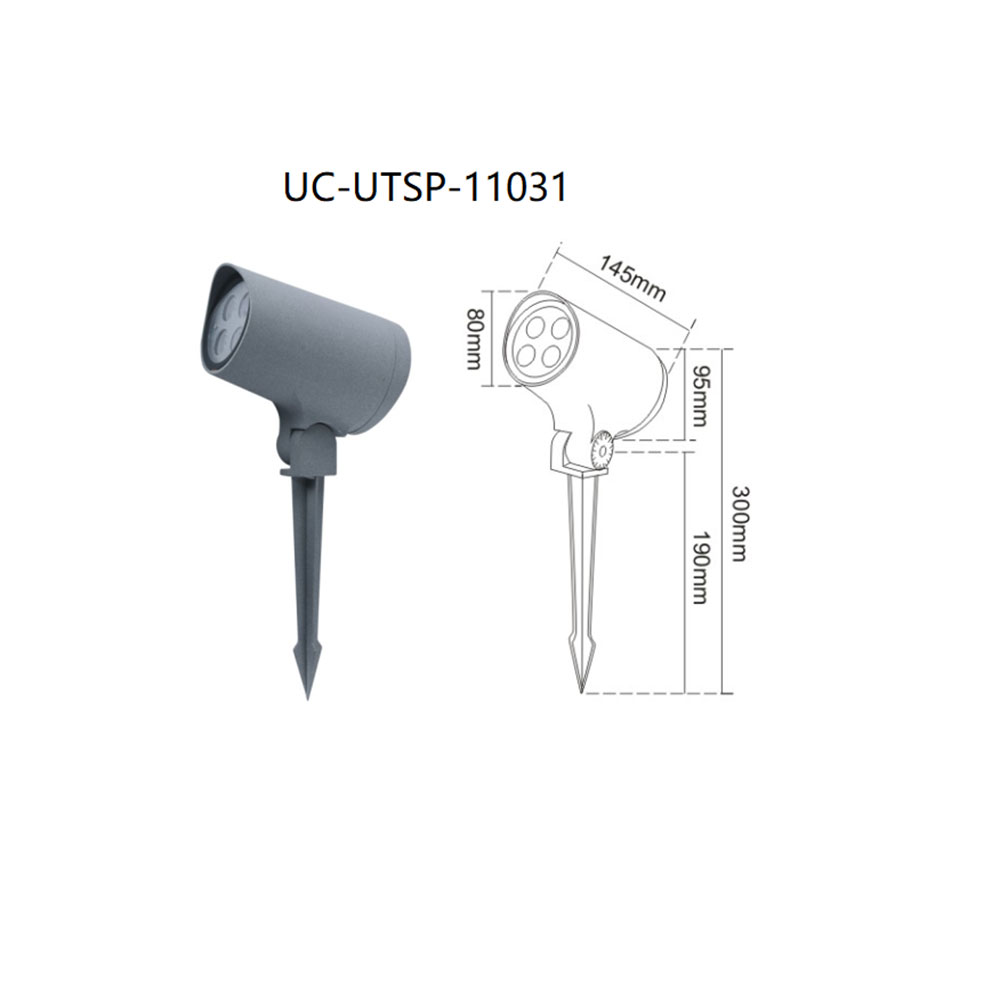

| UC-UTSP-11031 | CREE 3535 3W/4*3W/DTJ 10°/20°/30°/COB 90°15W | 145*80*300 | 80*70*70 | 65 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |

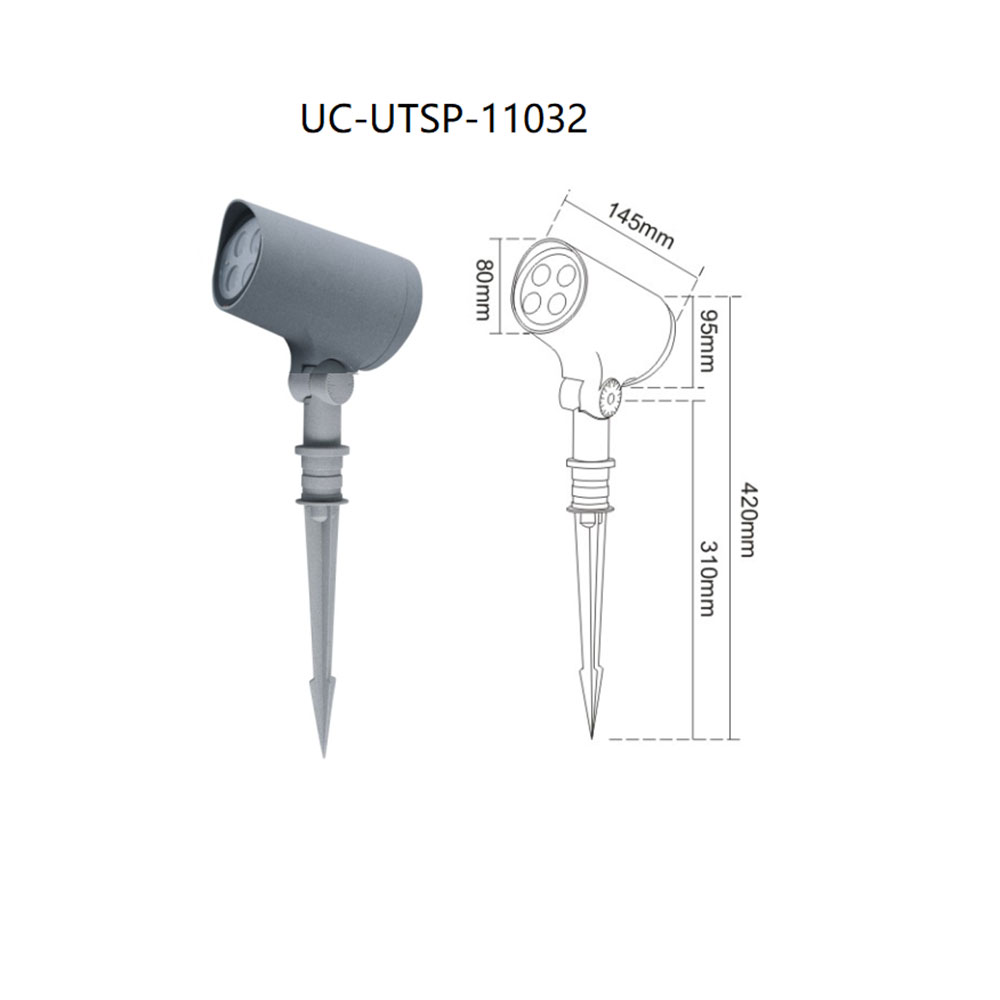

| UC-UTSP-11032 | CREE 3535 3W/4*3W/DTJ 10°/20°/30°/COB 90°15W | 145*80*420 | 80*70*70 | 65 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |

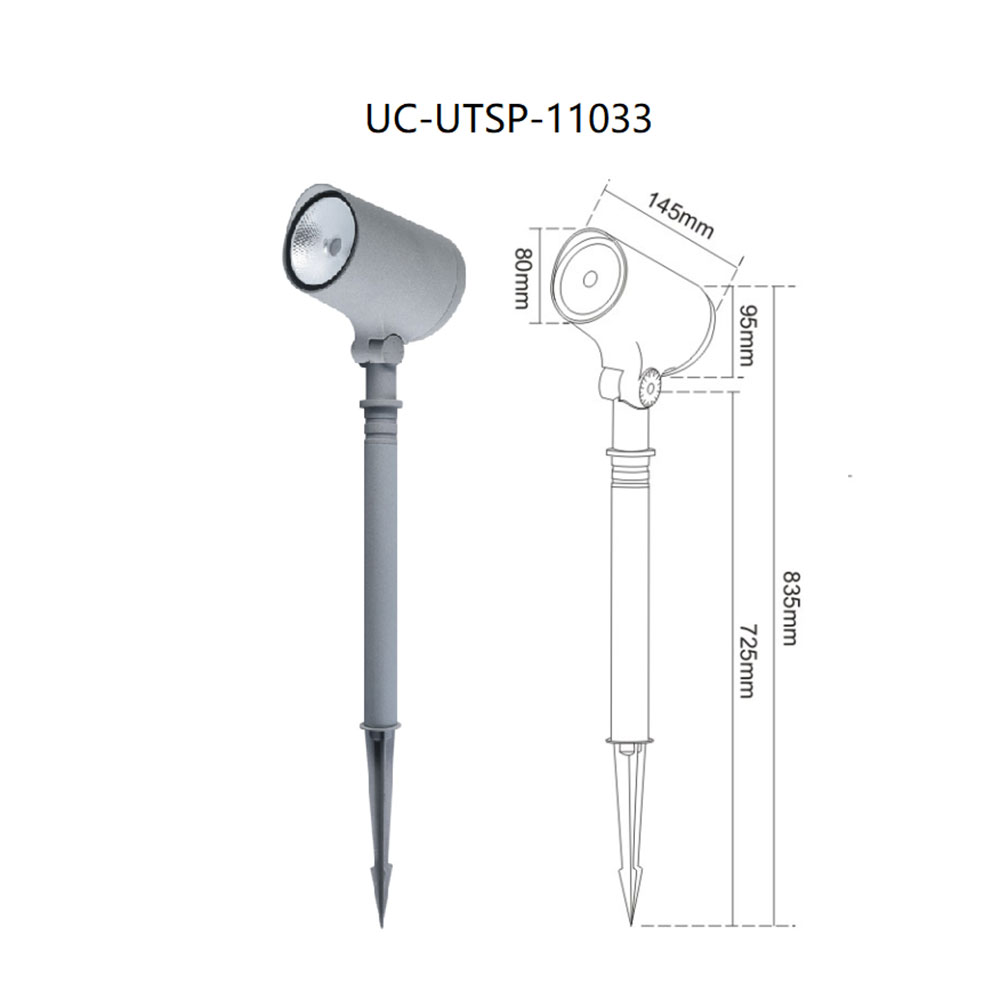

| UC-UTSP-11033 | CREE 3535 3W/4*3W/DTJ 10°/20°/30°/COB 90°15W | 145*80*835 | 80*70*70 | 65 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
