LED Spot Light UTSP-160x series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTSP-160x series
- Power: CREE 3535 / OSRAM 3030 36W (1–9P configurable)
- Size: 200×80×160 – 200×160×160 mm
- Power Chamber Size: 190×66×55 mm
- Inner Size: 147×149 mm
- Material: Cast Aluminum (ADC12) + Stretching
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications
| Model | Power(W) | Size(mm) | PowerChamberSize(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|

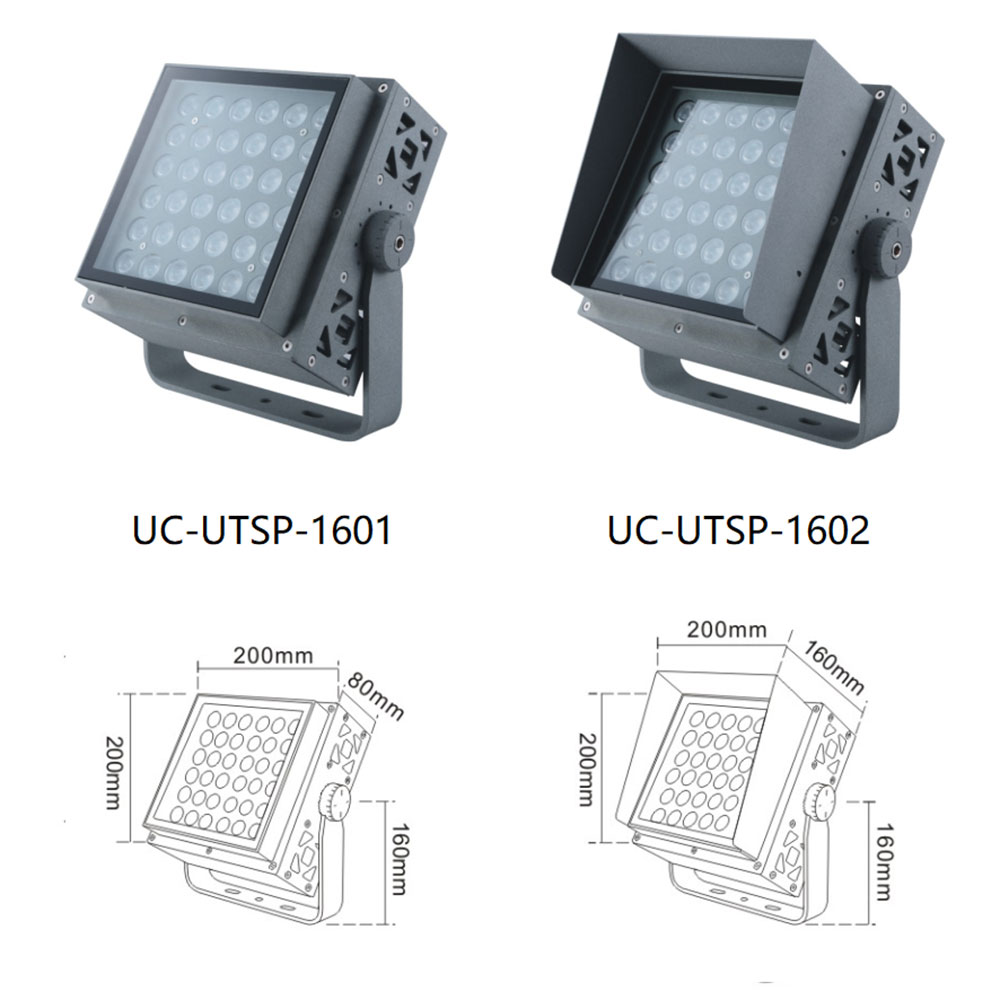

| UC-UTSP-1601 | CREE 3535 36*2W/OSRAM 3030 36W*(1/2/3/4/6/9P) | 200*80*160 | 190*66*55 | 147*149 | / | Cast Aluminum(ADC12)+Stretching | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-1602 | CREE 3535 36*2W/OSRAM 3030 36W*(1/2/3/4/6/9P) | 200*160*160 | 190*66*55 | 147*149 | / | Cast Aluminum(ADC12)+Stretching | Meanwell/ Inventronics | 1800K-6500K | IP67 |
