LED Spot Light UTSP-060-150x series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTSP-060-150x series
- Power: CREE 3535 / OSRAM 3030 24W / DTJ / YSG

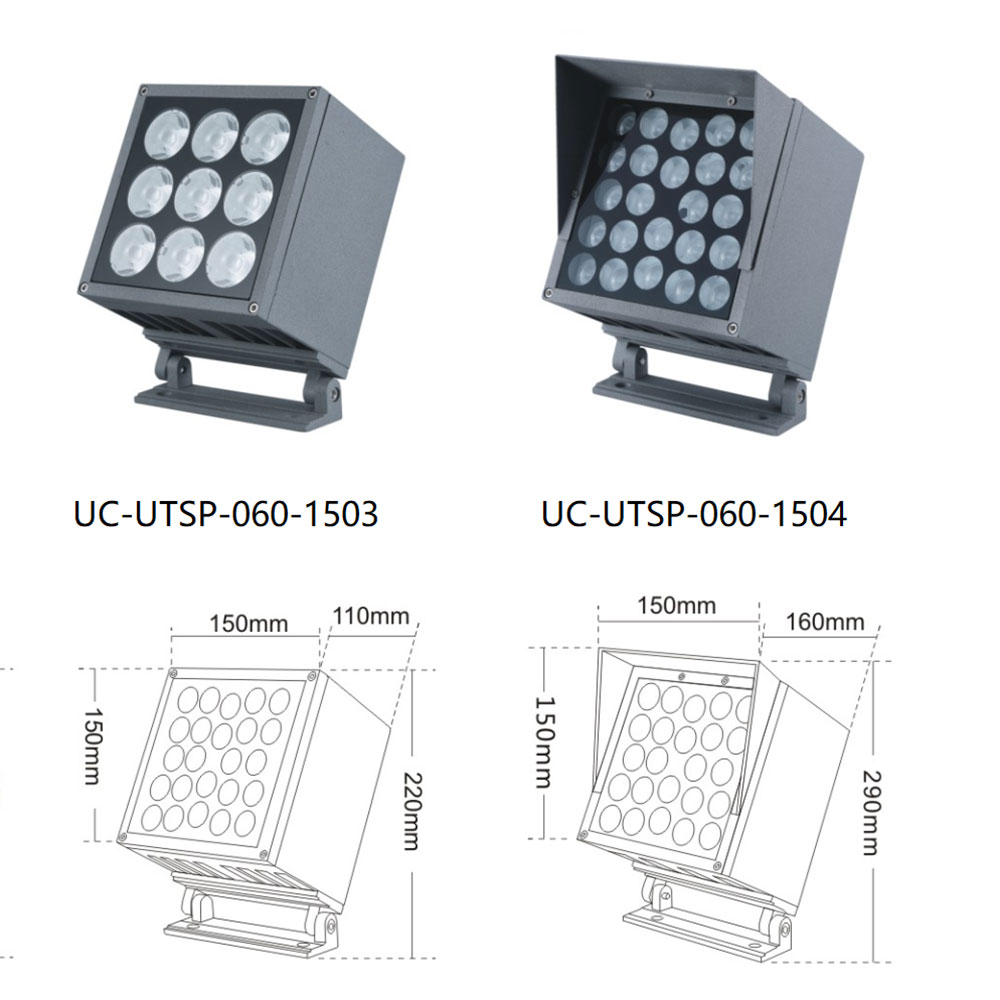

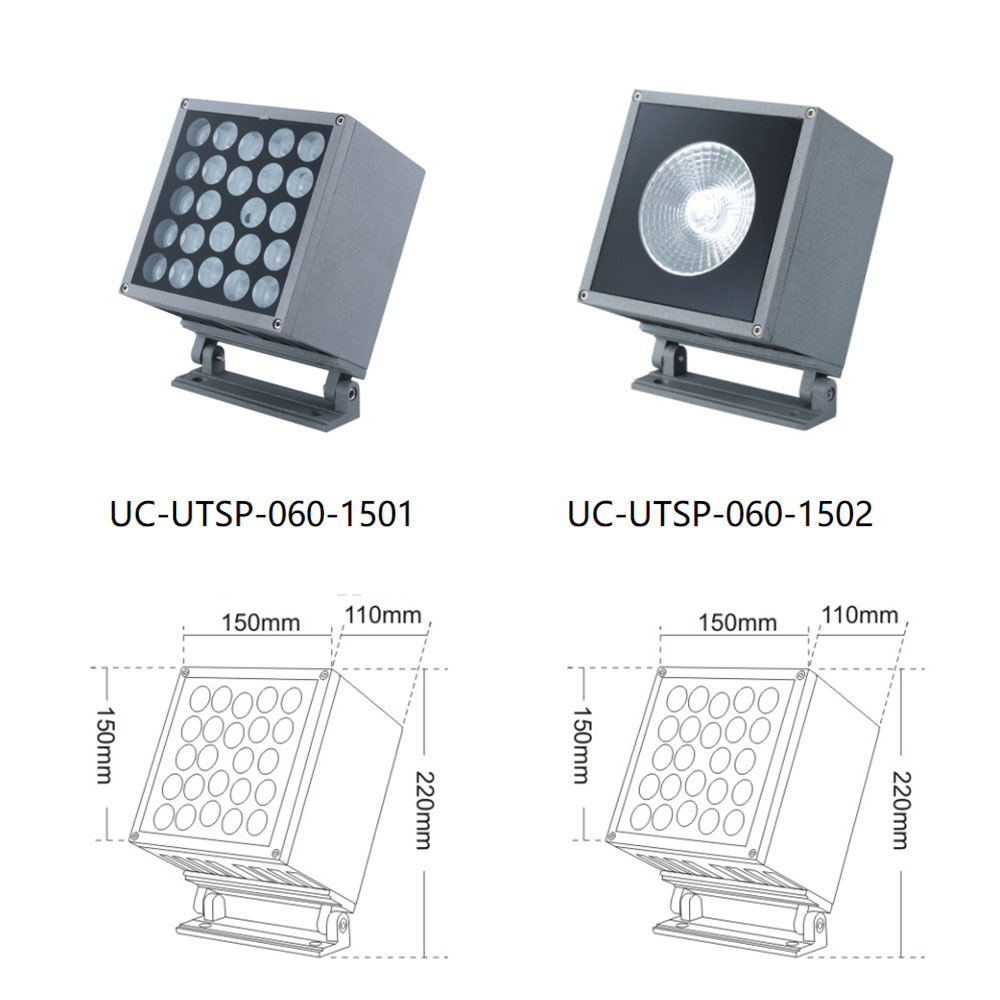

- Size: 150×110×220 – 150×160×290 mm
- Power Chamber Size: 140×32×53 mm
- Inner Size: 138×138 mm
- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications
| Model | Power(W) | Size(mm) | PowerChamberSize(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|
| UC-UTSP-060-1501 | CREE 3535 24*2W/OSRAM 3030 24W/DTJ 10°/20°/30°/YSG 9*4W | 150*110*220 | 140*32*53 | 138*138 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-060-1502 | CREE 3535 24*2W/OSRAM 3030 24W/DTJ 10°/20°/30°/YSG 9*4W | 150*110*220 | 140*32*53 | 138*138 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-060-1503 | CREE 3535 24*2W/OSRAM 3030 24W/DTJ 10°/20°/30°/YSG 9*4W | 150*110*220 | 140*32*53 | 138*138 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-060-1504 | CREE 3535 24*2W/OSRAM 3030 24W/DTJ 10°/20°/30°/YSG 9*4W | 150*160*290 | 140*32*53 | 138*138 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
