LED Spot Light UTSP-060-120x series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTSP-060-120x series
- Power: CREE 3535 / OSRAM 3030 16W / DTJ 10°–30°
- Size: 120×115×180 – 120×165×210 mm
- Power Chamber Size: 112×112×35 mm
- Inner Size: 110.5×110.5 mm
- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications
| Model | Power(W) | Size(mm) | PowerChamberSize(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|

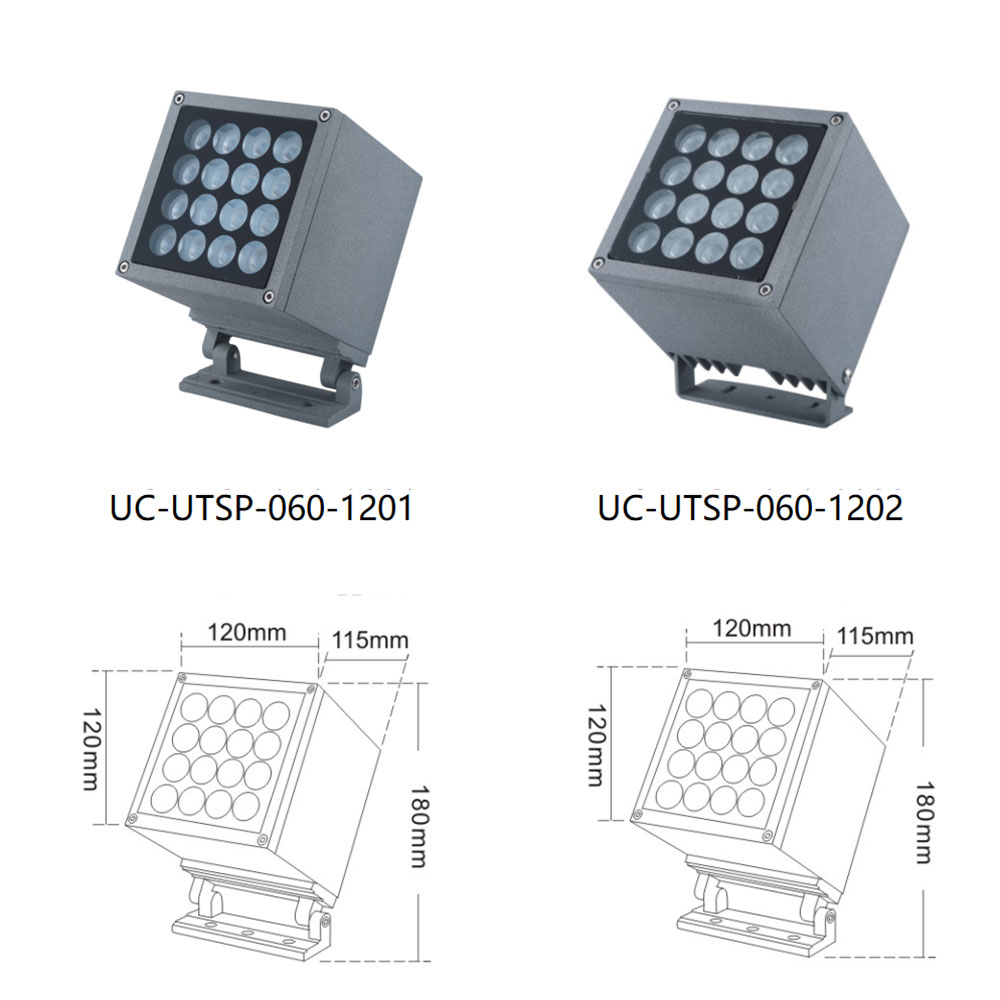

| UC-UTSP-060-1201 | CREE 3535 16*2W/OSRAM 3030 16W/DTJ 10°/20°/30° | 120*115*180 | 112*112*35 | 110.5*110.5 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-060-1202 | CREE 3535 16*2W/OSRAM 3030 16W/DTJ 10°/20°/30° | 120*115*180 | 112*112*35 | 110.5*110.5 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |

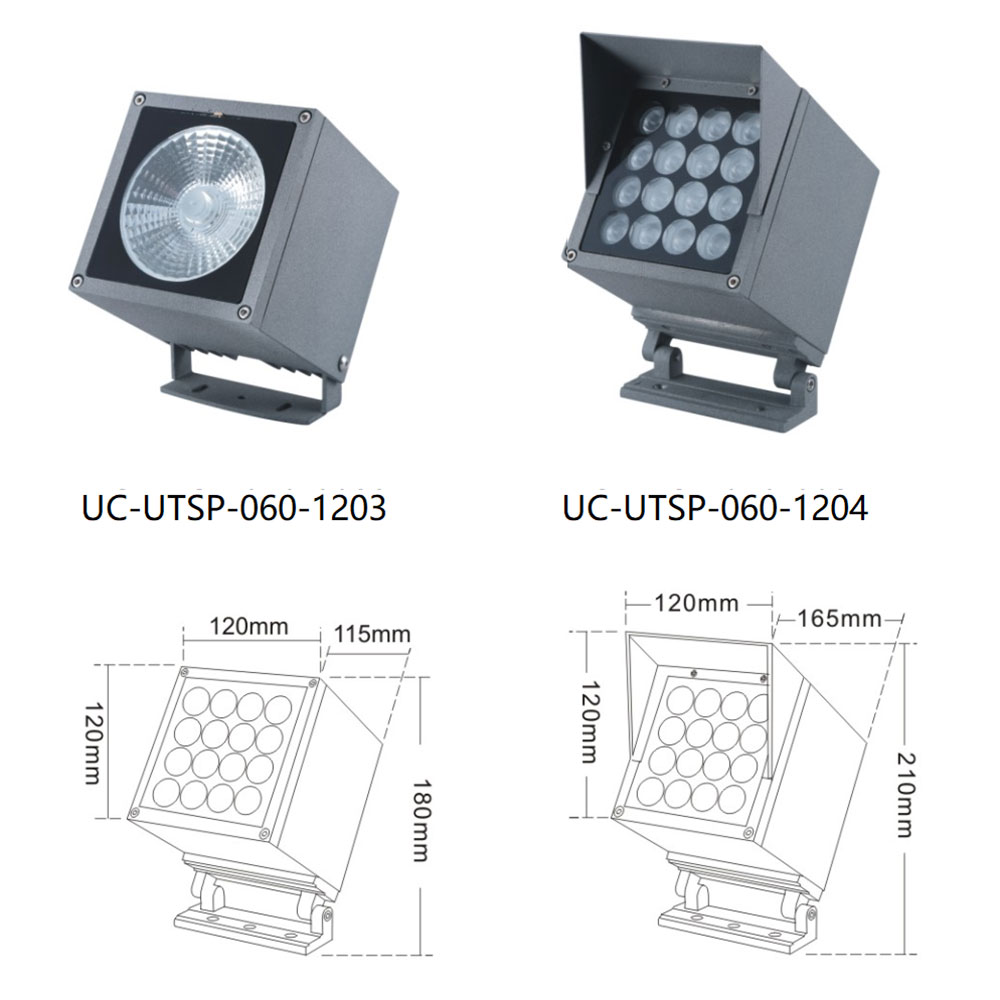

| UC-UTSP-060-1203 | CREE 3535 16*2W/OSRAM 3030 16W/DTJ 10°/20°/30° | 120*115*180 | 112*112*35 | 110.5*110.5 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-060-1204 | CREE 3535 16*2W/OSRAM 3030 16W/DTJ 10°/20°/30° | 120*165*210 | 112*112*35 | 110.5*110.5 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
