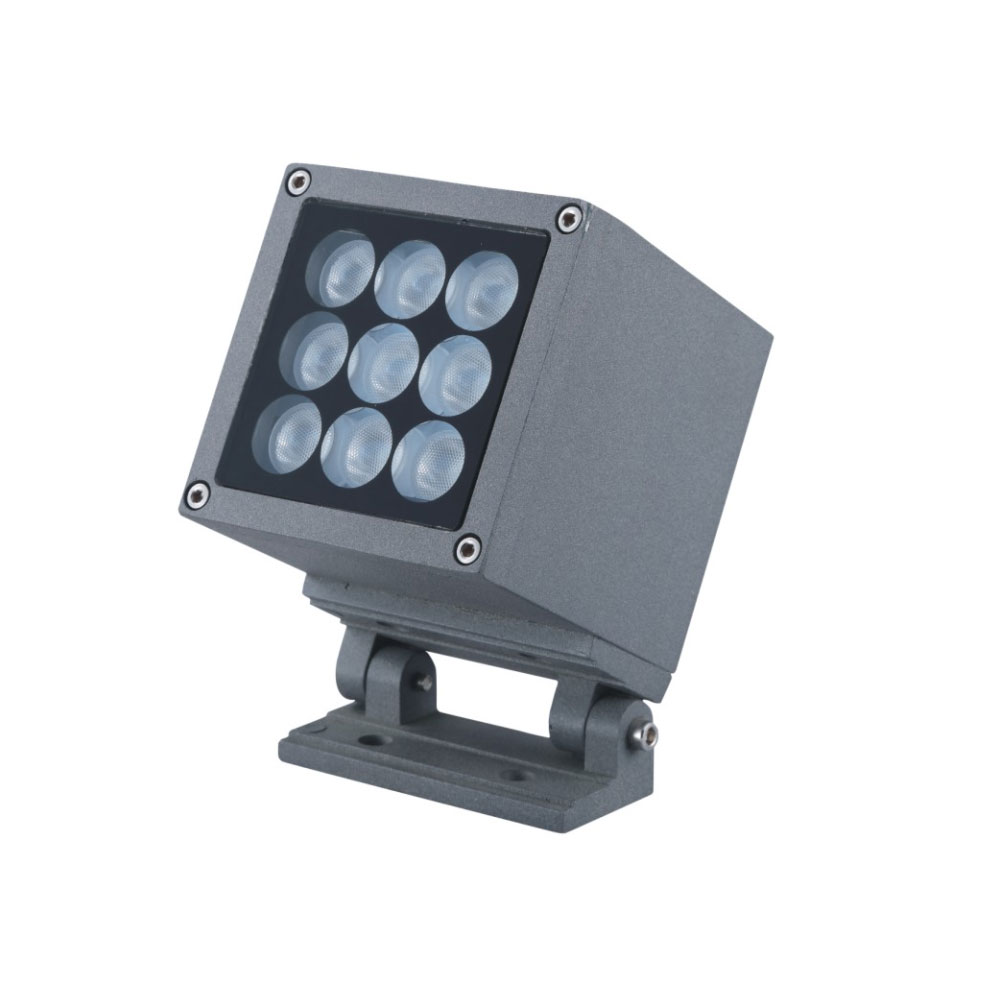

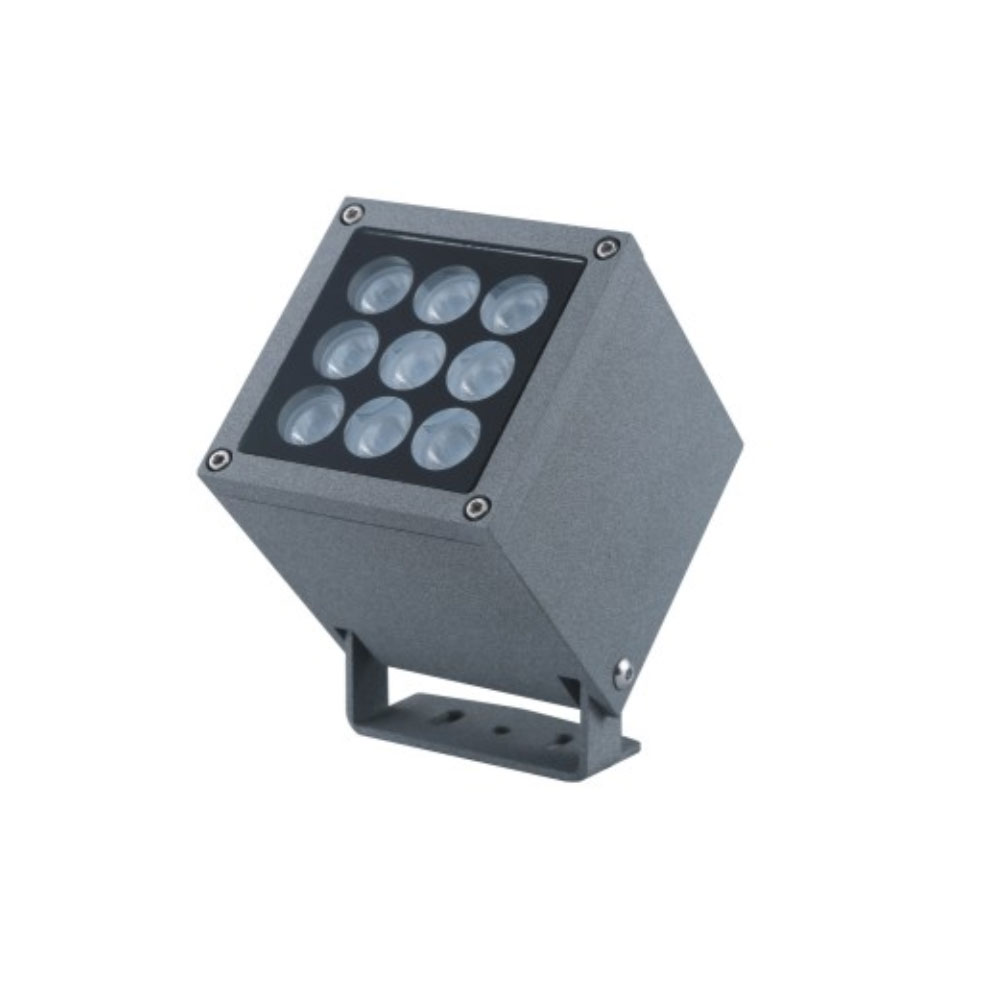

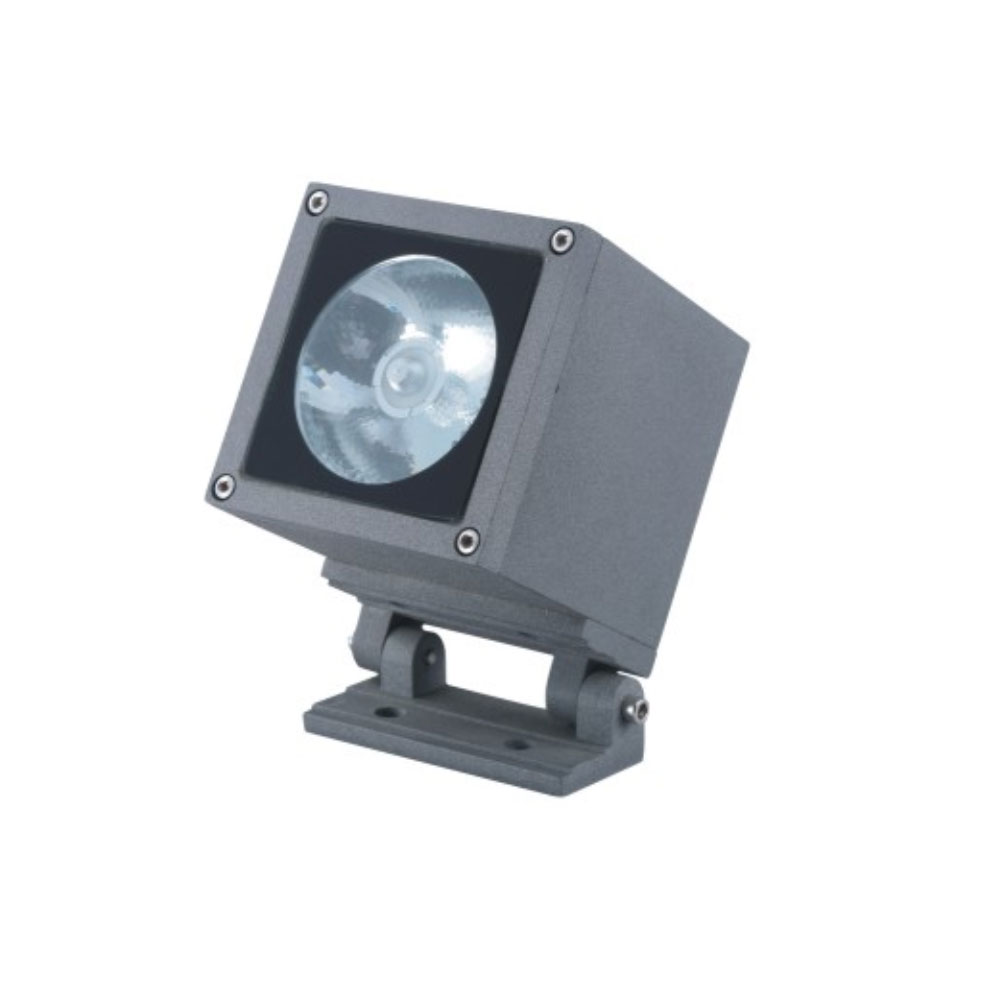

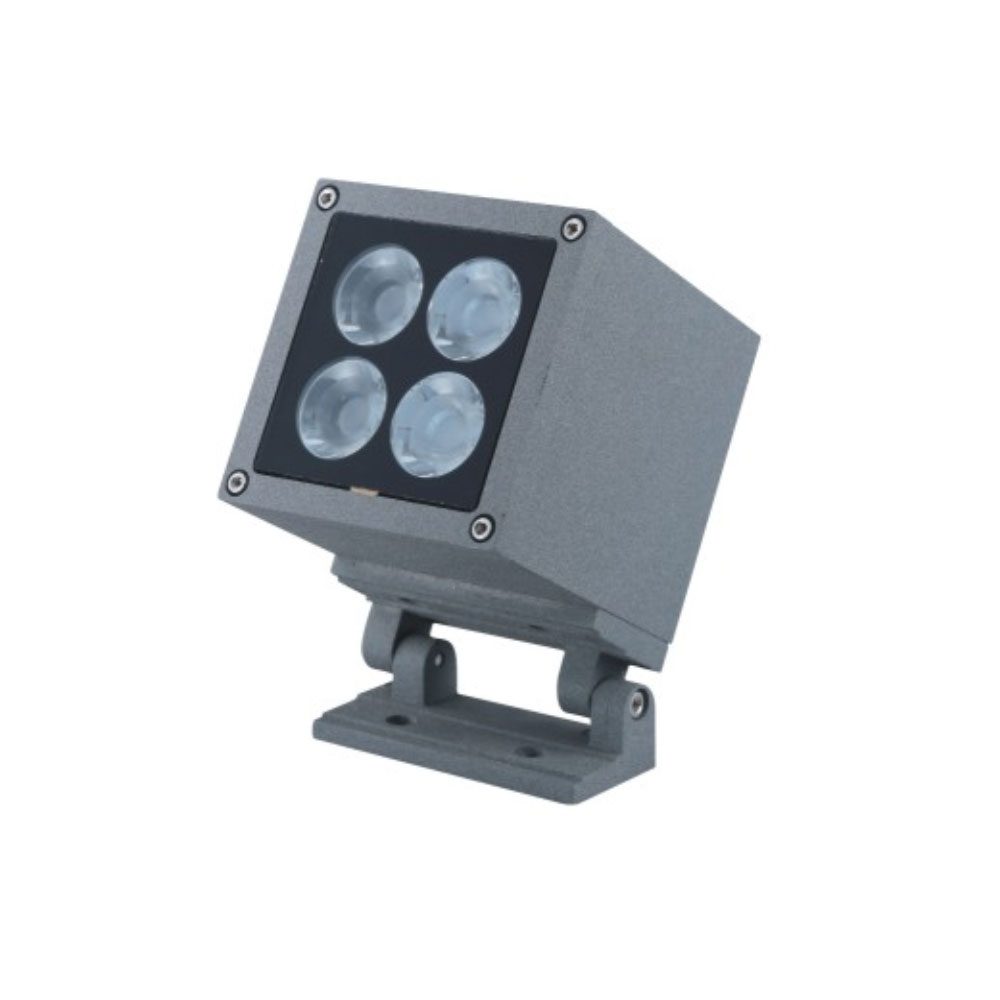

LED Spot Light UTSP-060-95x series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTSP-060-95x series
- Power: CREE 3535 / OSRAM 3030 9W / DTJ / YSG
- Size: 95×100×150 – 95×150×170 mm
- Power Chamber Size: 87×87×44 mm
- Inner Size: 86×86 mm
- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications

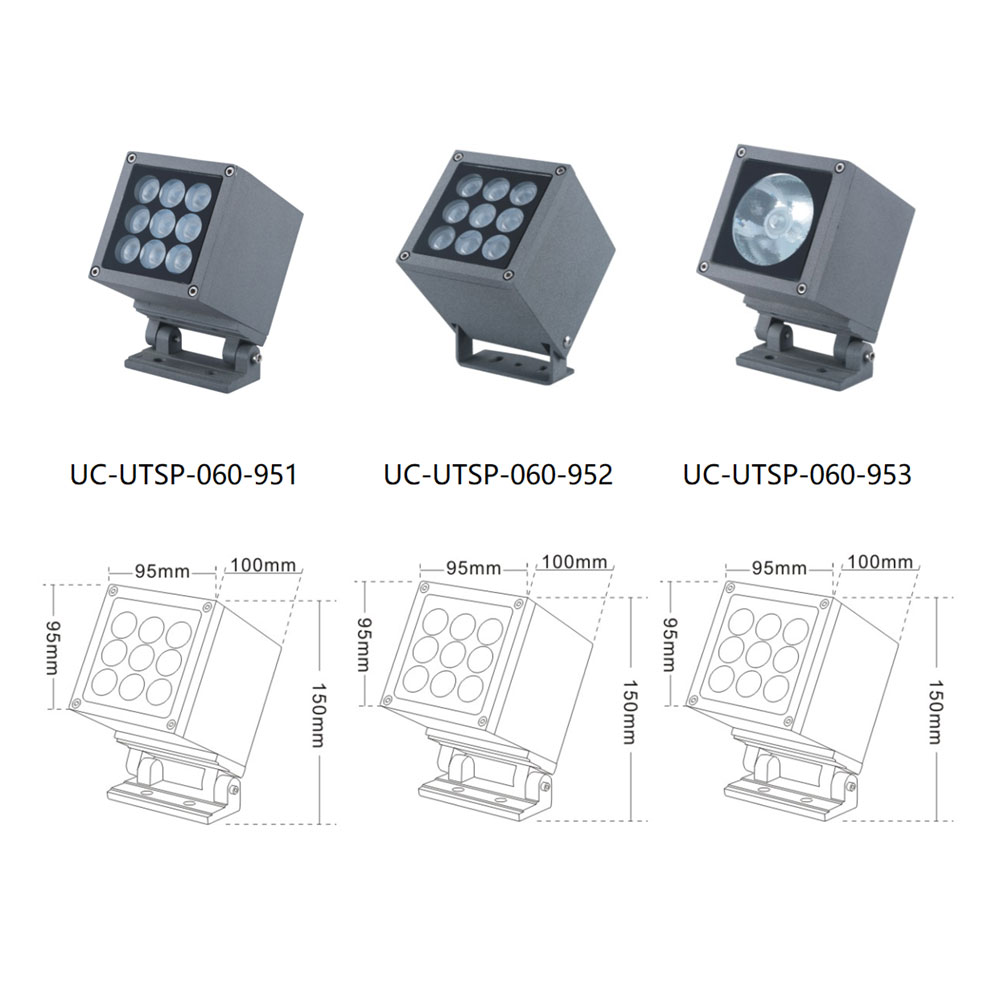

| Model | Power(W) | Size(mm) | PowerChamberSize(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|
| UC-UTSP-060-951 | CREE 3535 9*2W/OSRAM 3030 9W/DTJ 10°/20°/30°/YSG 4*3W | 95*100*150 | 87*87*44 | 86*86 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-060-952 | CREE 3535 9*2W/OSRAM 3030 9W/DTJ 10°/20°/30°/YSG 4*3W | 95*100*150 | 87*87*44 | 86*86 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-060-953 | CREE 3535 9*2W/OSRAM 3030 9W/DTJ 10°/20°/30°/YSG 4*3W | 95*100*150 | 87*87*44 | 86*86 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-060-954 | CREE 3535 9*2W/OSRAM 3030 9W/DTJ 10°/20°/30°/YSG 4*3W | 95*100*150 | 87*87*44 | 86*86 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-060-955 | CREE 3535 9*2W/OSRAM 3030 9W/DTJ 10°/20°/30°/YSG 4*3W | 95*150*170 | 87*87*44 | 86*86 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
