LED Spot Light UTSP-040-65-100x series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTSP-040-65-100x series
- Power: CREE 3535 / OSRAM 3030 6W / YSG
- Size: 100×56×105 – 100×78×130 mm
- Power Chamber Size: 83×27×25 mm
- Inner Size: 83×48 mm
- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications

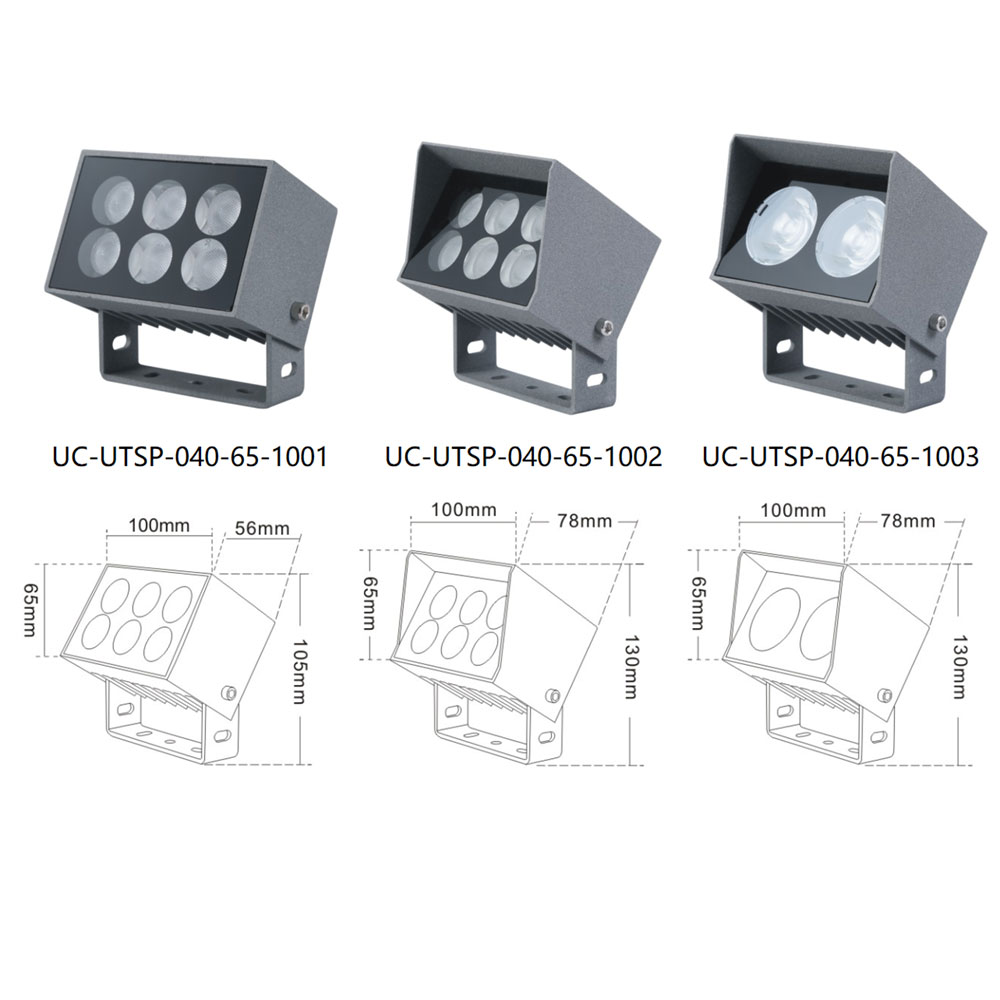

| Model | Power(W) | Size(mm) | PowerChamberSize(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|
| UC-UTSP-040-65-1001 | CREE 3535 6*2W/OSRAM 3030 6W/YSG 2*(3-5)W | 100*56*105 | 83*27*25 | 83*48 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-040-65-1002 | CREE 3535 6*2W/OSRAM 3030 6W/YSG 2*(3-5)W | 100*78*130 | 83*27*25 | 83*48 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-040-65-1003 | CREE 3535 6*2W/OSRAM 3030 6W/YSG 2*(3-5)W | 100*78*130 | 83*27*25 | 83*48 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
