LED Spot Light UTSP-040-902x series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-UTSP-040-902x series
- Power: CREE 3535 / OSRAM 3030 9W / YSG
- Size: 90×76×145 – 90×95×160 mm
- Power Chamber Size: 75×23×45 mm
- Inner Size: 75×75 mm
- Material: Cast Aluminum (ADC12)
- Driver: Meanwell / Inventronics
- CCT: 1800–6500K
- IP: IP67
Specifications
| Model | Power(W) | Size(mm) | PowerChamberSize(mm) | Inner Size(mm) | Lumen(lm) | Material | Driver | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|

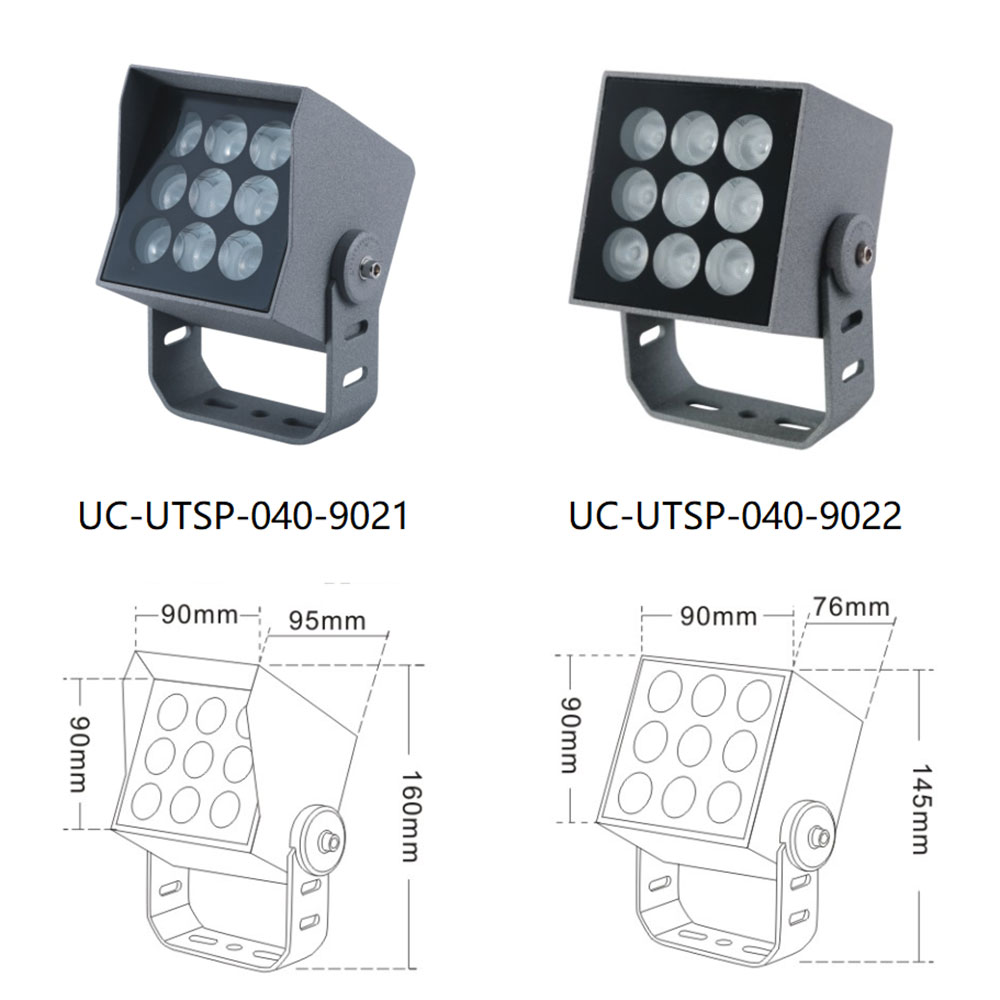

| UC-UTSP-040-9021 | CREE 3535 5*2W/9W/9*2W/OSRAM 3030 9W/YSG 4*(3-5)W | 90*95*160 | 75*23*45 | 75*75 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-040-9022 | CREE 3535 5*2W/9W/9*2W/OSRAM 3030 9W/YSG 4*(3-5)W | 90*76*145 | 75*23*45 | 75*75 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |

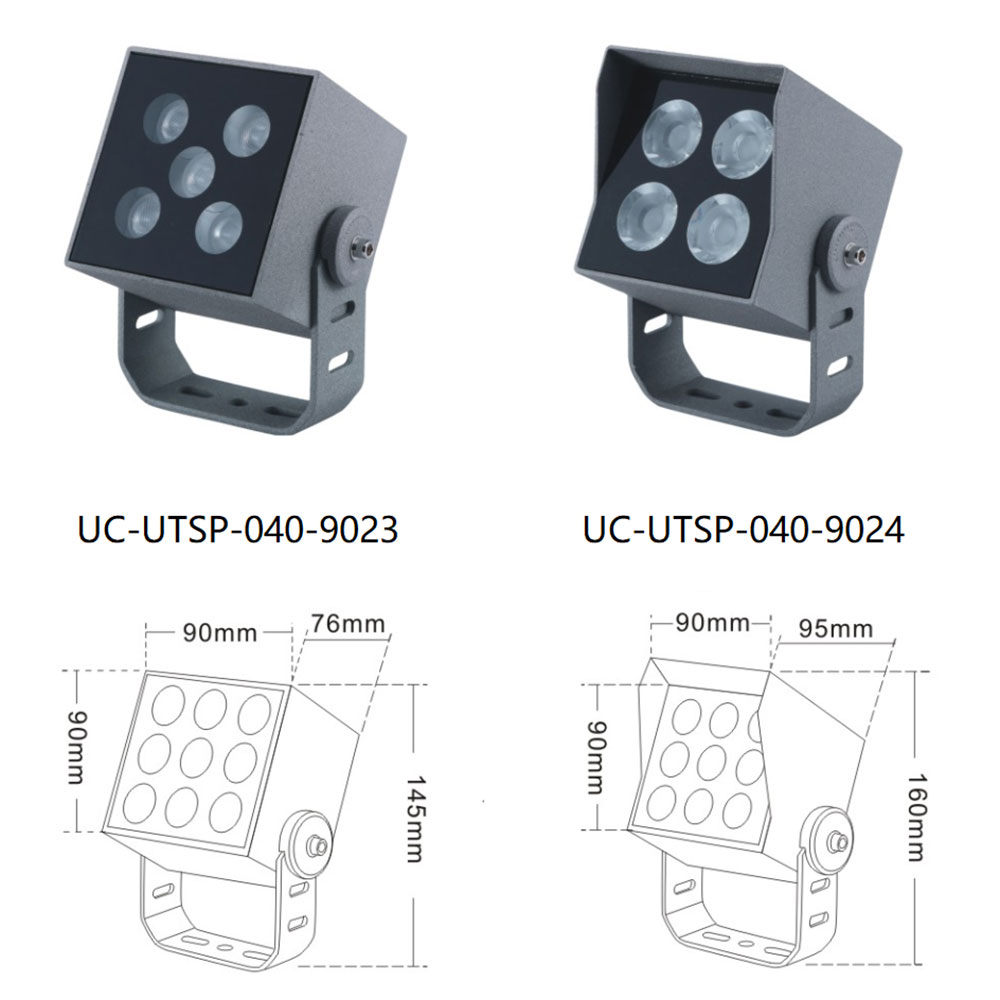

| UC-UTSP-040-9023 | CREE 3535 5*2W/9W/9*2W/OSRAM 3030 9W/YSG 4*(3-5)W | 90*76*145 | 75*23*45 | 75*75 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
| UC-UTSP-040-9024 | CREE 3535 5*2W/9W/9*2W/OSRAM 3030 9W/YSG 4*(3-5)W | 90*95*160 | 75*23*45 | 75*75 | / | Cast Aluminum(ADC12) | Meanwell/ Inventronics | 1800K-6500K | IP67 |
