LED STR Series
Outdoor Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: LU-STR-A series (30–150W)
- Power: 30–150W

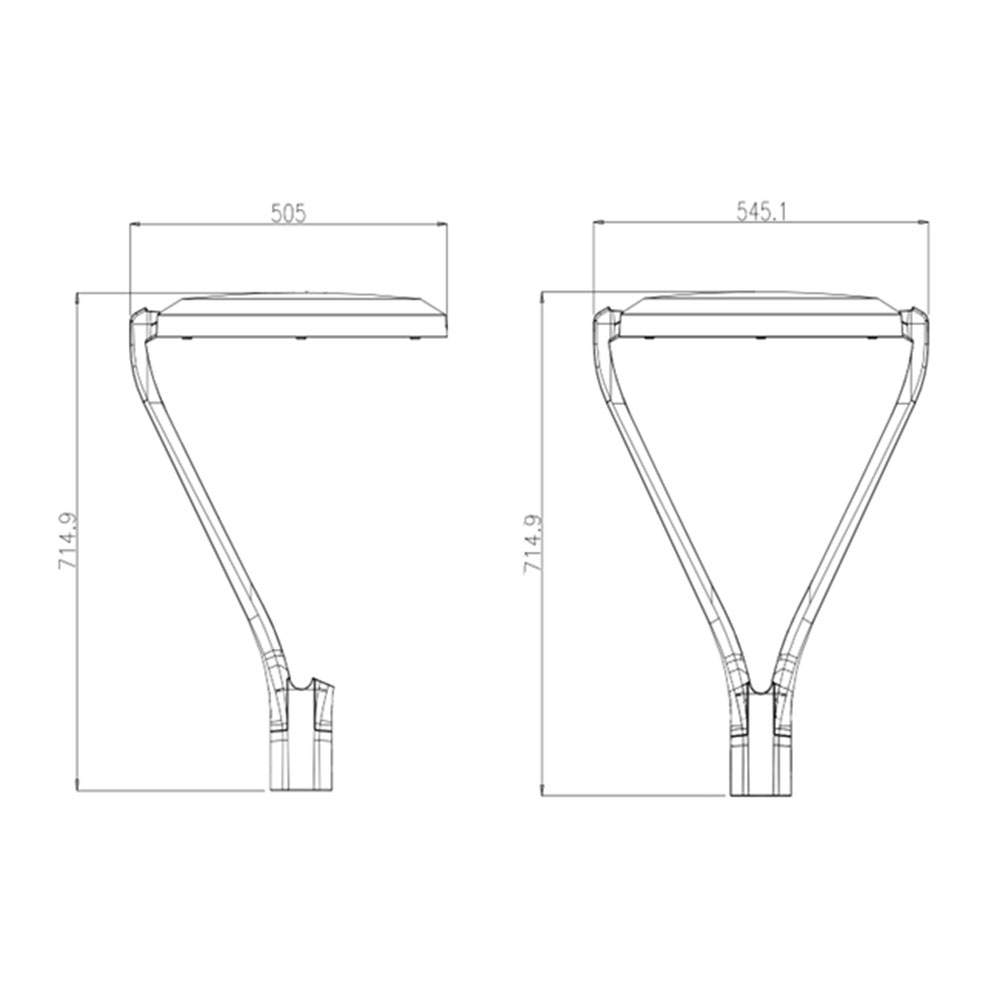

- Size: ø505×714.9 mm
- Lumen Efficiency: 130 / 150 lm/W
- Material: Die-cast aluminum
- Driver: Inventronics / Meanwell
- LED Type: Lumileds
- CRI: 70 / 80, CCT: 1800–6500K
- IP: IP66
Specifications
| Model | Power(W) | Size(mm) | Luminous Efficiency(lm/W) | Material | Driver | LED Type | CRI(Ra) | CCT(K) | IP |
|---|---|---|---|---|---|---|---|---|---|
| LU-STR-A-30W | 30 | ø505×714.9 | 130 / 150 | Die-cast aluminum | Inverntronics/Meanwell | Lumileds | 70/80 | 1800K~6500K | IP66 |
| LU-STR-A-40W | 40 | ø505×714.9 | 130 / 150 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STR-A-50W | 50 | ø505×714.9 | 130 / 150 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STR-A-60W | 60 | ø505×714.9 | 130 / 150 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STR-A-80W | 80 | ø505×714.9 | 130 / 150 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STR-A-100W | 100 | ø505×714.9 | 130 / 150 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STR-A-120W | 120 | ø505×714.9 | 130 / 150 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
| LU-STR-A-150W | 150 | ø505×714.9 | 130 / 150 | Die-cast aluminum | Inventronics/Meanwell | Lumileds | 70/80 | 1800–6500 | IP66 |
