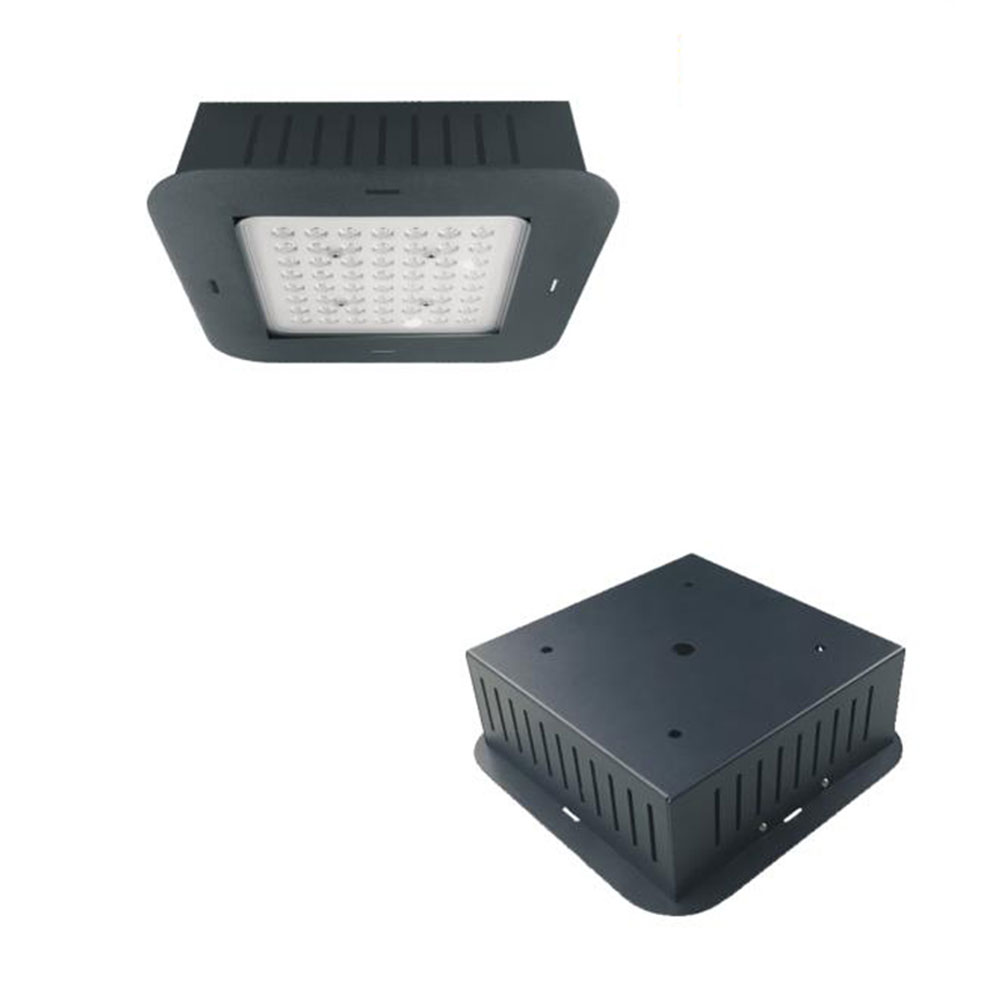

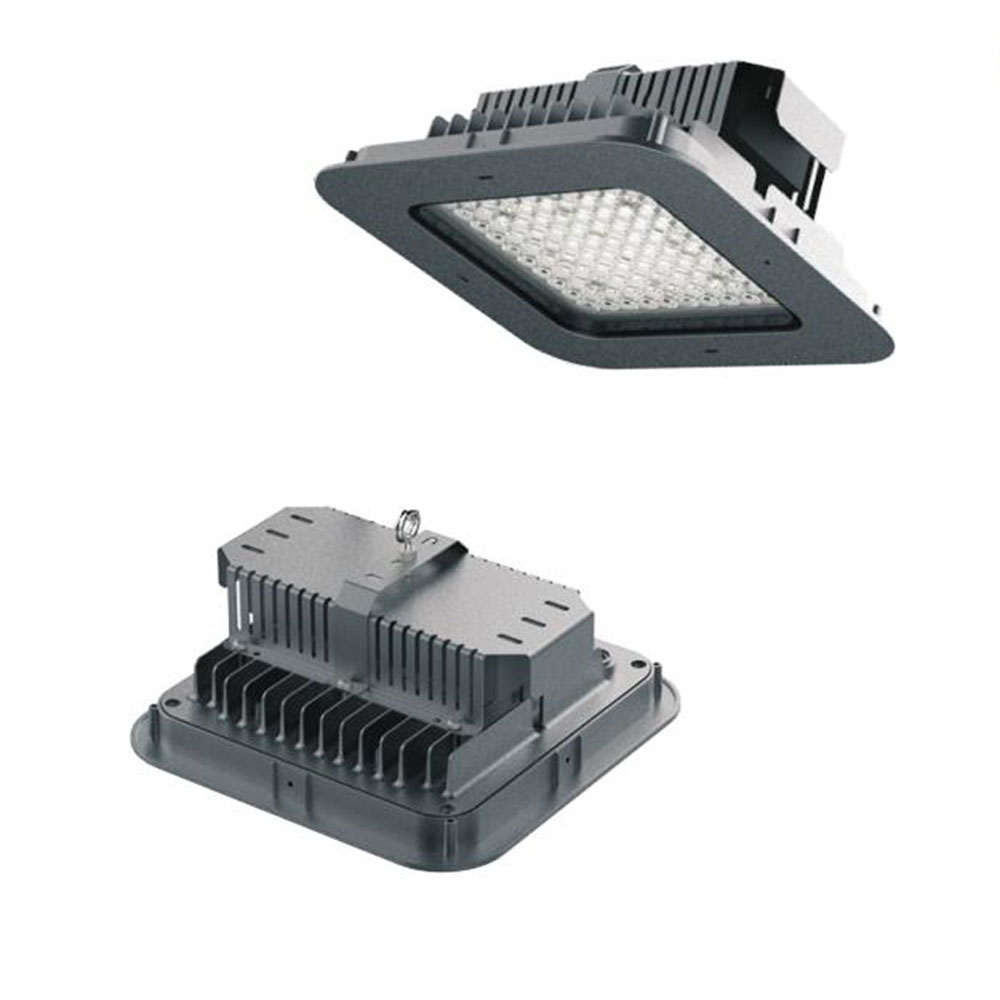

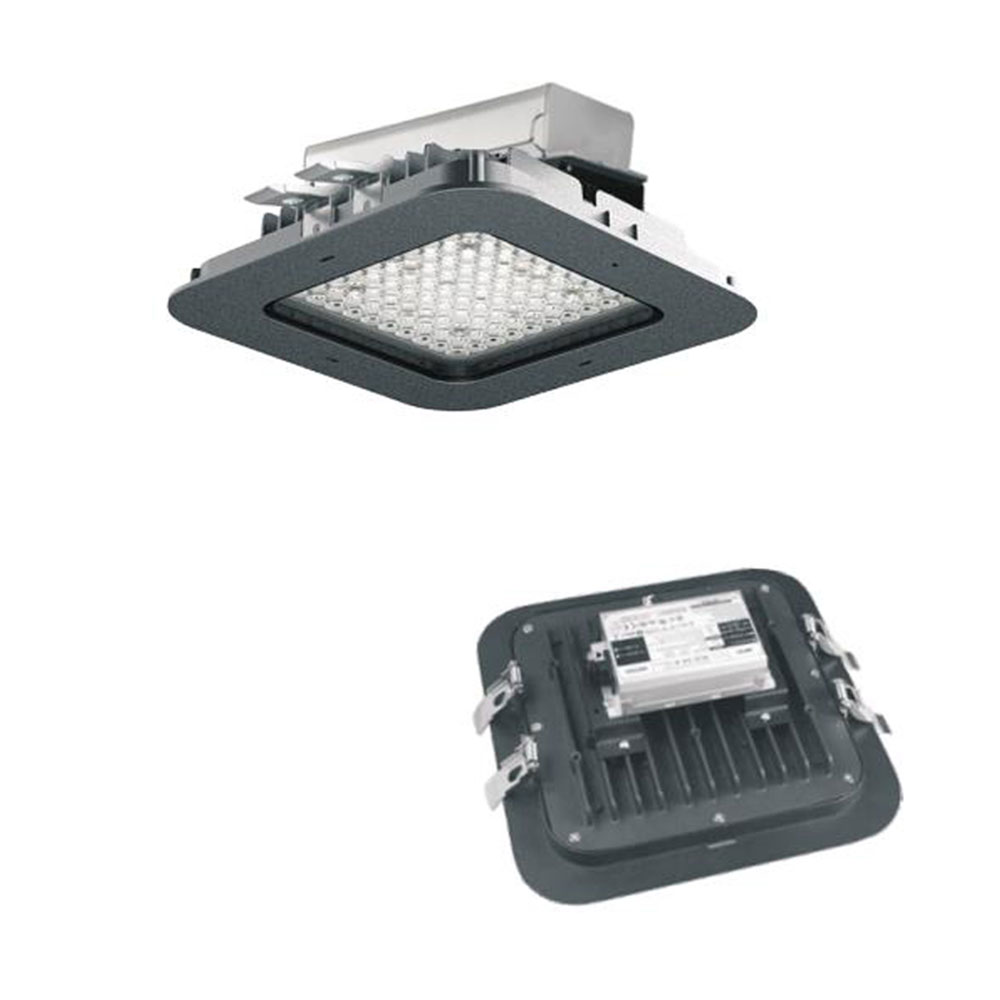

LED Canopy Light UC-CP
Industry Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: UC-CP-R series (recessed)
- Power: 30–100W
- Size: 200×200×83 – 266×266×184 mm
- Cutout: 162×162 – 226×226 mm
- Lumen: 3300–13000 lm
- LED chips: Philips 3030
- LED Driver: Meanwell
- CCT: 2700–6500K
- IP: IP65
- Beam Angle: 30° / 60° / 120°
Specifications
| Model(Recessed) | Power(W) | Size(mm) | Cutout Size(mm) | Lumen(lm) | LED Chips | LED Driver | CCT(K) | IP | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| UC-CP-R-30W | 30W | 200x200x83 | 162*162 | 3300-3900 | Philips3030 | Meanwell | 2700K-6500K | IP65 | 60°/120° |
| UC-CP-R-50W | 50W | 245x245x84 | 216*216 | 5500-6500 | Philips3030 | Meanwell | 2700K-6500K | IP65 | 30°/60°/120° |
| UC-CP-R-100W | 100W | 266*266*184 | 226*226 | 11000-13000 | Philips3030 | Meanwell | 2700K-6500K | IP65 | 30°/60°/120° |
