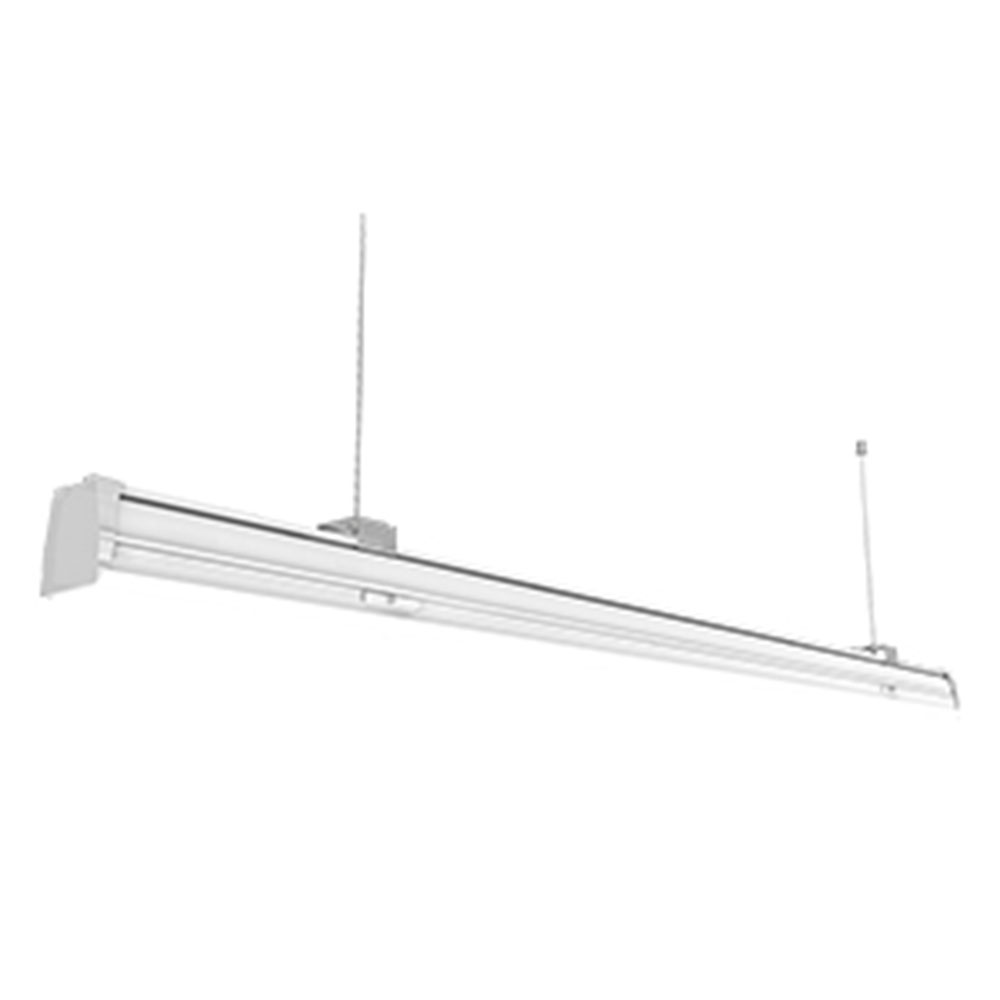

Linear Light System
Commercial Lighting
Features
- O Series: LU-6870D
- Power: 26–65W
- Efficiency: 130–160 lm/W
- Material: Aluminum
- Driver: OSRAM
- LED Type: EPISTAR
- CRI: 85, CCT: 3000–6000K

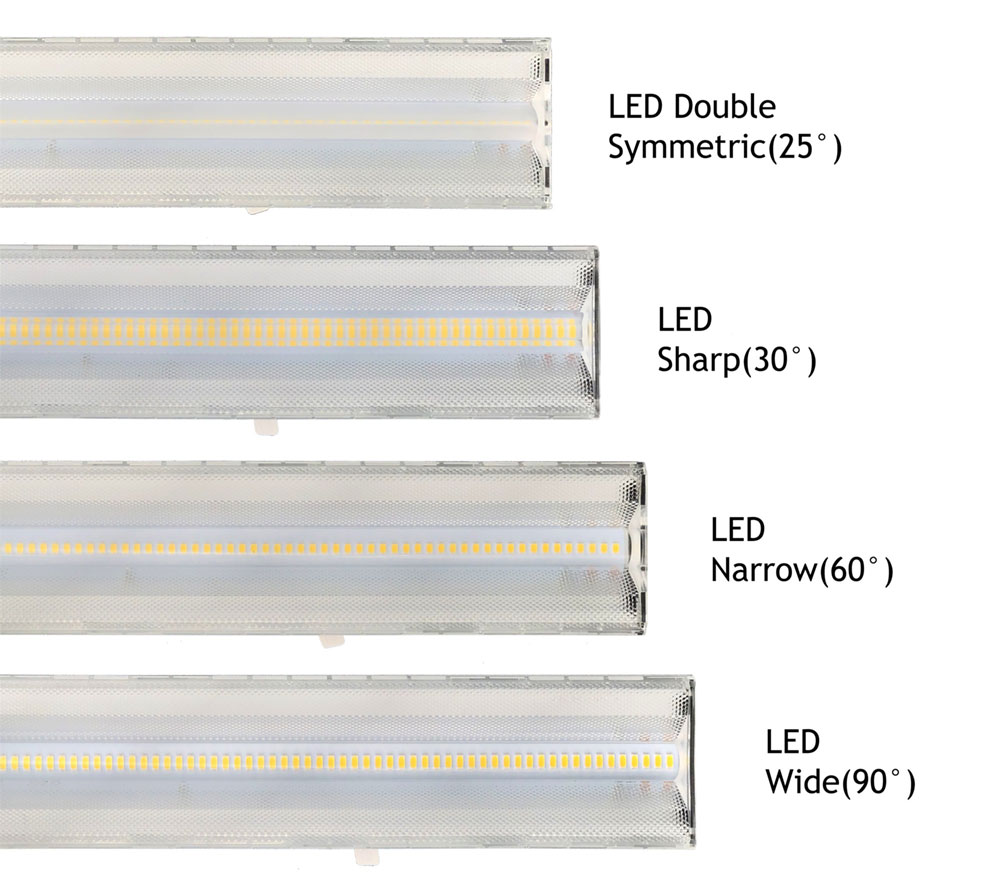

- Beam Angle: 30° / 60° / 90°
Specifications
| O Series Model | Power(W) | Size(mm) | Efficiency(lm/W) | Lumen(lm) | Material | Driver | CRI(Ra) | CCT(K) | BeamAngle | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-6870D-626 | 26 | 585 | 130 | 3380 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
| LU-6870D-1235 | 35 | 1155 | 130 | 4550 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
| LU-6870D-1535 | 35 | 1442 | 130 | 4550 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
| LU-6870D-1555 | 55 | 1442 | 130 | 7150 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
| LU-6870D-1565 | 65 | 1442 | 130 | 8450 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
| LU-6870D-626 | 26 | 585 | 160 | 4160 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
| LU-6870D-1235 | 35 | 1155 | 160 | 5600 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
| LU-6870D-1535 | 35 | 1442 | 160 | 5600 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
| LU-6870D-1555 | 55 | 1442 | 160 | 8800 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
| LU-6870D-1565 | 65 | 1442 | 160 | 10400 | Aluminum | OSRAM | 85 | 3000 4000 5000 6000 | 30° 60° 90° | — |
