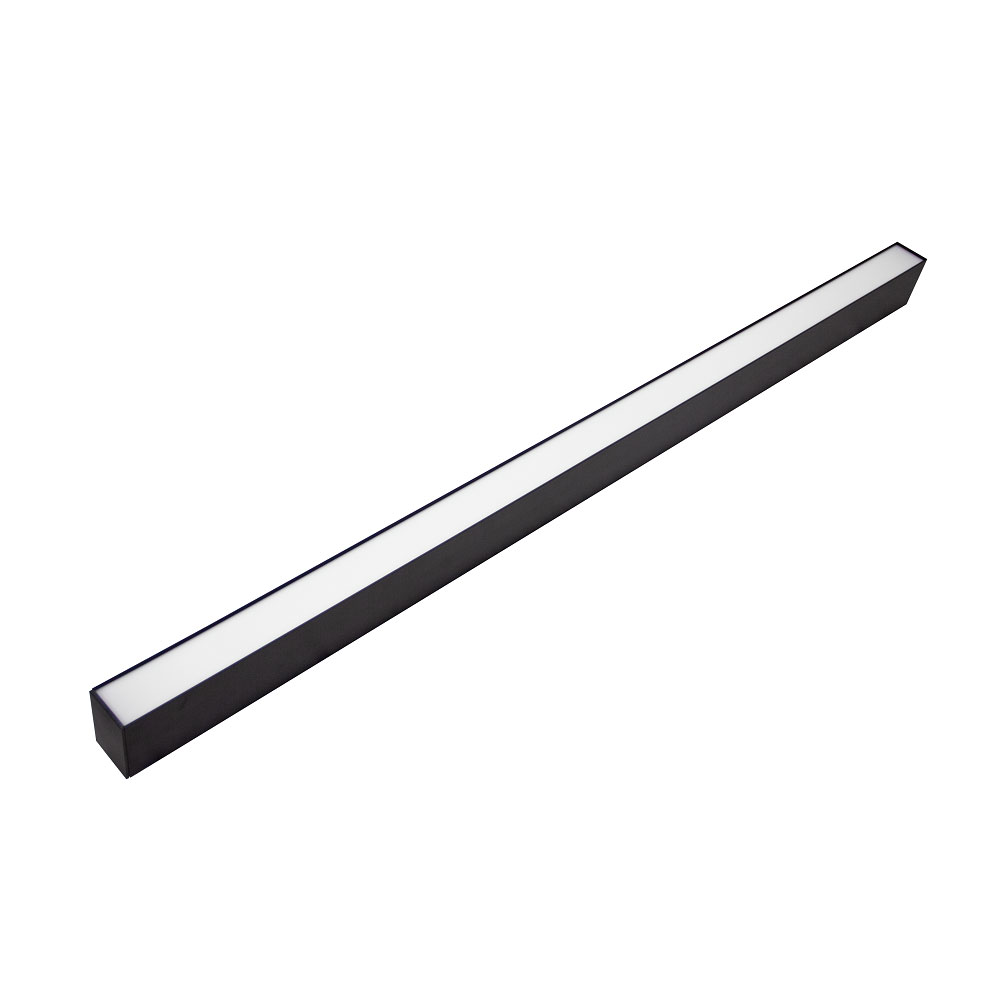

LU-L5270 (advanced)
Commercial Lighting
Features

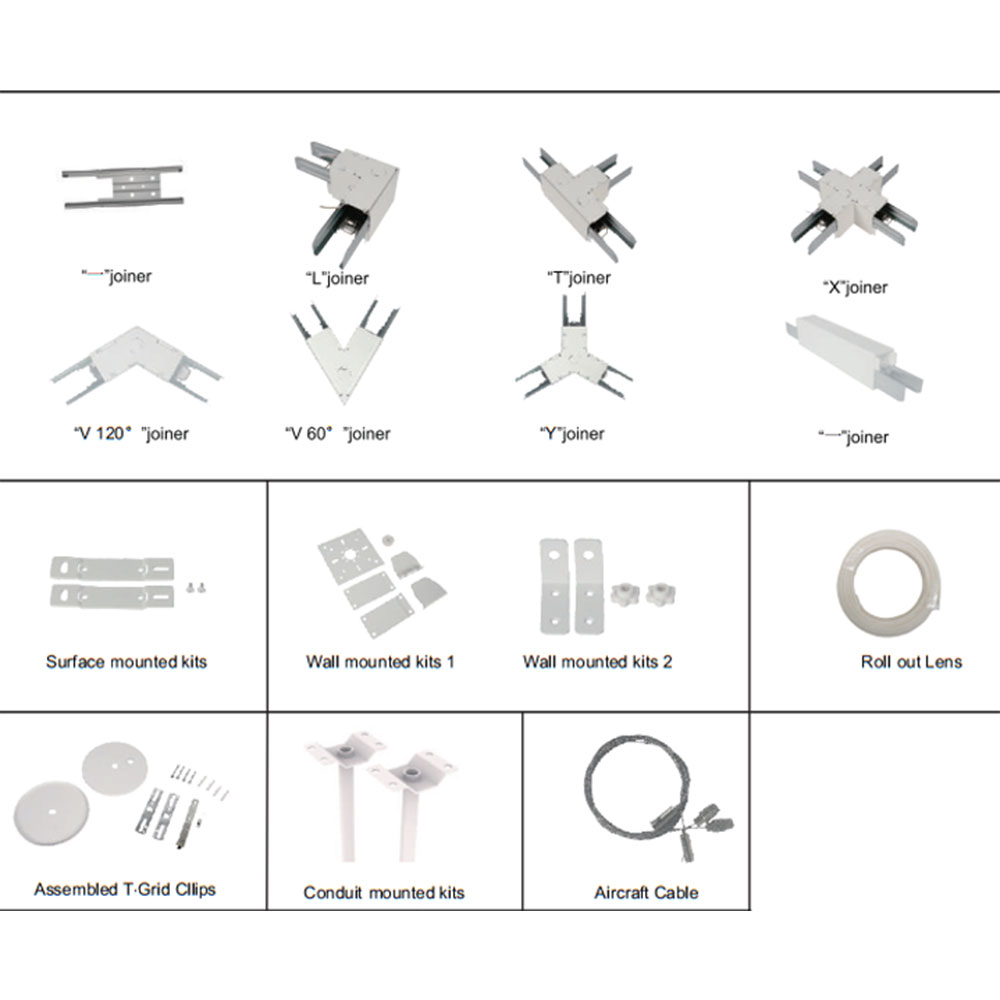

- Linkable optional with various shapes (L, T, X, V, Y, etc.) joint kits
- Model: LU-L5270（AD）

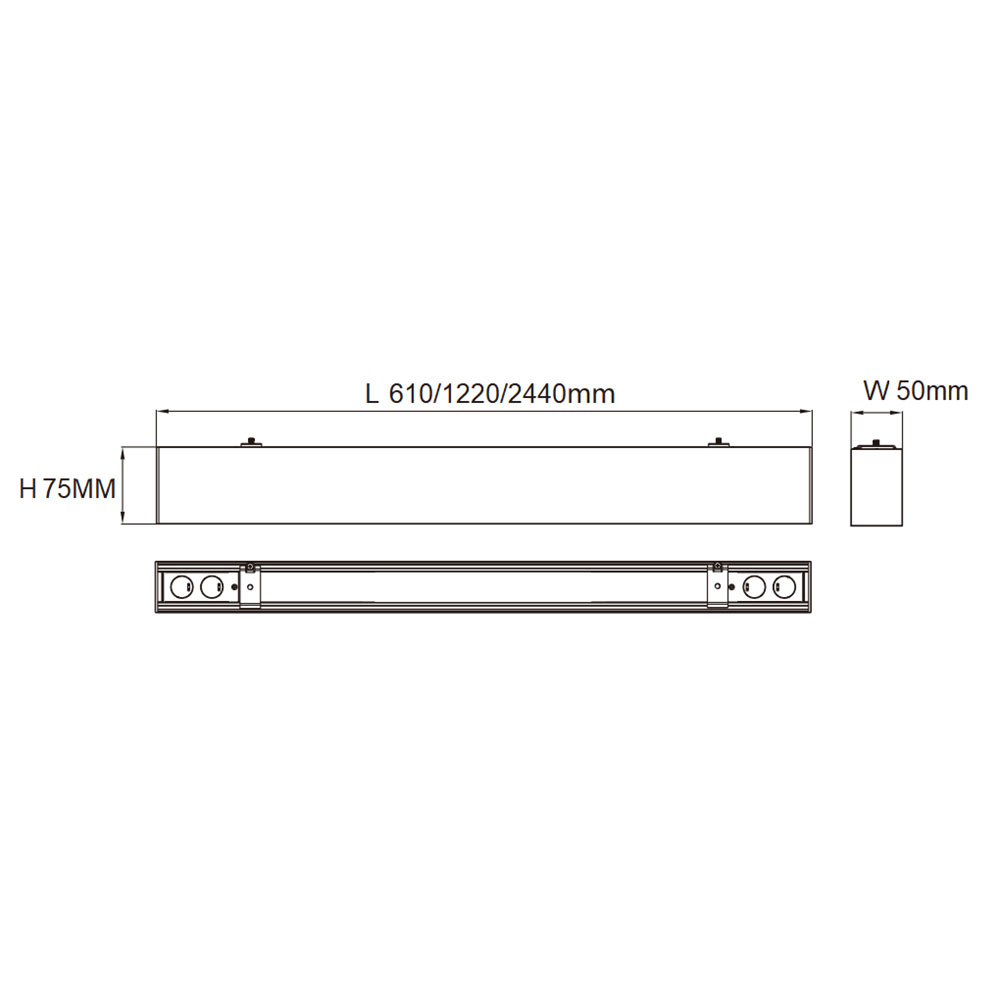

- Szie(LxWxH): 1220x50x75mm / 2440x50x75mm / 610x50x75mm

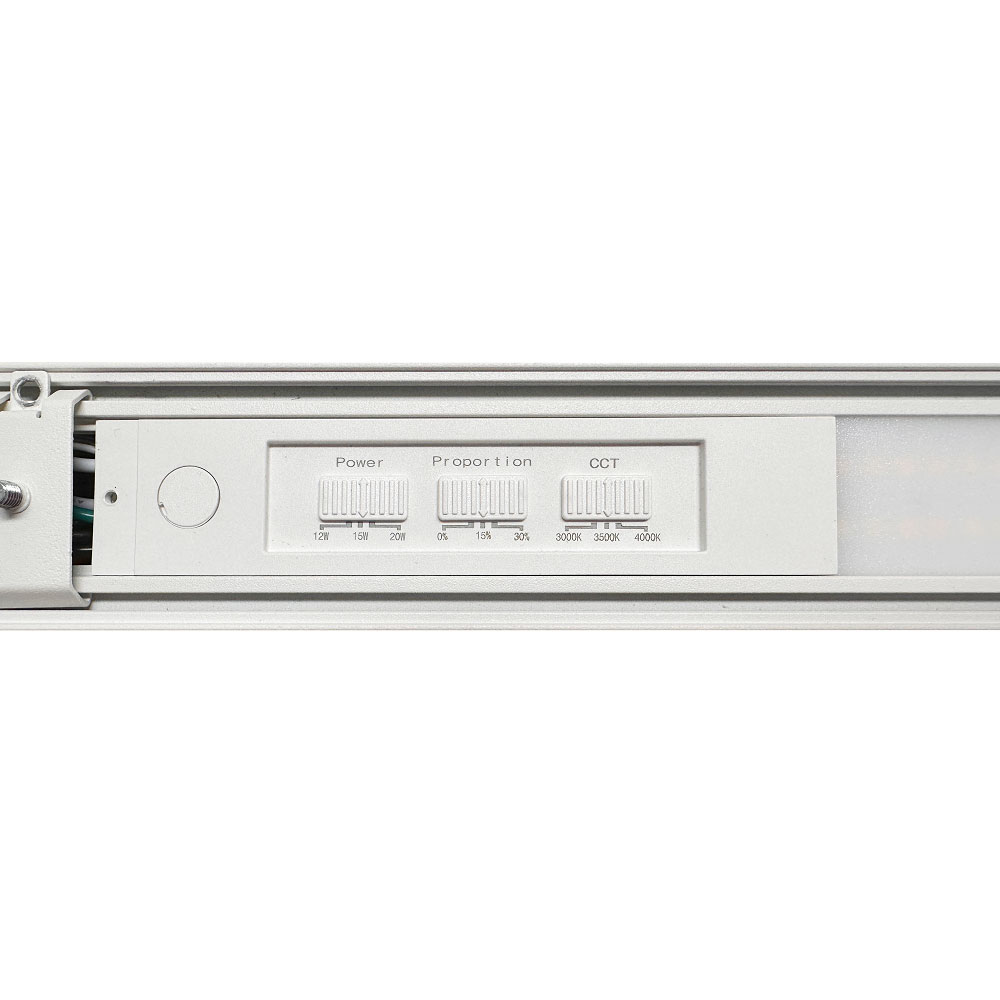

- SwitchablePower (W): 15W/ 20W/ 25W / 15W/20W/25W / 25W/30W/40W / 40W/50W/65W
- SwitchableDIP CCT: 3000K/4000K/5500K
- Diffuser: Micro pristimaticUGR / Opal cover
- LumenEfficiency: 115 lm/W / 135 lm/W
- CRI: >80Ra
- Light dirrection: downward orup + downward
- IP: IP20
- BeamAngle: 120°
Specifications
| Model | Szie(LxWxH) | SwitchablePower (W) | SwitchableDIP CCT | Diffuser | LumenEfficiency | CRI | Light dirrection | IP | BeamAngle |
|---|---|---|---|---|---|---|---|---|---|
| LU-L5270（AD） | 610x50x75mm | 15W/ 20W/ 25W | 3000K/4000K/5500K | Opal cover | 135 lm/W | >80Ra | downward orup + downward | IP20 | 120° |
| LU-L5270（AD） | 1220x50x75mm | 25W/30W/40W | 3000K/4000K/5500K | Opal cover | 135 lm/W | >80Ra | downward orup + downward | IP20 | 120° |
| LU-L5270（AD） | 2440x50x75mm | 40W/50W/65W | 3000K/4000K/5500K | Opal cover | 135 lm/W | >80Ra | downward orup + downward | IP20 | 120° |
| LU-L5270（AD） | 610x50x75mm | 15W/20W/25W | 3000K/4000K/5500K | Micro pristimaticUGR | 115 lm/W | >80Ra | downward orup + downward | IP20 | 120° |
| LU-L5270（AD） | 1220x50x75mm | 25W/30W/40W | 3000K/4000K/5500K | Micro pristimaticUGR | 115 lm/W | >80Ra | downward orup + downward | IP20 | 120° |
| LU-L5270（AD） | 2440x50x75mm | 40W/50W/65W | 3000K/4000K/5500K | Micro pristimaticUGR | 115 lm/W | >80Ra | downward orup + downward | IP20 | 120° |
