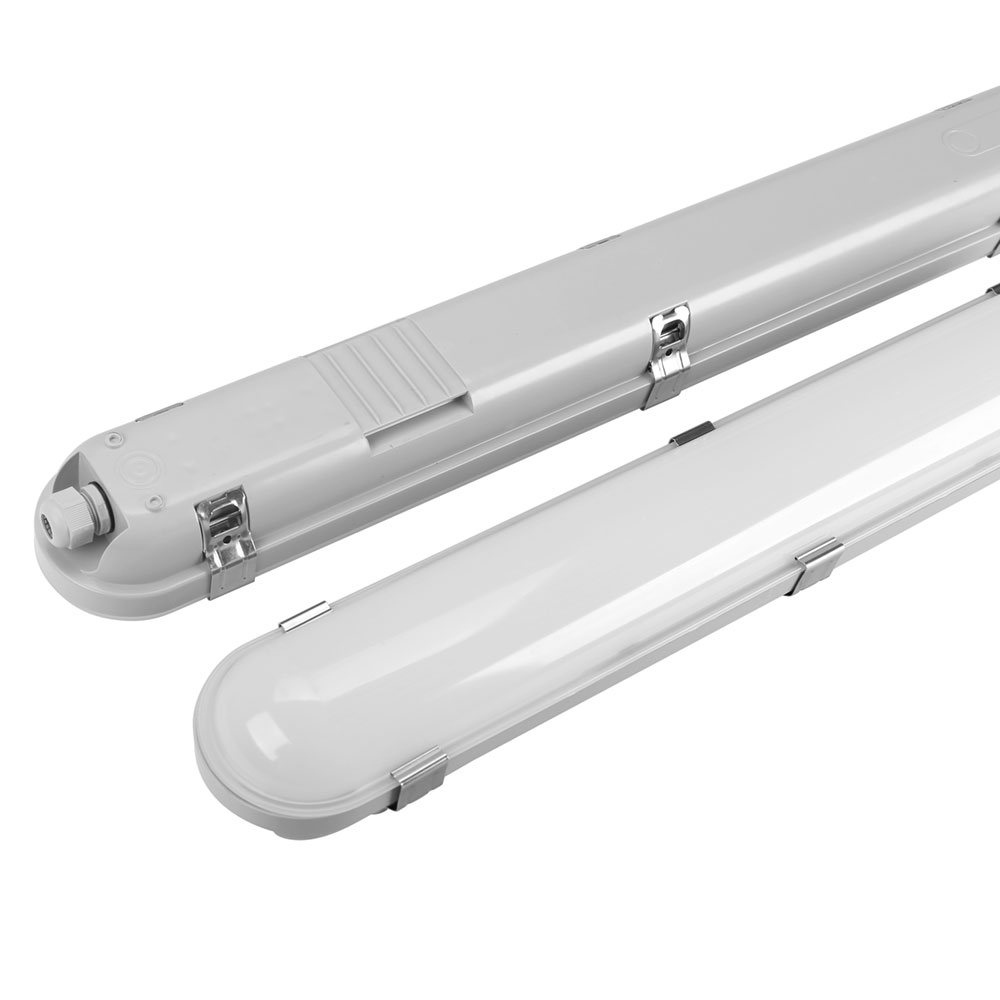

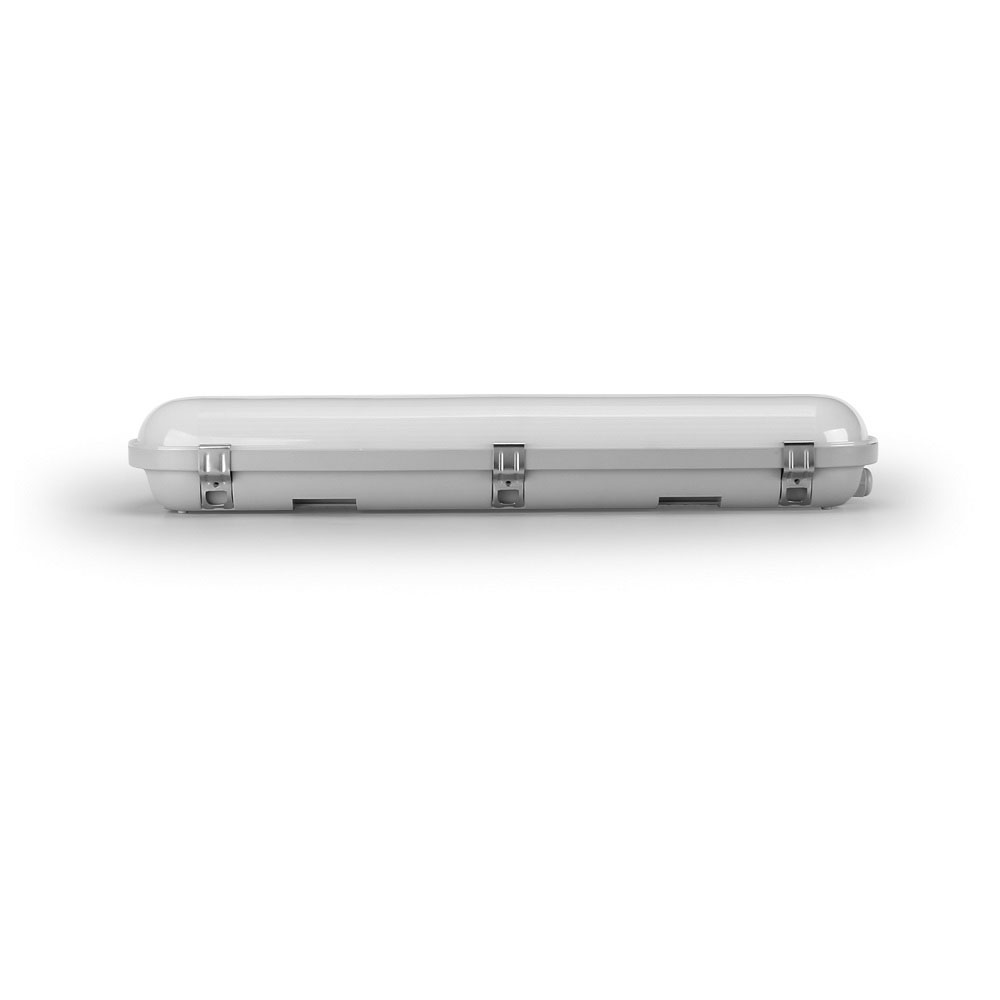

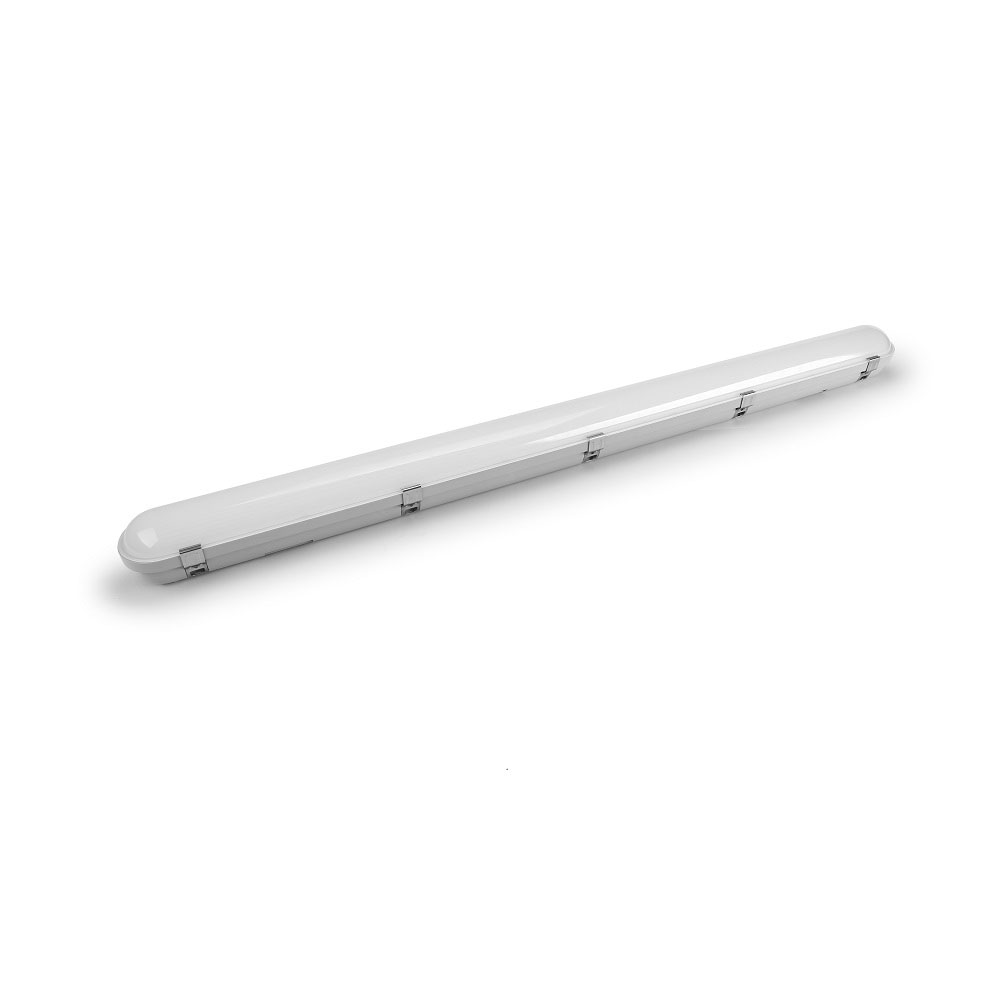

LED TPB Series
Industry Lighting
Features
- Model: LU-TPB-06
- Power(W): 10W/20W

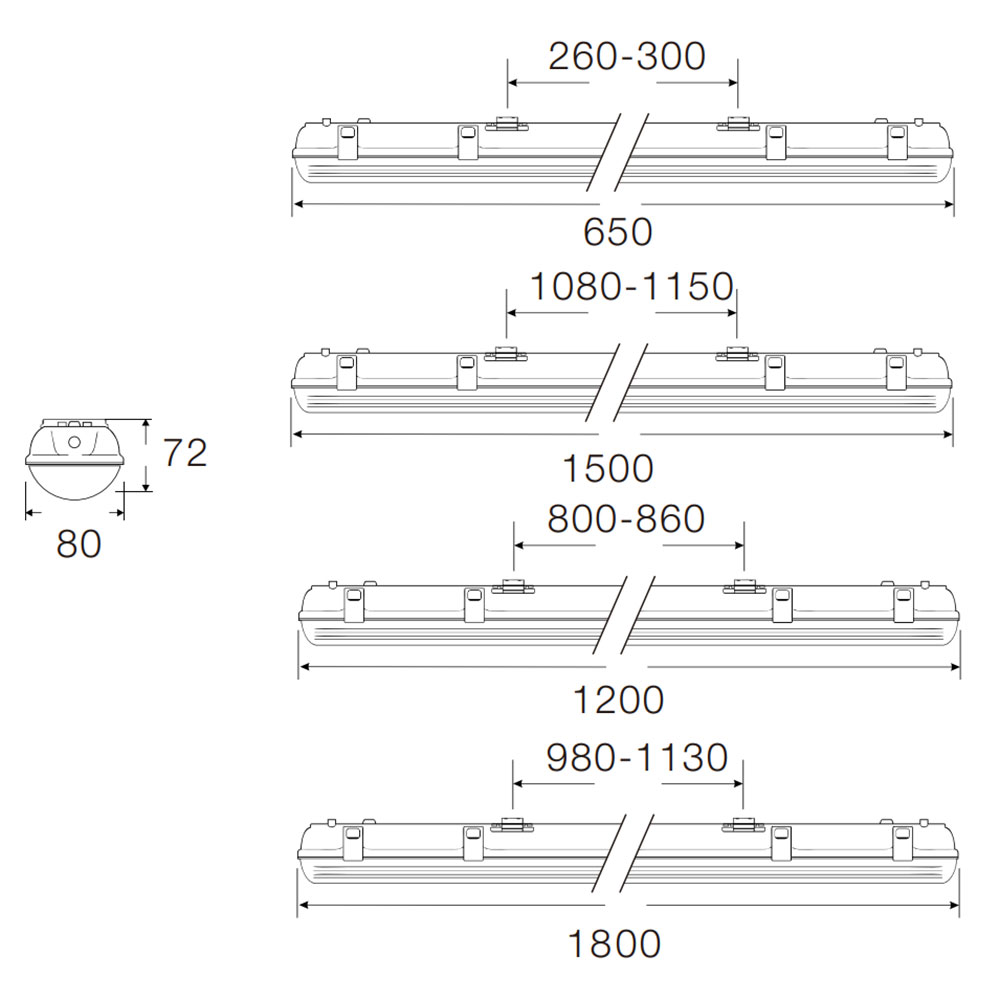

- Size(mm): 600*80*72
- LuminousEfficiency(lm/W): 130 lm/W
- Materials: PC housing +PC cover
- Driver: Tridonic/Osram5 YearsFlicker-Free

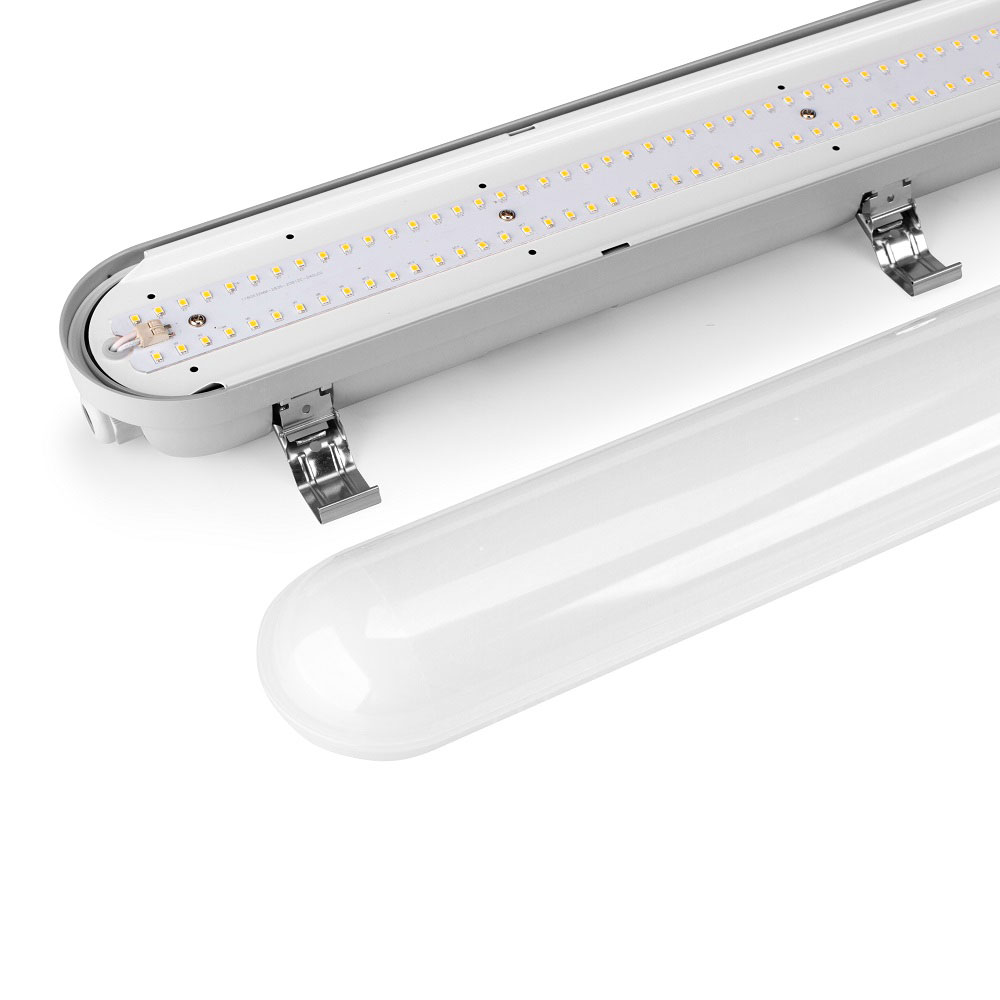

- LED Type: SMD2835
- CRI(Ra): 70/80/90
Specifications
| Model | Power(W) | Size(mm) | LuminousEfficiency(lm/W) | Materials | Driver | LED Type | CRI(Ra) | CCT(K) | Beam Angle | IP |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-TPB-06 | 10W/20W | 600*80*72 | 130 lm/W | PC housing +PC cover | Tridonic/Osram5 YearsFlicker-Free | SMD2835 | 70/80/90 | 2700K-6500K | 120° | IP66 |
| LU-TPB-12 | 20W/40W/ | 1200*80*72 | 130 lm/W | PC housing +PC cover | Tridonic/Osram5 YearsFlicker-Free | SMD2835 | 70/80/90 | 2700K-6500K | 120° | IP66 |
| LU-TPB-15 | 30W/50W | 1500*80*72 | 130 lm/W | PC housing +PC cover | Tridonic/Osram5 YearsFlicker-Free | SMD2835 | 70/80/90 | 2700K-6500K | 120° | IP66 |
| LU-TPB-18 | 50W/60W | 1800*80*72 | 130 lm/W | PC housing +PC cover | Tridonic/Osram5 YearsFlicker-Free | SMD2835 | 70/80/90 | 2700K-6500K | 120° | IP66 |
