LED TPC Series
Industry Lighting
Features
- Low consumption; more than 80% saving of the power
- Low light decay, long lifetime 50,000 hours
- Waterproof, dust-proof, IP66, IK10
- High luminous efficacy 120 lm/W, 150 lm/W optional
- High quality Osram driver

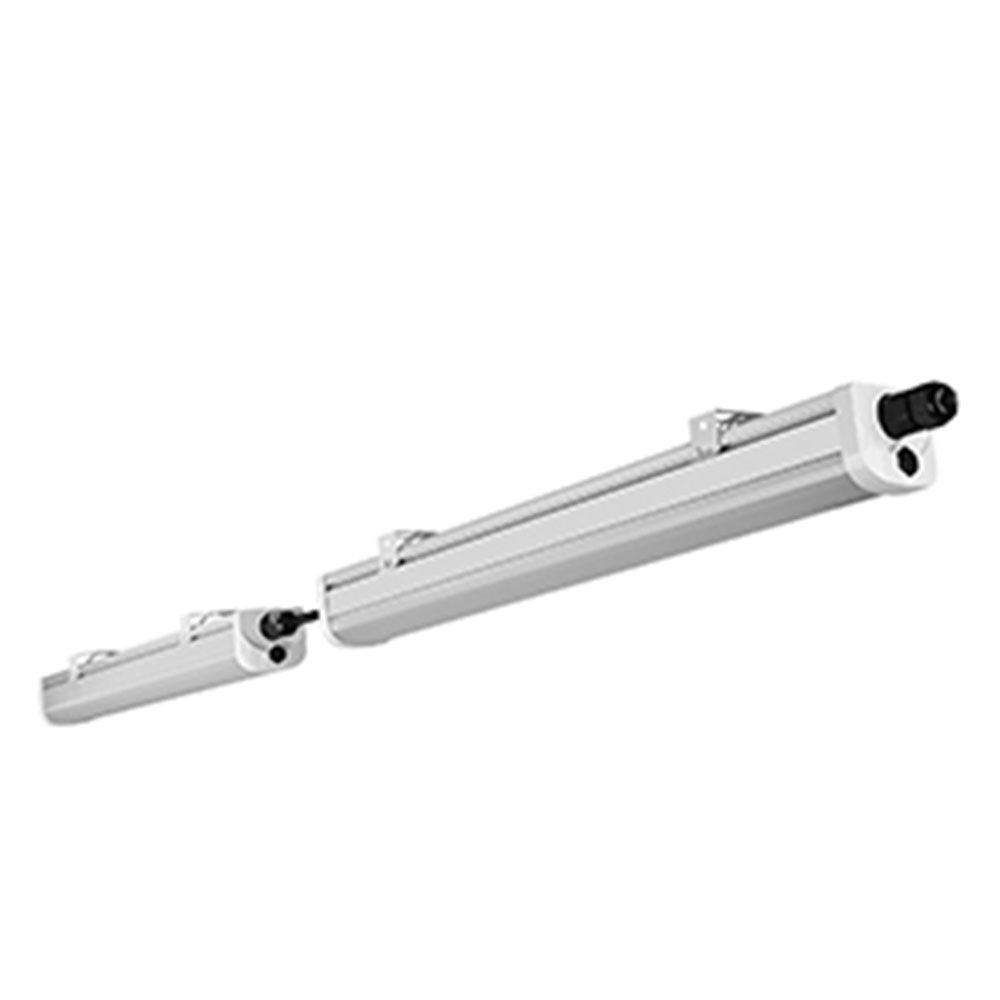

- Conventional installation for linking in series, wire-through
Technical specifications

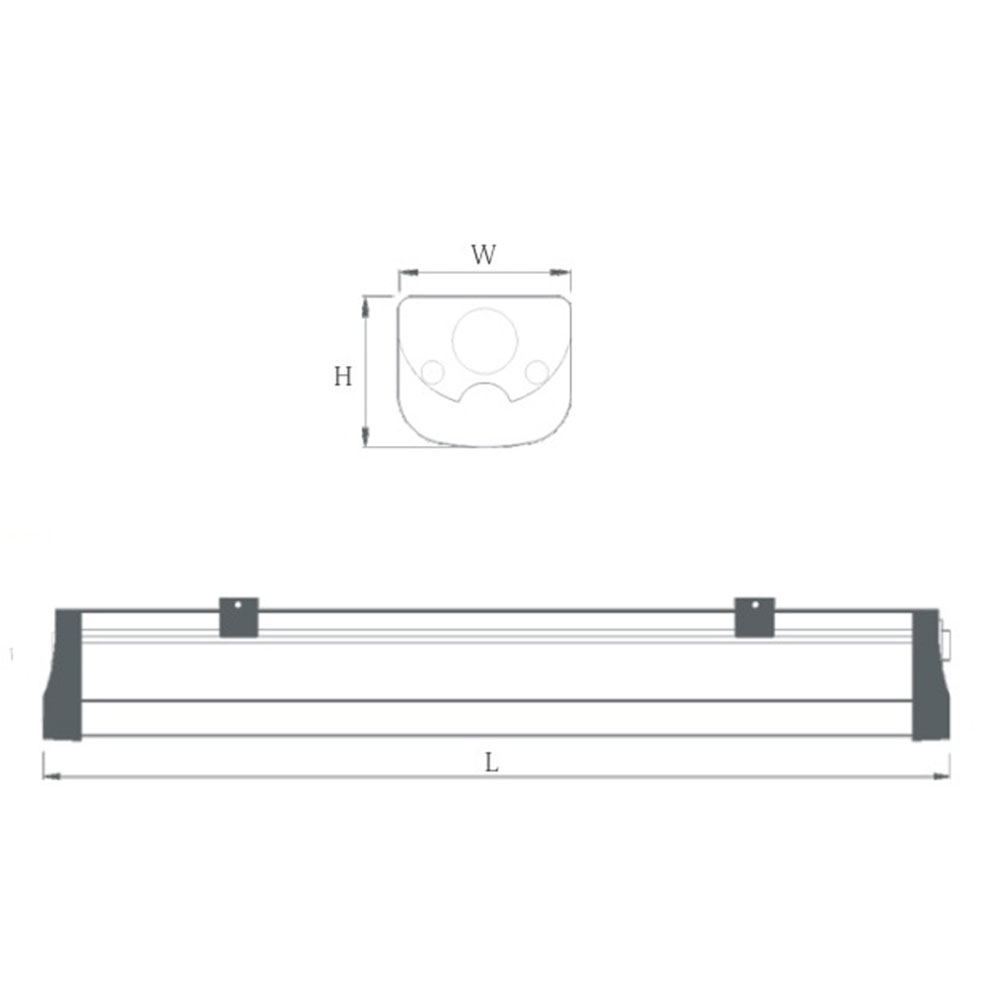

| Model | Power (W) | Size (mm) | Luminous Efficiency (lm/W) | Material | Driver | LED Type | CRI (Ra) | CCT (K) | Beam Angle | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-TPC-18W | 18 | 64×75×600 | 150 | Alu.+PC | Osram | SMD 2835 | 80 | 2700–6500 | 120° | IP66 |
| LU-TPC-120-40W | 40 | 64×75×1200 | 120 | Alu.+PC | Osram | SMD 2835 | 80 | 2700–6500 | 120° | IP66 |
| LU-TPC-30W | 30 | 64×75×1200 | 150 | Alu.+PC | Osram | SMD 2835 | 80 | 2700–6500 | 120° | IP66 |
| LU-TPC-150-60W | 60 | 64×75×1500 | 150 | Alu.+PC | Osram | SMD 2835 | 80 | 2700–6500 | 120° | IP66 |
| LU-TPC-50W | 50 | 64×75×1500 | 150 | Alu.+PC | Osram | SMD 2835 | 80 | 2700–6500 | 120° | IP66 |
