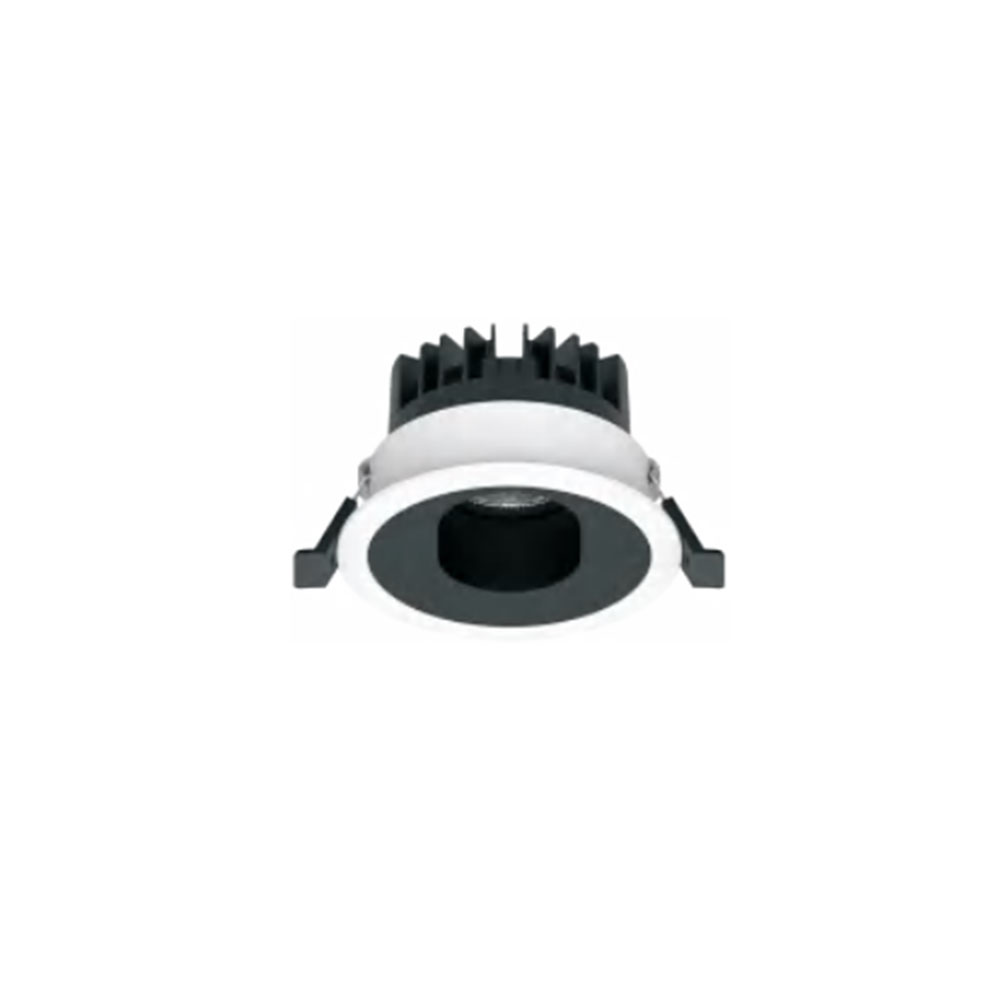

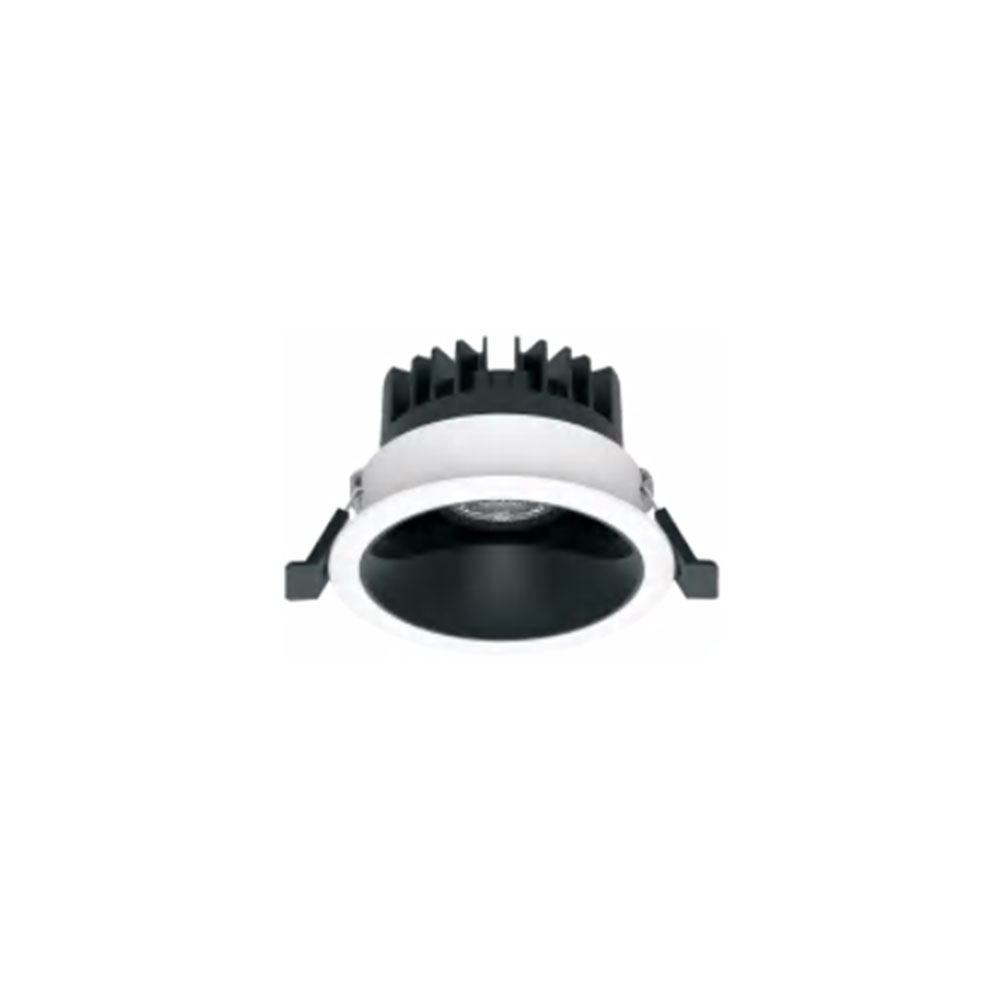

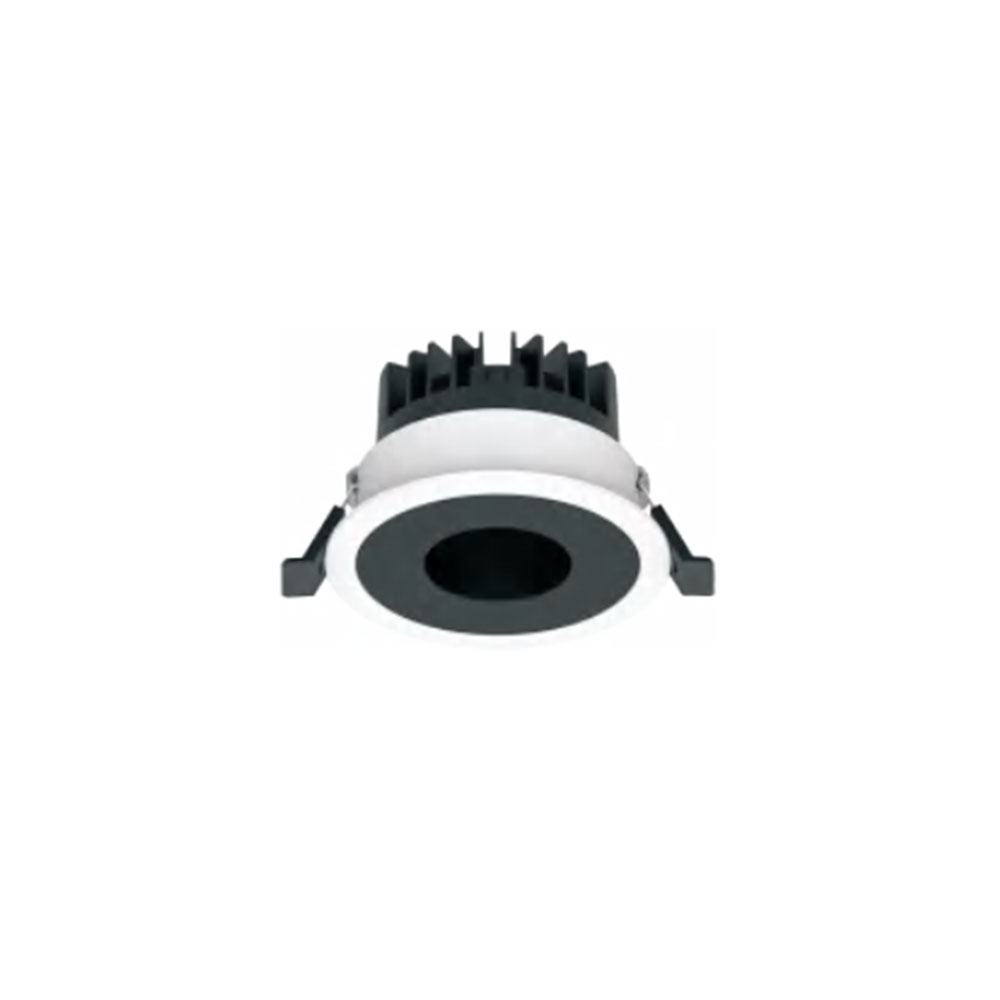

LED Recessed Down Light LA077x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: LA077x series
- Size: Φ63×41.5 – Φ107×65 mm
- Cutout: Φ55–Φ95 mm
- Power: 5–18W
- Lumen: 477–1458 lm
- Material: Aluminum
- CCT: 3000–5000K
- CRI: ≥90
- Beam Angle: 24° / 36°
Specifications

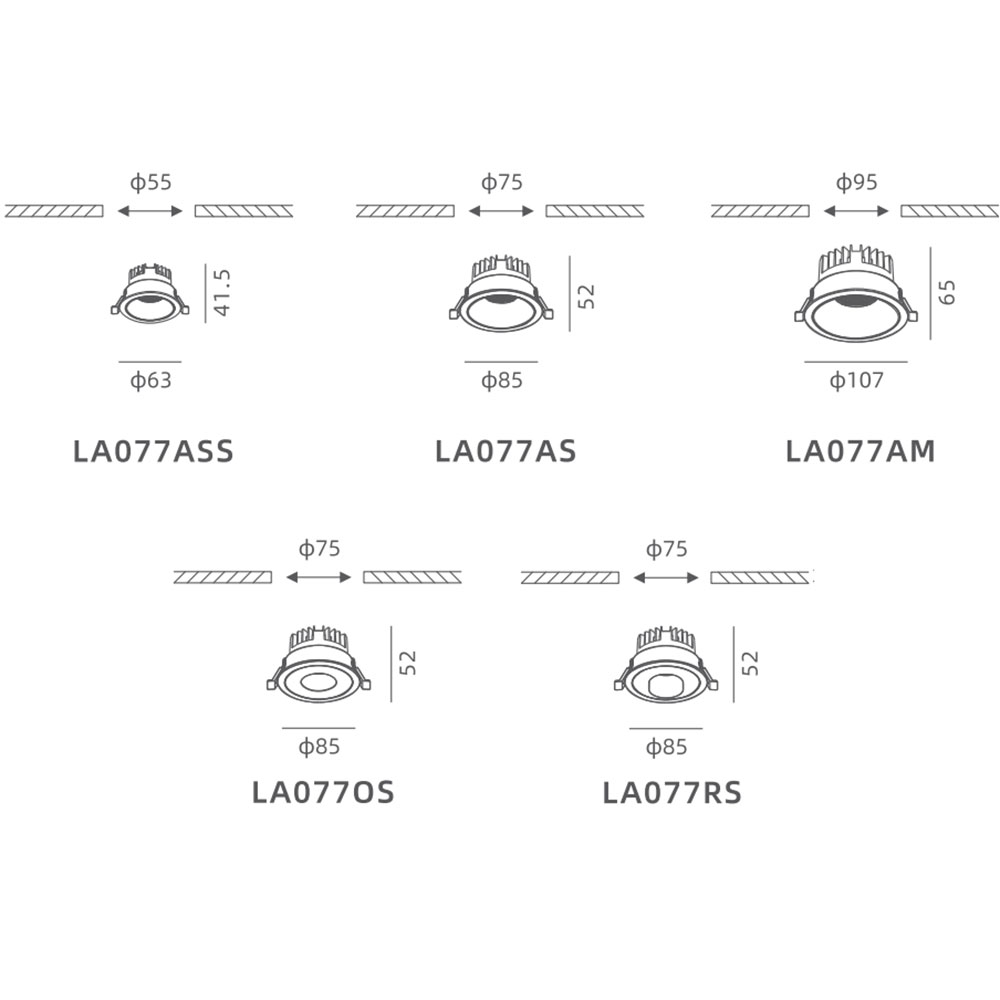

| Model | Picture | Size(mm) | Cutout(mm) | Power(W) | Lumen | Material | CCT | CRI(Ra) | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| LA077ASS | Φ63x41.5 | Φ55 | 5W/7W | 477lm 5W | Aluminum | 3000K/4000K/5000K | ≥90 | 24°/36° | |
| LA077AS | Φ85x52 | Φ75 | 7W/9W/12W | 925lm 9W | Aluminum | 3000K/4000K/5000K | ≥90 | 24°/36° | |
| LA077AM | Φ107x65 | Φ95 | 12W/15W/18W | 1458lm 15W | Aluminum | 3000K/4000K/5000K | ≥90 | 24°/36° | |
| LA077OS | Φ85x52 | Φ75 | 7W/9W/12W | 700lm 9W | Aluminum | 3000K/4000K/5000K | ≥90 | 24°/36° | |
| LA077RS | Φ85x52 | Φ75 | 7W/9W/12W | 730lm 9W | Aluminum | 3000K/4000K/5000K | ≥90 | 24°/36° |
