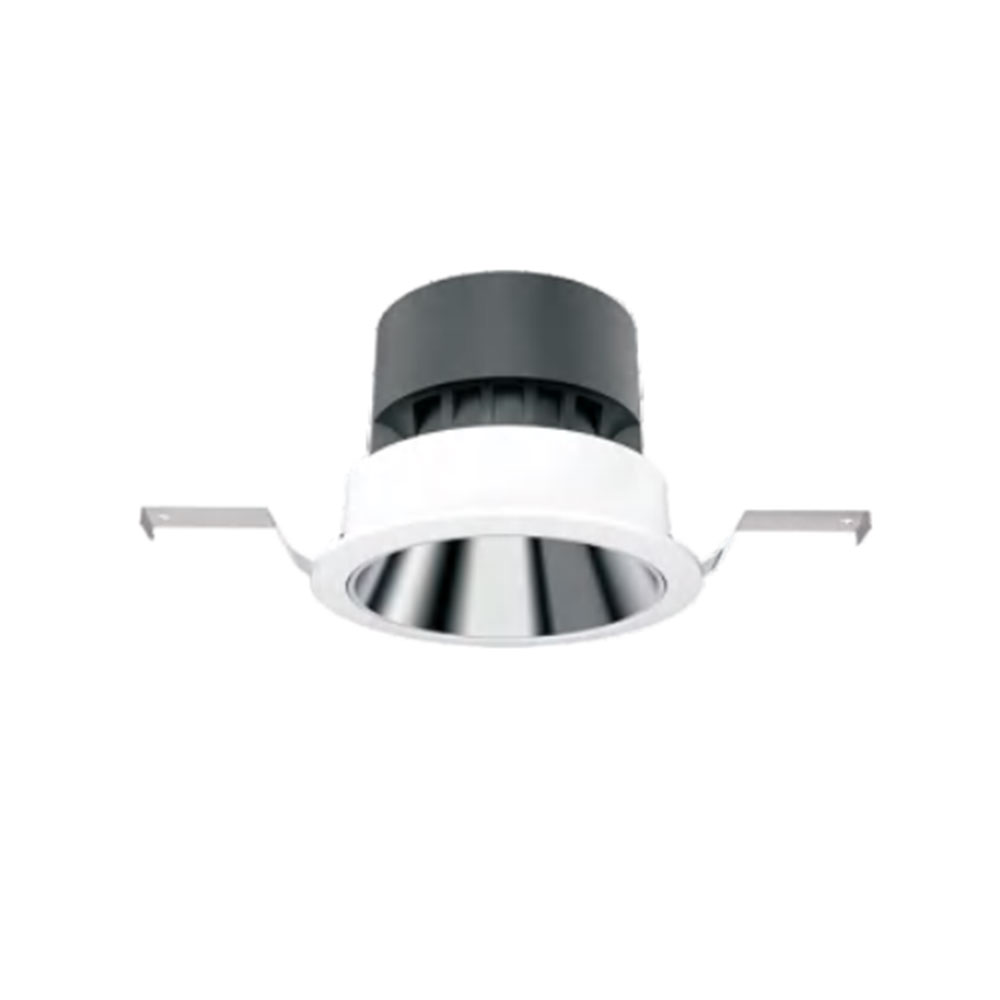

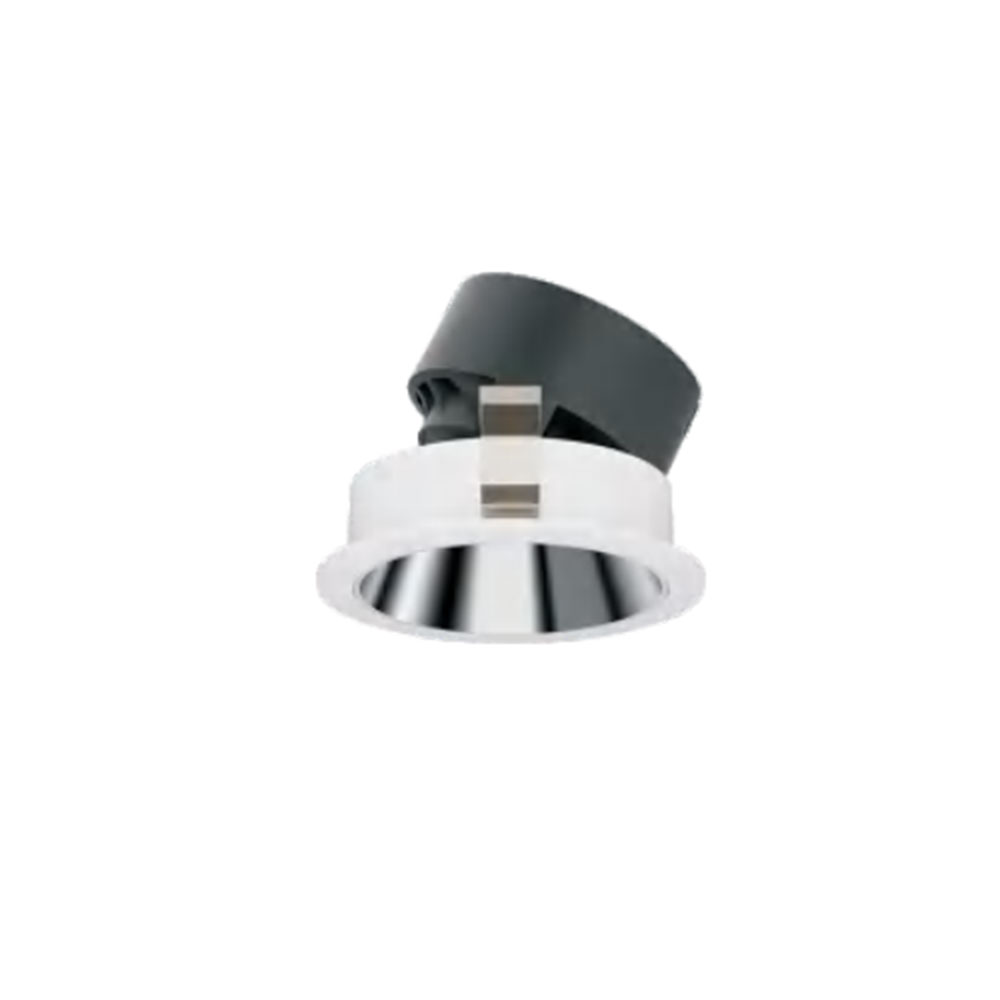

LED Recessed Down Light LA032x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: LA032AM / LA032ASS / LA032M / LA032S / LA032SS

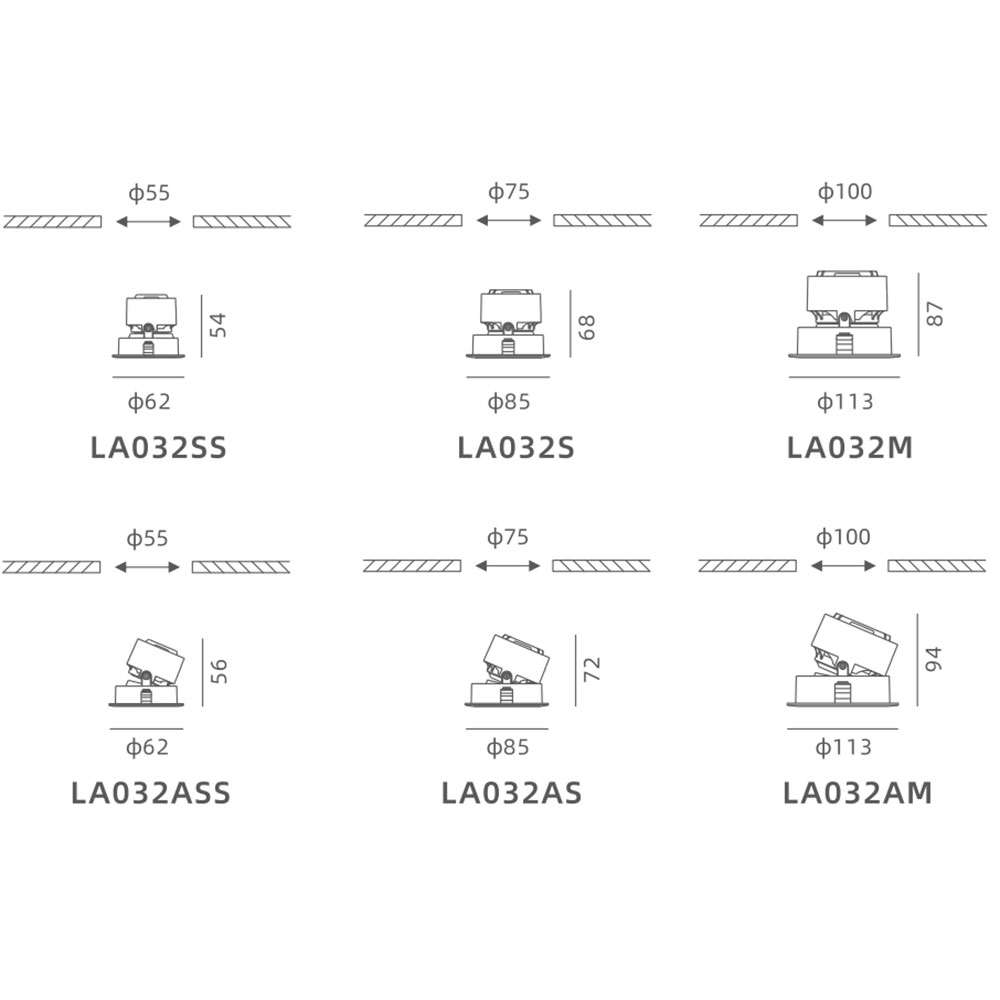

- Size(mm): Φ113x87 / Φ113x94 / Φ62x54 / Φ62x56 / Φ85x68 / Φ85x72
- Cutout(mm): Φ100 / Φ55 / Φ75
- Power(W): 12W / 25W / 7W
- Lumen: 1020lm / 1875lm / 430lm
- Material: Aluminum
- CCT: 3000K/4000K/5000K
- CRI(Ra): ≥90
- Beam Angle: 15°/24°/36°
Specifications
| Model | Picture | Size(mm) | Cutout(mm) | Power(W) | Lumen | Material | CCT | CRI(Ra) | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| LA032SS | Φ62x54 | Φ55 | 7W | 430lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA032S | Φ85x68 | Φ75 | 12W | 1020lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA032M | Φ113x87 | Φ100 | 25W | 1875lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA032ASS | Φ62x56 | Φ55 | 7W | 430lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA032ASS | Φ85x72 | Φ75 | 12W | 1020lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA032AM | Φ113x94 | Φ100 | 25W | 1875lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° |
