LED Recessed Down Light LA212x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: LA212A / LA212A-E / LA212AS / LA212AS-E / LA212O / LA212O-E / LA212OS / LA212OS-E / LA212R / LA212R-E / LA212RS / LA212RS-E
- Size(mm): Φ50x85 / Φ62x85 / Φ70x116 / Φ85x116
- Cutout(mm): Φ55 / Φ75
- Power(W): 12W / 7W
- Lumen: 360lm / 390lm / 520lm / 720lm / 750lm / 900lm
- Material: Aluminum
- CCT: 3000K/4000K/5000K
- CRI(Ra): ≥90
- Beam Angle: 15°/24°/36°
Specifications

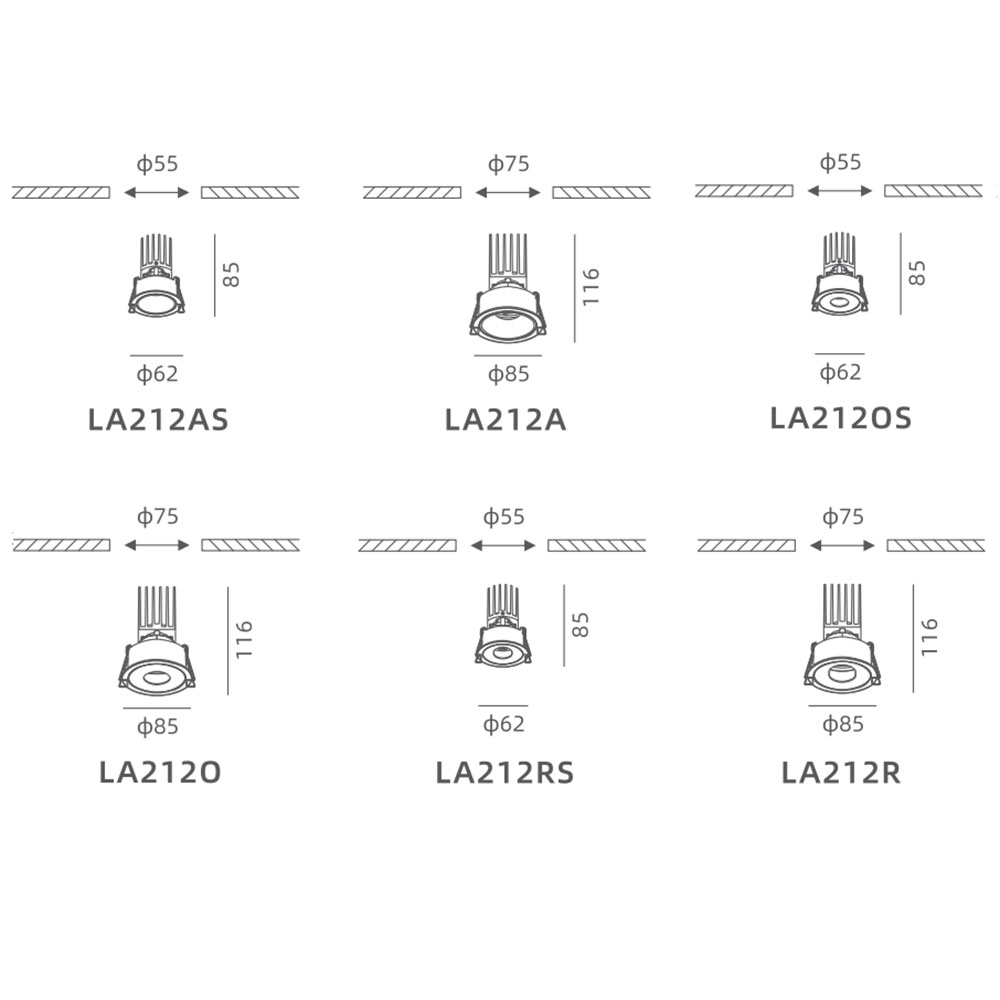

| Model | Picture | Size(mm) | Cutout(mm) | Power(W) | Lumen | Material | CCT | CRI(Ra) | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| LA212AS | Φ62x85 | Φ55 | 7W | 520lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212A | Φ85x116 | Φ75 | 12W | 900lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212OS | Φ62x85 | Φ55 | 7W | 360lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212O | Φ85x116 | Φ75 | 12W | 720lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212RS | Φ62x85 | Φ55 | 7W | 390lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212R | Φ85x116 | Φ75 | 12W | 750lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212AS-E | Φ50x85 | Φ55 | 7W | 520lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212A-E | Φ70x116 | Φ75 | 12W | 900lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212OS-E | Φ50x85 | Φ55 | 7W | 360lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212O-E | Φ70x116 | Φ75 | 12W | 720lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212RS-E | Φ50x85 | Φ55 | 7W | 390lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° | |
| LA212R-E | Φ70x116 | Φ75 | 12W | 750lm | Aluminum | 3000K/4000K/5000K | ≥90 | 15°/24°/36° |
