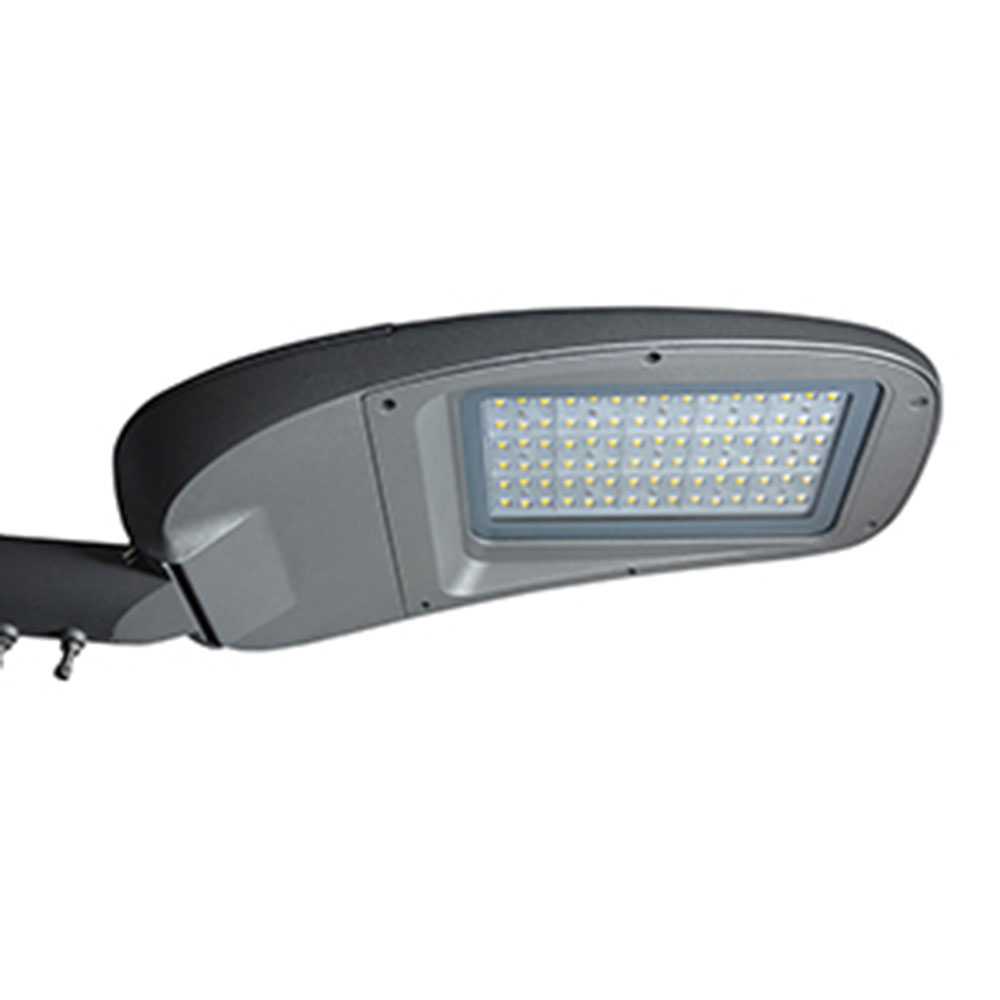

LED STA Series
Industry Lighting
Features
- Model: LU-STA series (50, 80, 140, 200)
- Power: 30–200W
- Driver: Meanwell
- LED: Philips 3030
- CRI: 80, CCT: 2700–6500K
- Installation: type 2m / type 3m
- IP66
Specifications

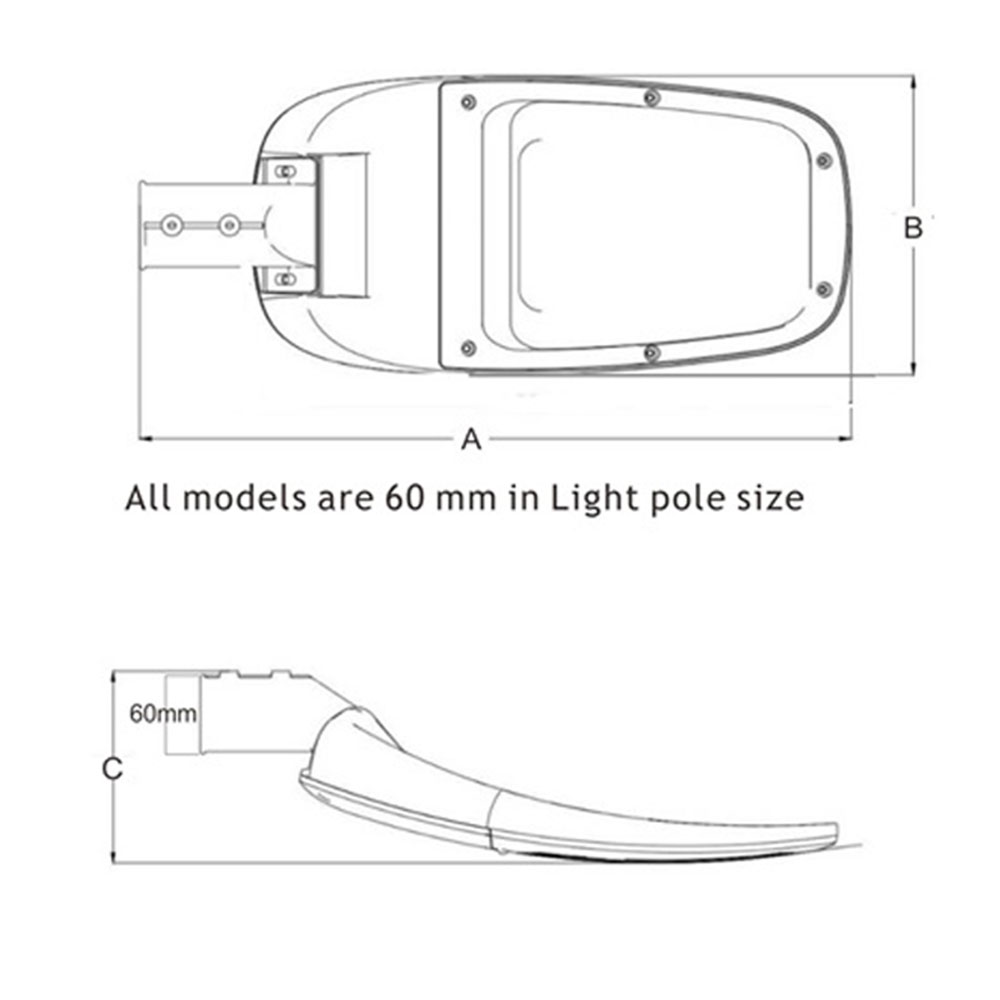

| Model | Power (W) | Size (mm) | Luminous Efficiency (lm/W) | Material | Driver | LED Type | CRI (Ra) | CCT (K) | Installation | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-STA-50 | 30–50W | 507×210×143 | 130–150 | Alu. | Meanwell | Philips 3030 | 80 | 2700–6500 | type 2m/3m | IP66 |
| LU-STA-80 | 60–80W | 616×259×186 | 130–150 | Alu. | Meanwell | Philips 3030 | 80 | 2700–6500 | type 2m/3m | IP66 |
| LU-STA-140 | 90–140W | 676×303×186 | 130–150 | Alu. | Meanwell | Philips 3030 | 80 | 2700–6500 | type 2m/3m | IP66 |
| LU-STA-200 | 200 | 850×366×198 | 130–150 | Alu. | Meanwell | Philips 3030 | 80 | 2700–6500 | type 2m/3m | IP66 |
