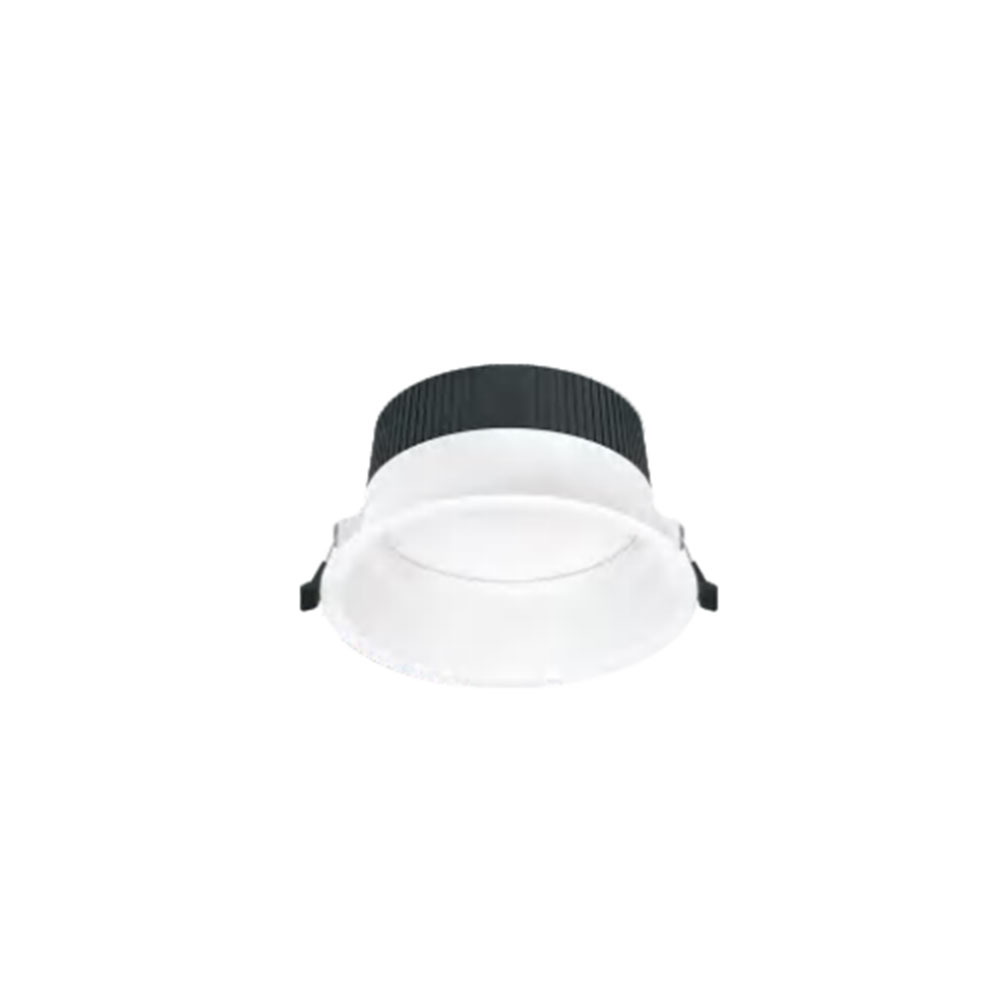

LED Recessed Down Light LB038x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: LB038-2.5 / LB038-3 / LB038-5 / LB038-8
- Size(mm): Φ110x60 / Φ160x80 / Φ214x105 / Φ84x45
- Cutout(mm): Φ100 / Φ150 / Φ200 / Φ75
- Power(W): 16W / 36W / 6W / 9W
- Lumen: 2121lm / 3331lm / 626lm / 961lm
- Material: Aluminum
- CCT: 3000K/4000K/5000K
- CRI(Ra): ≥90
- Beam Angle: 90°
Specifications

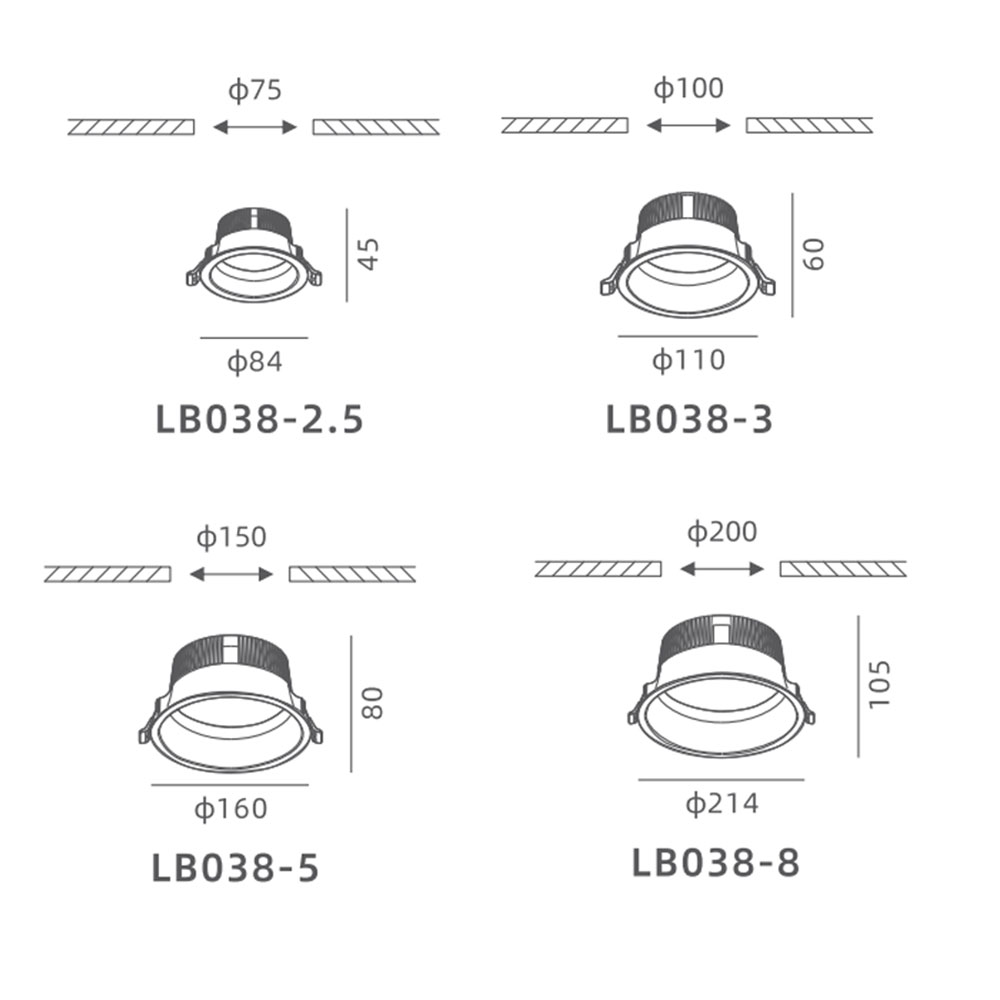

| Model | Picture | Size(mm) | Cutout(mm) | Power(W) | Lumen | Material | CCT | CRI(Ra) | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| LB038-2.5 | Φ84x45 | Φ75 | 6W | 626lm | Aluminum | 3000K/4000K/5000K | ≥90 | 90° | |
| LB038-3 | Φ110x60 | Φ100 | 9W | 961lm | Aluminum | 3000K/4000K/5000K | ≥90 | 90° | |
| LB038-5 | Φ160x80 | Φ150 | 16W | 2121lm | Aluminum | 3000K/4000K/5000K | ≥90 | 90° | |
| LB038-8 | Φ214x105 | Φ200 | 36W | 3331lm | Aluminum | 3000K/4000K/5000K | ≥90 | 90° |
