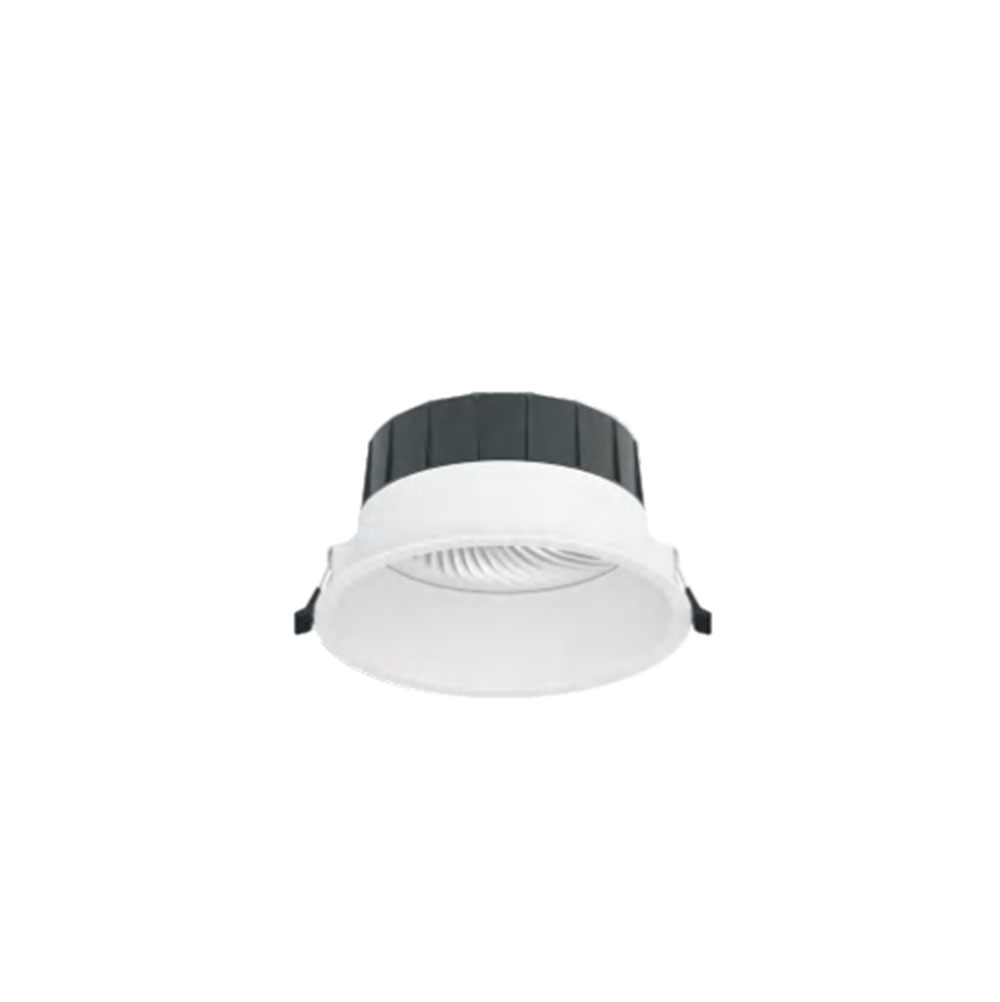

LED Recessed Down Light LB041x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: LB041-2.5 / LB041-3 / LB041-5 / LB041-8

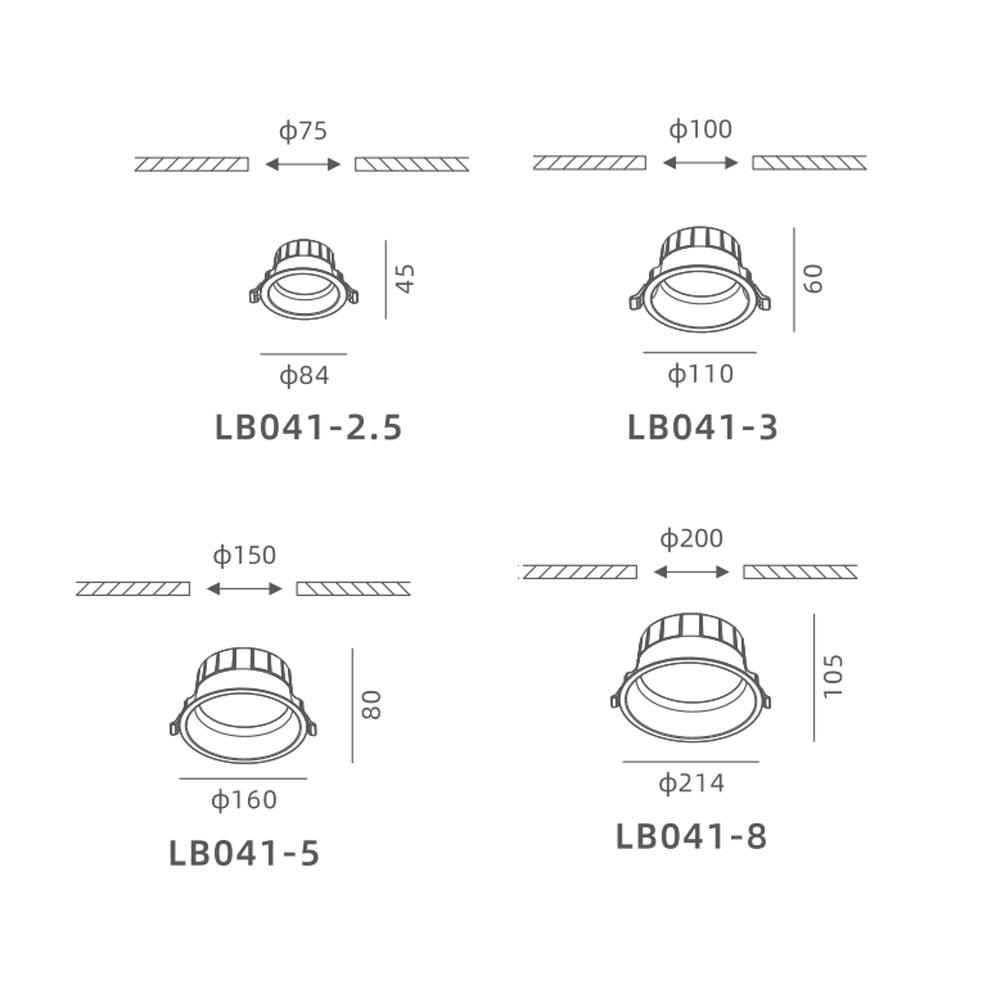

- Size(mm): Φ110x60 / Φ160x80 / Φ214x105 / Φ84x45
- Cutout(mm): Φ100 / Φ150 / Φ200 / Φ75
- Power(W): 10W / 20W / 30W / 40W
- Lumen: 1200lm / 2400lm / 3600lm / 4800lm
- Material: Aluminum
- CCT: 3000K/4000K/5000K
- CRI(Ra): ≥90
- Beam Angle: 75°
Specifications
| Model | Picture | Size(mm) | Cutout(mm) | Power(W) | Lumen | Material | CCT | CRI(Ra) | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| LB041-2.5 | Φ84x45 | Φ75 | 10W | 1200lm | Aluminum | 3000K/4000K/5000K | ≥90 | 75° | |
| LB041-3 | Φ110x60 | Φ100 | 20W | 2400lm | Aluminum | 3000K/4000K/5000K | ≥90 | 75° | |
| LB041-5 | Φ160x80 | Φ150 | 30W | 3600lm | Aluminum | 3000K/4000K/5000K | ≥90 | 75° | |
| LB041-8 | Φ214x105 | Φ200 | 40W | 4800lm | Aluminum | 3000K/4000K/5000K | ≥90 | 75° |
