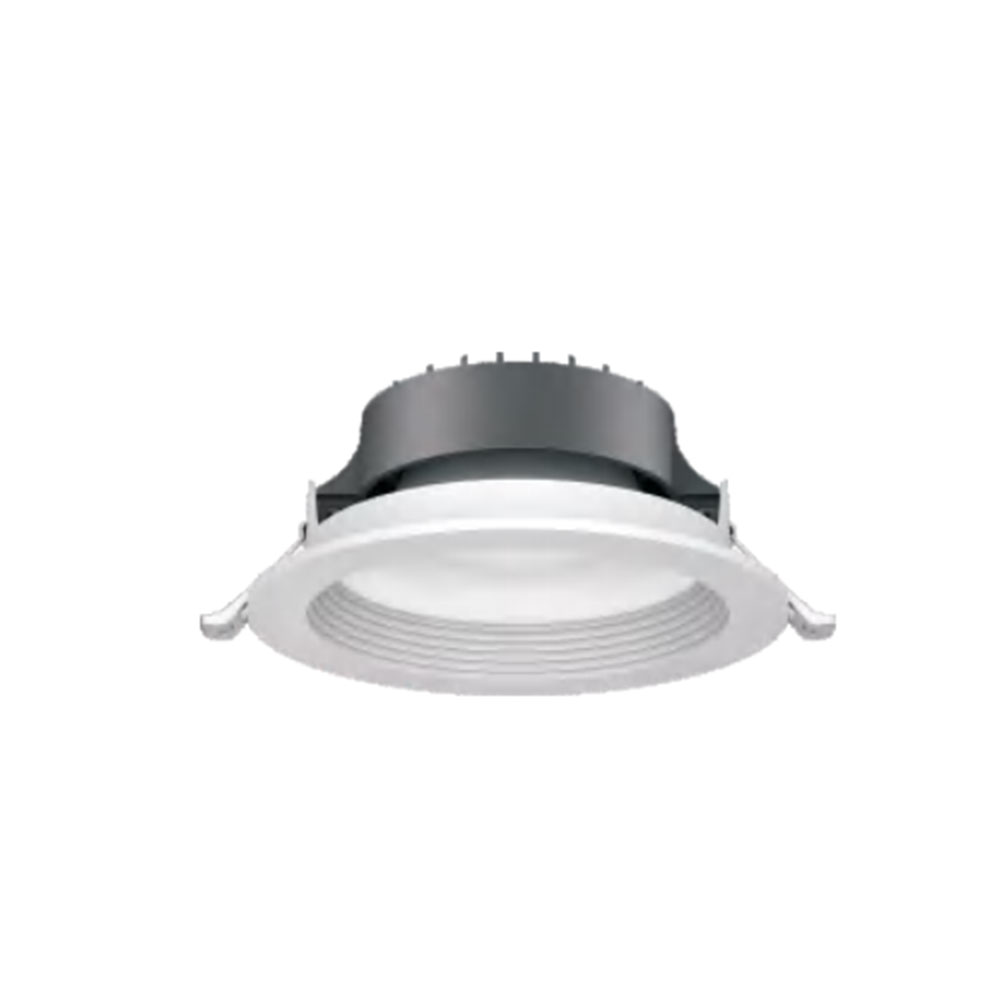

LED Recessed Down Light LB013x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power
- Model: LB013-2.5 / LB013-3 / LB013-4 / LB013-5 / LB013-6
- Size(mm): Φ110x58 / Φ140x70 / Φ165x77 / Φ190x84 / Φ90x46
- Cutout(mm): Φ125 / Φ145 / Φ170 / Φ75 / Φ95
- Power(W): 15W / 20W / 30W / 40W / 9W
- Lumen: 1366lm / 2046lm / 3558lm / 4554lm / 664lm
- Material: Aluminum
- CCT: 3000K/4000K/5000K
- CRI(Ra): ≥90
- Beam Angle: 70°
Specifications

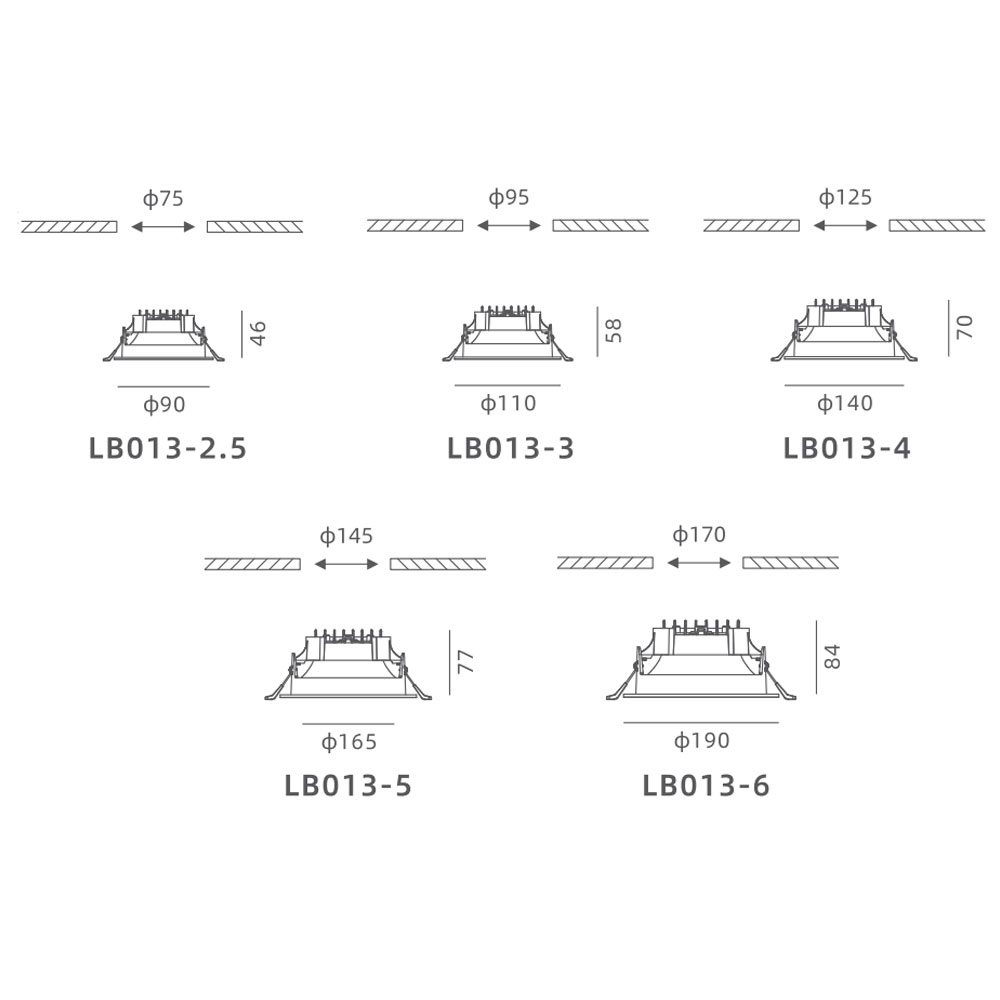

| Model | Picture | Size(mm) | Cutout(mm) | Power(W) | Lumen | Material | CCT | CRI(Ra) | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| LB013-2.5 | Φ90x46 | Φ75 | 9W | 664lm | Aluminum | 3000K/4000K/5000K | ≥90 | 70° | |
| LB013-3 | Φ110x58 | Φ95 | 15W | 1366lm | Aluminum | 3000K/4000K/5000K | ≥90 | 70° | |
| LB013-4 | Φ140x70 | Φ125 | 20W | 2046lm | Aluminum | 3000K/4000K/5000K | ≥90 | 70° | |
| LB013-5 | Φ165x77 | Φ145 | 30W | 3558lm | Aluminum | 3000K/4000K/5000K | ≥90 | 70° | |
| LB013-6 | Φ190x84 | Φ170 | 40W | 4554lm | Aluminum | 3000K/4000K/5000K | ≥90 | 70° |
