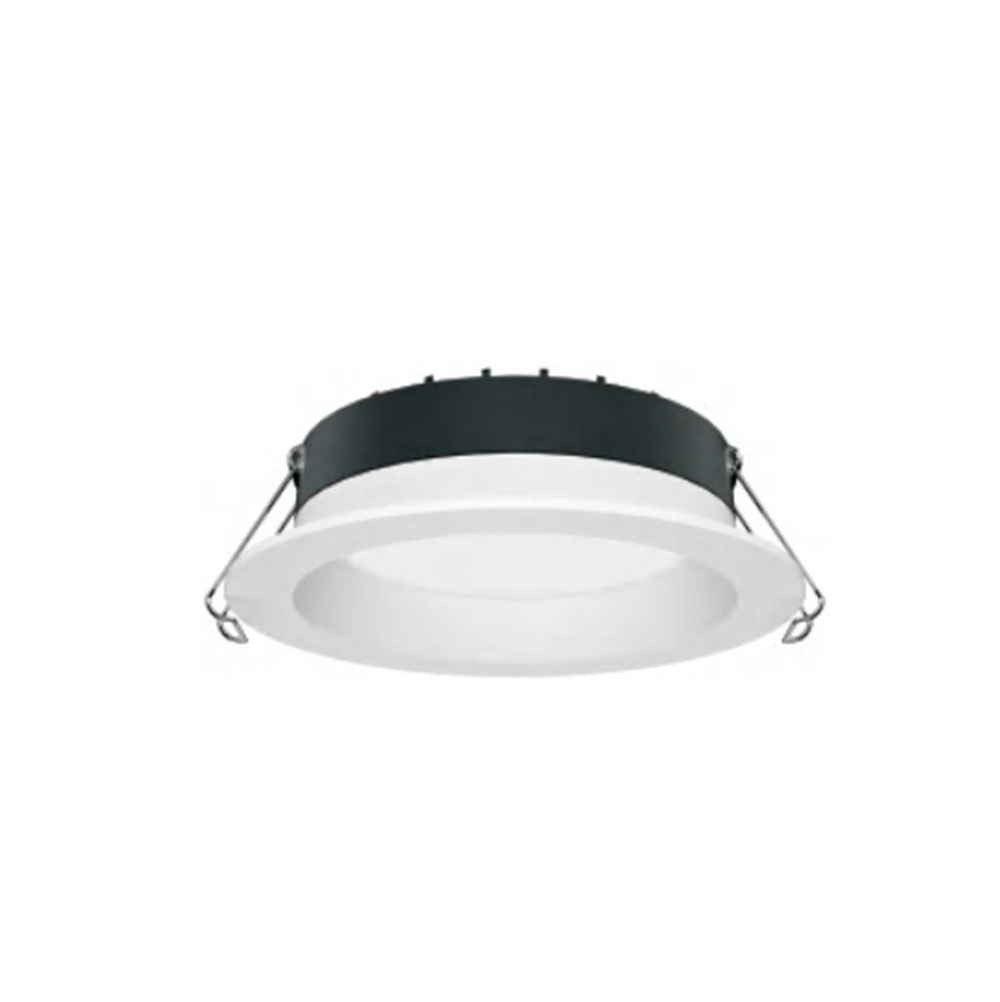

LED Recessed Down Light LB017x
Commercial Lighting
Features
- Low consumption; more than 80% saving of the power

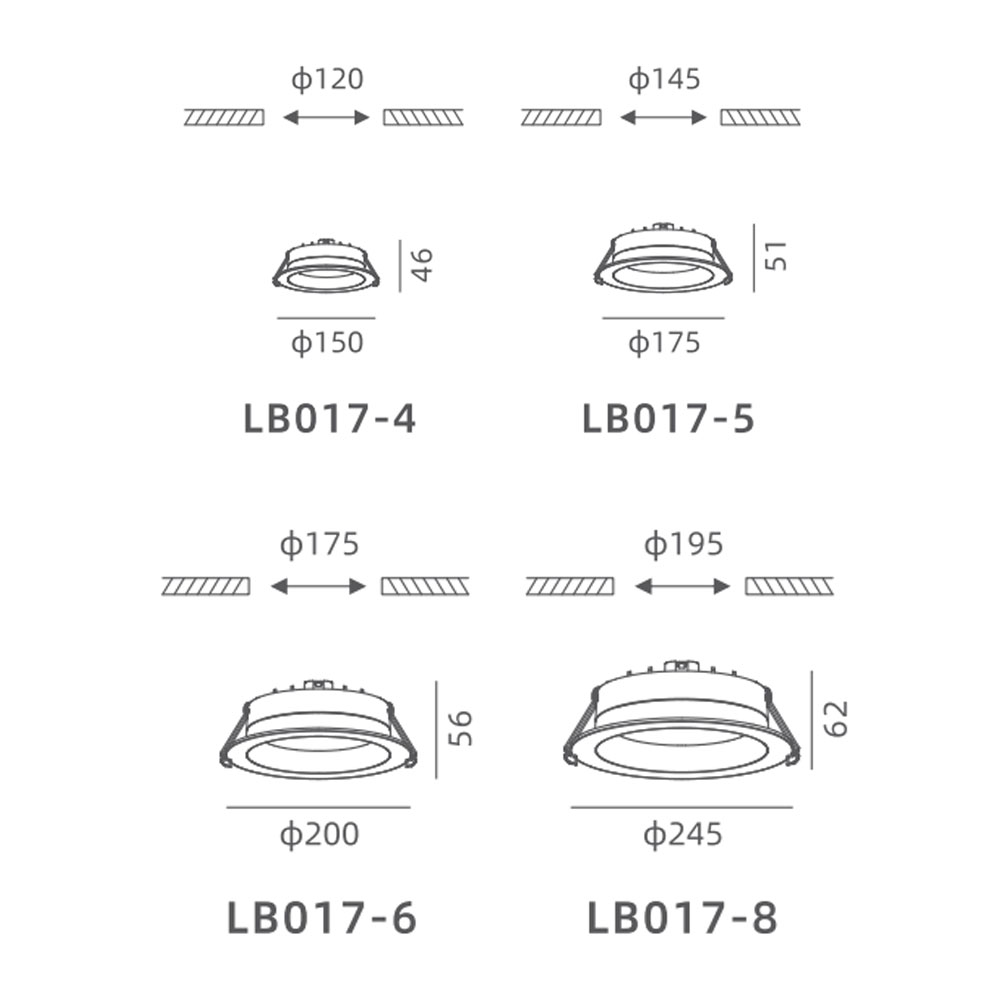

- Model: LB017-4 / LB017-5 / LB017-6 / LB017-8
- Size(mm): Φ150x46 / Φ175x51 / Φ200x56 / Φ245x62
- Cutout(mm): Φ120 / Φ145 / Φ175 / Φ195
- Power(W): 20W / 25W / 30W / 40W
- Lumen: 1627lm / 2007lm / 2558lm / 3461lm
- Material: Aluminum
- CCT: 3000K/4000K/5000K
- CRI(Ra): ≥90
- Beam Angle: 80°
Specifications
| Model | Picture | Size(mm) | Cutout(mm) | Power(W) | Lumen | Material | CCT | CRI(Ra) | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| LB017-4 | Φ150x46 | Φ120 | 20W | 1627lm | Aluminum | 3000K/4000K/5000K | ≥90 | 80° | |
| LB017-5 | Φ175x51 | Φ145 | 25W | 2007lm | Aluminum | 3000K/4000K/5000K | ≥90 | 80° | |
| LB017-6 | Φ200x56 | Φ175 | 30W | 2558lm | Aluminum | 3000K/4000K/5000K | ≥90 | 80° | |
| LB017-8 | Φ245x62 | Φ195 | 40W | 3461lm | Aluminum | 3000K/4000K/5000K | ≥90 | 80° |
