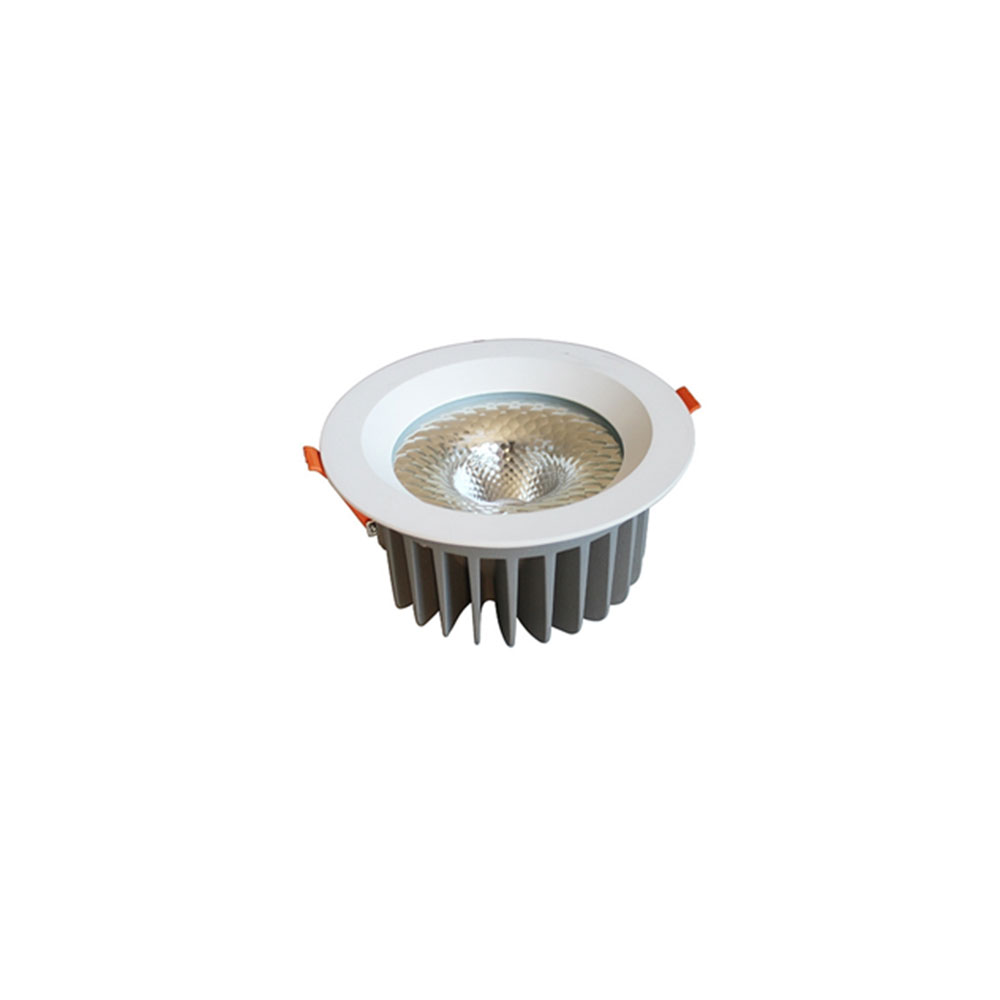

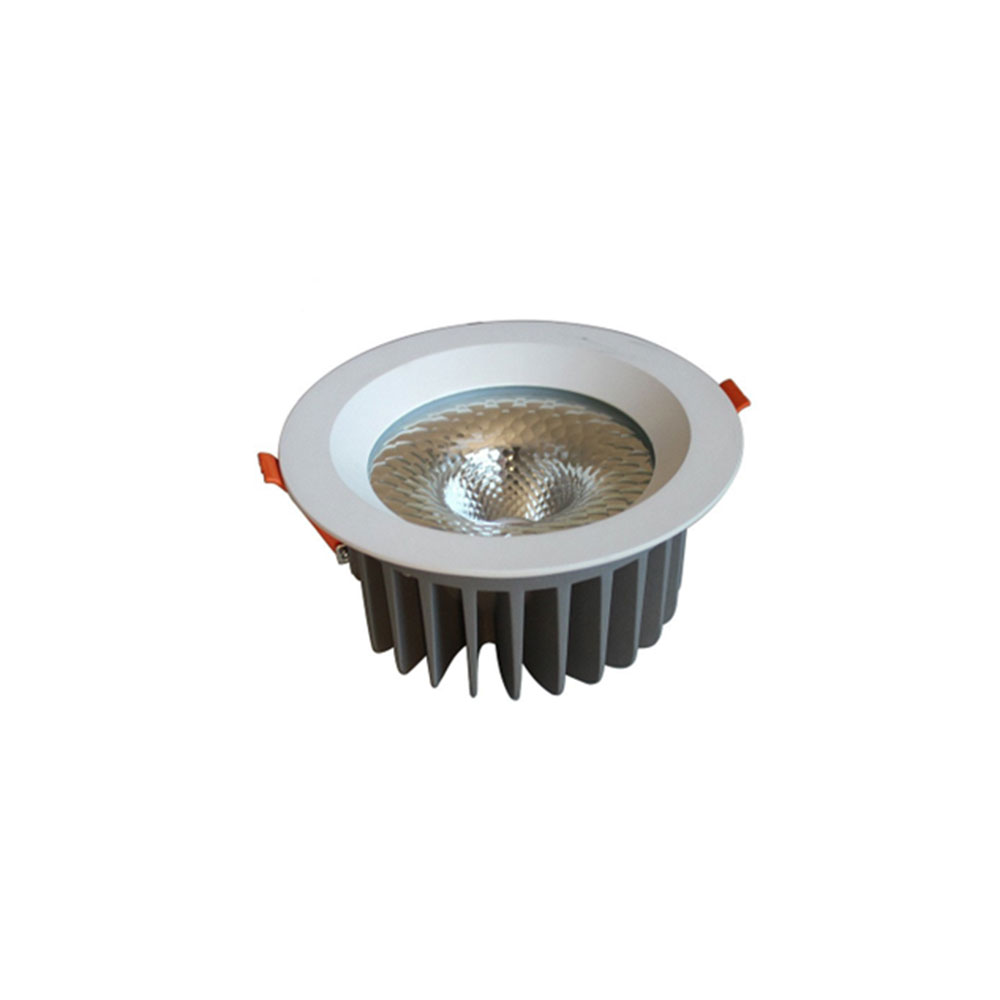

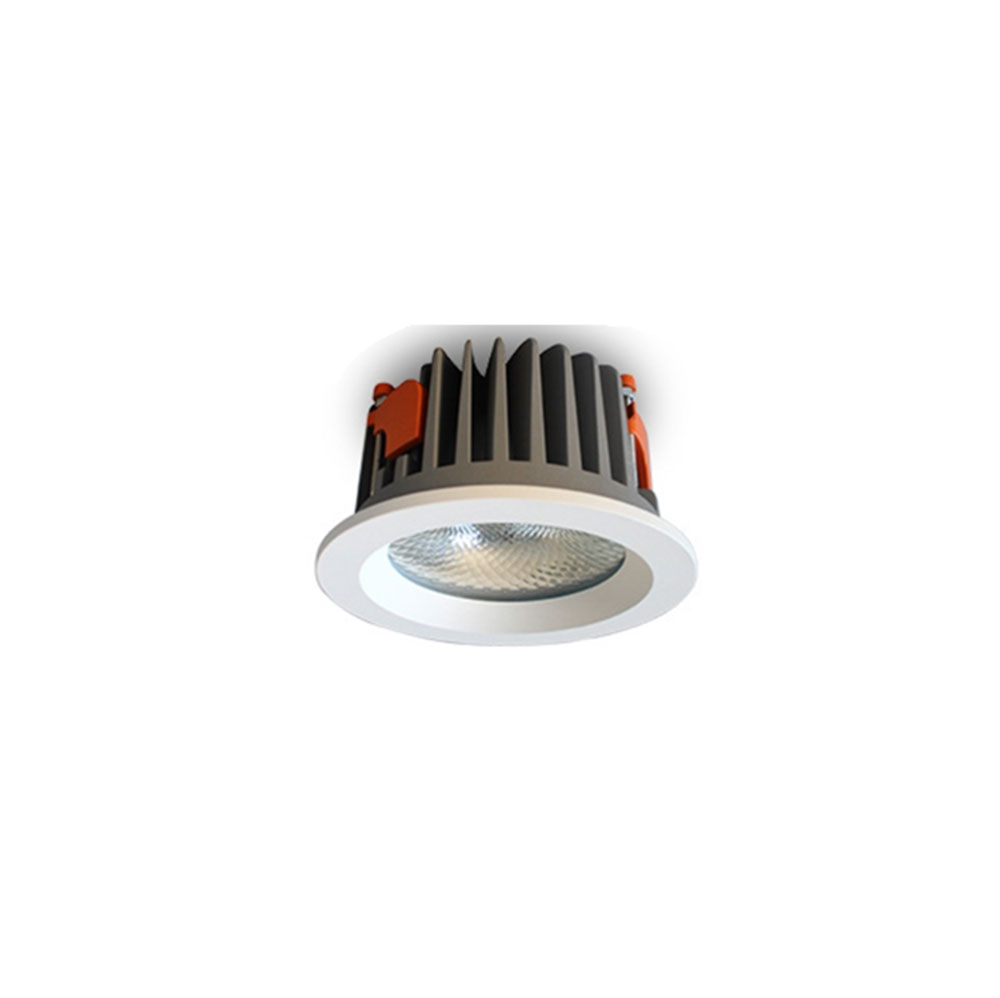

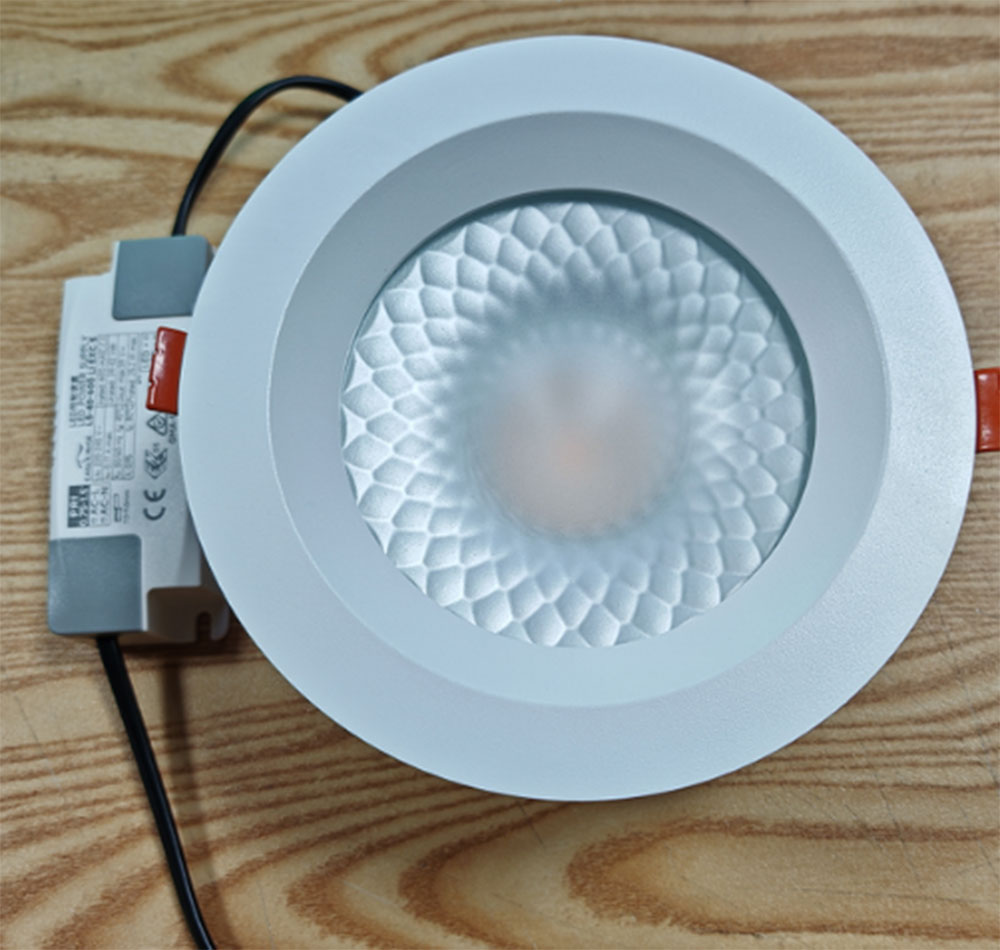

LED Recessed Down Light LU-CDL02
Commercial Lighting
Features
- High energy efficiency – 90 lm/W
- Model: LU-CDL01-10W / LU-CDL01-15W / LU-CDL01-25W / LU-CDL01-40W / LU-CDL01-60W
- Size(mm): Φ110x65 / Φ135x72 / Φ160x75 / Φ185x107 / Φ240x127
- Cutout(mm): Φ110 / Φ130 / Φ165 / Φ200 / Φ95
- Power(W): 10W / 15W / 25W / 40W / 60W
- LED Chips: COB
- CCT: 3000K/4000K/6000K
- CRI: >90
- Lumen Efficiency: 90 lm/W
- Beam Angle: 50°
- Input Voltage: AC220-240V
Specifications
| Model | Size(mm) | Cutout(mm) | Power(W) | LED Chips | CCT | CRI | Lumen Efficiency | Beam Angle | Input Voltage |
|---|---|---|---|---|---|---|---|---|---|
| LU-CDL01-10W | Φ110x65 | Φ95 | 10W | COB | 3000K/4000K/6000K | >90 | 90 lm/W | 50° | AC220-240V |
| LU-CDL01-15W | Φ135x72 | Φ110 | 15W | COB | 3000K/4000K/6000K | >90 | 90 lm/W | 50° | AC220-240V |
| LU-CDL01-25W | Φ160x75 | Φ130 | 25W | COB | 3000K/4000K/6000K | >90 | 90 lm/W | 50° | AC220-240V |
| LU-CDL01-40W | Φ185x107 | Φ165 | 40W | COB | 3000K/4000K/6000K | >90 | 90 lm/W | 50° | AC220-240V |
| LU-CDL01-60W | Φ240x127 | Φ200 | 60W | COB | 3000K/4000K/6000K | >90 | 90 lm/W | 50° | AC220-240V |
