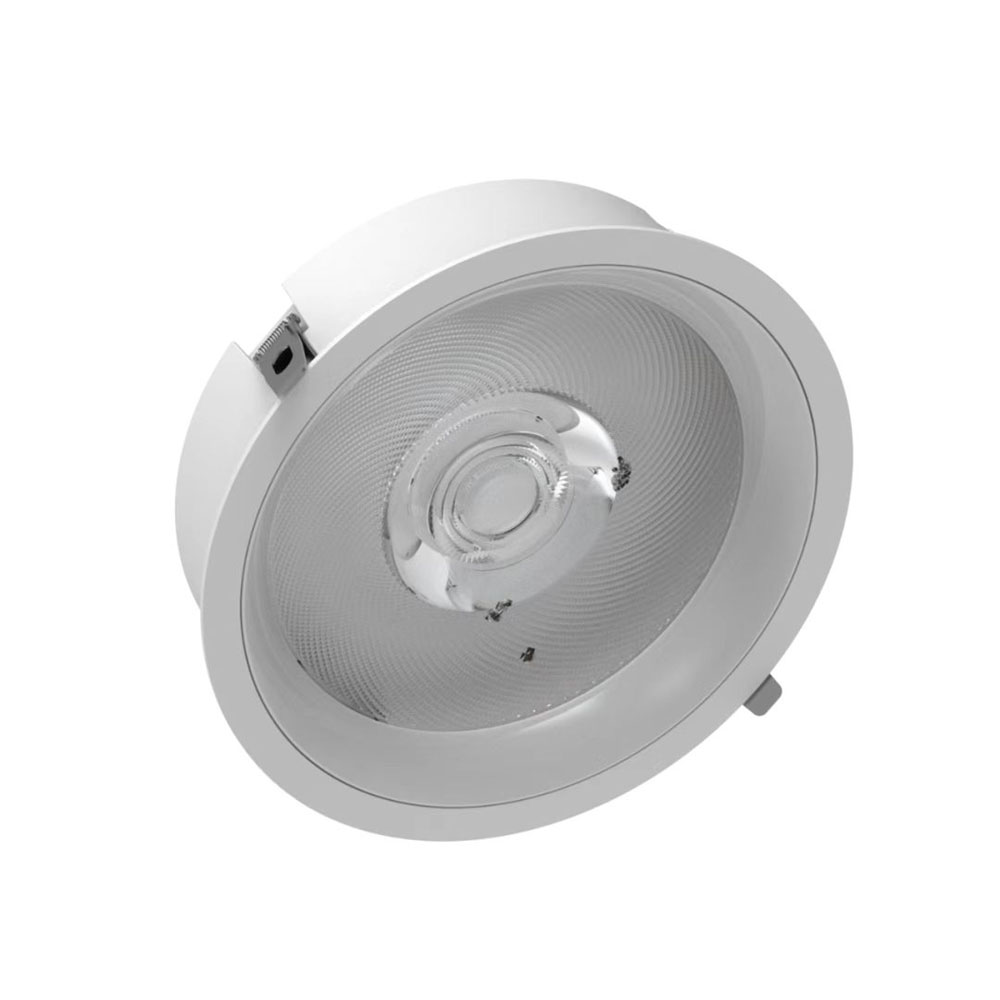

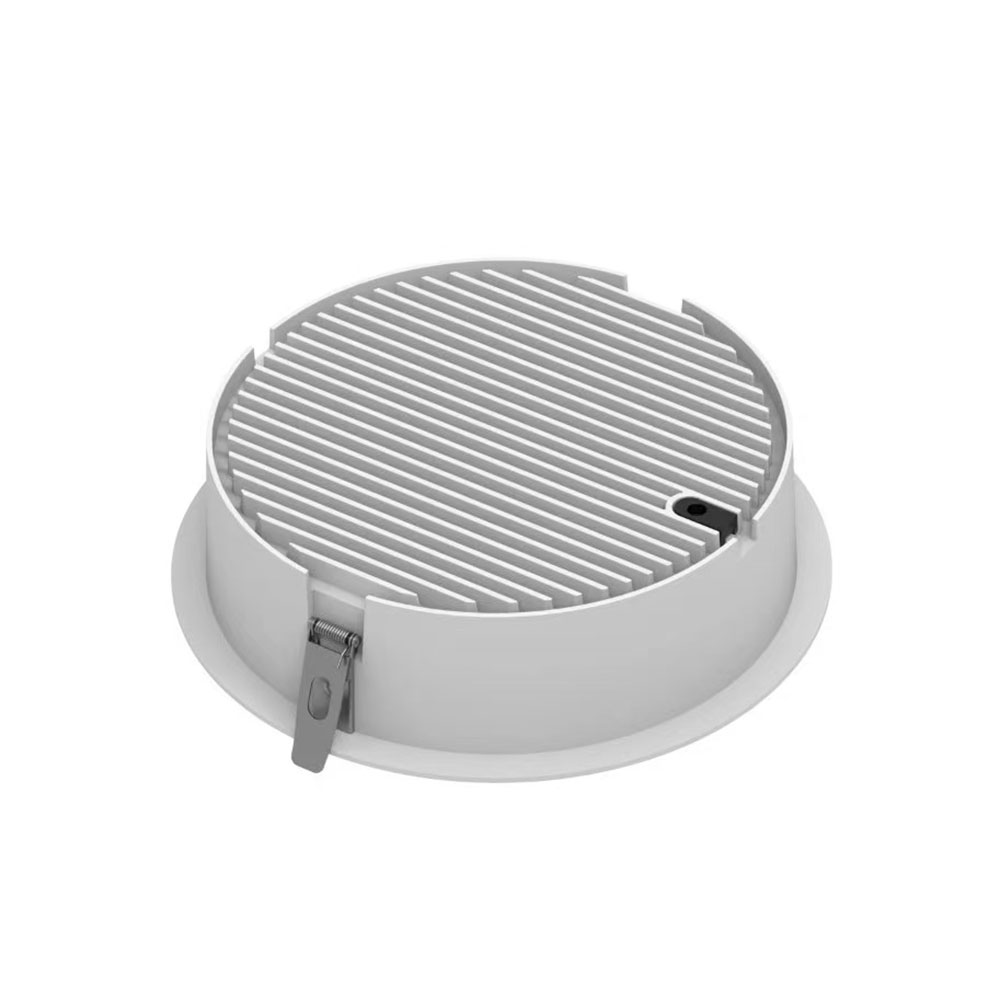

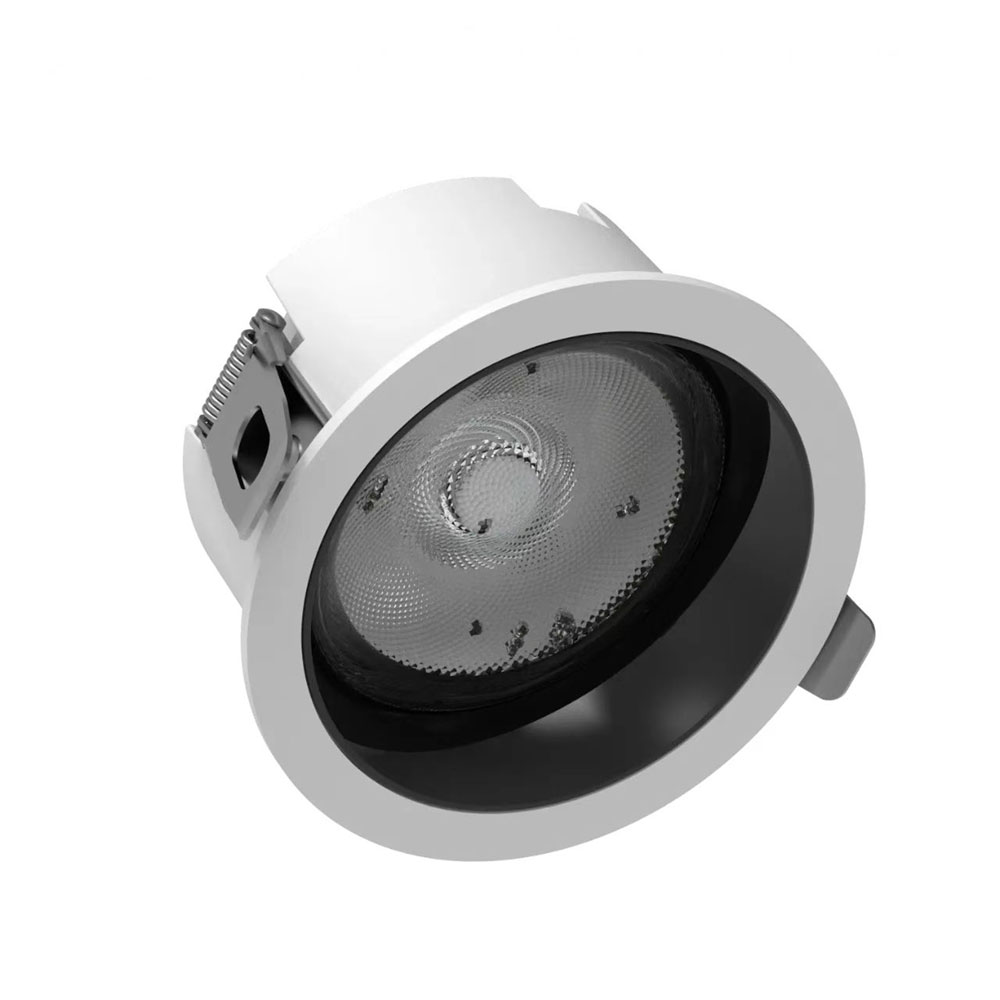

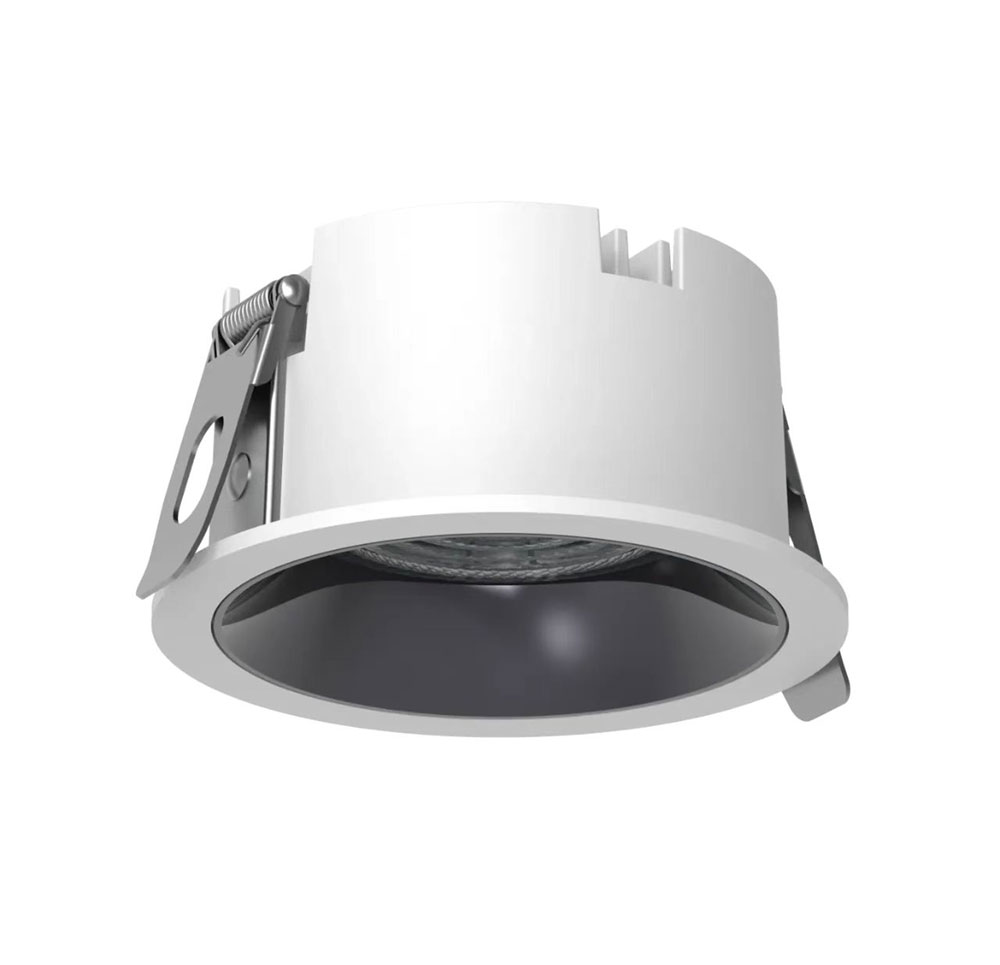

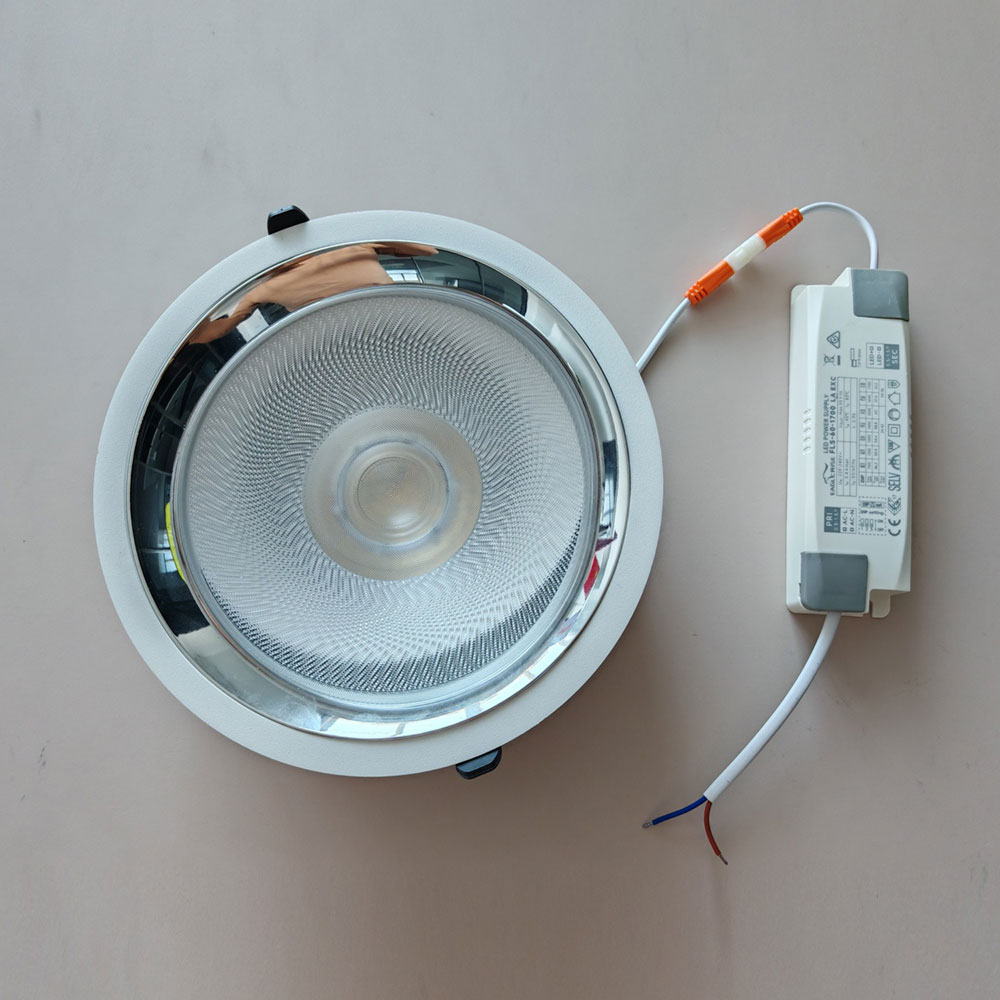

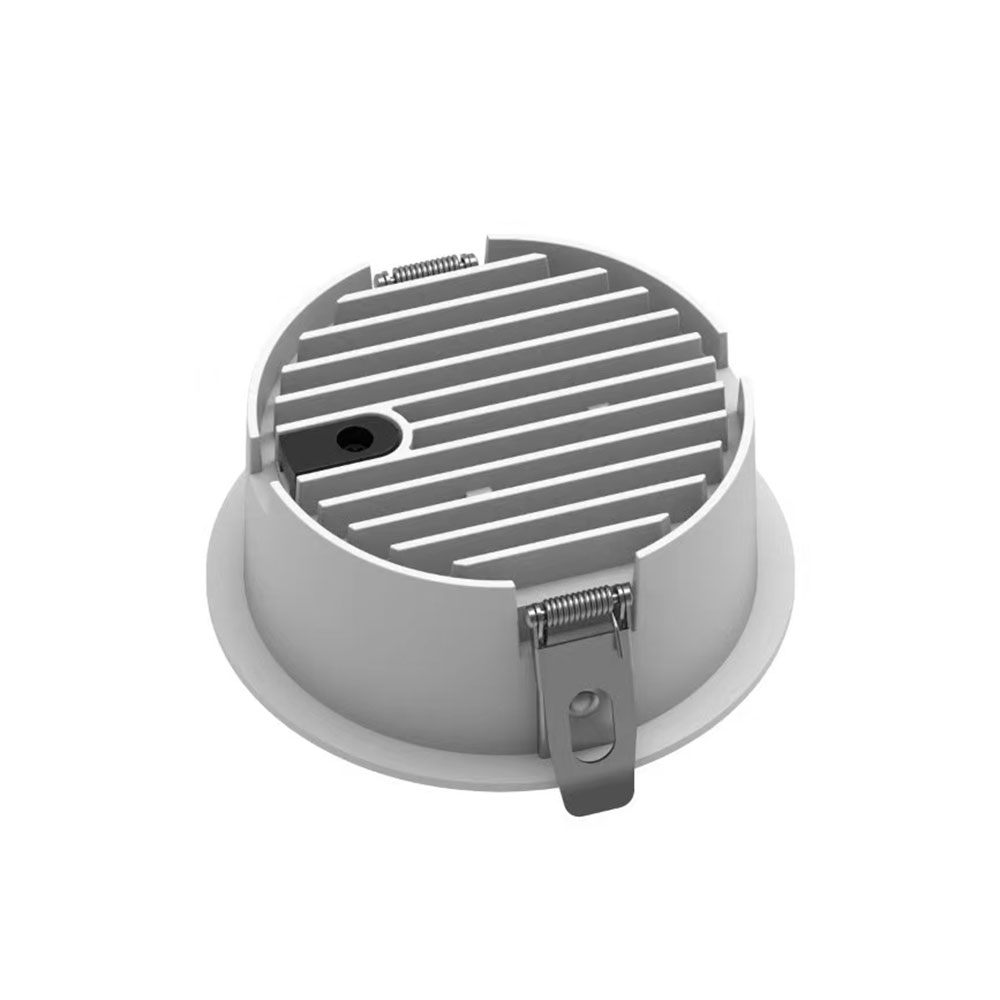

LED Recessed Down Light LU-CDL03
Commercial Lighting
Features
- High energy efficiency – 120 lm/W
- Model: LU-CDL03-12W / LU-CDL03-24W / LU-CDL03-8W / LU-CDL03-9W
- Size(mm): Φ105x42 / Φ130x46 / Φ175x49 / Φ220x57 / Φ84x42
- Cutout(mm): Φ120 / Φ160 / Φ200 / Φ75 / Φ95
- Power(W): 12W / 24W / 6W / 8W / 9W
- LED Chips: COB
- CCT: 3000K/4000K/6000K
- CRI: >80
- Lumen Efficiency: 120 lm/W
- Beam Angle: 51.5° / 55°~60°
- Input Voltage: AC220-240V
Specifications
| Model | Size(mm) | Cutout(mm) | Power(W) | LED Chips | CCT | CRI | Lumen Efficiency | Beam Angle | Input Voltage |
|---|---|---|---|---|---|---|---|---|---|
| LU-CDL03-9W | Φ84x42 | Φ75 | 6W | COB | 3000K/4000K/6000K | >80 | 120 lm/W | 51.5° | AC220-240V |
| LU-CDL03-8W | Φ105x42 | Φ95 | 8W | COB | 3000K/4000K/6000K | >80 | 120 lm/W | 55°~60° | AC220-240V |
| LU-CDL03-9W | Φ130x46 | Φ120 | 9W | COB | 3000K/4000K/6000K | >80 | 120 lm/W | 55°~60° | AC220-240V |
| LU-CDL03-12W | Φ175x49 | Φ160 | 12W | COB | 3000K/4000K/6000K | >80 | 120 lm/W | 55°~60° | AC220-240V |
| LU-CDL03-24W | Φ220x57 | Φ200 | 24W | COB | 3000K/4000K/6000K | >80 | 120 lm/W | 55°~60° | AC220-240V |
