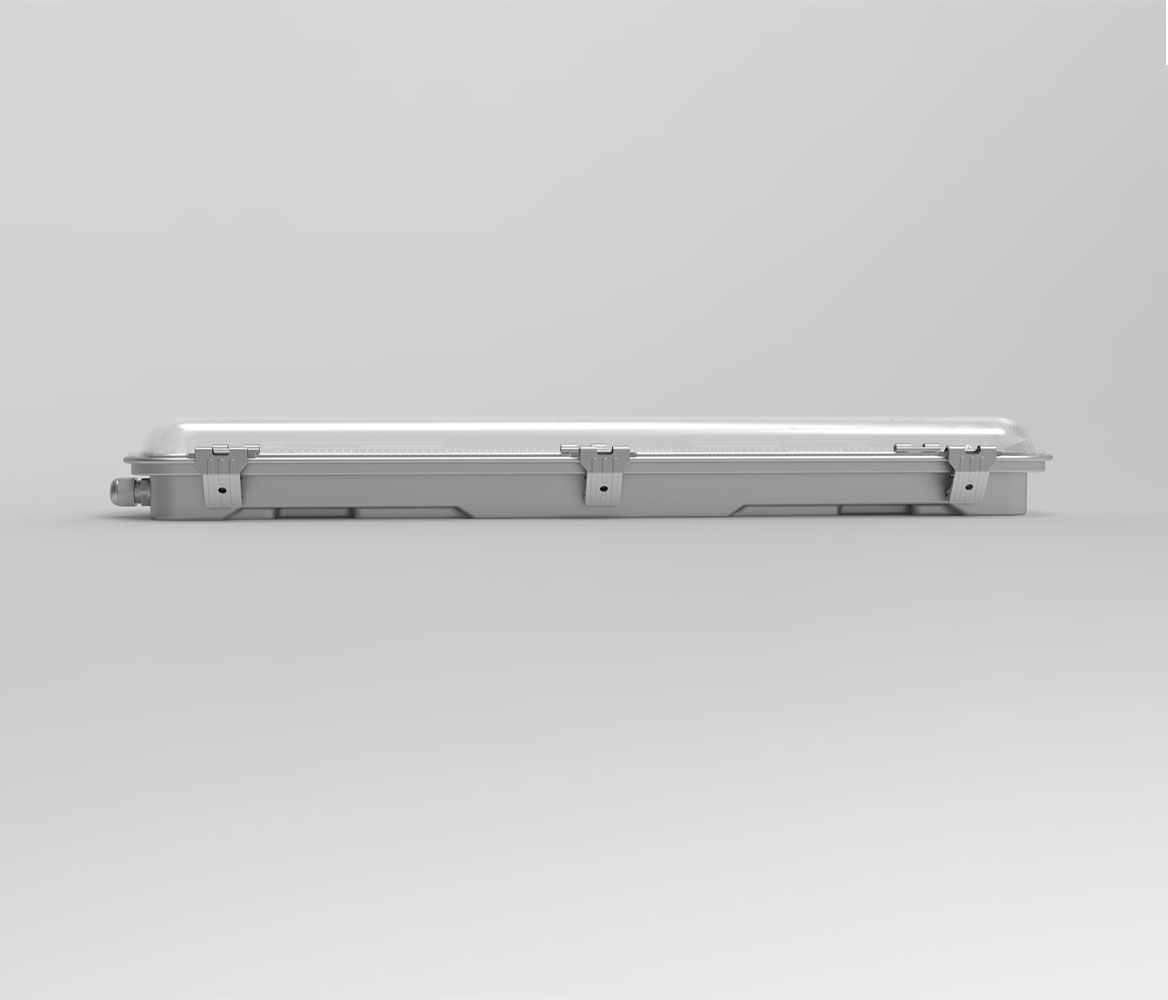

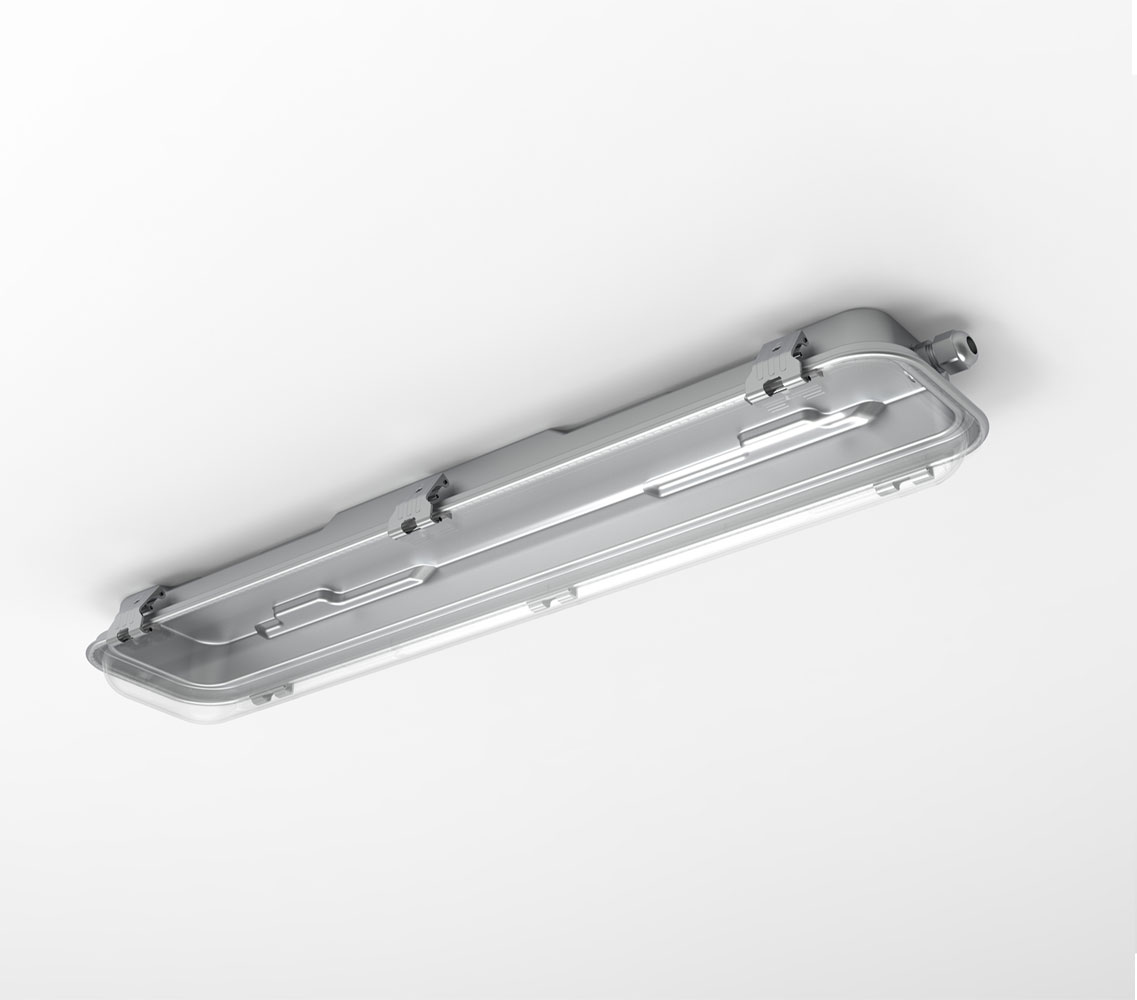

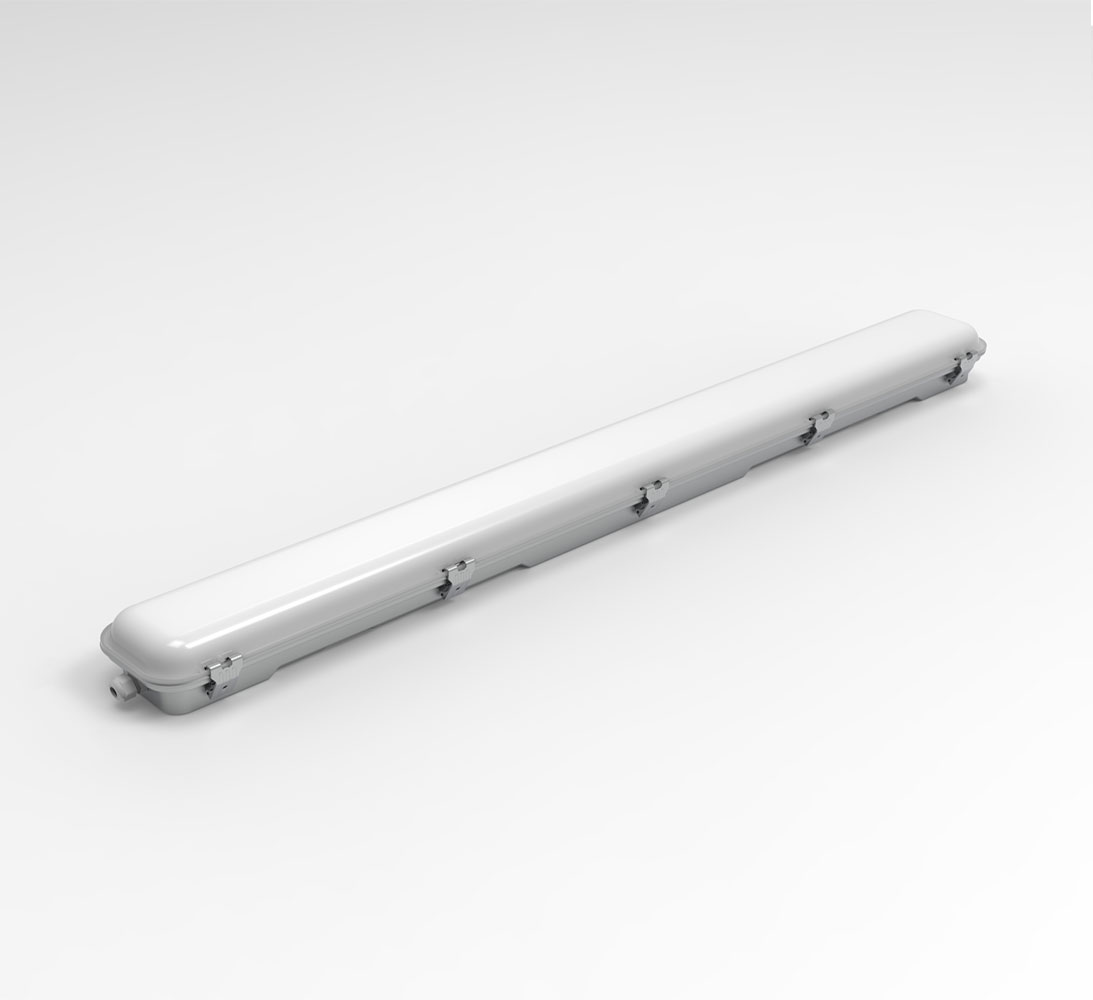

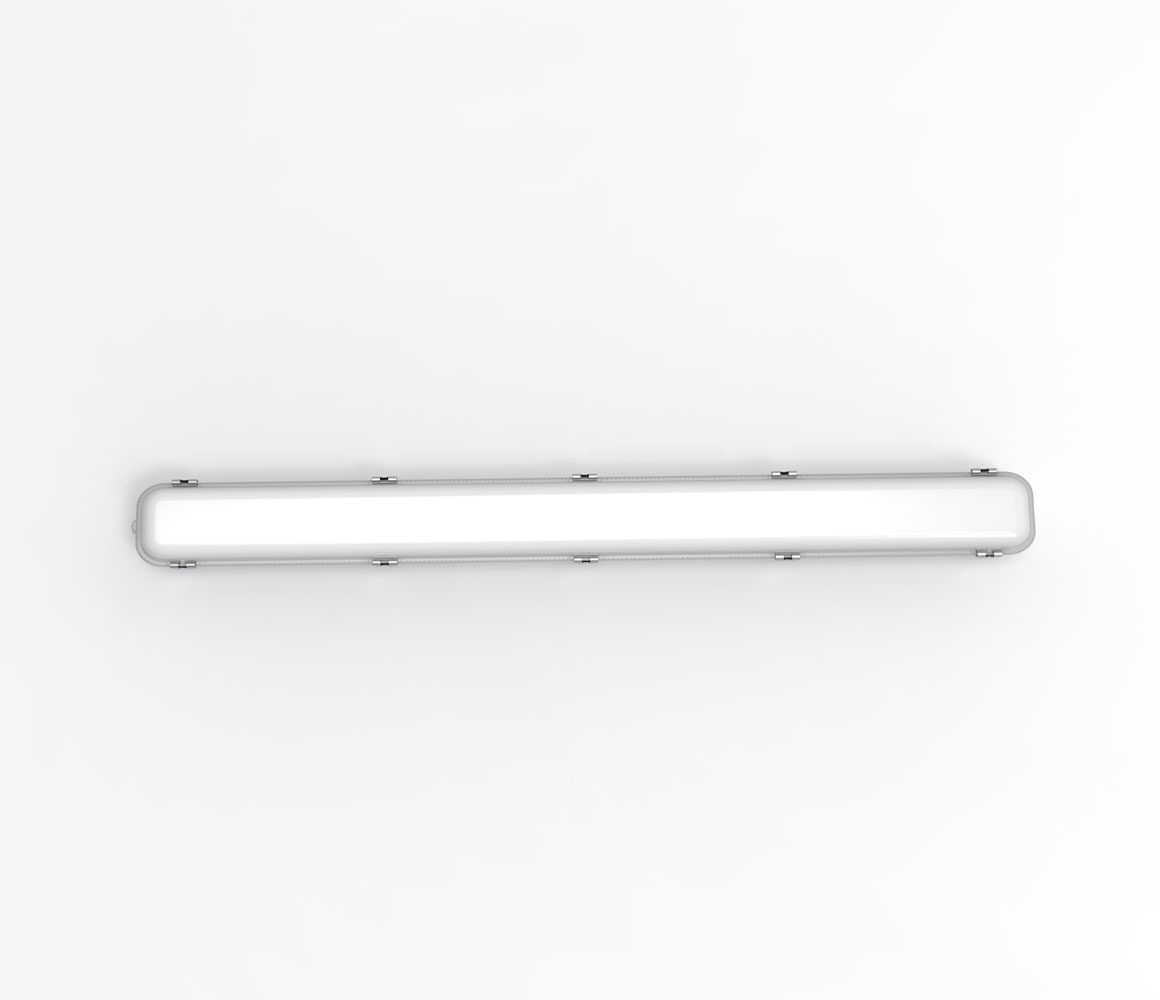

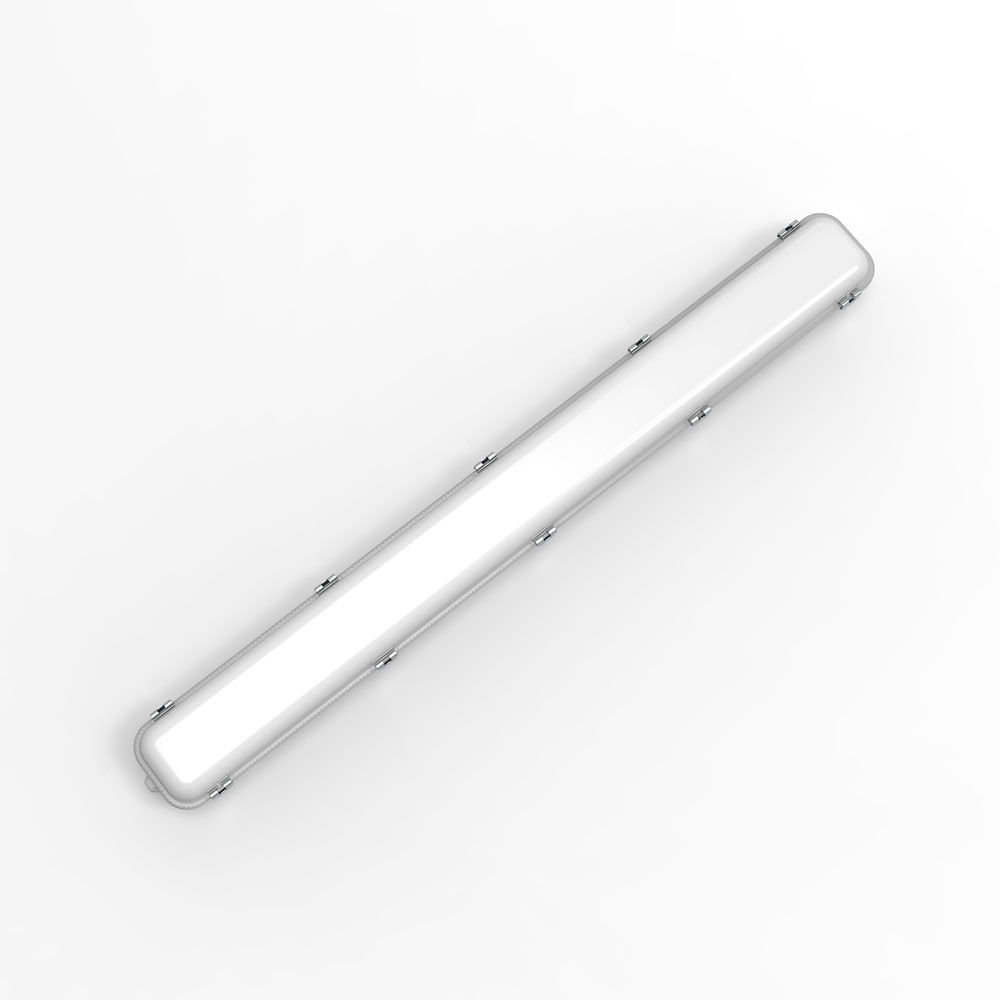

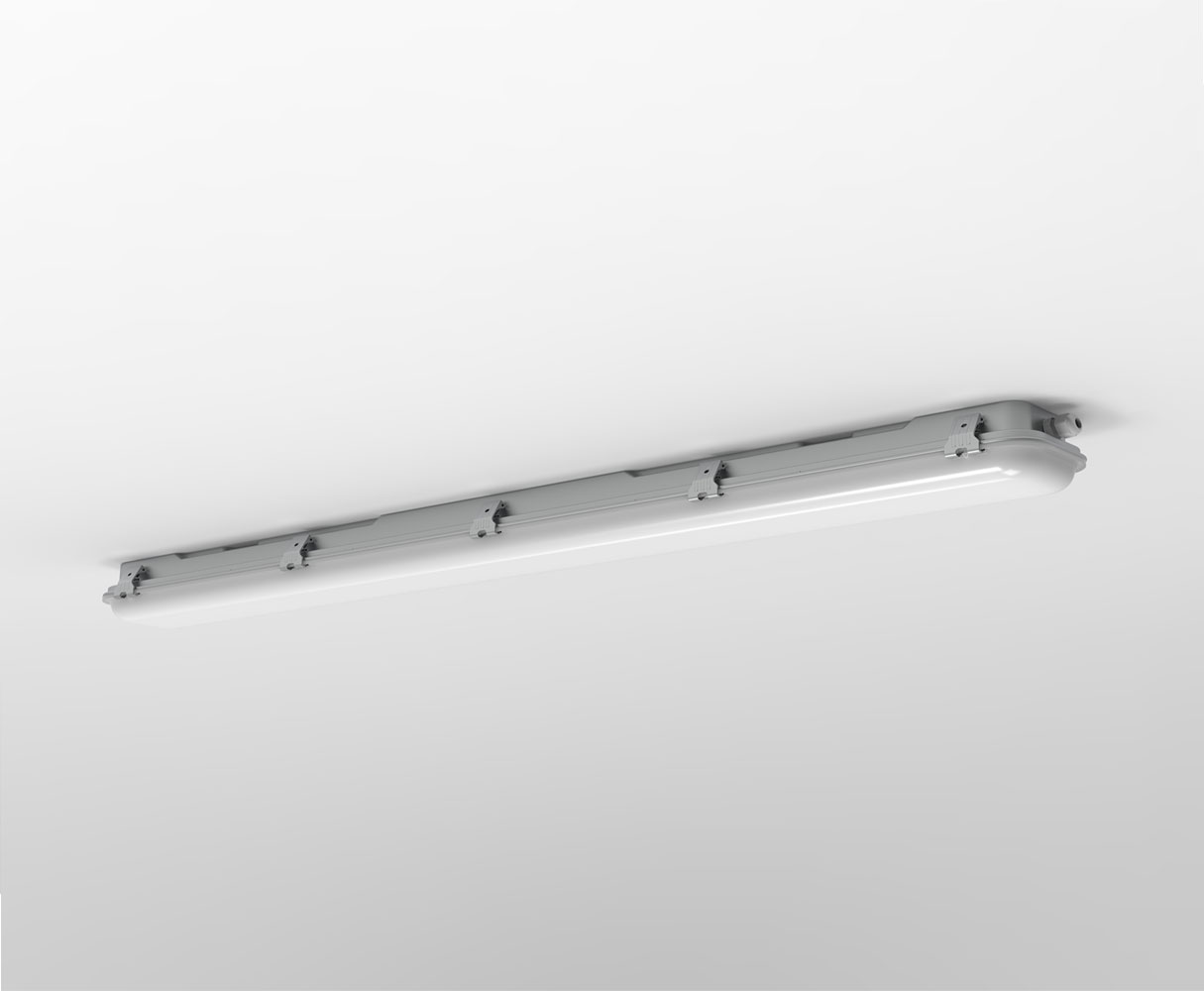

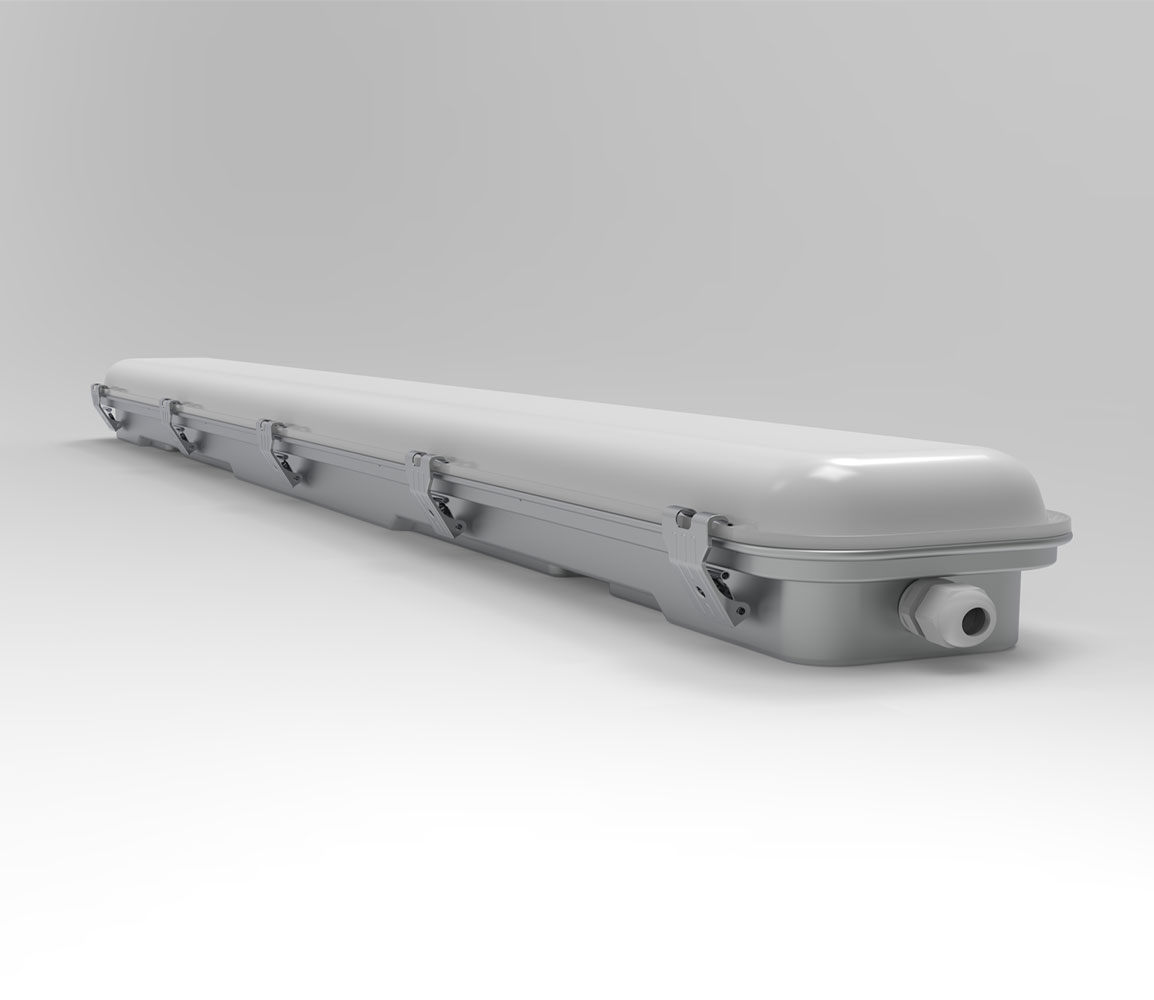

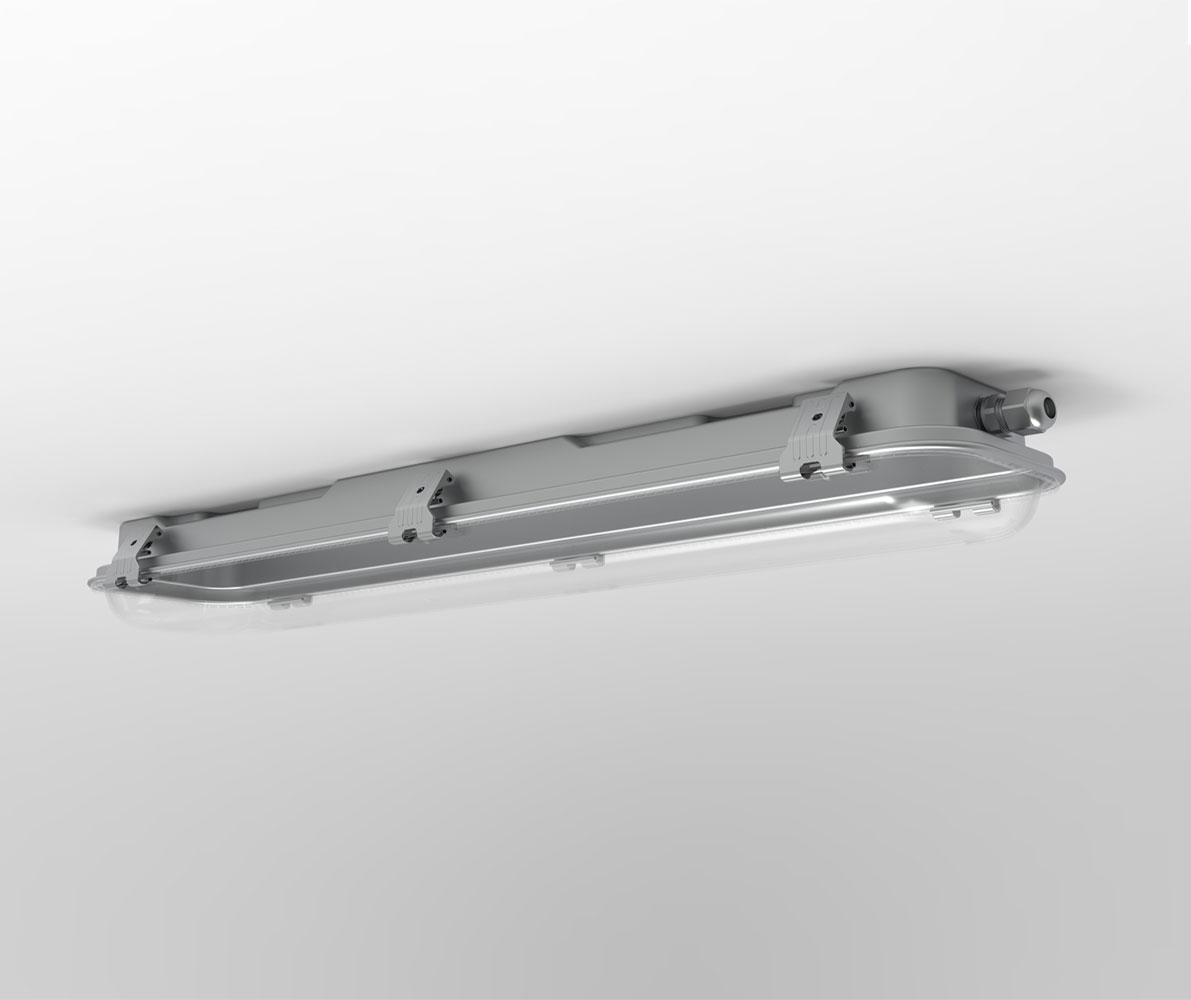

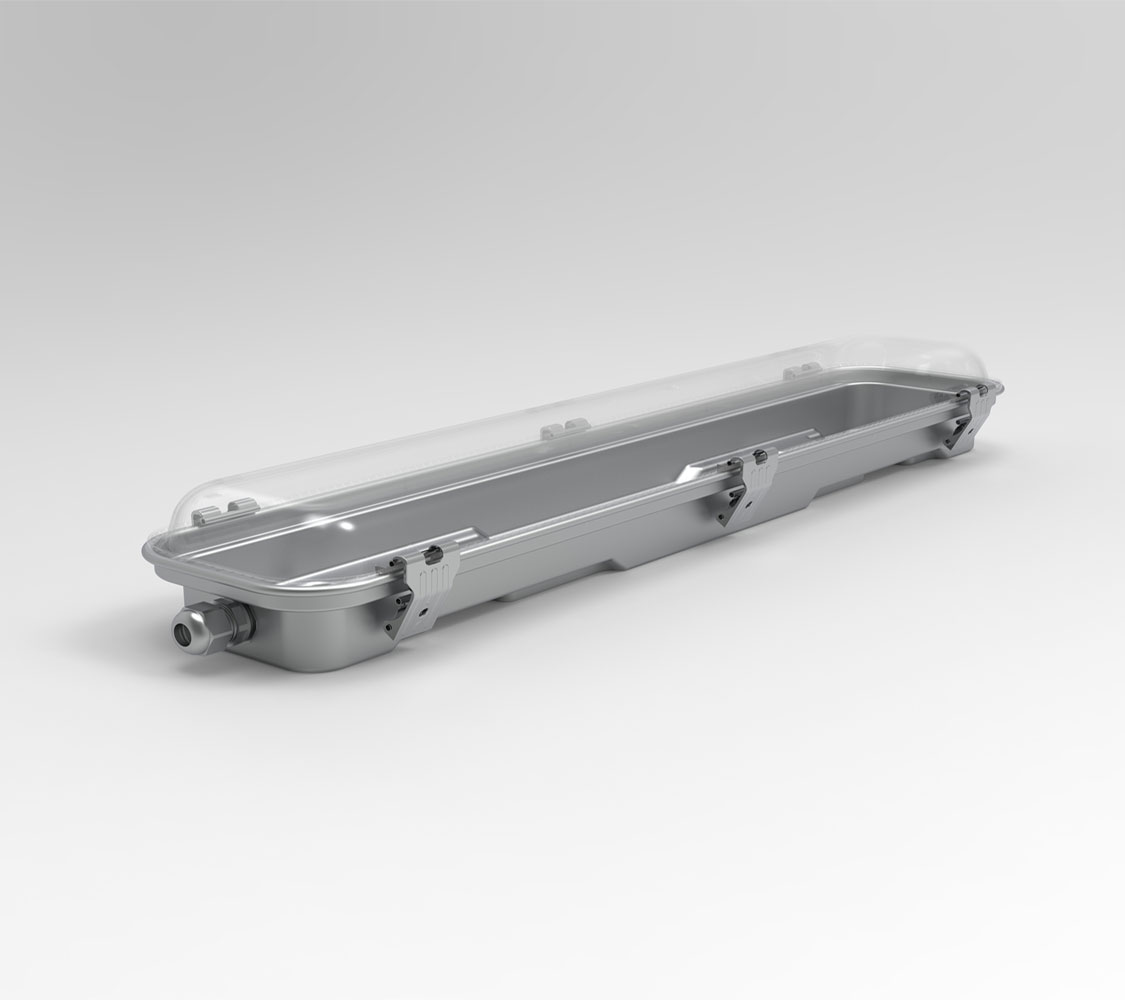

LED TPG Series
Industry Lighting
Features
- Model: LU-TPGA-40W
- Power(W): 40W
- Luminous Efficiency(lm/W): 140lm/W
- Material: Stainless steel housing+ Glass cover
- Driver: OSRAM driver
- LED Type: 2835SMD
- CRI(Ra): >80Ra
- CCT(K): 2700K~6500K
Specifications
| Model | Power(W) | Size(mm) | Luminous Efficiency(lm/W) | Material | Driver | LED Type | CRI(Ra) | CCT(K) | Beam Angle | IK & IP |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-TPGA-40W | 40W | 698*146*110mm | 140lm/W | Stainless steel housing+ Glass cover | OSRAM driver | 2835SMD | >80Ra | 2700K~6500K | 120° | IK10, IP66 |
| LU-TPGA-60W | 60W | 1298*146*110mm | 140lm/W | Stainless steel housing+ Glass cover | OSRAM driver | 2835SMD | >80Ra | 2700K~6500K | 120° | IK10, IP66 |
| LU-TPGA-80W | 80W | 1698*146*110mm | 140lm/W | Stainless steel housing+ Glass cover | OSRAM driver | 2835SMD | >80Ra | 2700K~6500K | 120° | IK10, IP66 |
