LED STCS Series
Outdoor Lighting
Features
- Model: LU-STCS series (30–150W)
- Power: 30–150W

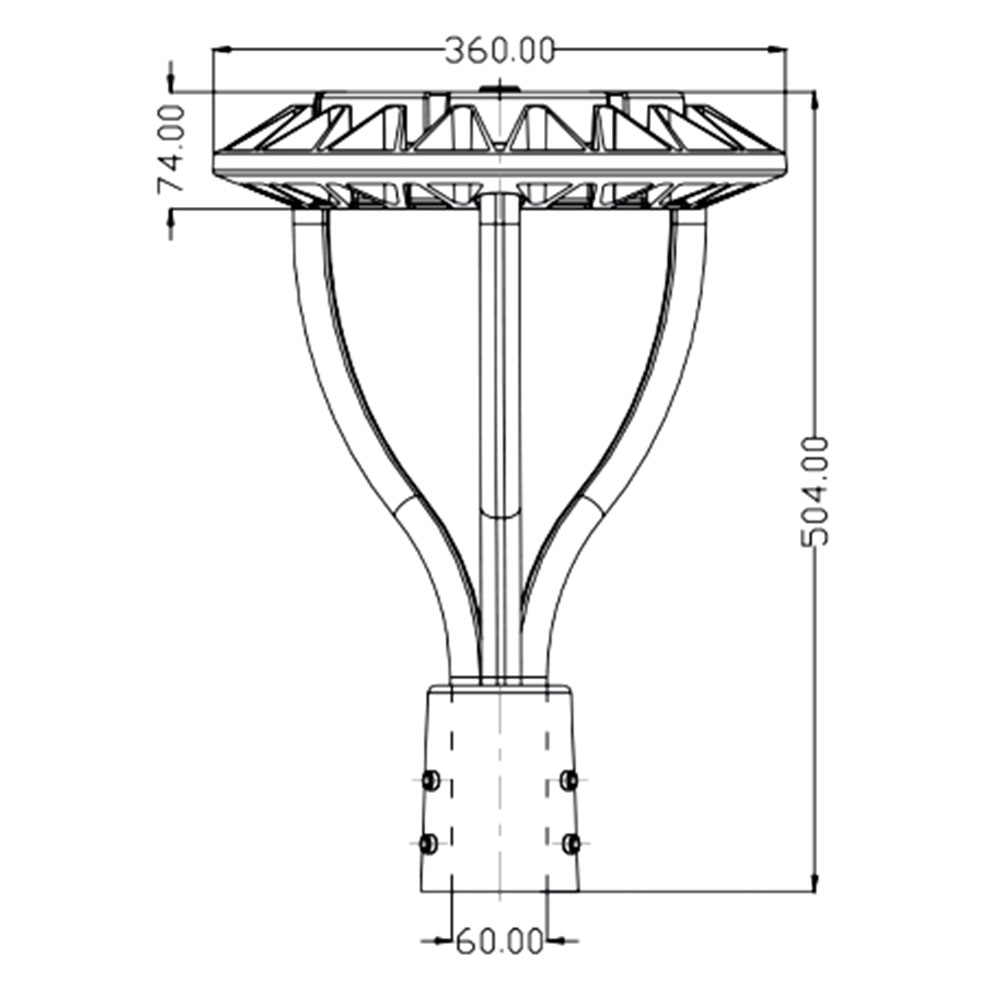

- Size: DIA360
- Luminous Efficiency: 130 or 150 lm/W
- LED: Samsung/Philips, Driver: Meanwell
- CRI: 85, CCT: 2700–5700K
- Beam Angle: 120°, IP67
Specifications
| Model | Power (W) | Size (mm) | Luminous Efficiency (lm/W) | Material | Driver | LED Type | CRI (Ra) | CCT (K) | Beam Angle | IP Class |
|---|---|---|---|---|---|---|---|---|---|---|
| LU-STCS-30W | 30 | DIA360 | 130/150 | Samsung/Philips | Meanwell | 3030 | 85 | 2700–5700 | 120° | IP67 |
| LU-STCS-40W | 40 | DIA360 | 130/150 | Samsung/Philips | Meanwell | 3030 | 85 | 2700–5700 | 120° | IP67 |
| LU-STCS-50W | 50 | DIA360 | 130/150 | Samsung/Philips | Meanwell | 3030 | 85 | 2700–5700 | 120° | IP67 |
| LU-STCS-60W | 60 | DIA360 | 130/150 | Samsung/Philips | Meanwell | 3030 | 85 | 2700–5700 | 120° | IP67 |
| LU-STCS-80W | 80 | DIA360 | 130/150 | Samsung/Philips | Meanwell | 3030 | 85 | 2700–5700 | 120° | IP67 |
| LU-STCS-100W | 100 | DIA360 | 130/150 | Samsung/Philips | Meanwell | 3030 | 85 | 2700–5700 | 120° | IP67 |
| LU-STCS-120W | 120 | DIA360 | 130/150 | Samsung/Philips | Meanwell | 3030 | 85 | 2700–5700 | 120° | IP67 |
| LU-STCS-150W | 150 | DIA360 | 130/150 | Samsung/Philips | Meanwell | 3030 | 85 | 2700–5700 | 120° | IP67 |
