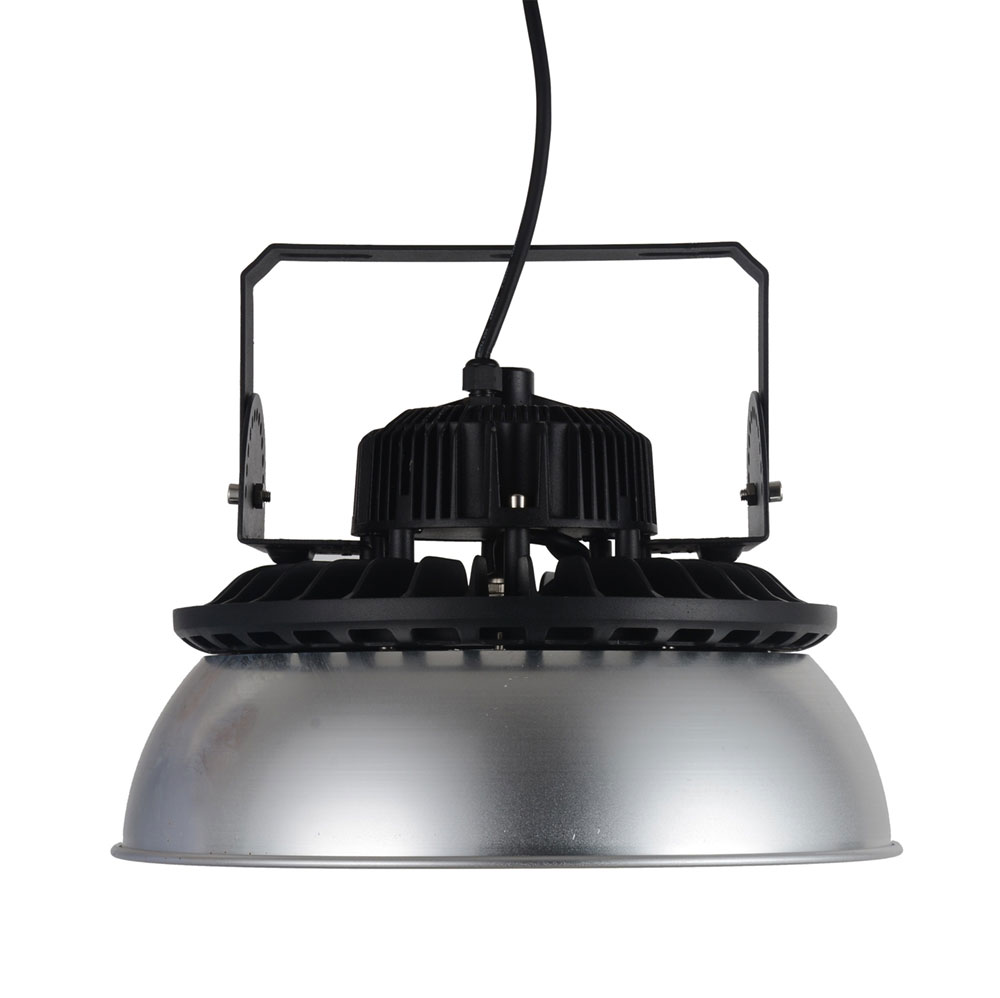

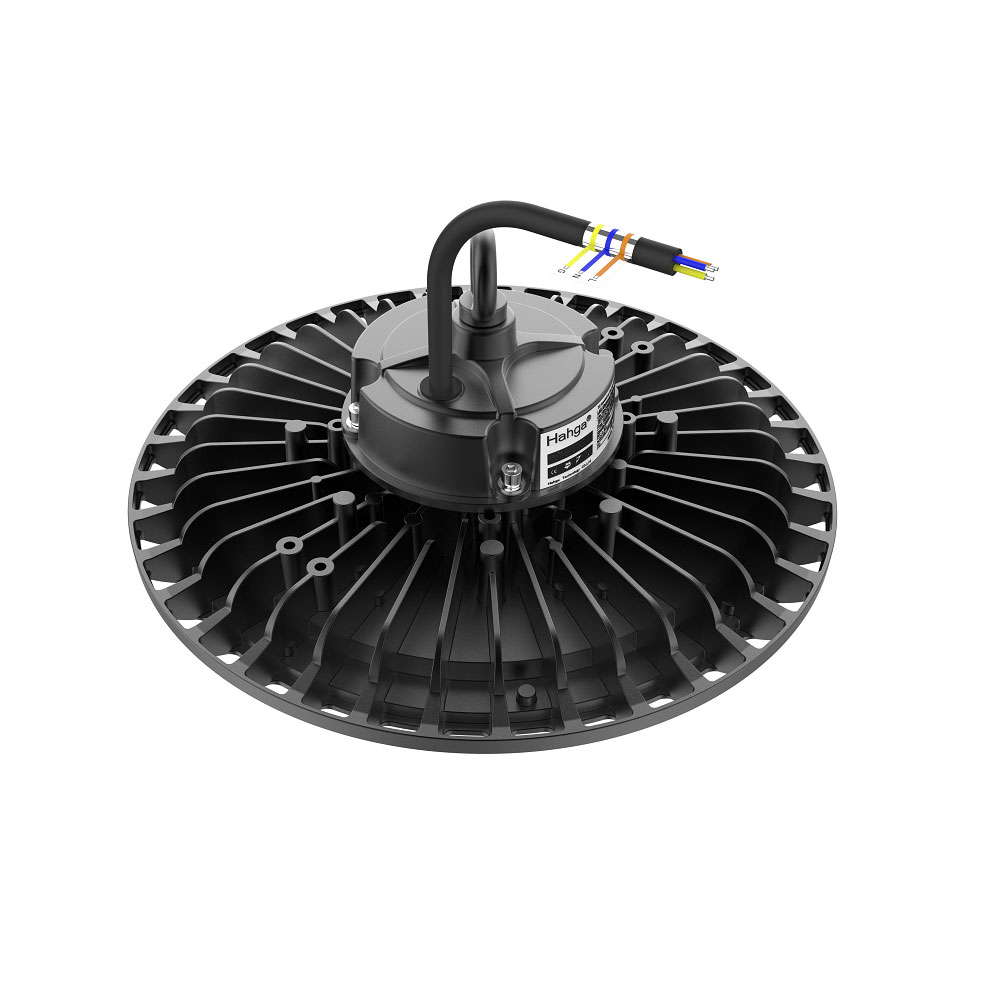

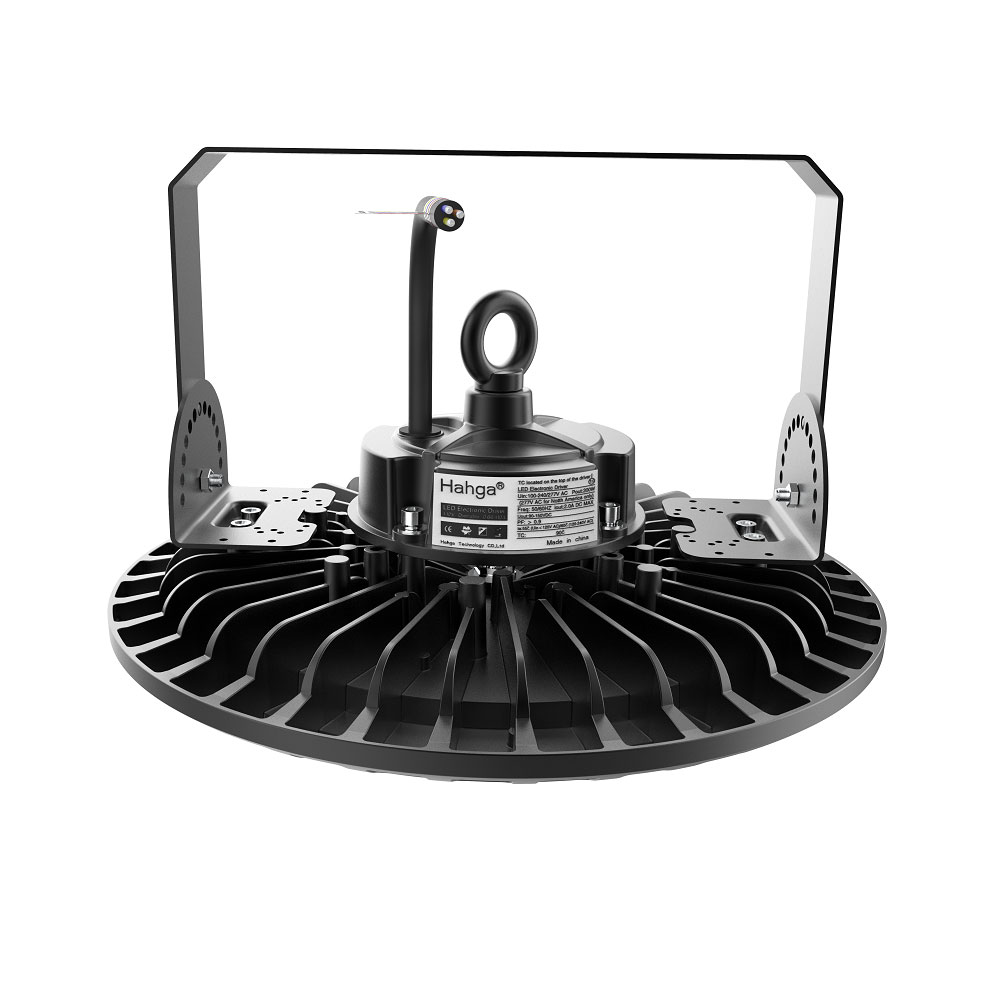

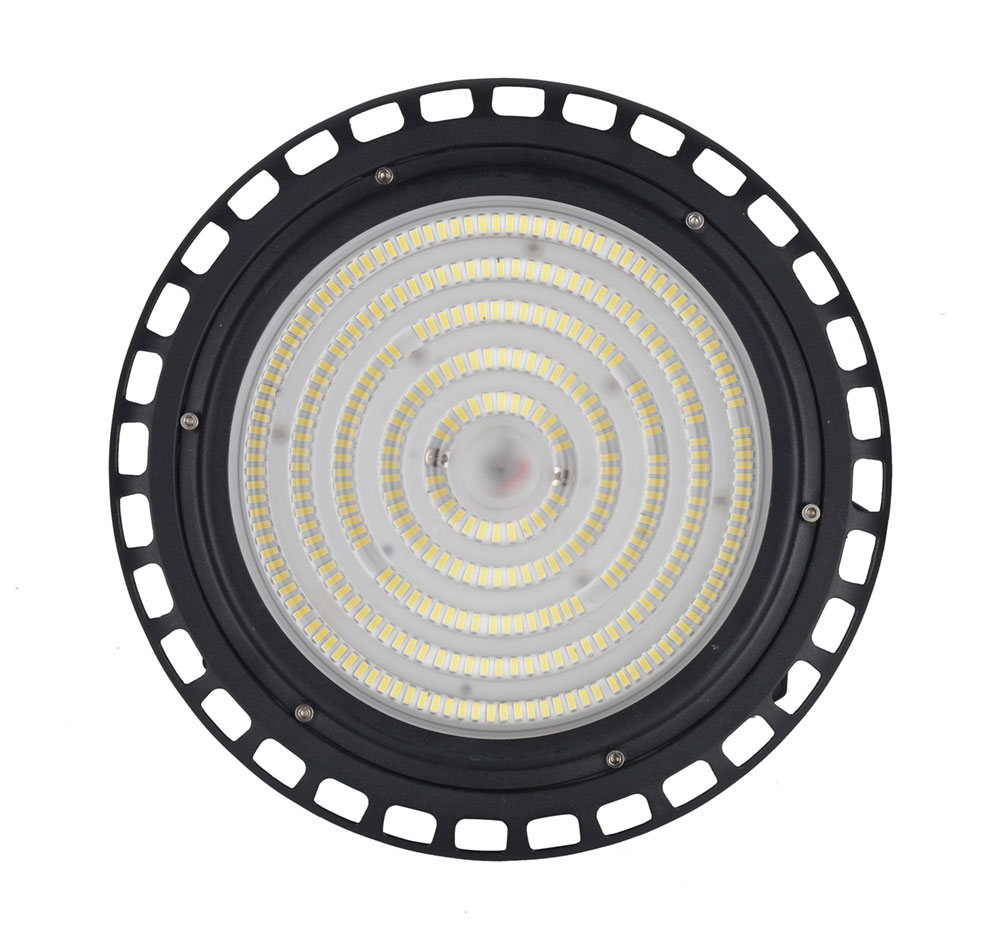

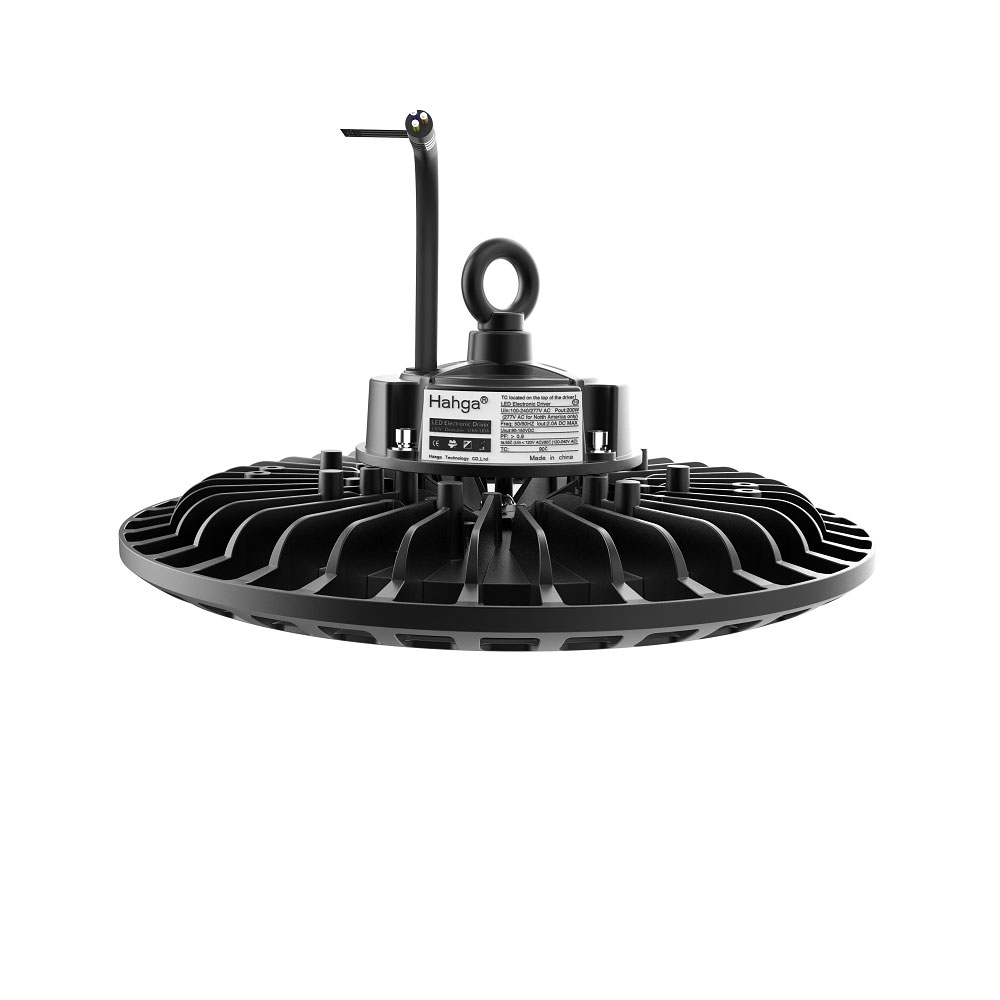

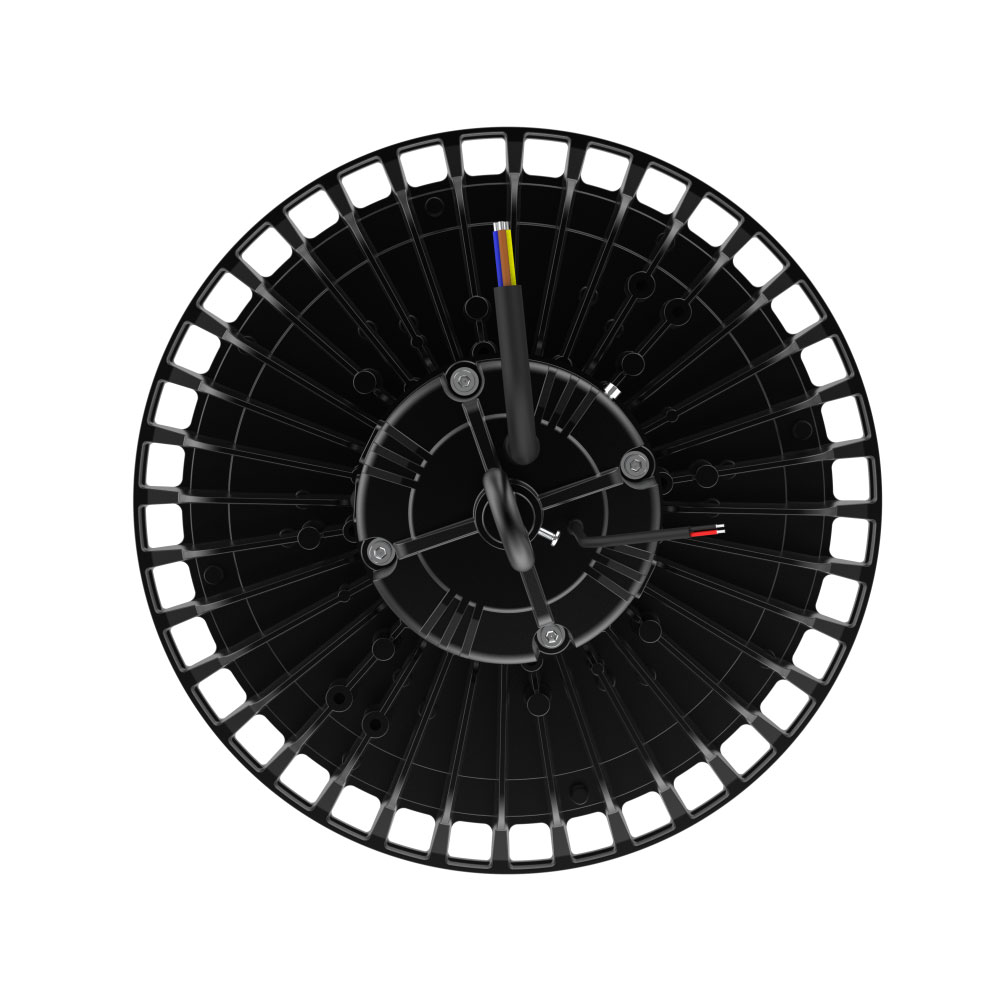

LUZC UFO High Bay Z Series
Industry Lighting
Features
- Low consumption; more than 80% saving of the power
- Lifetime 50,000 hours
- Aluminum extrusion with good heat-dissipation
- IP65, IK10, Surge protection 6KV
- High luminous efficacy 130 / 160 / 180 lm/W
- Driver: Meanwell, LED: SMD 2835
- CCT: 3000K–5700K
Technical specifications
IP65, IK10, Surge protection 6KV. Operating temperature -30 °C to 60 °C. THD < 0.95. Lifetime 50,000 h. CCT: 3000K–5700K.
| Model | Power (W) | Size (mm) | Luminous Efficiency (lm/W) | Material | Driver | LED Type | CRI (Ra) | Beam Angle | IP Class |
|---|---|---|---|---|---|---|---|---|---|
| LU-ZCUFO-100W | 100 | φ280 | 130 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
| LU-ZCUFO-150W | 150 | φ330 | 130 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
| LU-ZCUFO-200W | 200 | φ380 | 130 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
| LU-ZCUFO-100W | 100 | φ280 | 160 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
| LU-ZCUFO-150W | 150 | φ330 | 160 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
| LU-ZCUFO-200W | 200 | φ380 | 160 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
| LU-ZCUFO-240W | 240 | φ380 | 160 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
| LU-ZCUFO-100W | 100 | φ280 | 180 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
| LU-ZCUFO-150W | 150 | φ330 | 180 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
| LU-ZCUFO-200W | 200 | φ380 | 180 | Alu. | Meanwell | SMD 2835 | 80 | 60° / 90° / 120° | IP65 |
