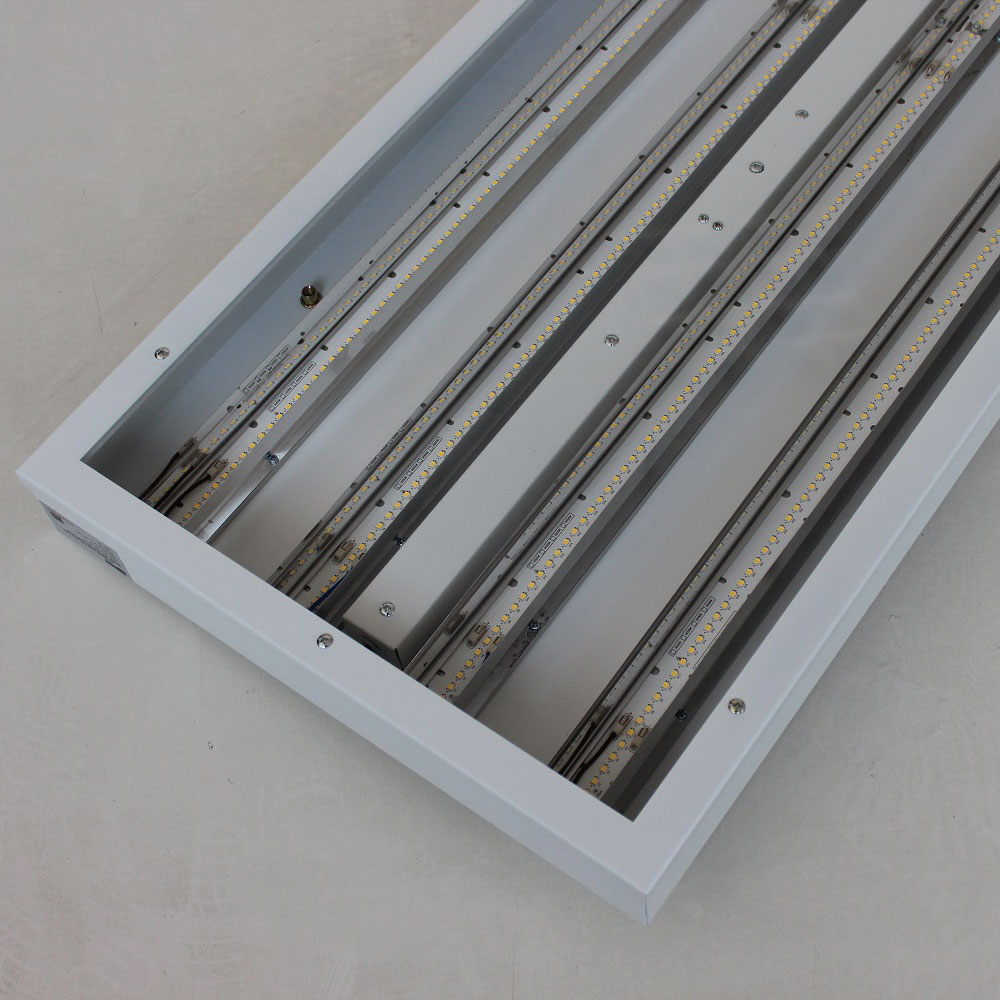

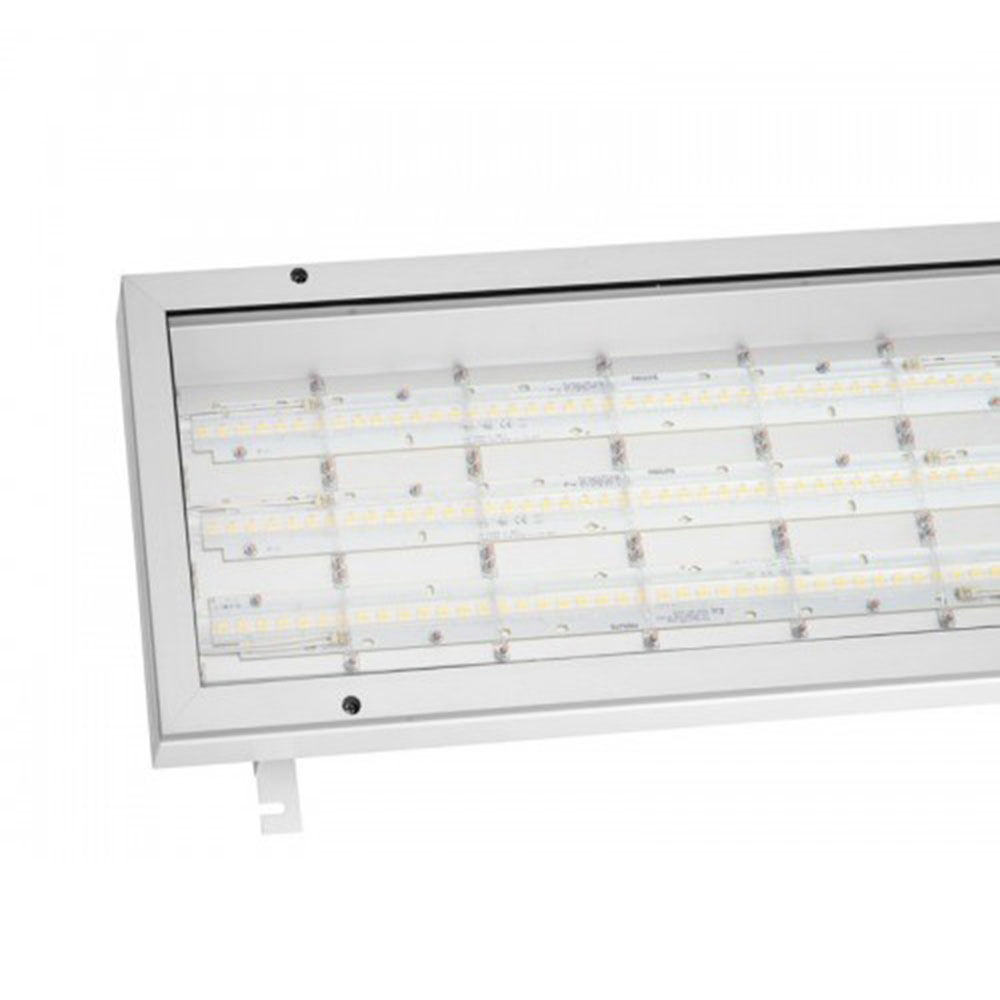

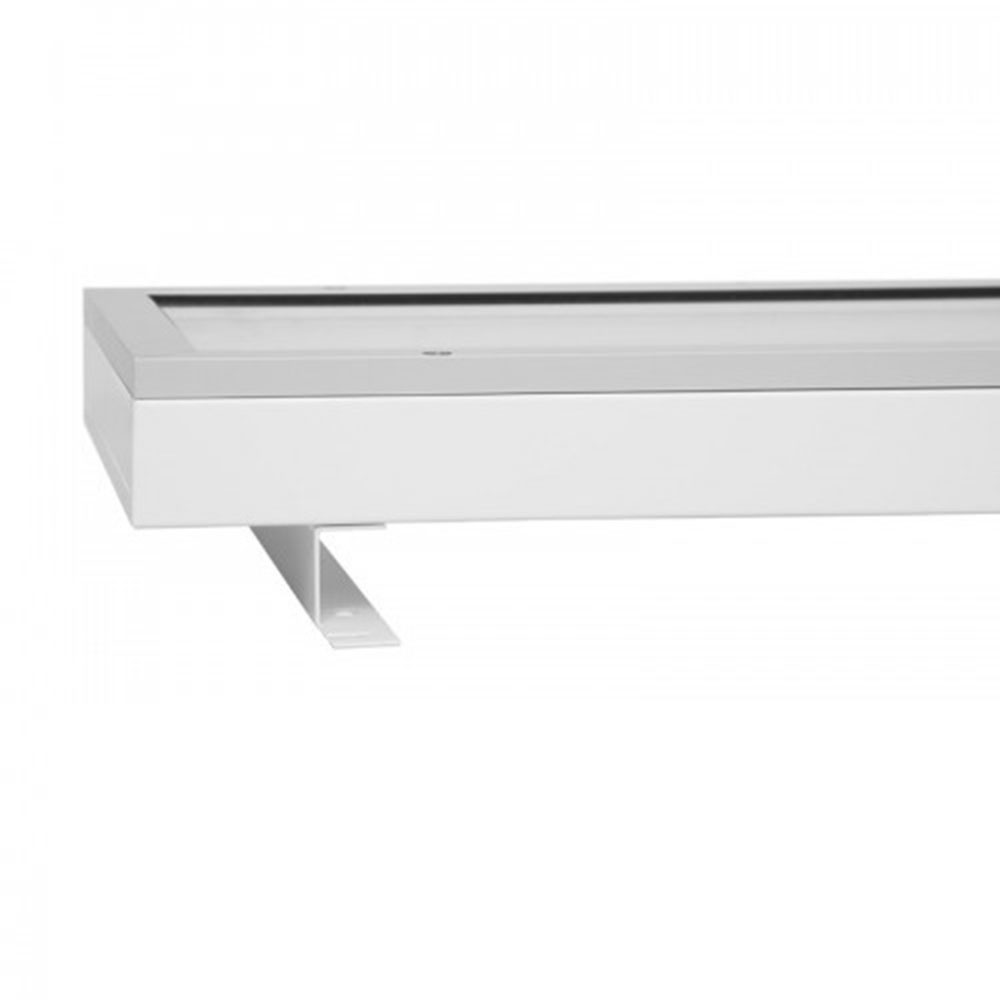

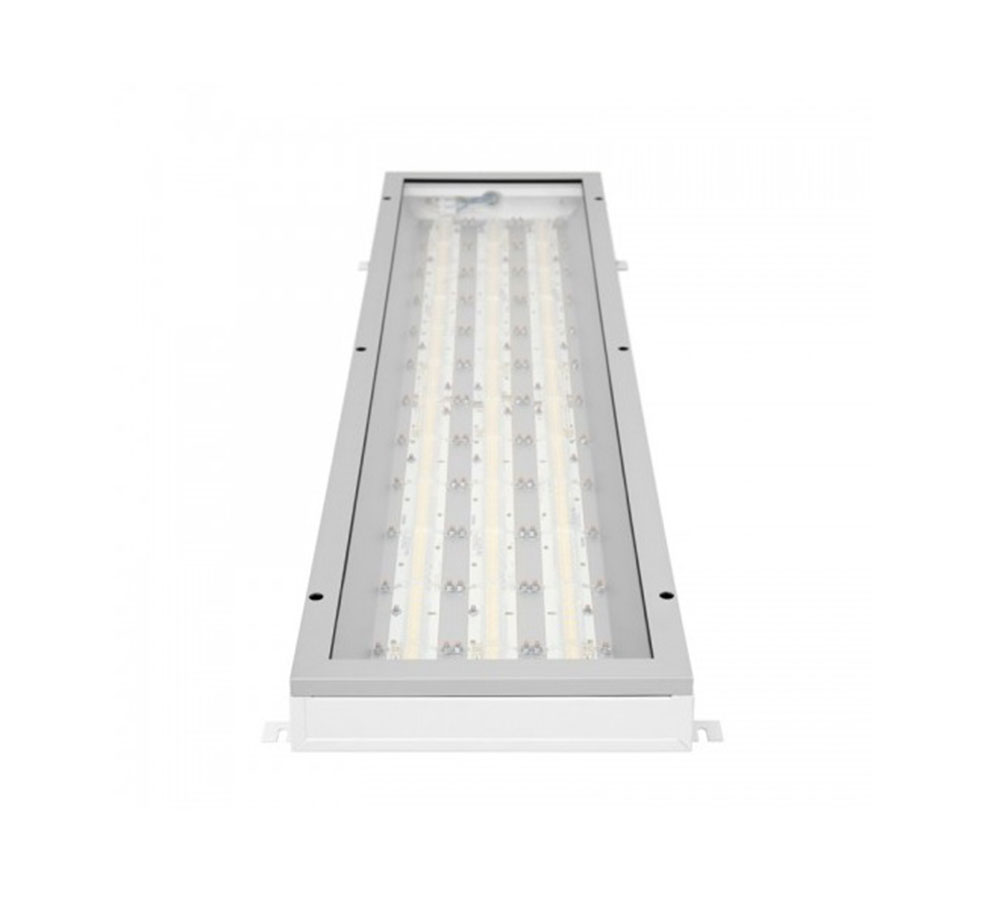

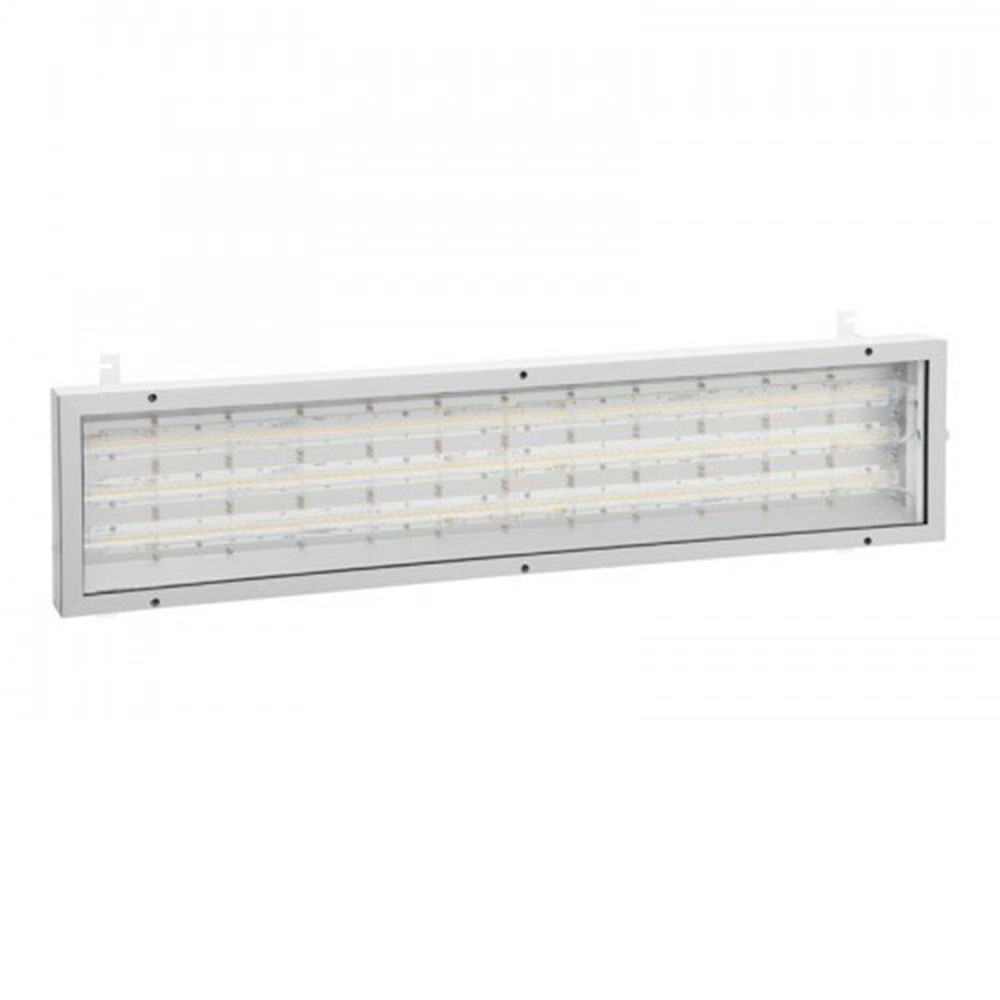

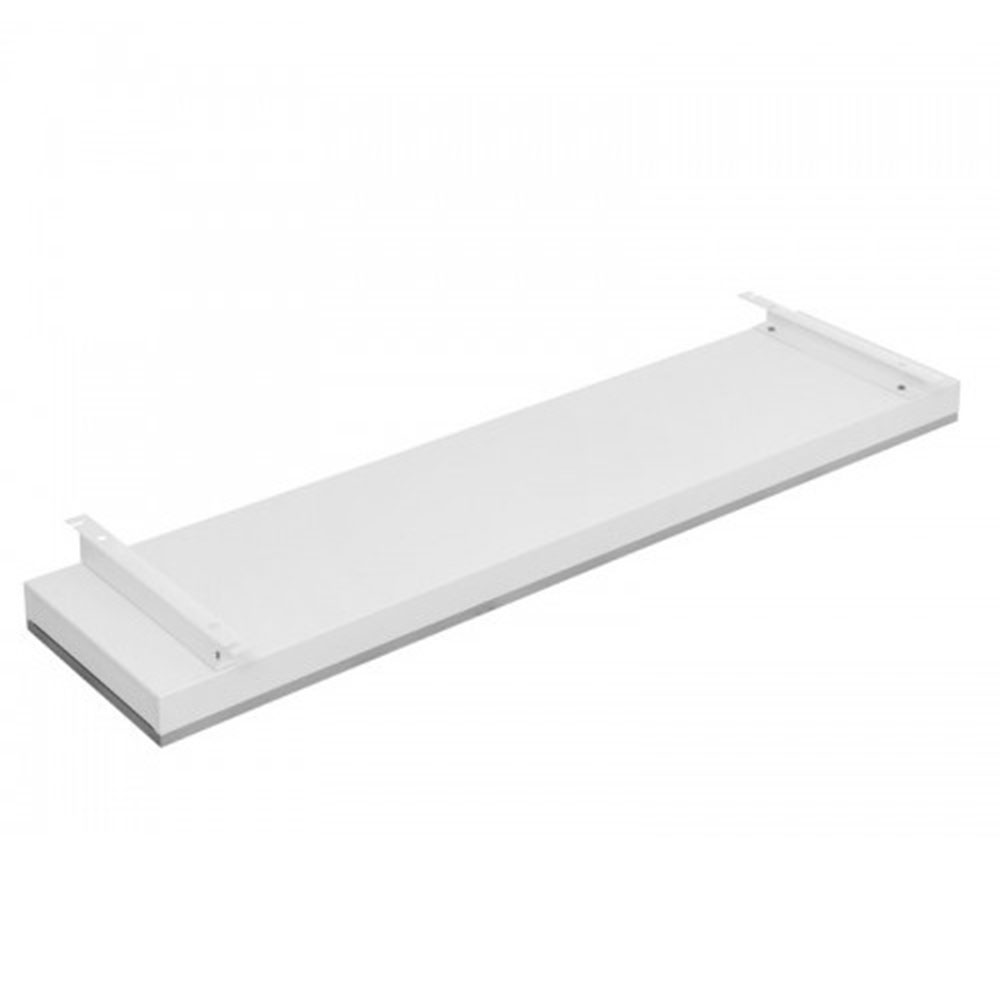

IP65 Skyline Linear High Bay
Industry Lighting
Features
- Input: AC220–240V / AC100–277V, 50–60 Hz
- IP65, IK10
- Luminous Efficiency: 130–140 lm/W
- CRI: 80, CCT: 3000–6000K
- 0–10V / DALI dimming, motion & photocell sensor

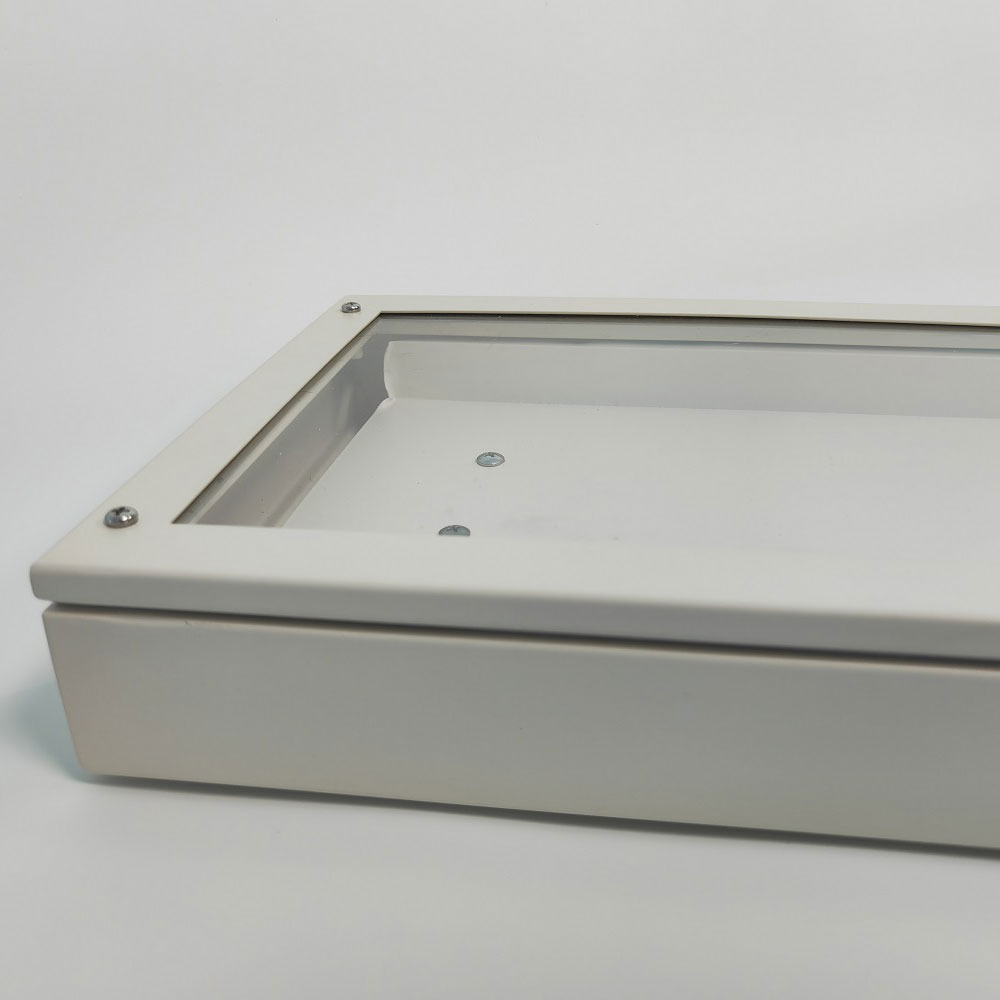

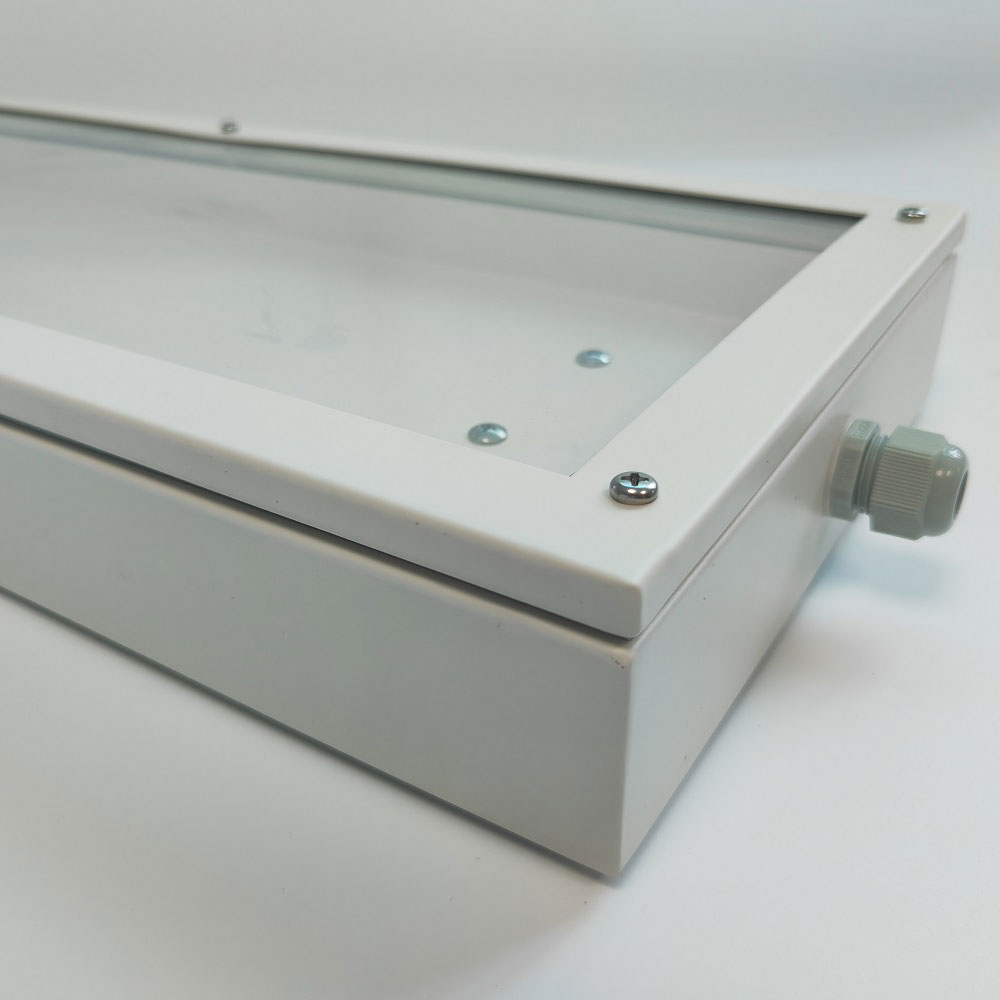

- Housing: powder coated steel, diffuser: PMMA/PC
Technical specifications
| Model | Power (W) | Size (mm) | Luminous Efficiency (lm/W) | Material | Driver | LED Type | CRI (Ra) | Beam Angle | IP Class |
|---|---|---|---|---|---|---|---|---|---|
| LU-PHB-110W | 110 | 606×320×52.5 | 130–140 | Steel | AD Power | Samsung | 80 | 120° | IP65 |
| LU-PHB-165W | 165 | 606×440×52.5 | 130–140 | Steel | AD Power | Samsung | 80 | 120° | IP65 |
| LU-PHB-225W | 225 | 1165×440×52.5 | 130–140 | Steel | AD Power | Samsung | 80 | 120° | IP65 |
